7 - LOIRE SAFE EDIMC HYDR. PRESS 2.000T
Venaria Reale | IT
Starting bid
Current bid
Final bid
€275,000.00
0
Bid
Bids
Highest bidder
Outbid
My last bid: €0.00 (Auto bid)
Share:
Product information
| Brand | LOIRE SAFE |
| Amount | 1 |
| Serial number | 15481 |
| Type | EDIMC 2000 |
| Year | 2004 |
Auctioneer's indicative value is EUR 500.000 - EUR 750.000.

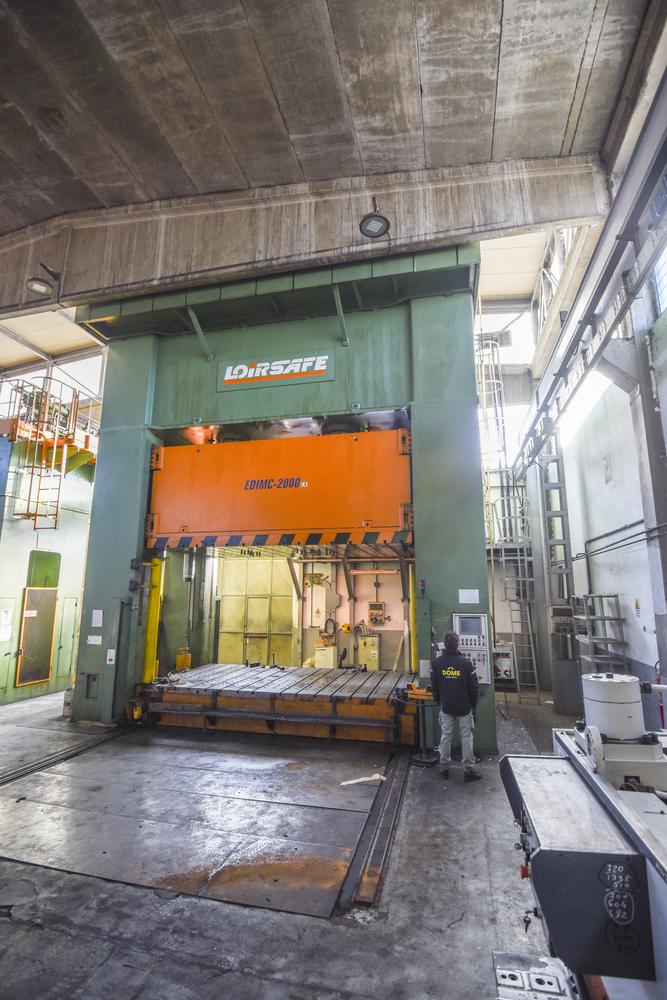

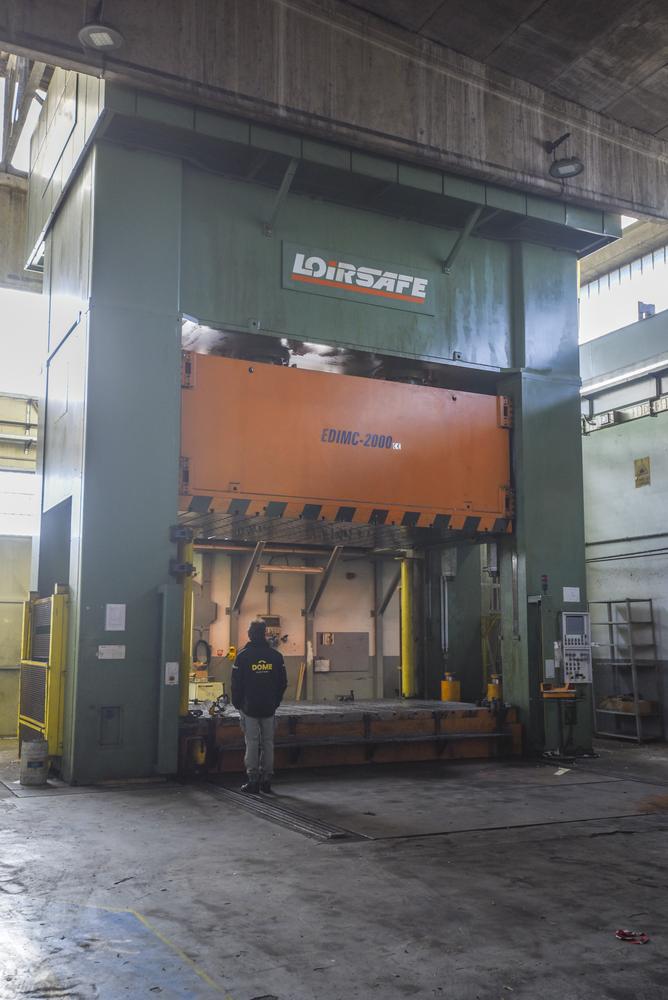

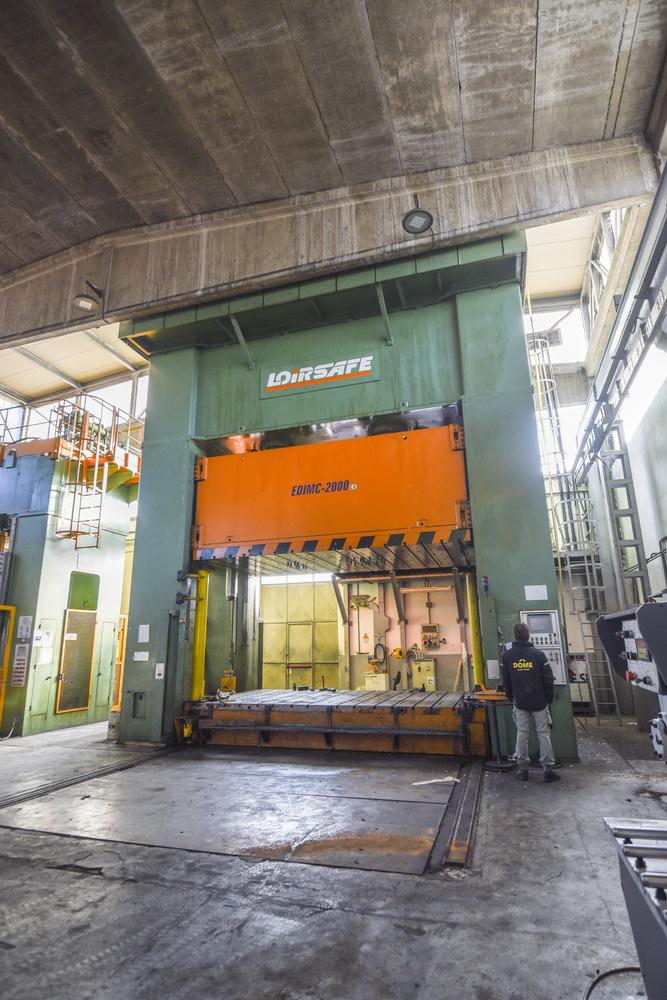

HYDRAULIC PRESS LOIRE SAFE mod. EDIMC 2000
Adjustable maximum slide force Ton 200 to 2.000
No. 04 Cylinders
Net slide return force Ton 130
Maximum workpiece dimensions mm 5.000 x 2.800 x 1.700
Max. workpiece weight kg 60.000
Upper part weight Kg 35.000
Slide stroke mm 1.500
Maximum daylight between work tables mm 2.500
Minimum daylight between work tables mm 1.000
Frontal distance between uprights mm 5.100
Lateral distance between uprights mm 2.000
Front Moving Bolster:
Frontal mm 5.000
Lateral mm 2.800
Table height above zero level mm 650
External stroke mm 4.000
Capacity Ton 60

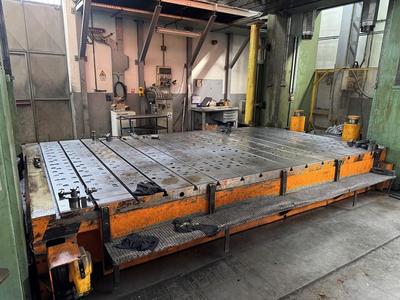

Slide Table:
Dimensions mm 5.000 x 2.800
Number of guides n° 8
Guide height mm 1.800
Lower blankholder cushion (6 cylinders, force 600–6.000 kN)
Upper slide cushion (force 300–3.000 kN)
Candle diameter (40 mm) and pitch (150x150 / 200x200 mm)
Working Speeds:
Minimum mm/s 3
Maximum mm/s 110
Approach mm/sec 400
Return mm/sec 350
Stop time ms 219
Safety distance mm 438
Height above ground mm 9.800
Height of pit min. mm 3.720
Width above ground mm 7.400
Width of pit mm 8.350
Depth mm 3.240
Weight without tools kg 365.000
Important information
Professional dismantling and loading services are available and prices per lot will be shared at request. Main location at Venaria (TO). Sub locations at Torbole (BS) only lots 4, 5, 11-13, 16-20, 23, 24, 28-34, 202-218, 303 and at Genivolta (CR) lots 14 and 15. All lots at sublocations can be inspected by appointment only and are already dismantled, ready for loading. Selected service partner contact details will be shared with all buyers within 48 hours after the sale. Buyers are however also allowed to self-dismantle and collect. All buyers will be informed within 48 hours after the auction closure concerning the deliveries and pick-up schedule date and time in week 22 and 23.
Auctioneer's indicative value is EUR 500.000 - EUR 750.000.
HYDRAULIC PRESS LOIRE SAFE mod. EDIMC 2000
Adjustable maximum slide force Ton 200 to 2.000
No. 04 Cylinders
Net slide return force Ton 130
Maximum workpiece dimensions mm 5.000 x 2.800 x 1.700
Max. workpiece weight kg 60.000
Upper part weight Kg 35.000
Slide stroke mm 1.500
Maximum daylight between work tables mm 2.500
Minimum daylight between work tables mm 1.000
Frontal distance between uprights mm 5.100
Lateral distance between uprights mm 2.000
Front Moving Bolster:
Frontal mm 5.000
Lateral mm 2.800
Table height above zero level mm 650
External stroke mm 4.000
Capacity Ton 60
Slide Table:
Dimensions mm 5.000 x 2.800
Number of guides n° 8
Guide height mm 1.800
Lower blankholder cushion (6 cylinders, force 600–6.000 kN)
Upper slide cushion (force 300–3.000 kN)
Candle diameter (40 mm) and pitch (150x150 / 200x200 mm)
Working Speeds:
Minimum mm/s 3
Maximum mm/s 110
Approach mm/sec 400
Return mm/sec 350
Stop time ms 219
Safety distance mm 438
Height above ground mm 9.800
Height of pit min. mm 3.720
Width above ground mm 7.400
Width of pit mm 8.350
Depth mm 3.240
Weight without tools kg 365.000
