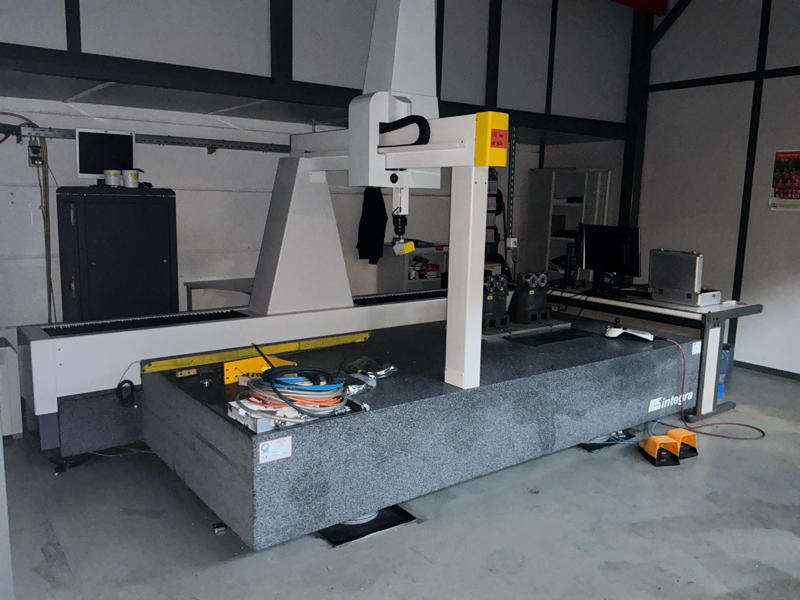

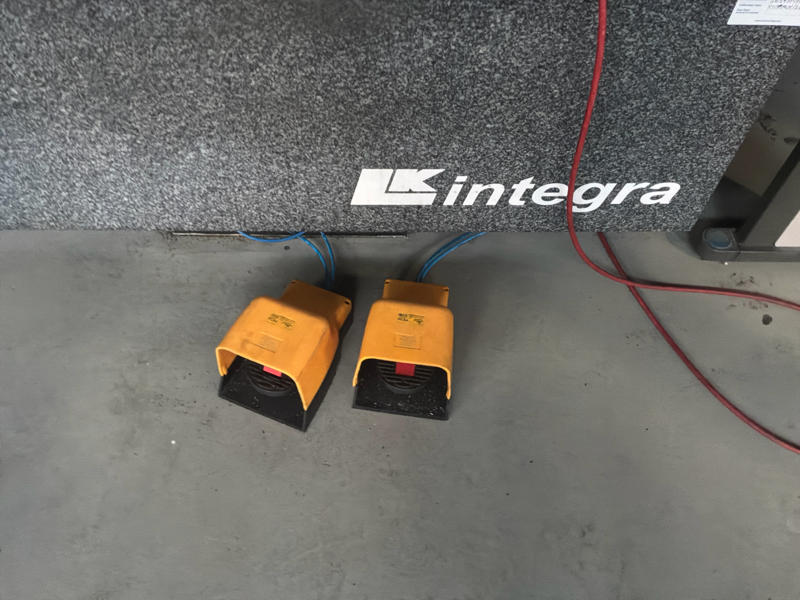

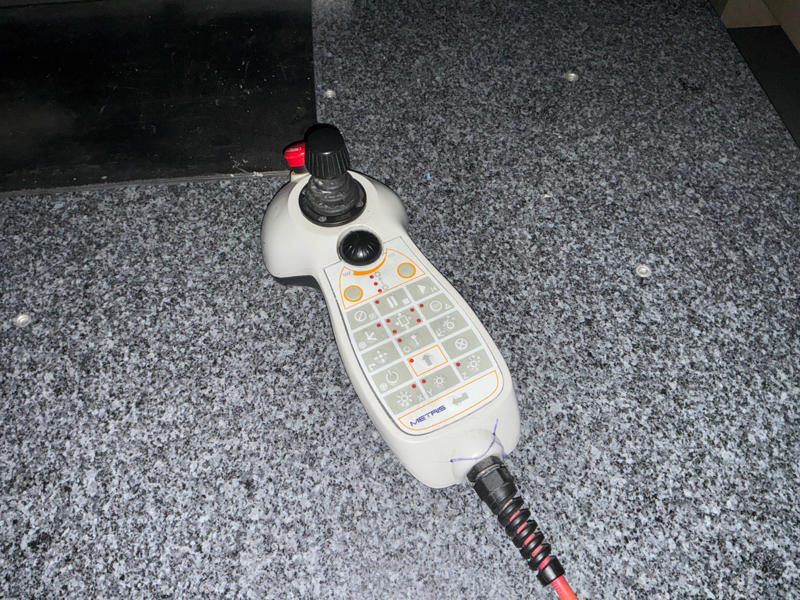

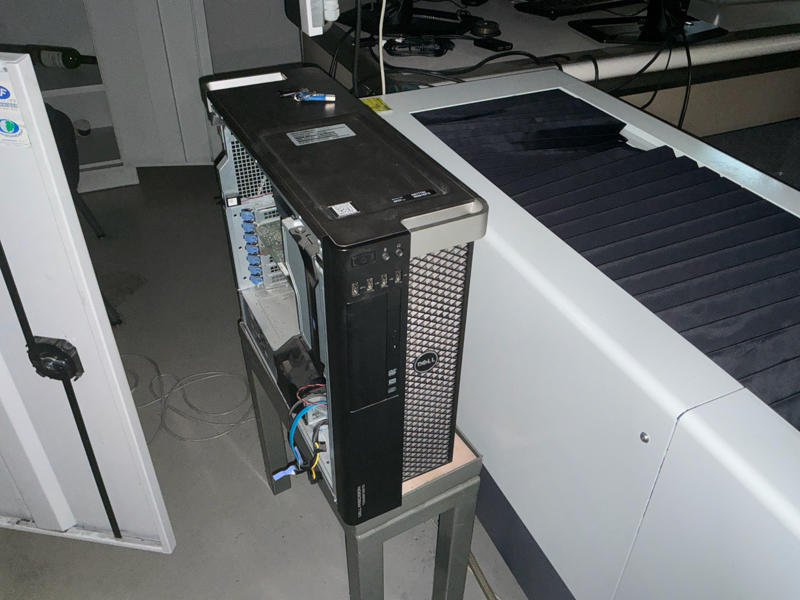

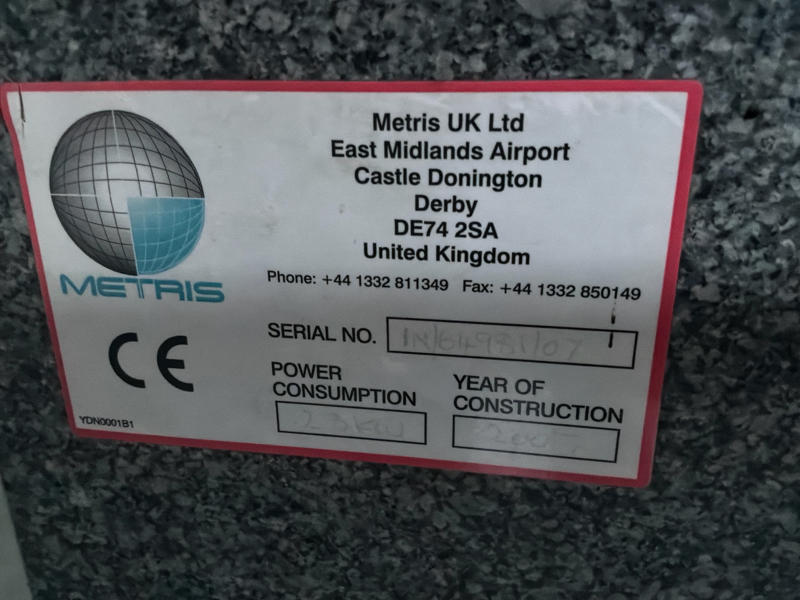

9 - Nikon Integra 25-10-8 vertical coordinate measuring machine

X-axis: 2500 mm
Y axis: 1000 mm
Z-axis: 800 mm
Machine length: 3259 mm
Machine width: 2011 mm
Machine height: 3510 mm
Model: LK V-SL
High-accuracy coordinate measuring machine (HA)
Renishaw control system
Probe head controller: PHC 10-2
Interface selector: 191-2
Probe interface: PI 200
Laser control system: LC60DX
Laser scanner accuracy: 9 µm
Renishaw PH10M motorized indexing measuring head
A-axis rotation: ±180°
B-axis rotation: 0-115°
Indexation step: 7.5°
Total positions: 720
Maximum stylus weight: 300 g
Maximum stylus length: 300 mm
Position repeatability: ±0.4 µm
SCHUNK quick-change clamping system
Model: VERO-S NSE plus 90
Module diameter: 90 mm
Operating pressure: 6 bar
Clamping force: 25,000 N (25 kN)
Material: hardened stainless steel
Operation: pneumatic actuation with mechanical self-locking
Positioning accuracy: ≤ 0.005 mm
Last calibration: 19-09-2024

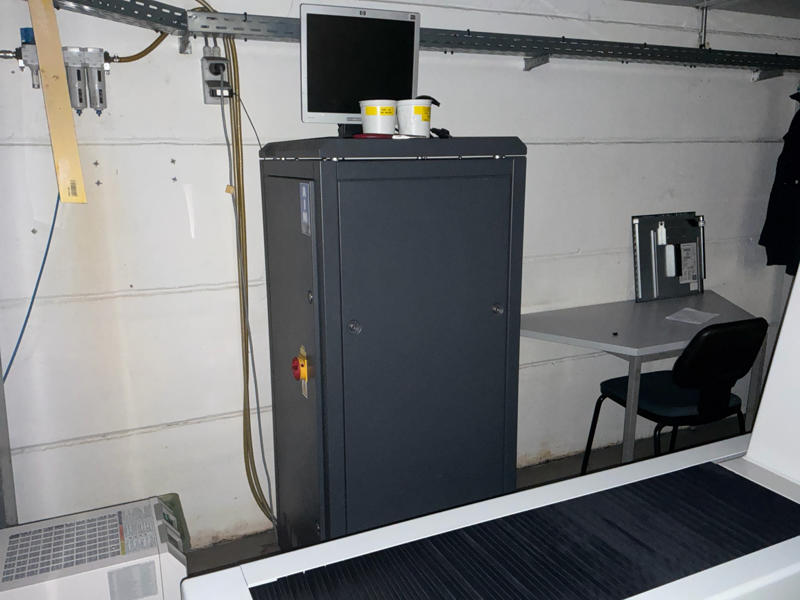

Renishaw control system:
Probe head controller: PHC 10-2
Interface selector 191-2
Probe interface PI 200
TP 200 Renishaw probe

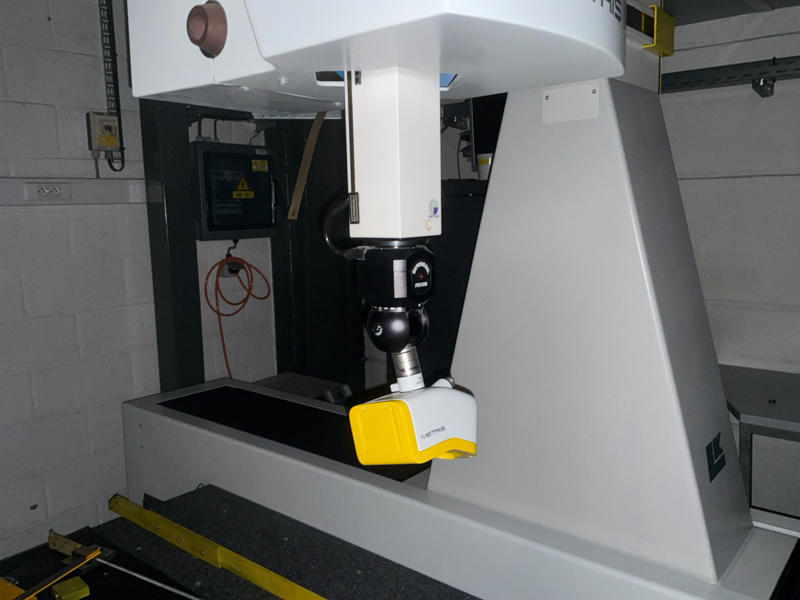

Laser control system.

LC60DX
The LC60Dx is designed for high-speed, medium-range 3D laser scanning on coordinate measuring machines (CMMs).
It offers excellent performance when scanning large parts, such as molds, car panels or structural components, with accuracies of up to 9 microns.

Renishaw PH10M - Motorized indexing measuring head
Rotational axes:
A-axis: ±180°
B-axis: 0-115°
Indexing step: 7.5°
→ giving a total of 720 positive positives
Interface:
Autojoint/M8 connector (compatible with modular test systems such as Renishaw TP200, SP25M or Nikon/Metris laser scanners)
Maximum stylus weight: approx. 300gr
Maximum stylus length: up to 300 mm
Position repeatability: ±0.4 µm (0.0004 mm)

Applications:
Measurement of parts with complex shapes (turbine blades, molds, housings, etc.).
Used with probes such as Renishaw SP25M, TP200 or Nikon/Metris LC15Dx
Compatible with most CMM brands (DEA, Hexagon, Mitutoyo, Wenzel, LK, etc.)

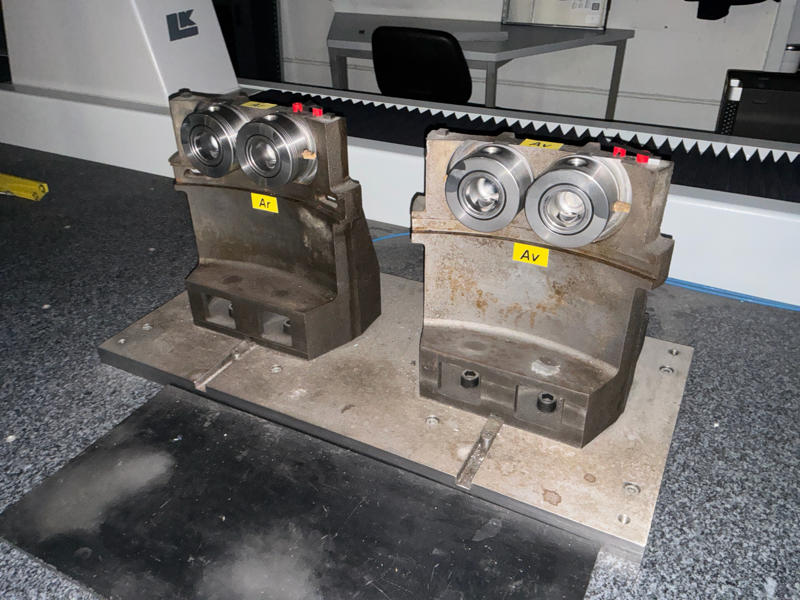

SCHUNK - quick-change clamping system for use on CNC machines.
It is intended for securing pallets, clamping workpieces on the machine table with very high positioning accuracy (up to 0.005 mm).
Manufacturer: SCHUNK (Germany)
Model: VERO-S NSE plus 90
Type: Quick-change clamping module
Module diameter: 90 mm
Operating pressure: 6 bar
Clamping force: up to 25,000 N (25 kN)
Material: hardened stainless steel
Operation: Pneumatic operation with mechanical self-locking
Positioning accuracy: ≤ 0.005 mm
