114 - Emlid Reach RS2 surveying and mapping
Nyköping (1 hour from Stockholm) | SE
Starting bid
Current bid
Final bid
€100.00
0
Bid
Bids
Highest bidder
Outbid
My last bid: €0.00 (Auto bid)
Share:
Product information

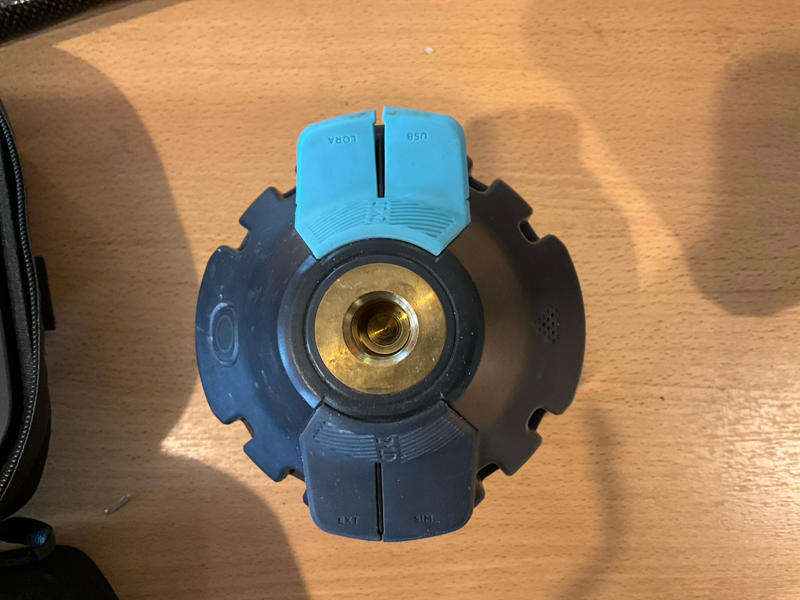

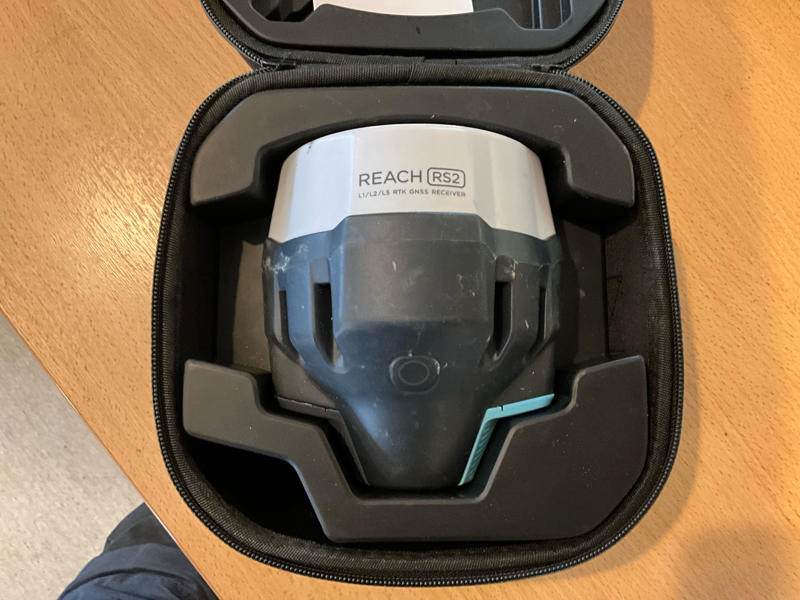

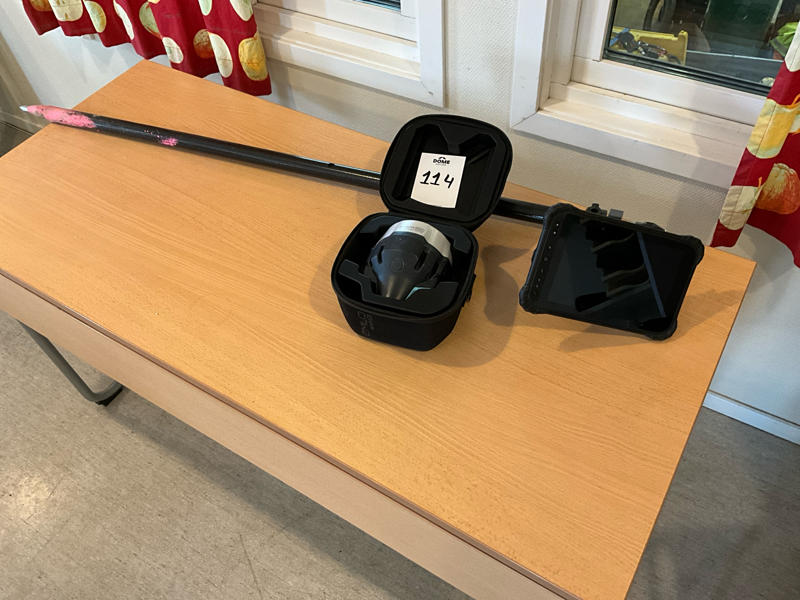

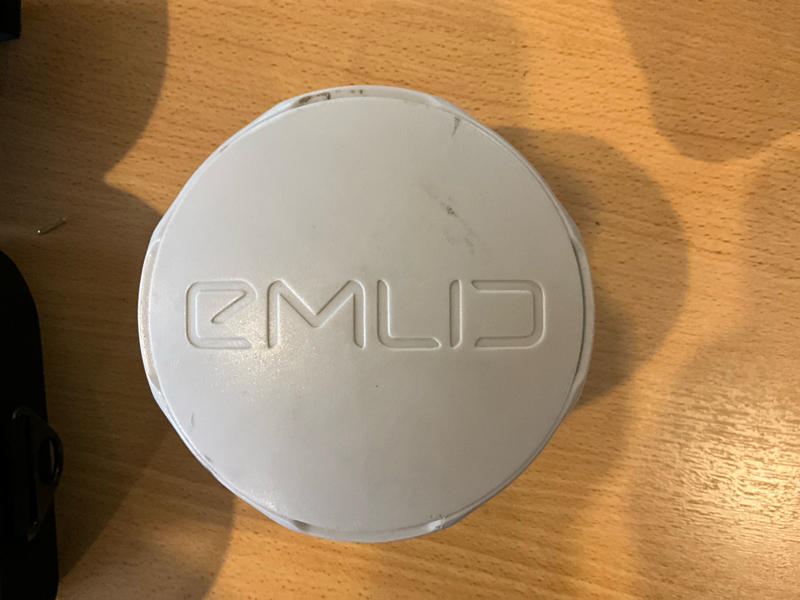

| Brand | Emlid Reach |
| Amount | 1 |
| Buy amount | 1 |
| Type | RS2 |
The Emlid Reach RS2/RS2+ is a multi-band RTK GNSS receiver offering centimeter-level accuracy for surveying and mapping. Key features include 184 channels tracking all GNSS constellations, 16+ hours battery life, 16GB internal storage, and LTE connectivity (on RS2+), with IP67 water/dust protection
Positioning Accuracy (RTK/PPK)
Static: Horizontal:
Static: Horizontal: 4mm+05ppm, Vertical: 8mm+1pp
PPK: Horizontal: 5mm+0.5ppm, Vertical: 10mm+1ppm
RTK: Horizontal: 7mm+1ppm, Vertical: 14mm+1ppm.
Convergence Time: Typically ~5s.
GNSS & Data
Signals: GPS/QZSS L1C/A, L2C; GLONASS L1OF, L2OF; BeiDou B1I, B2I; Galileo E1-B/C, E5b.
Update Rates: Up to 10 Hz.
Logging: RINEX 2.X, 3.X, 160+ days at 1 Hz.
Connectivity & Interfaces
LTE Modem (RS2+): Global LTE, 3G, 2G connectivity.
LoRa Radio: 868/915 MHz, Up to 8 km range.
Communication: Wi-Fi, Bluetooth 4.0/2.1 EDR, RS-232, USB Type-C.
Protocols: NTRIP, RTCM3 (input/output), NMEA, LLH/XYZ
Battery: LiFePO4 6400 mAh, 6.4 V.
Autonomy: 16 hrs (LTE RTK rover), 22 hrs (logging).
Dimensions/Weight: 126 x 126 x 142 mm / 950 g.
Ingress Protection: IP67 (water/dustproof).
Temperature: -20 to +65 °C.
The Emlid Reach RS2/RS2+ is a multi-band RTK GNSS receiver offering centimeter-level accuracy for surveying and mapping. Key features include 184 channels tracking all GNSS constellations, 16+ hours battery life, 16GB internal storage, and LTE connectivity (on RS2+), with IP67 water/dust protection
Positioning Accuracy (RTK/PPK)
Static: Horizontal:
Static: Horizontal: 4mm+05ppm, Vertical: 8mm+1pp
PPK: Horizontal: 5mm+0.5ppm, Vertical: 10mm+1ppm
RTK: Horizontal: 7mm+1ppm, Vertical: 14mm+1ppm.
Convergence Time: Typically ~5s.
GNSS & Data
Signals: GPS/QZSS L1C/A, L2C; GLONASS L1OF, L2OF; BeiDou B1I, B2I; Galileo E1-B/C, E5b.
Update Rates: Up to 10 Hz.
Logging: RINEX 2.X, 3.X, 160+ days at 1 Hz.
Connectivity & Interfaces
LTE Modem (RS2+): Global LTE, 3G, 2G connectivity.
LoRa Radio: 868/915 MHz, Up to 8 km range.
Communication: Wi-Fi, Bluetooth 4.0/2.1 EDR, RS-232, USB Type-C.
Protocols: NTRIP, RTCM3 (input/output), NMEA, LLH/XYZ
Battery: LiFePO4 6400 mAh, 6.4 V.
Autonomy: 16 hrs (LTE RTK rover), 22 hrs (logging).
Dimensions/Weight: 126 x 126 x 142 mm / 950 g.
Ingress Protection: IP67 (water/dustproof).
Temperature: -20 to +65 °C.
