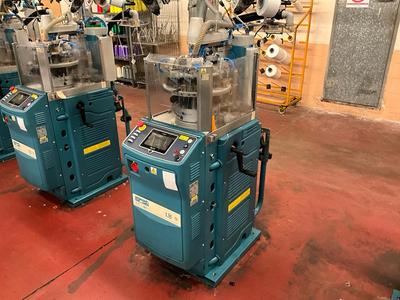

4 - 2017 Lonati LB04E7 circular knitting machine
Villafranca (Castellón) | Spain
Weaving and Knitting - Various Weaving and Knitting
€2,500.00
445 - 2011 Textechno Statimat-M professional laboratory tensile testing device
Kruisem | BE
Starting bid
Current bid
Final bid
€500.00
0
Bid
Bids
Highest bidder
Outbid
My last bid: €0.00 (Auto bid)
Share:
Product information
| Brand | Textechno |
| Amount | 1 |
| Buy amount | 1 |
| Serial number | 31 202 |
| Type | Statimat-M |
| Year | 2011 |
Connection: 230 volt
Measuring range: approximately 0-100 N / 0-1000 N
Manual and electrical diagrams available
Subtraction speed of the clamp
from 3 to 5,000 mm/min
Measuring length: adjustable in steps of 1 mm, min. 60 mm
Yarn clamps for automatic operation
Clamping surface: approx. 10 mm wide, 46 mm long
Clamping pressure: at 5 bar 2000 N, max. 8 bar = 3200 N, min. 3 bar = 1200 N)
Suction: max. vacuum at nozzle 120 mbar
Process control and data collection
Textechno bus with Z80 processor
Force measurement system: Carrier bridge with inductive force sensors
Force sensors: 10 N, 100 N, 1000 N, other ranges as an option
All force sensors can be overloaded up to 1.99 times their rated range
Force measurement accuracy: ±1% at 20 percent of the force sensor's nominal range,
machine class 1 (ISO 7500µ, EN 10002-2)
Strain measurement system: electronic displacement measurement of the clamp via incremental transducer, resolution 40 µm
Connection: 230 volt
Measuring range: approximately 0-100 N / 0-1000 N
Manual and electrical diagrams available
Subtraction speed of the clamp
from 3 to 5,000 mm/min
Measuring length: adjustable in steps of 1 mm, min. 60 mm
Yarn clamps for automatic operation
Clamping surface: approx. 10 mm wide, 46 mm long
Clamping pressure: at 5 bar 2000 N, max. 8 bar = 3200 N, min. 3 bar = 1200 N)
Suction: max. vacuum at nozzle 120 mbar
Process control and data collection
Textechno bus with Z80 processor
Force measurement system: Carrier bridge with inductive force sensors
Force sensors: 10 N, 100 N, 1000 N, other ranges as an option
All force sensors can be overloaded up to 1.99 times their rated range
Force measurement accuracy: ±1% at 20 percent of the force sensor's nominal range,
machine class 1 (ISO 7500µ, EN 10002-2)
Strain measurement system: electronic displacement measurement of the clamp via incremental transducer, resolution 40 µm
