13 - Mario Carnaghi TGF 5 1300 Carousel lathe

Herstal | BE
0 Bid Bids Highest bidder Outbid

My last bid: €0.00 (Auto bid)

Share:

Product information

Brand Mario Carnaghi
Amount 1
Buy amount 1
Type TGF 5 1300
Year 1999

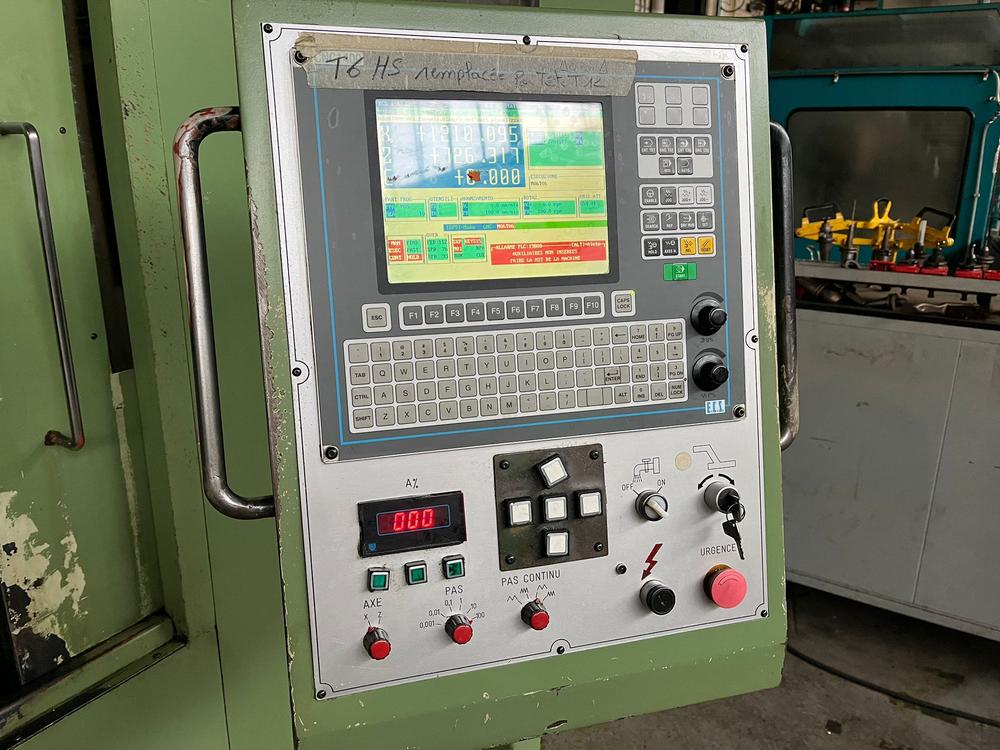

Conventional and CNC
Hydraulic group, material trolley with attachments

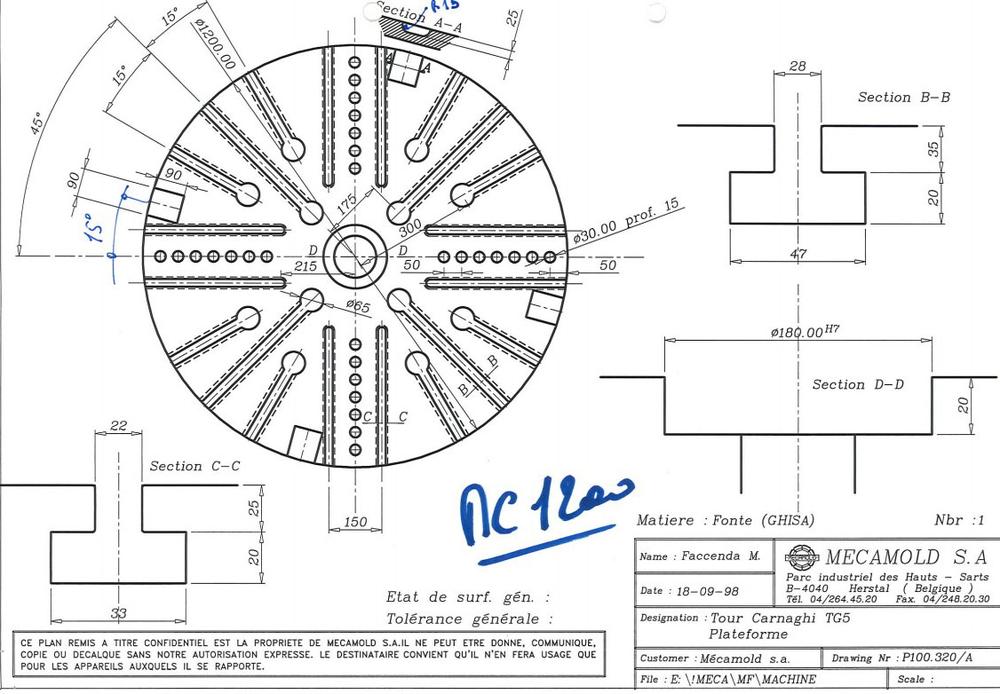

Chuck diameter: 1200 mm
Max turning diameter: 1400 mm
Power on main spindle: 60 kW
X axis: 2700 mm
Z-axis: 750 mm
Speeds: 2-430 rpm - max 450 Nm
Required power supply: 3 x 380 V
Weight: 1700 kg
Tool change holder: yes
Number of tools: 24
Cooling installation: yes
Lighting: yes
5000 kg maximum on table
KM 50 tools
Includes various tools, , mobile workshop cabinet with contents, spare parts, manuals

Additional information

For this auction, 2 viewing days will be organized: 1 public on 23/02/2026 from 9am to 4pm. The other is by appointment for the machines, you can make that appointment via info-be@dome-auctions.com . The exact date will be communicated at the time of the appointment. After the auction closes, a disassembly price will be proposed for each lot. Pickup will be via a pickup plan, which will be communicated after the auction closes.

Conventional and CNC
Hydraulic group, material trolley with attachments
Chuck diameter: 1200 mm
Max turning diameter: 1400 mm
Power on main spindle: 60 kW
X axis: 2700 mm
Z-axis: 750 mm
Speeds: 2-430 rpm - max 450 Nm
Required power supply: 3 x 380 V
Weight: 1700 kg
Tool change holder: yes
Number of tools: 24
Cooling installation: yes
Lighting: yes
5000 kg maximum on table
KM 50 tools
Includes various tools, , mobile workshop cabinet with contents, spare parts, manuals

Viewing days

Viewing day by appointment on
: -

Rue de Hermée 195
4040 Herstal (Belgium)

: -

Rue de Hermée 195
4040 Herstal (Belgium)

: -

Rue de Hermée 195
4040 Herstal (Belgium)

Pick-up days

Pickup according to schedule (information to follow after auction)

Rue de Hermée 195
4040 Herstal (Belgium)
