11 - NILES N50UC MULTITASKING CNC LATHES
Venaria Reale | IT
Starting bid
Current bid
Final bid
€75,000.00
0
Bid
Bids
Highest bidder
Outbid
My last bid: €0.00 (Auto bid)
Share:
Product information
| Brand | NILES |
| Amount | 1 |
| Serial number | 42.11 |
| Type | N50UC |
Auctioneer's indicative value: EUR 125.000 - EUR 200.000
MULTITASKING

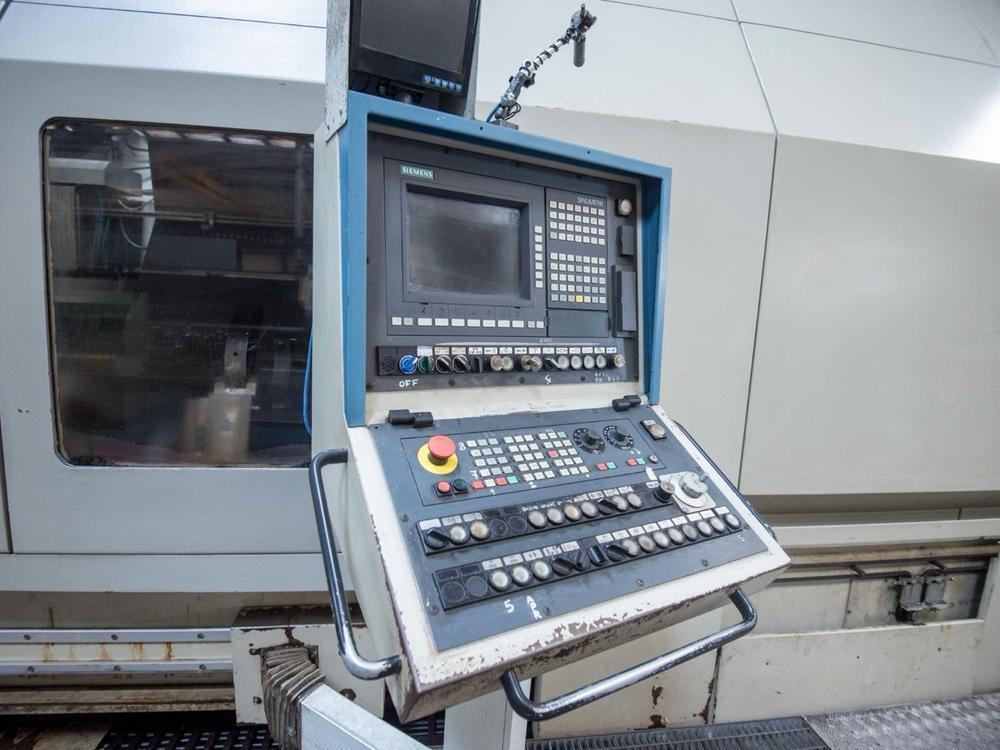

Siemens 840 CNC
Diameter on the bench 940 mm
Turning diameter over the entire length 900 mm
Distance between centers 5200 mm
AXIS TRAVEL:
X1 mm 520 (tool1 +12 +532 // tool2 -25 +495)
X2 mm 671 (+19 +690)
Z mm 5185 ( +115 +5300)
Y mm 350 (-155 +195)
W mm 5075 (+110 +5175)
Tilting milling head + - 90°
Torque 3000 Nm
Axial force 60 Kn
Turning head

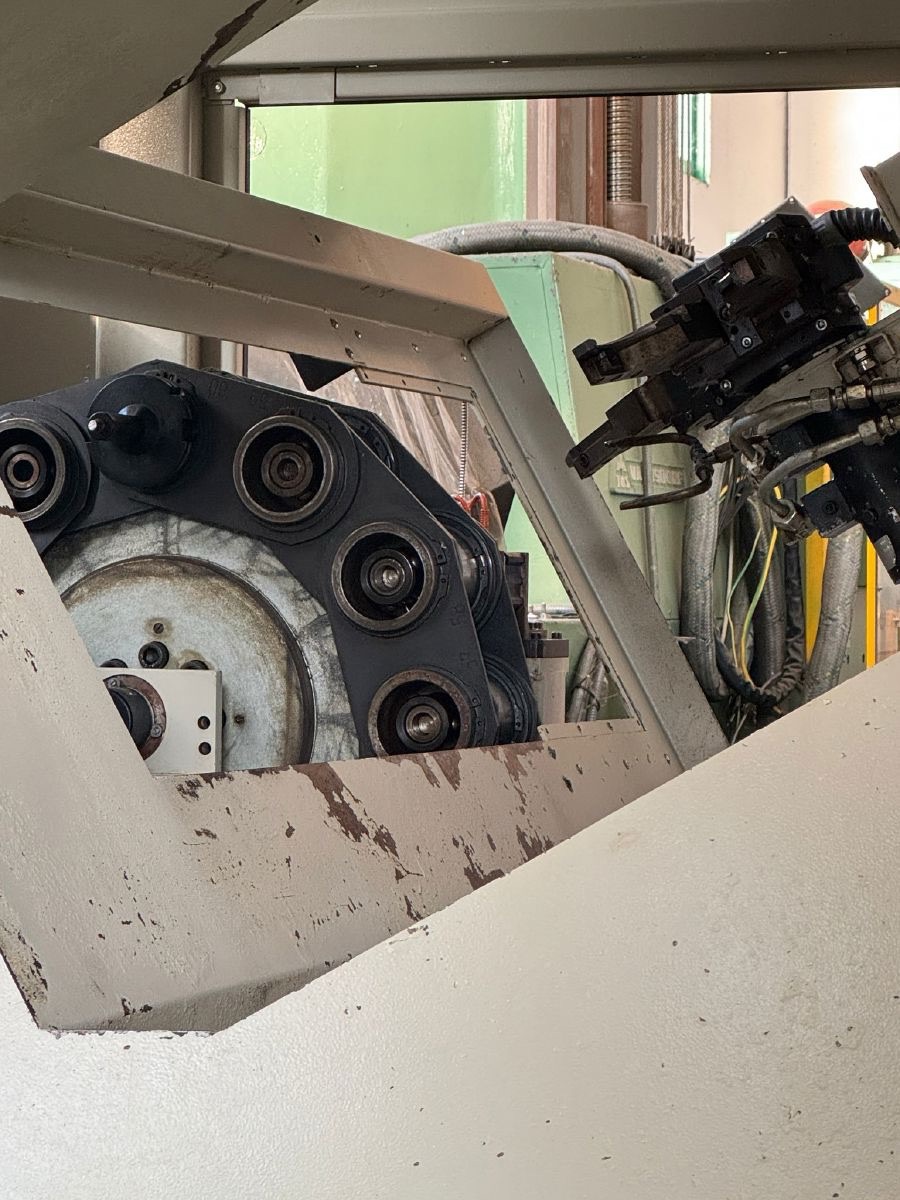

Chain tool change 48-place HSK 100°
Spindle taper ASA 15
Bar passaging 204 mm
Tailstock CM6
Tailstock diameter 195 mm
Tailstock stroke 285 mm
Automatic rest Autoblock 50-450
Chip conveyor
Dimensions: 10820 x 3381 x 3600 mm
Weight 39.000 kg
Important information
All buyers will be informed within 48 hours after the auction closure about their actual pick-up day being in week 18 &19.
Auctioneer's indicative value: EUR 125.000 - EUR 200.000
MULTITASKING
Siemens 840 CNC
Diameter on the bench 940 mm
Turning diameter over the entire length 900 mm
Distance between centers 5200 mm
AXIS TRAVEL:
X1 mm 520 (tool1 +12 +532 // tool2 -25 +495)
X2 mm 671 (+19 +690)
Z mm 5185 ( +115 +5300)
Y mm 350 (-155 +195)
W mm 5075 (+110 +5175)
Tilting milling head + - 90°
Torque 3000 Nm
Axial force 60 Kn
Turning head
Chain tool change 48-place HSK 100°
Spindle taper ASA 15
Bar passaging 204 mm
Tailstock CM6
Tailstock diameter 195 mm
Tailstock stroke 285 mm
Automatic rest Autoblock 50-450
Chip conveyor
Dimensions: 10820 x 3381 x 3600 mm
Weight 39.000 kg
