Product information

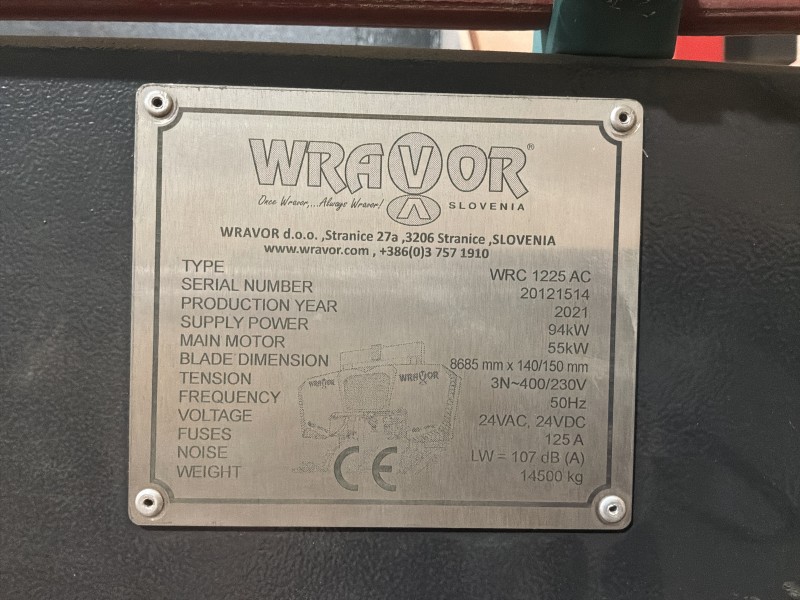

| Brand | Wravor |
| Amount | 1 |
| Buy amount | 1 |
| Serial number | 20121514 |
| Type | WRC 1250 AC + Log Deck |
| Year | 2021 |
Capacity: max. 55 m³/h
Max. log diameter: 1,250 mm (width), 1,090 mm (height)
Max. log length: 8,000 mm

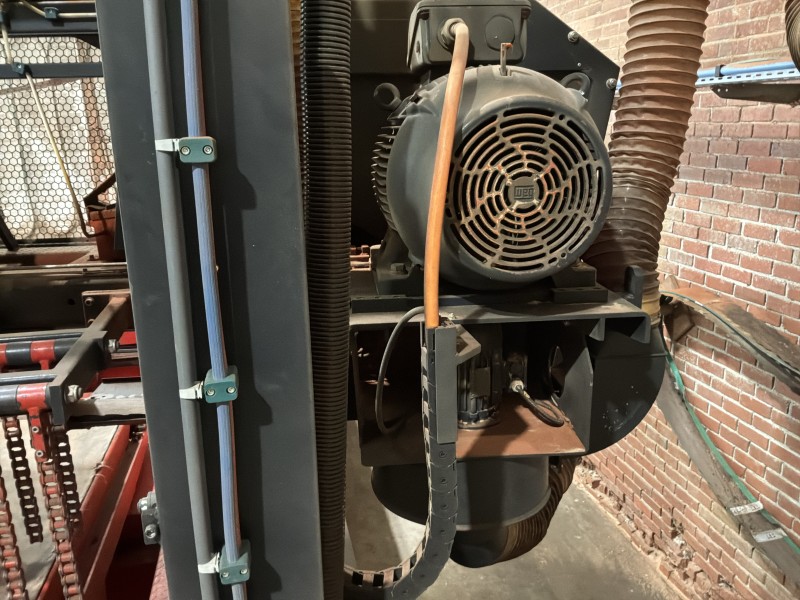

Motor power: 55 kW

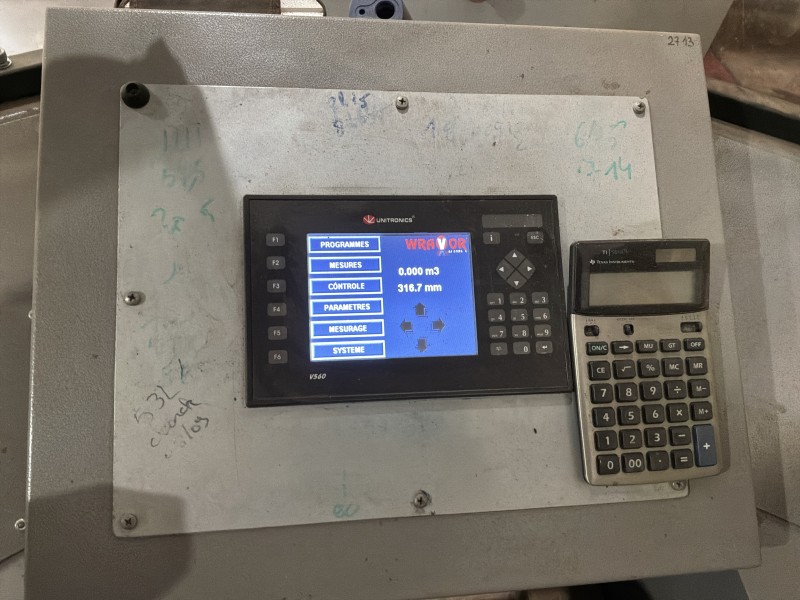

Control system: PLC V560
Consisting of:

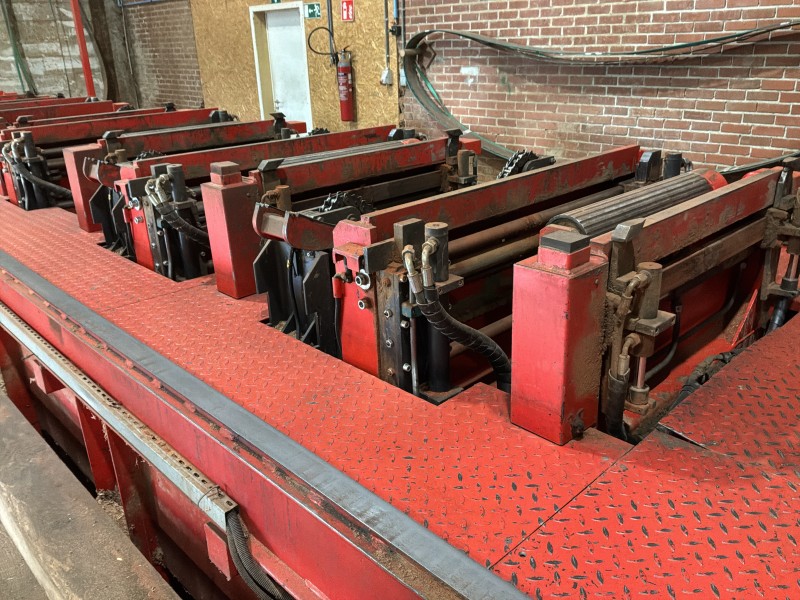

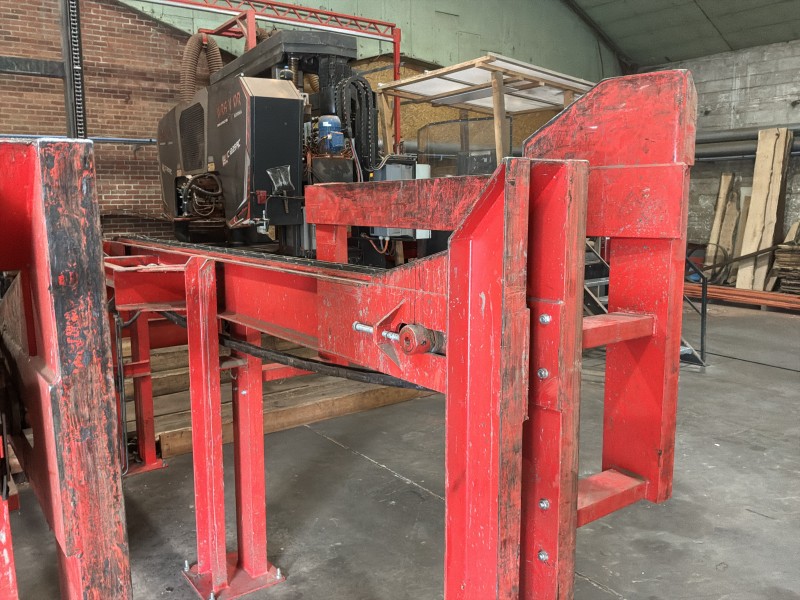

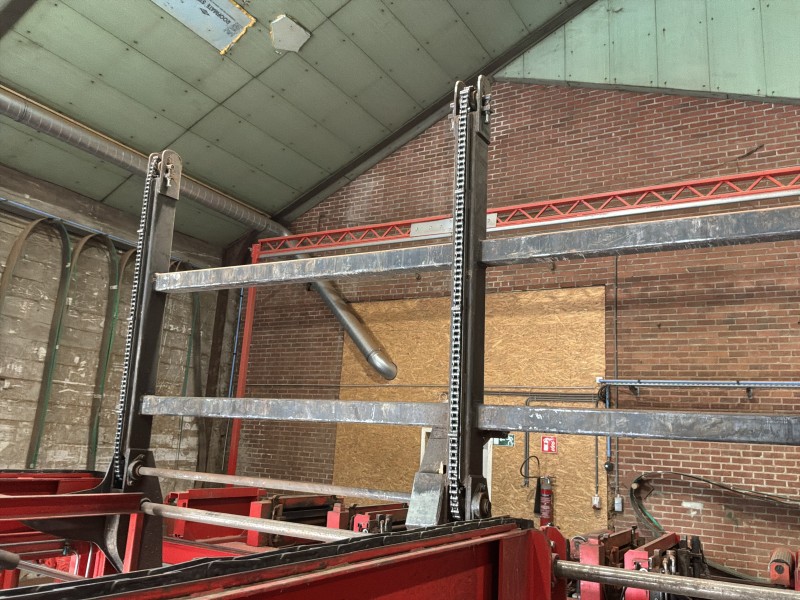

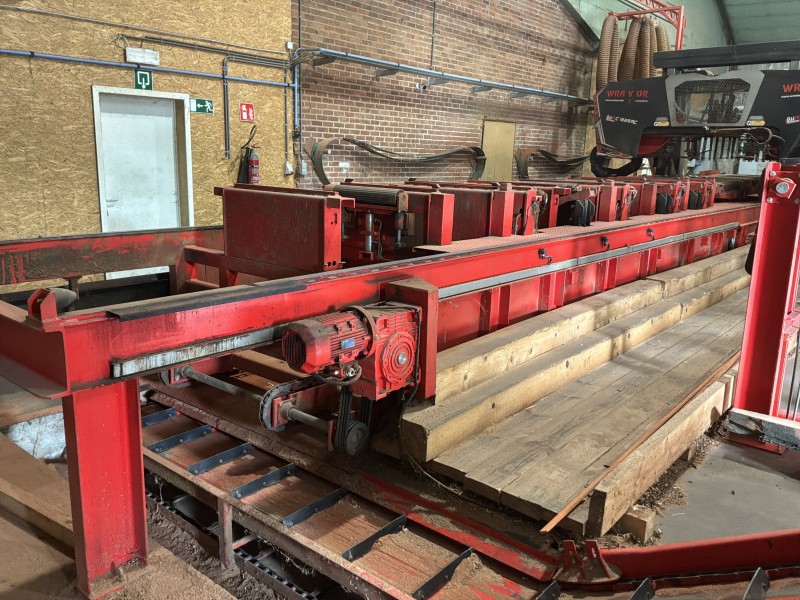

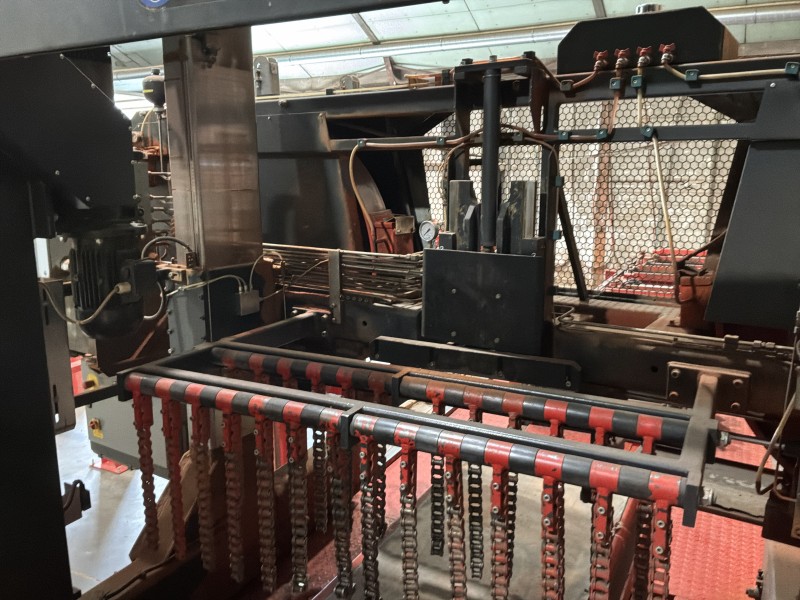

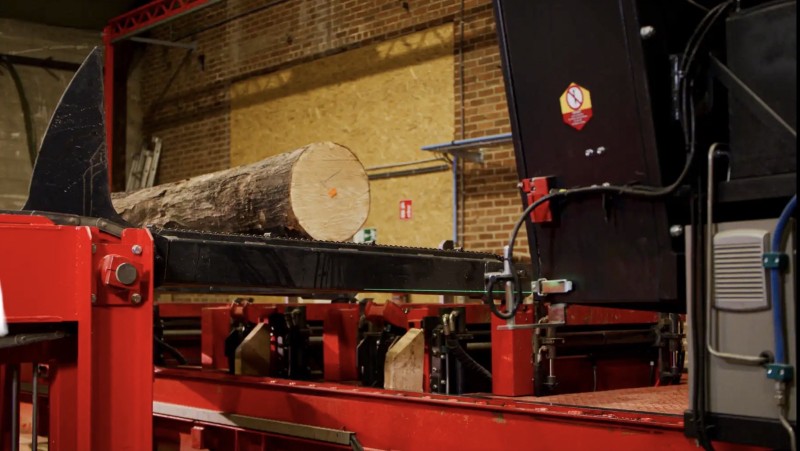

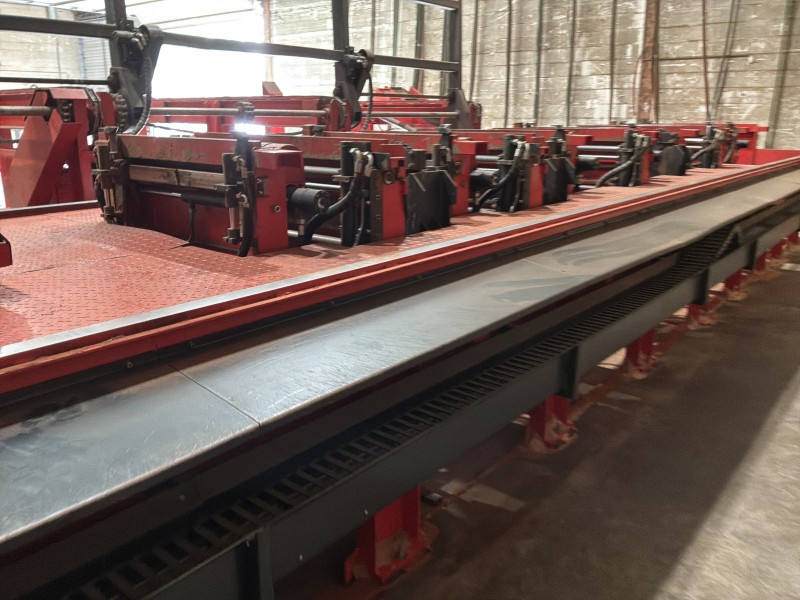

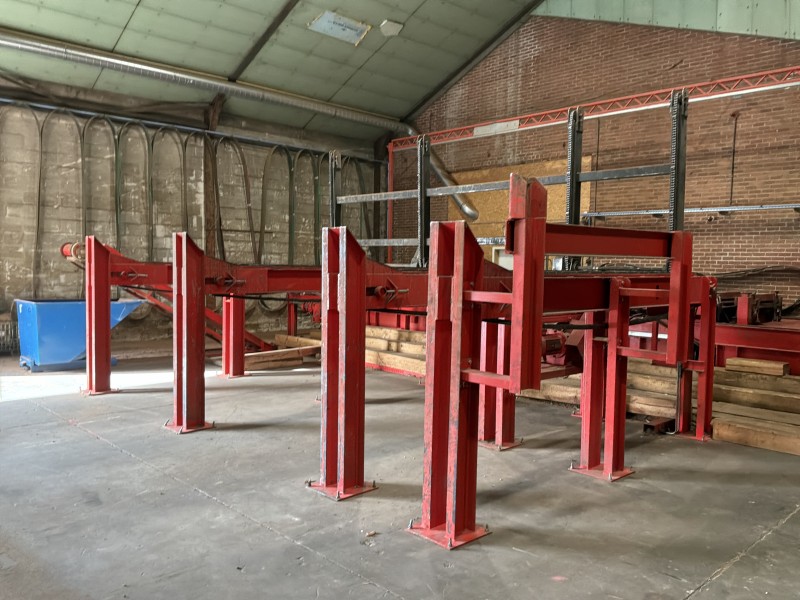

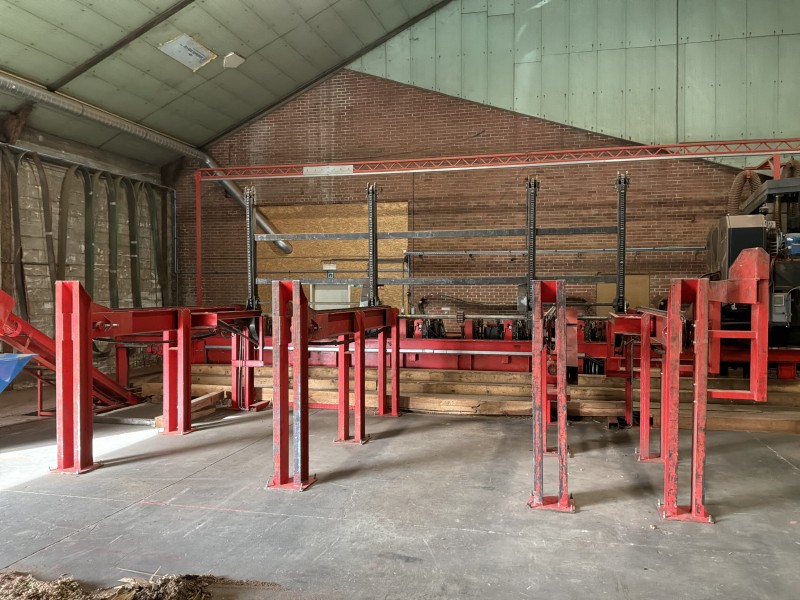

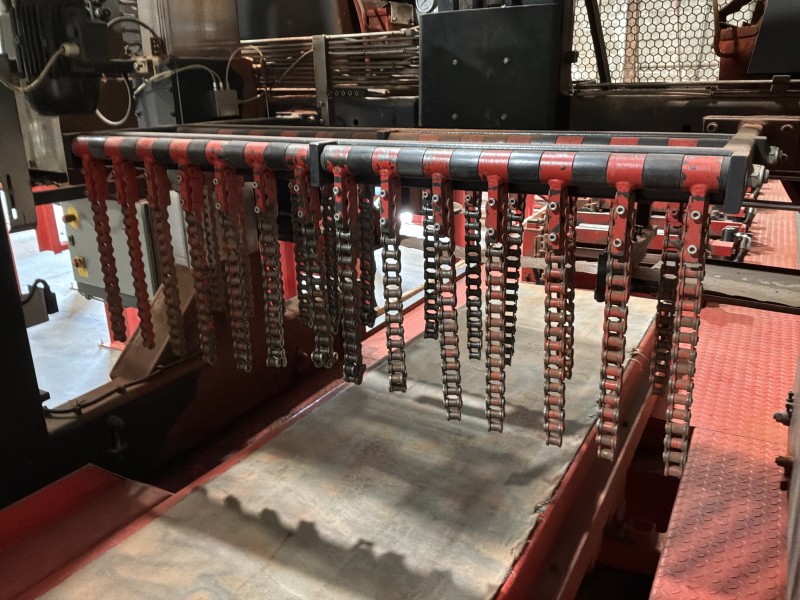

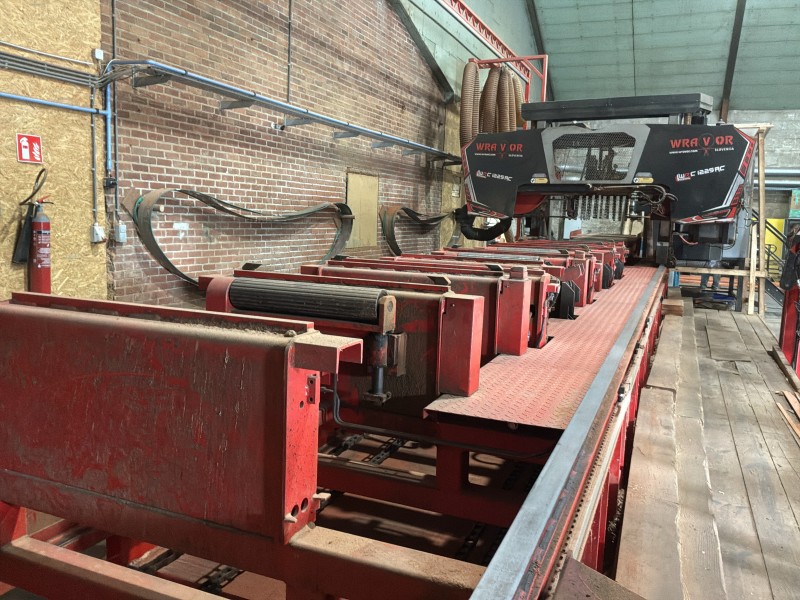

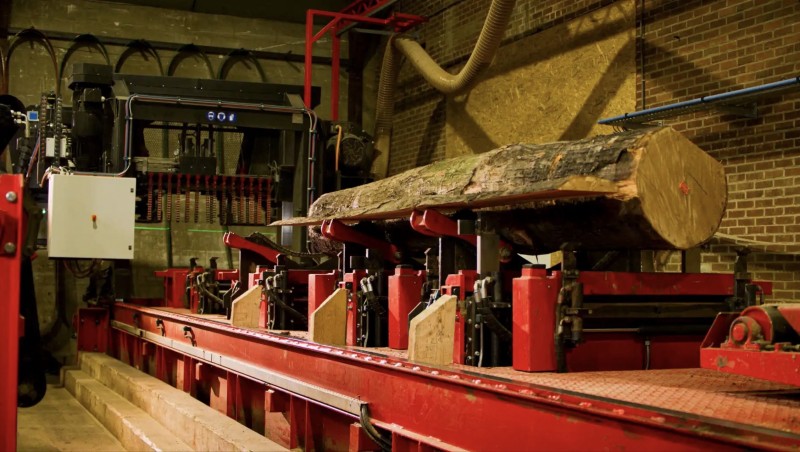

• log deck, feed table

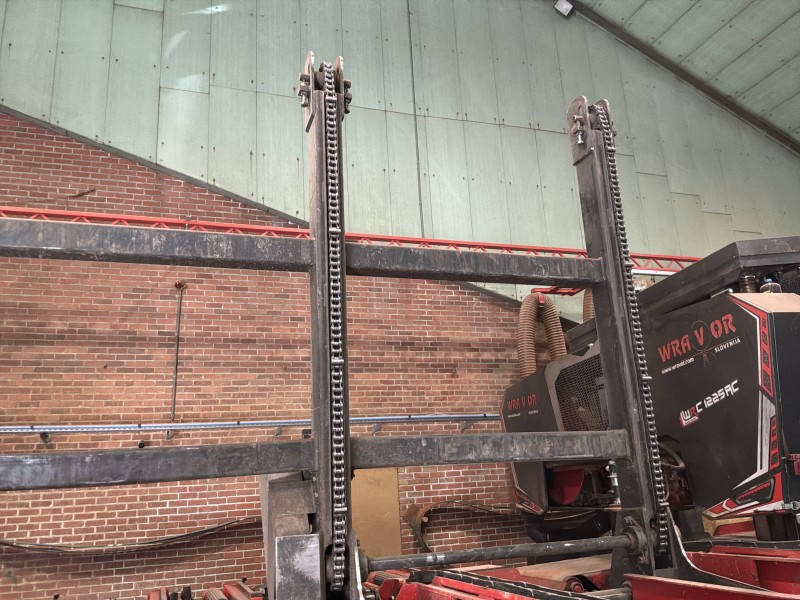

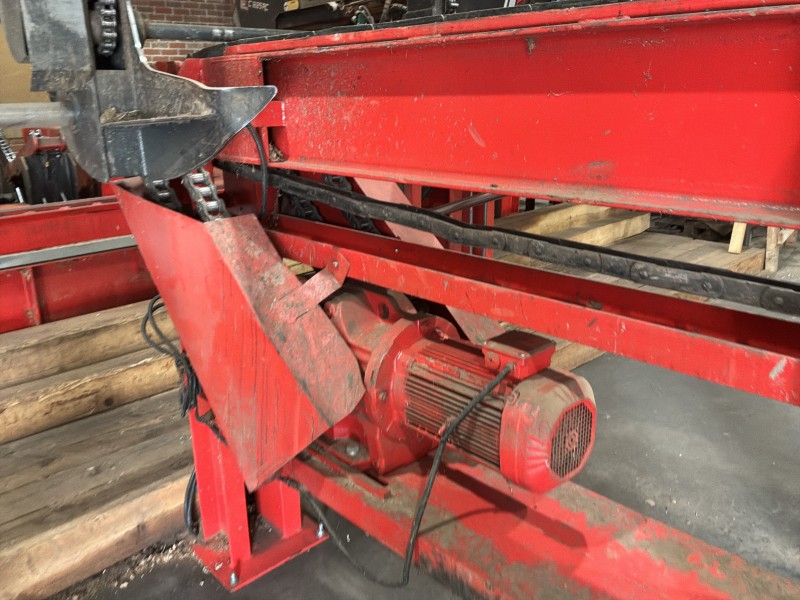

Chain feed

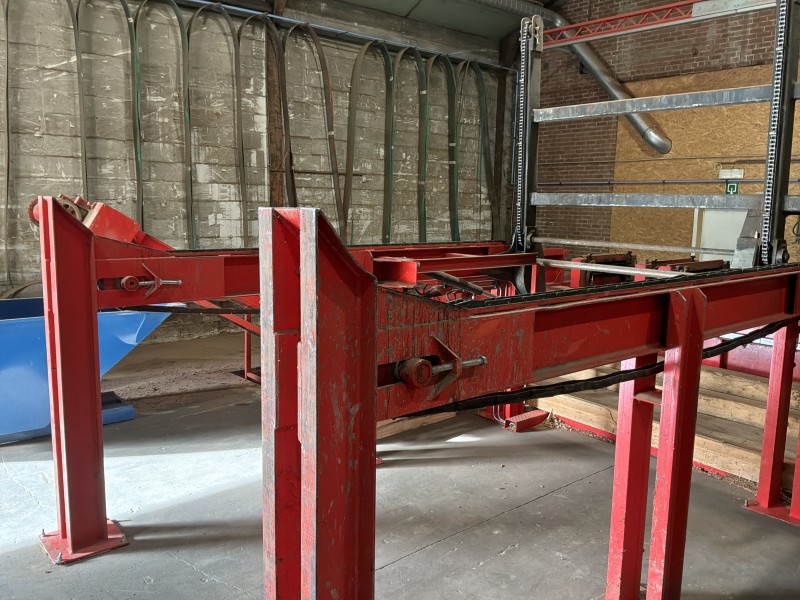

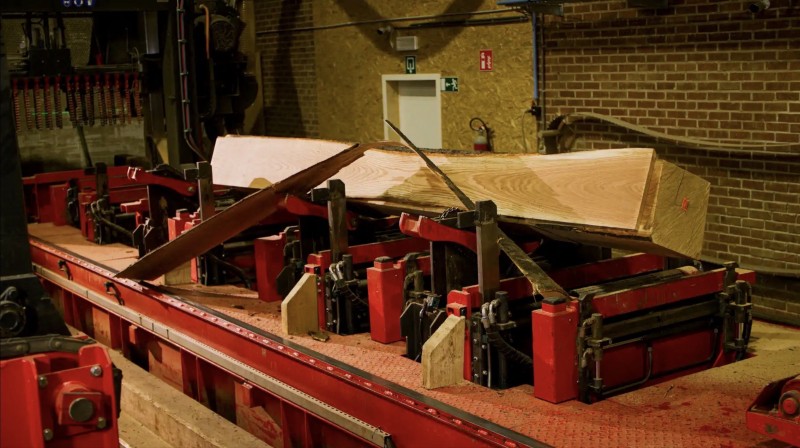

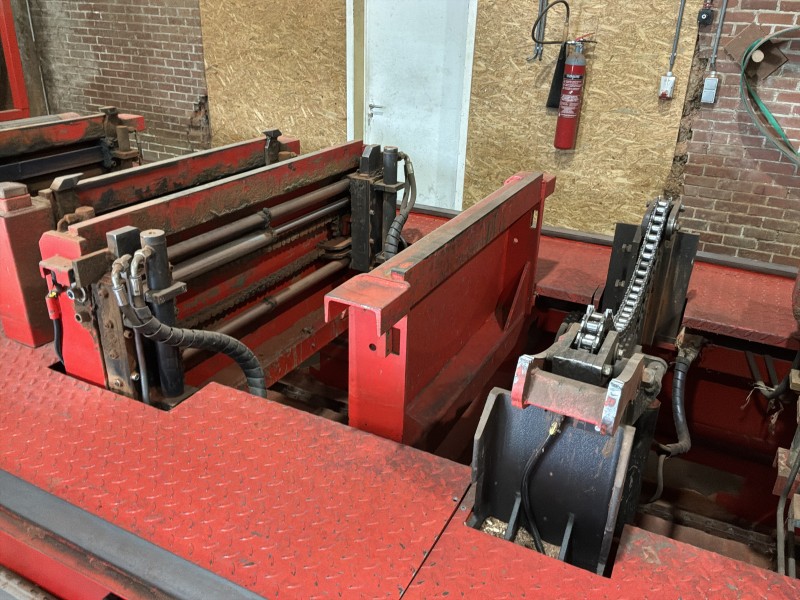

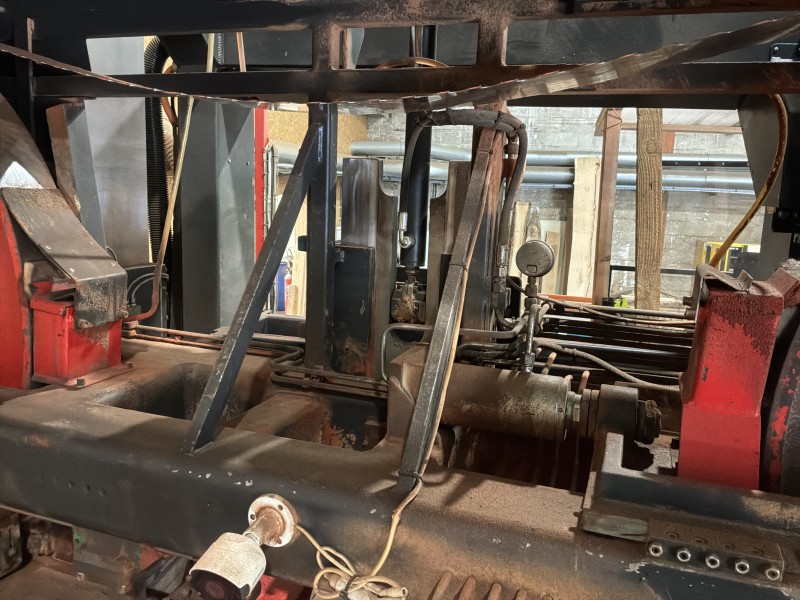

• saw bed
Elevated structure (due to underlying discharge conveyor)
Hydraulic and rapid log centering

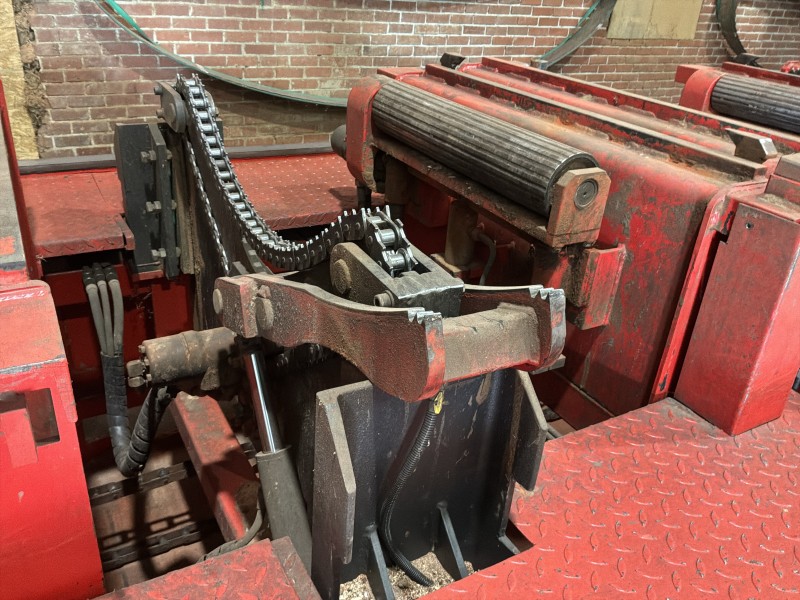

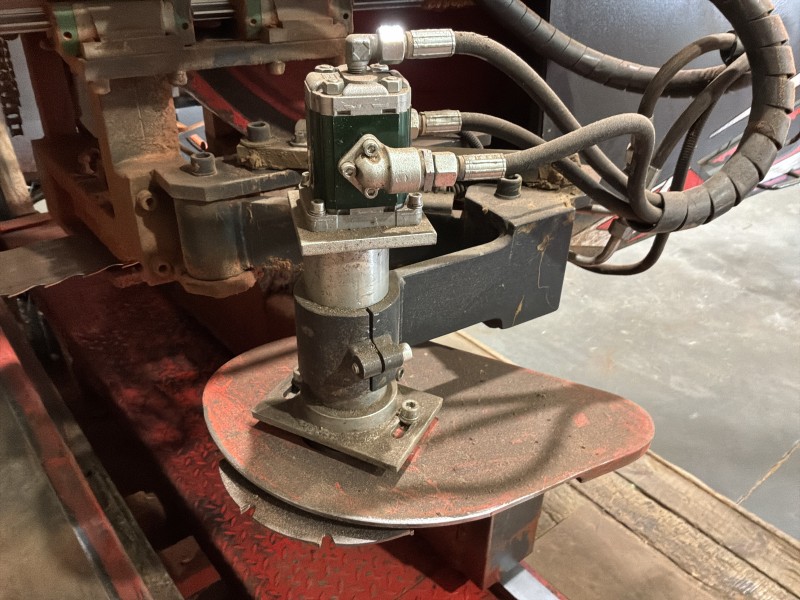

Hydraulic grippers

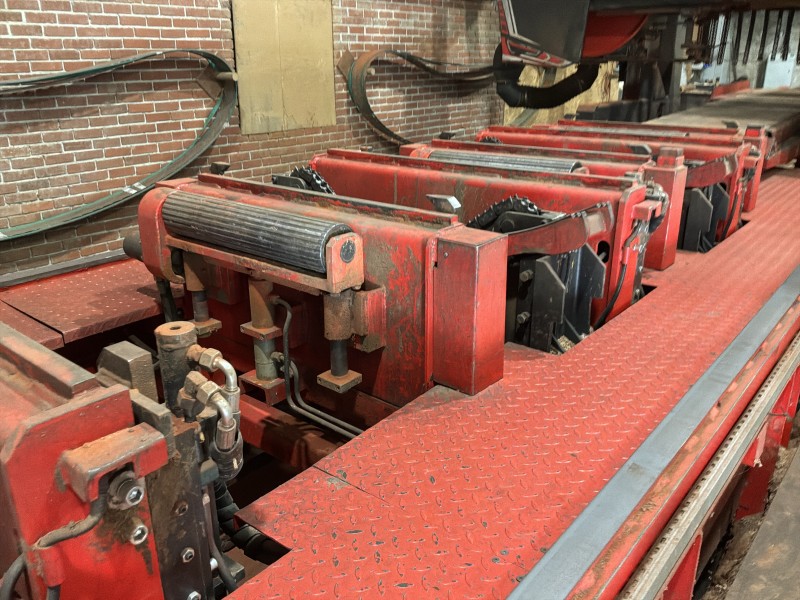

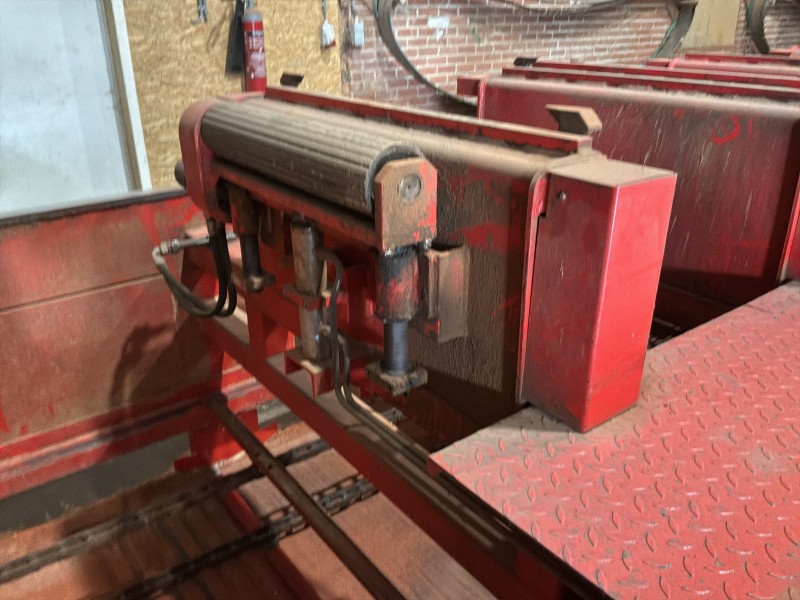

Hydraulic rollers and log rotation

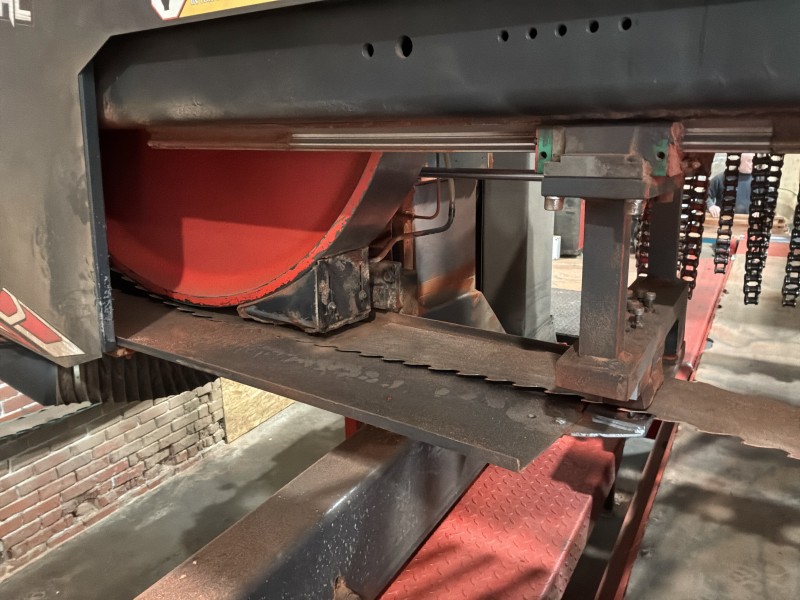

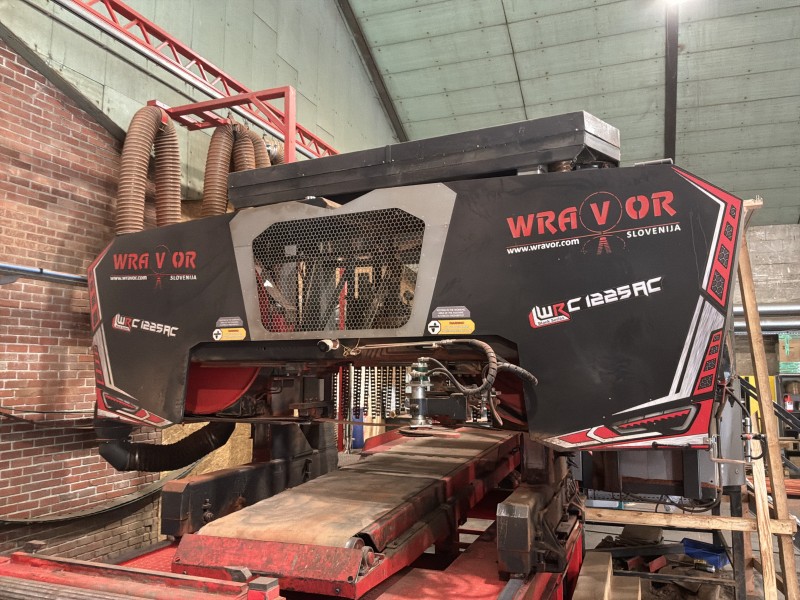

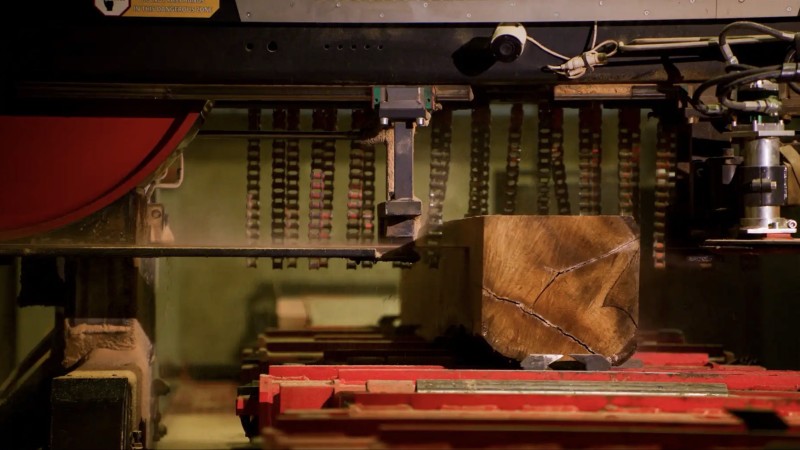

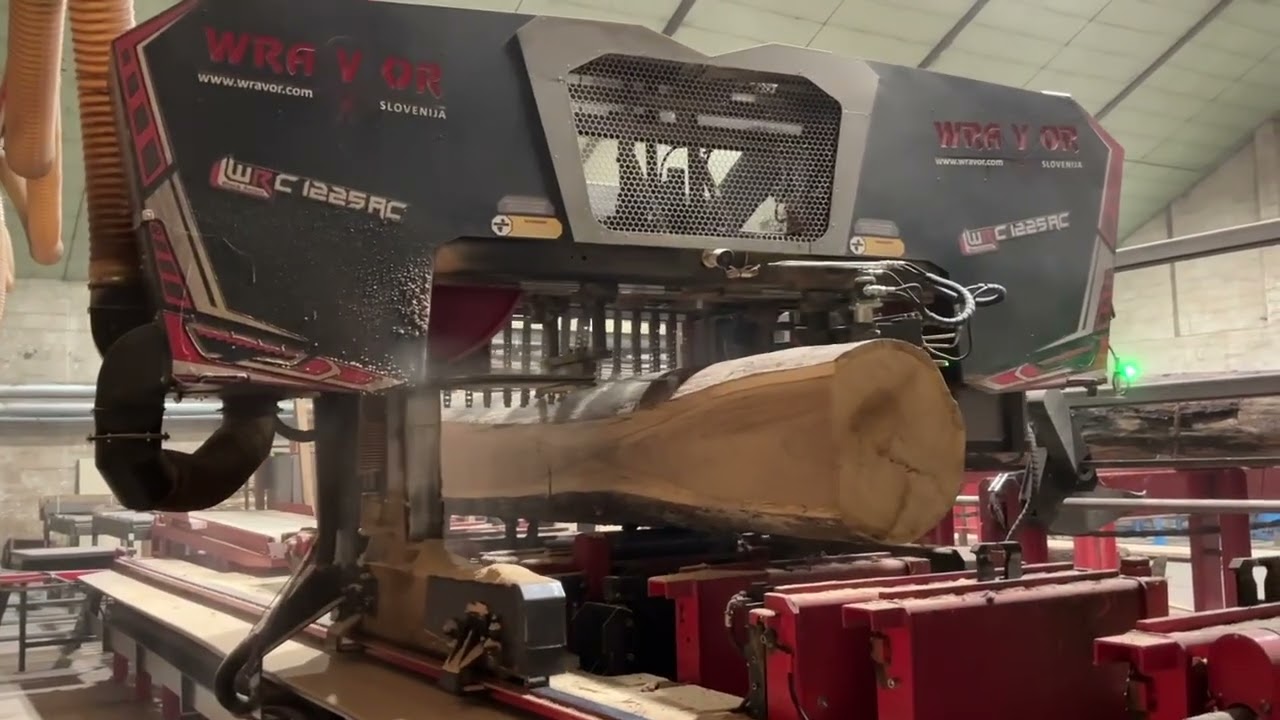

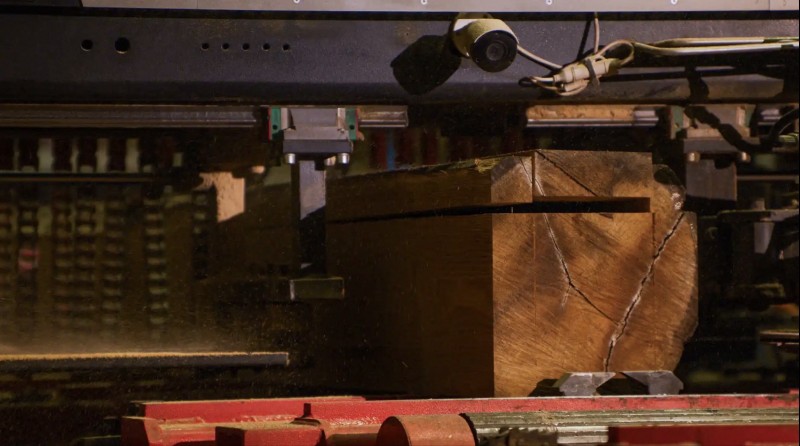

• Horizontal band saw
Saw blade: 9,045 x 160 x 1.3 mm

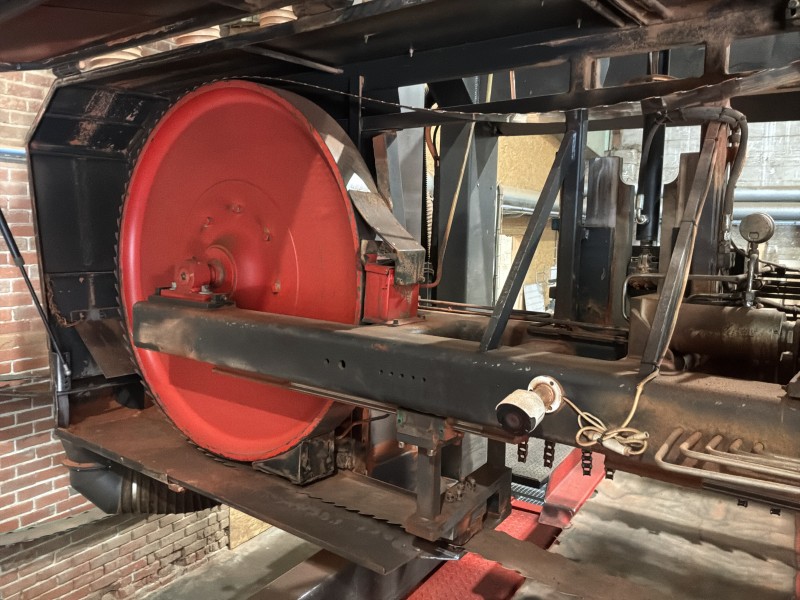

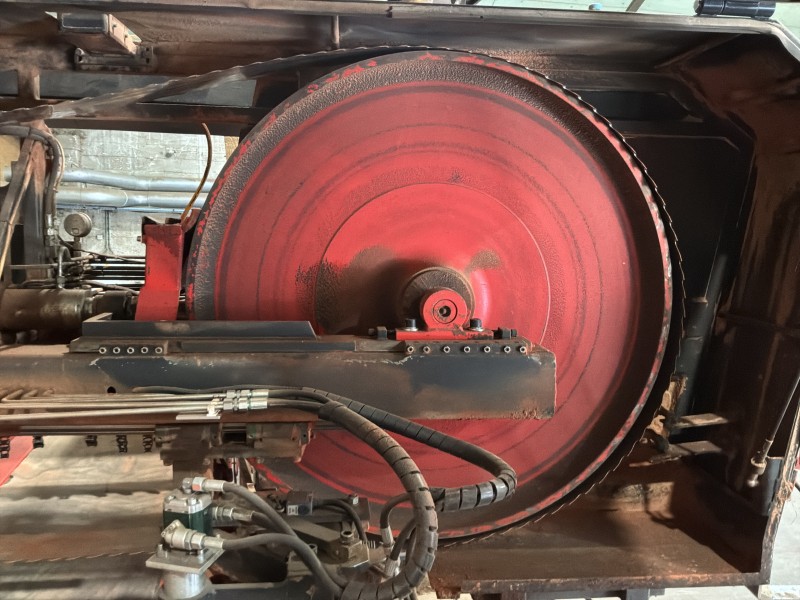

Saw blade wheel diameter: 1,250 mm

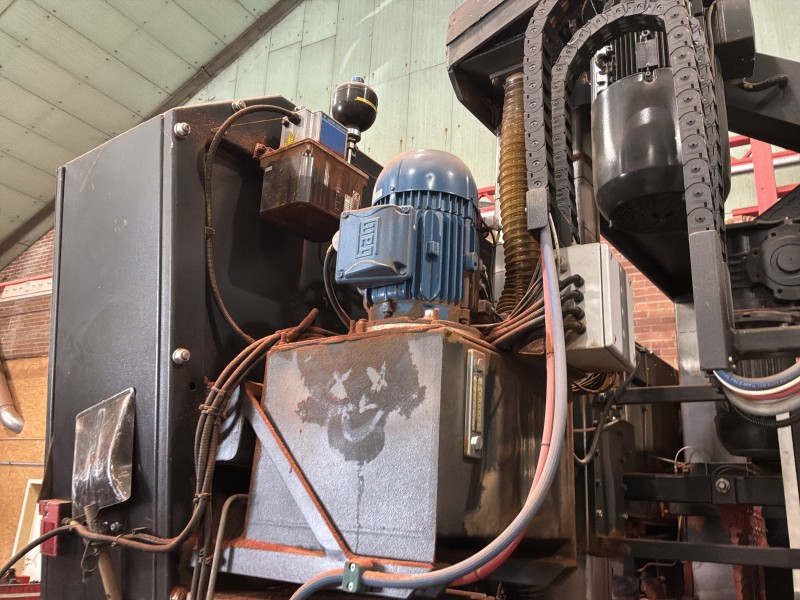

Hydraulic system capacity: 40 L
Number of pumps: 2 (16 + 16 L)

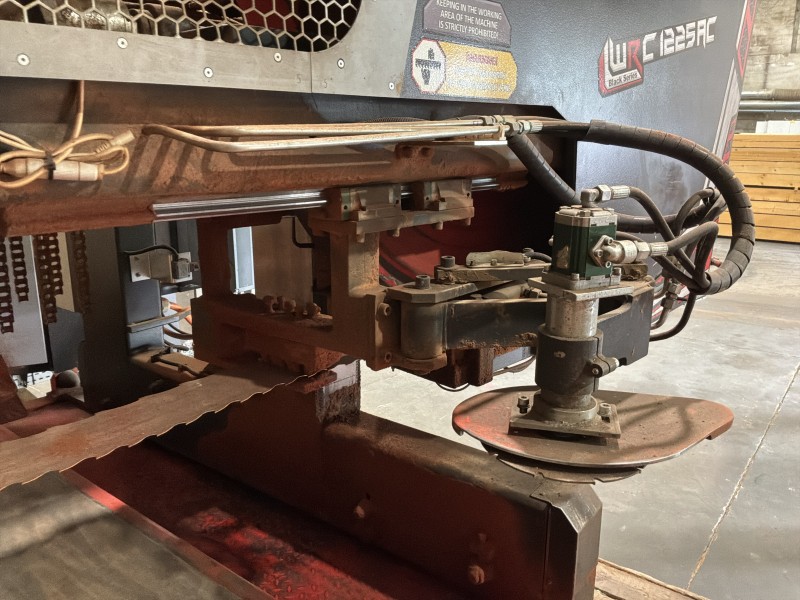

Hydraulic pre-cutter
Automatic high-pressure water cooling of the saw blade: 60 bar
Automatic hydraulic control of saw blade tension and pressure

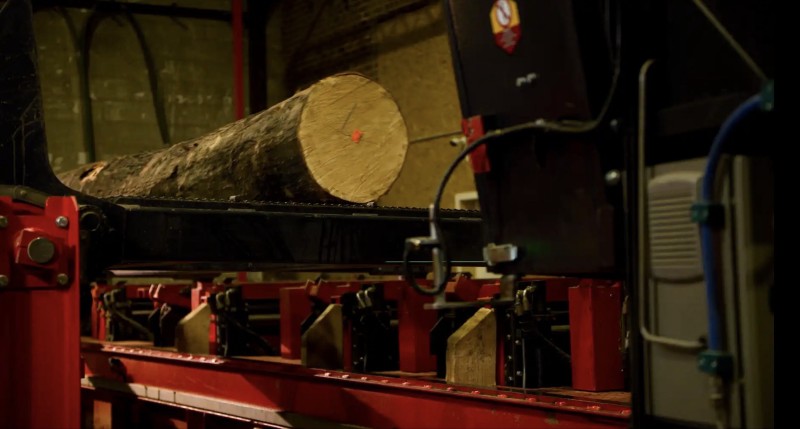

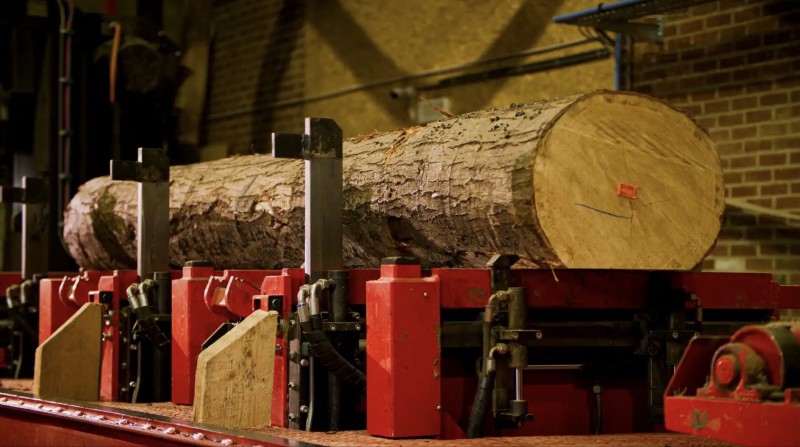

• Automatic log positioning and clamping
• Hydraulic ejection of cut material, guillotine system

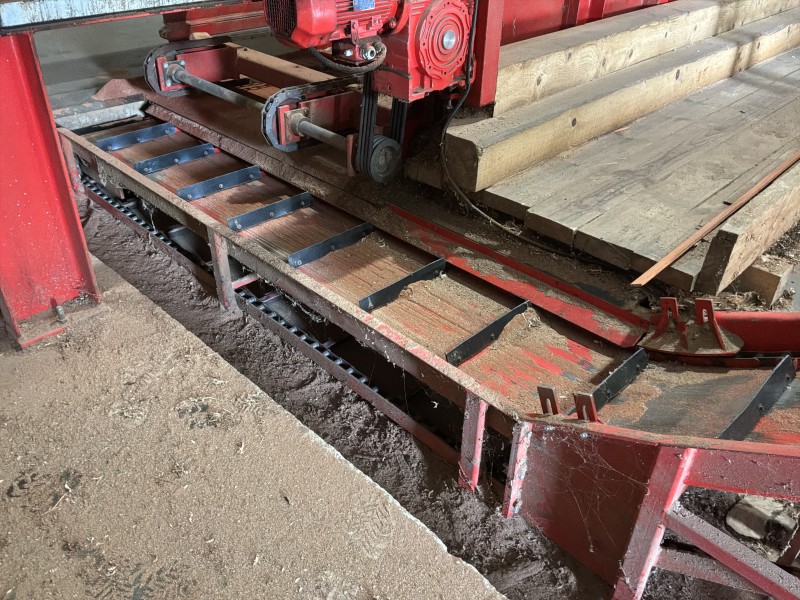

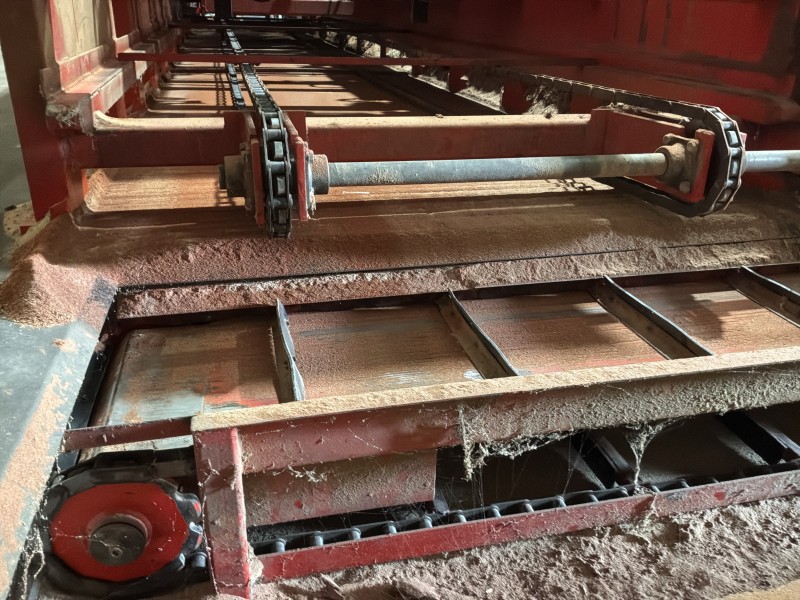

• Discharge conveyor
Length: 4,000 + 1,000 mm

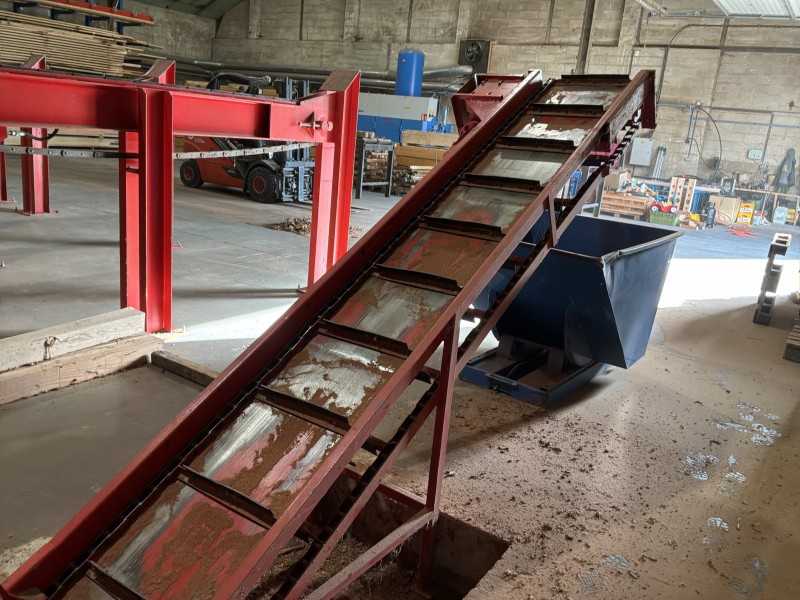

• Waste discharge conveyor
• Automatic lubrication
• Automated Wravor control program

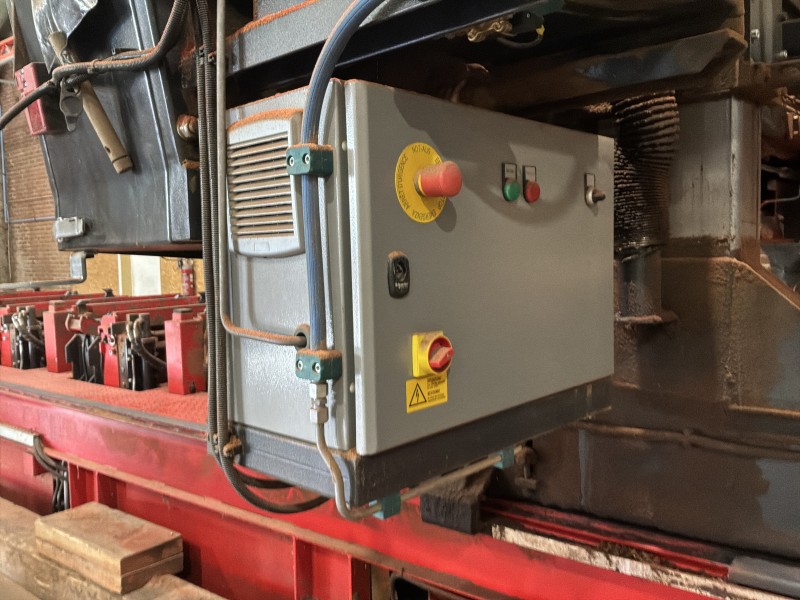

Includes Siemens, Schneider PLC 130/280/560

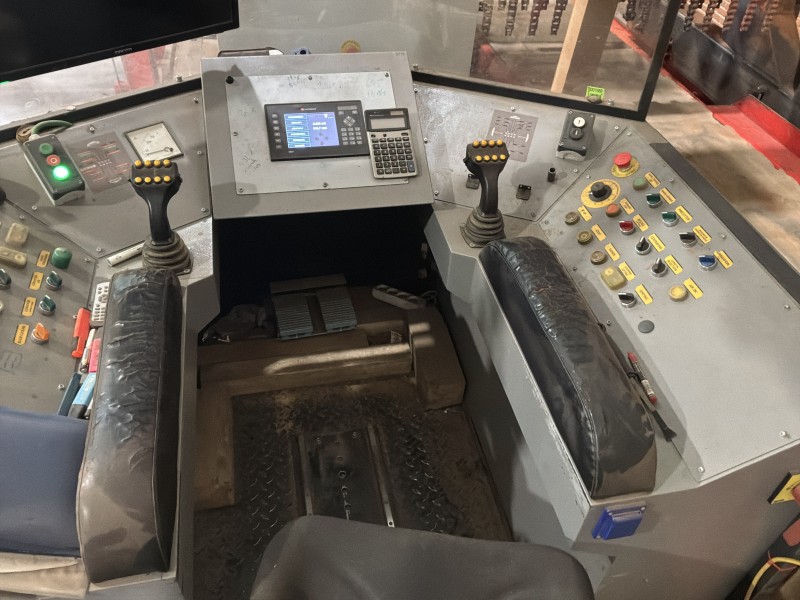

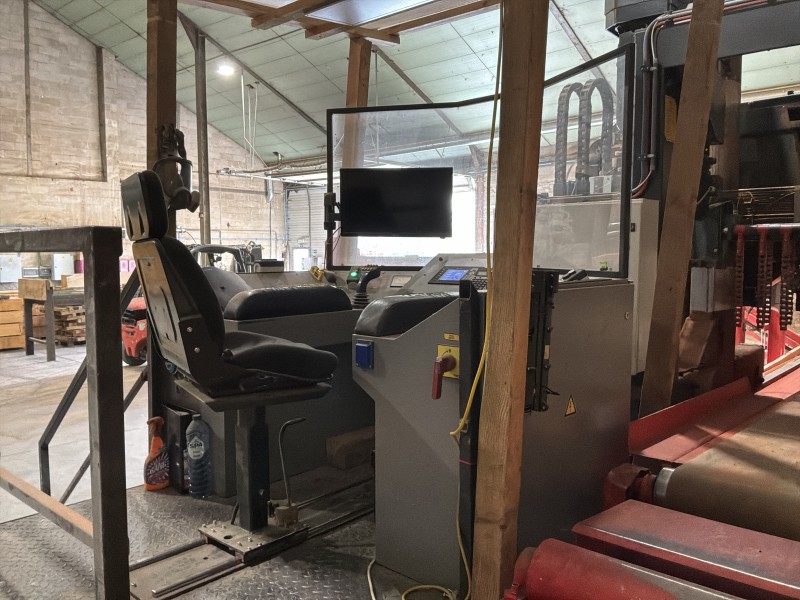

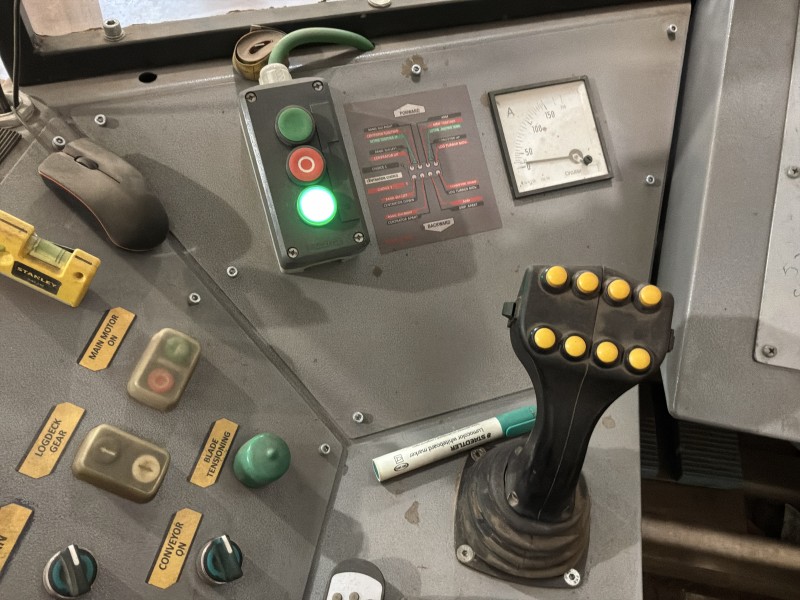

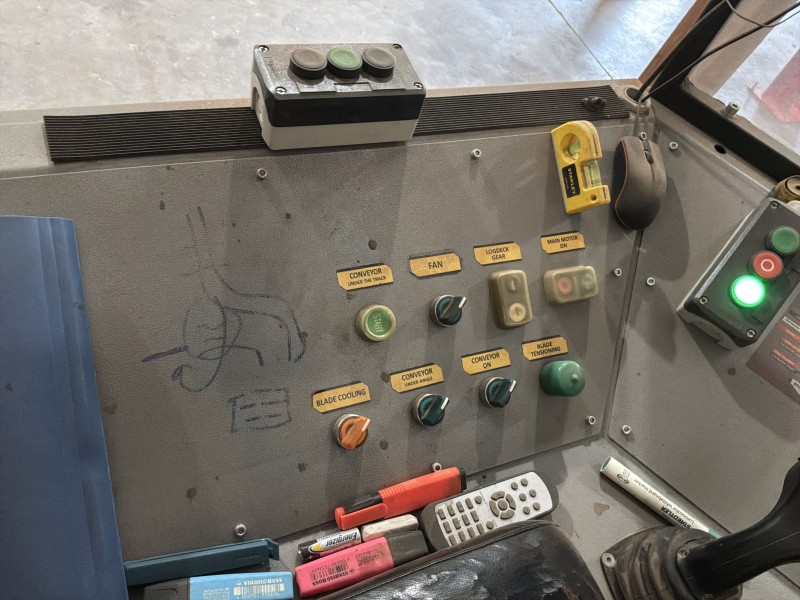

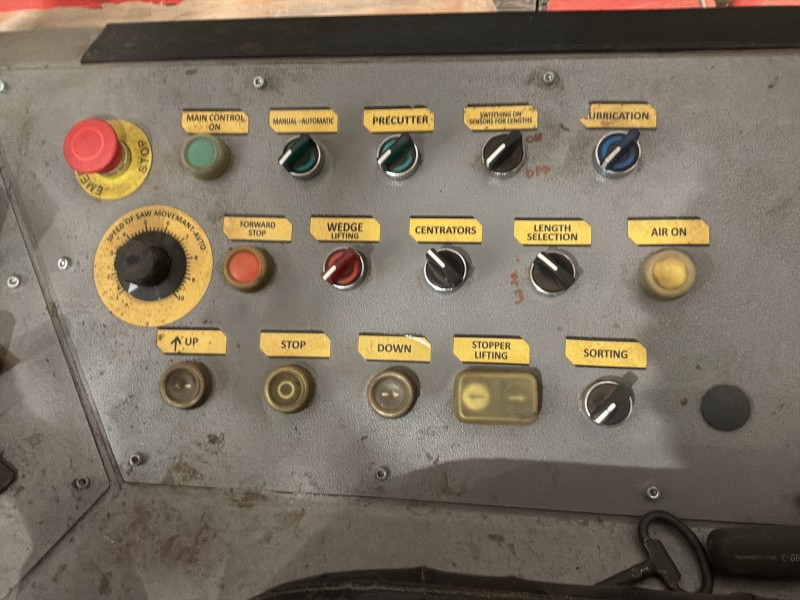

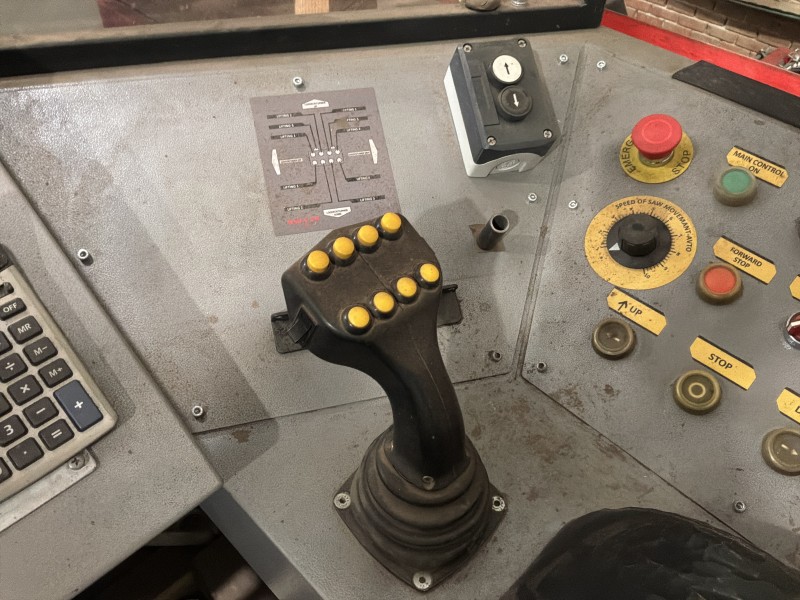

• Multifunctional joystick control
• 30 mW laser, green line

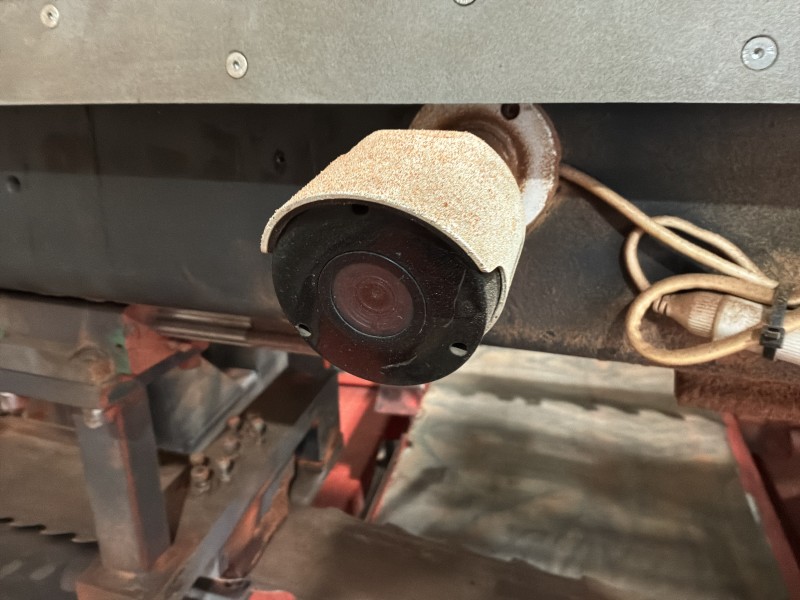

• Number of cameras: 3 (1 screen)

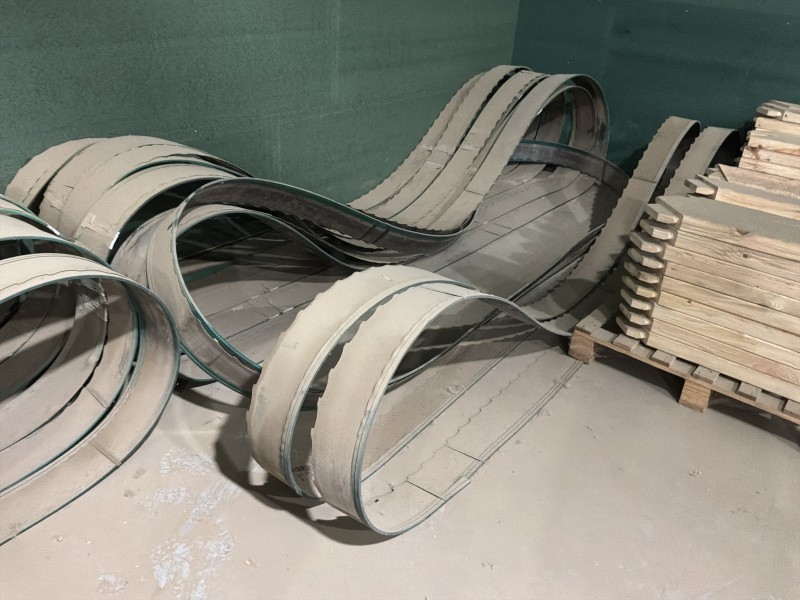

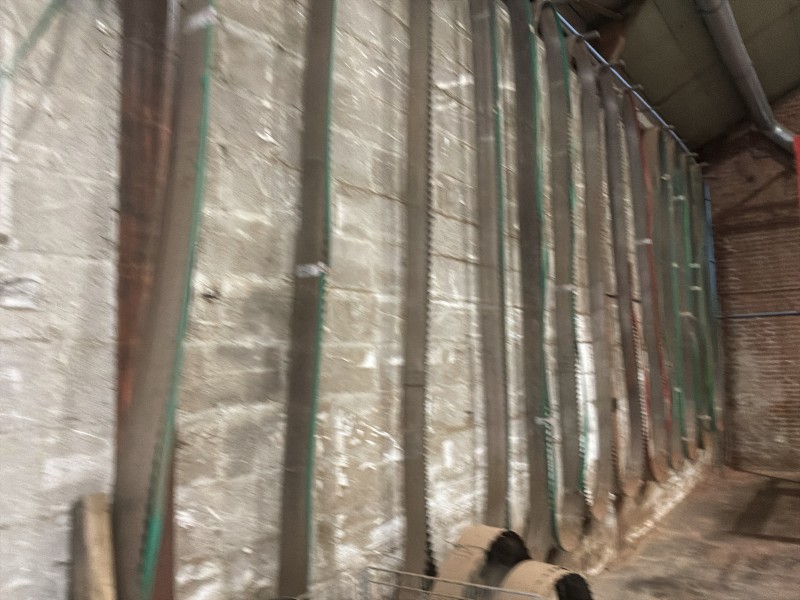

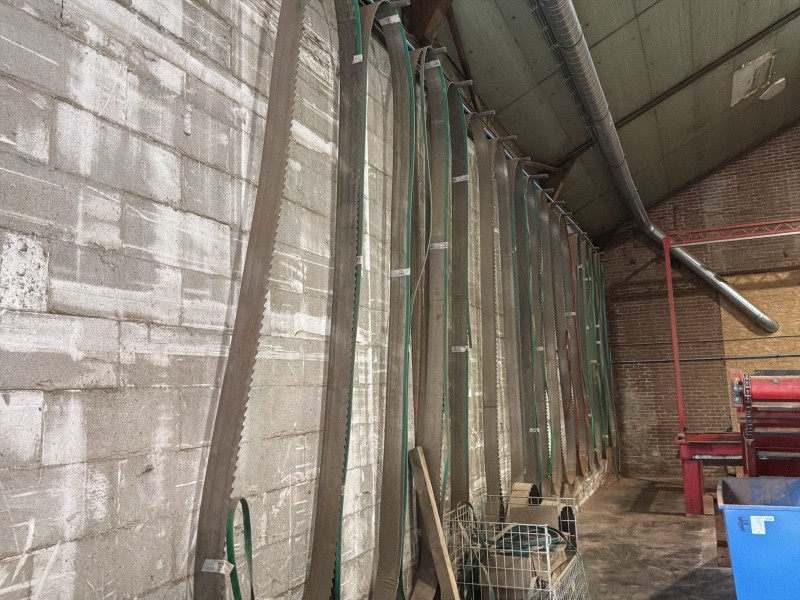

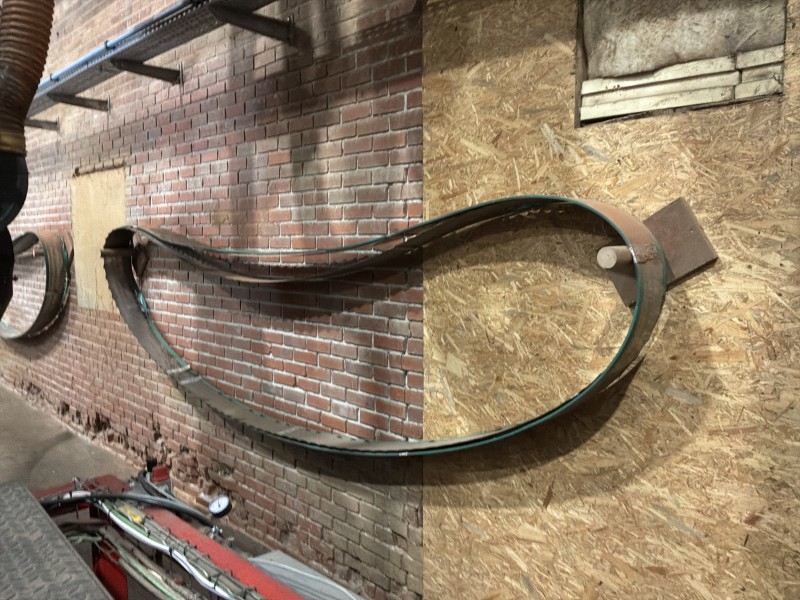

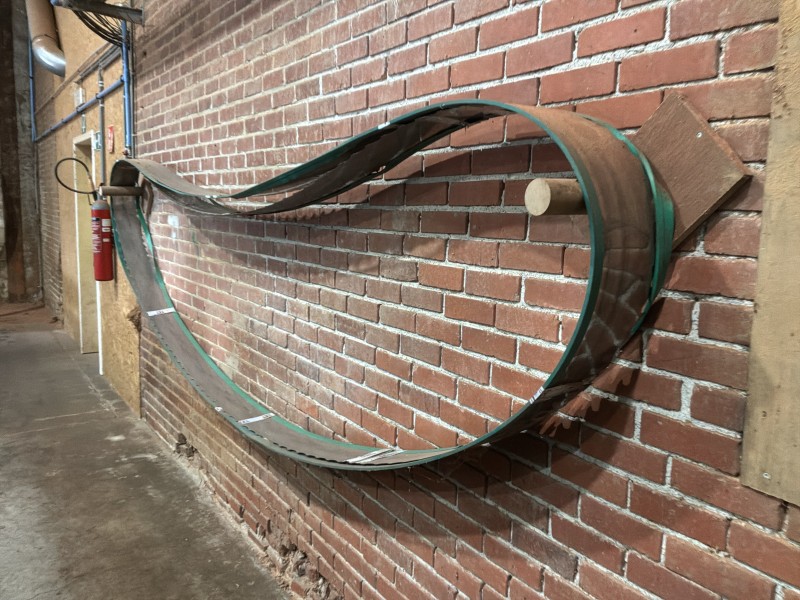

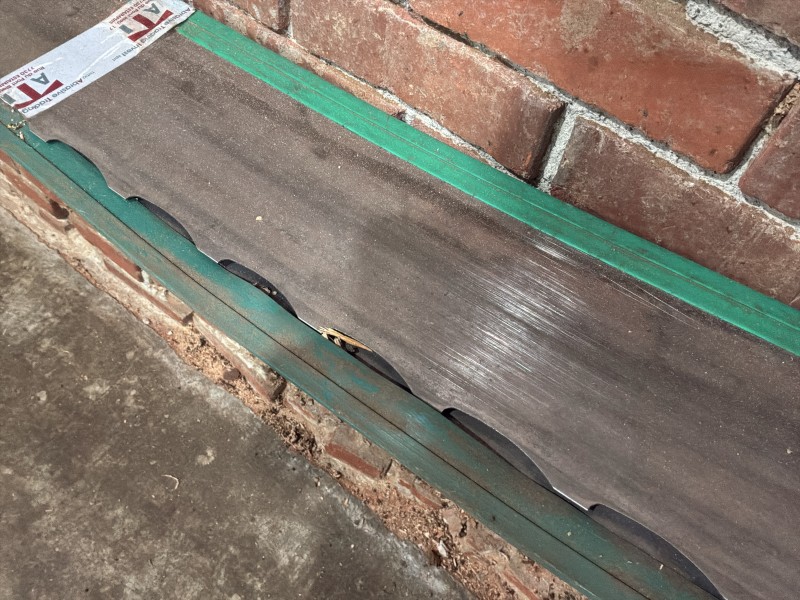

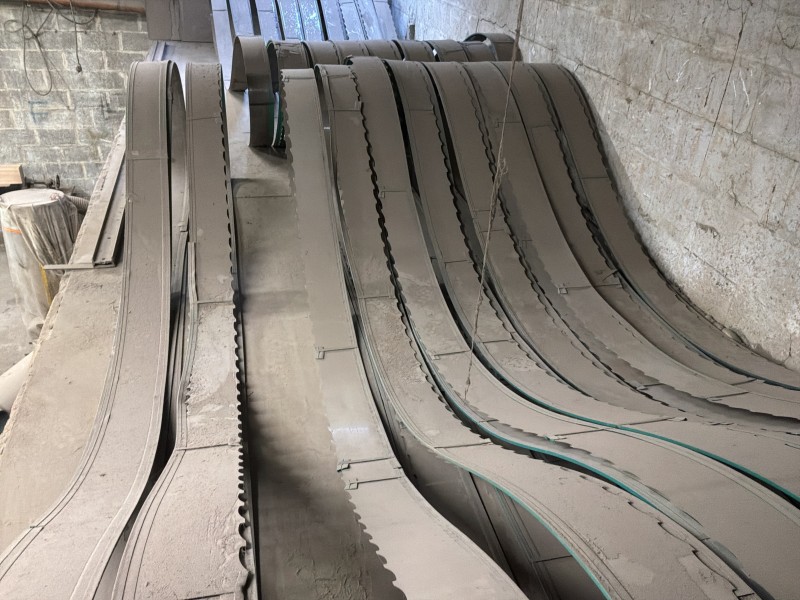

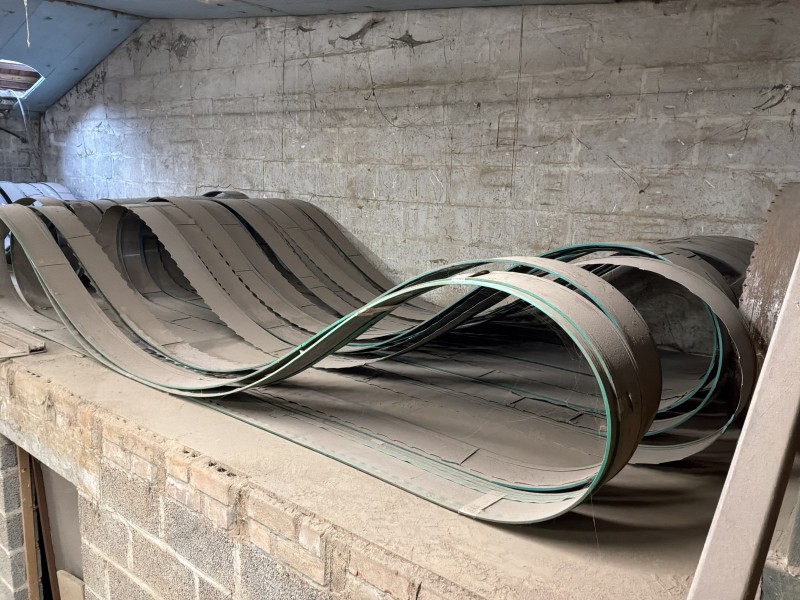

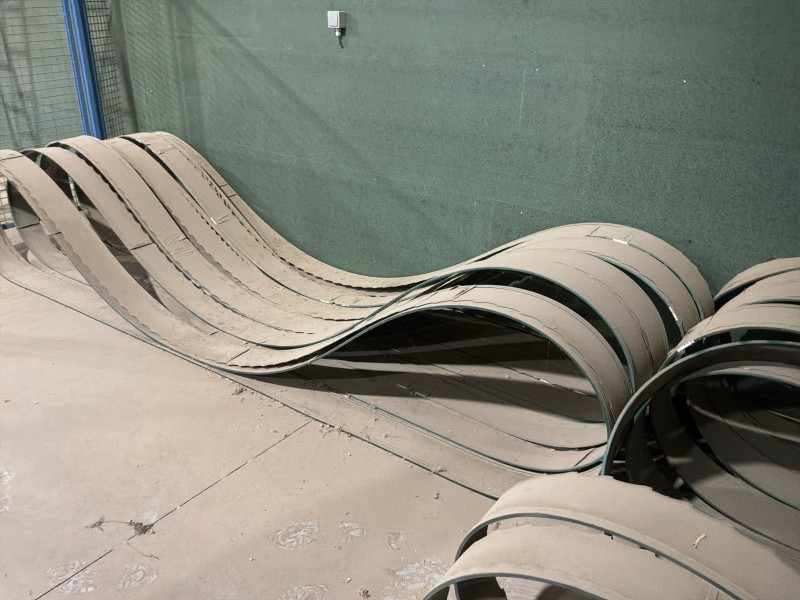

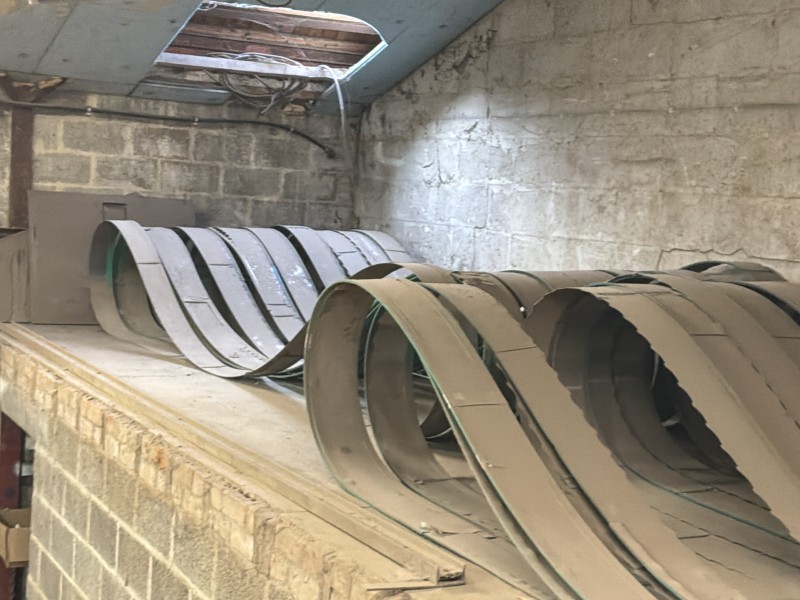

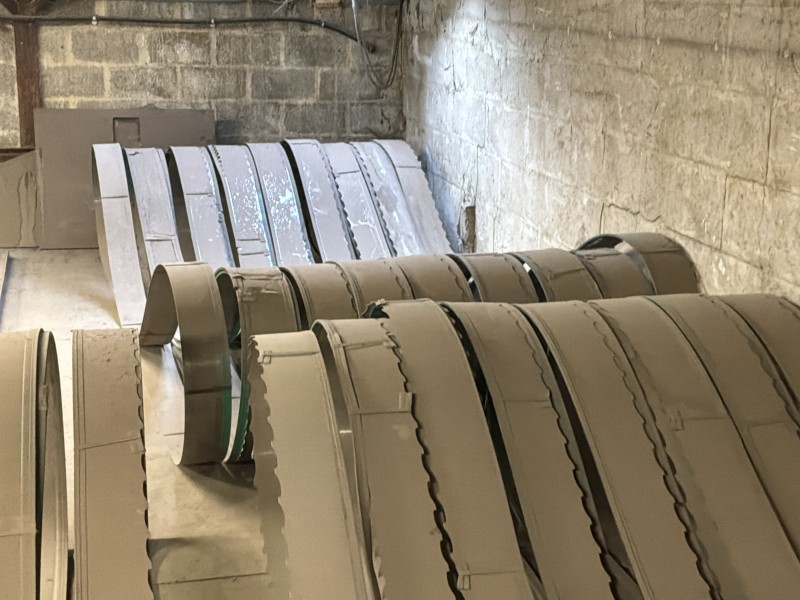

Includes: 35 extra saw blades, 34 of which are unused, all sharpened

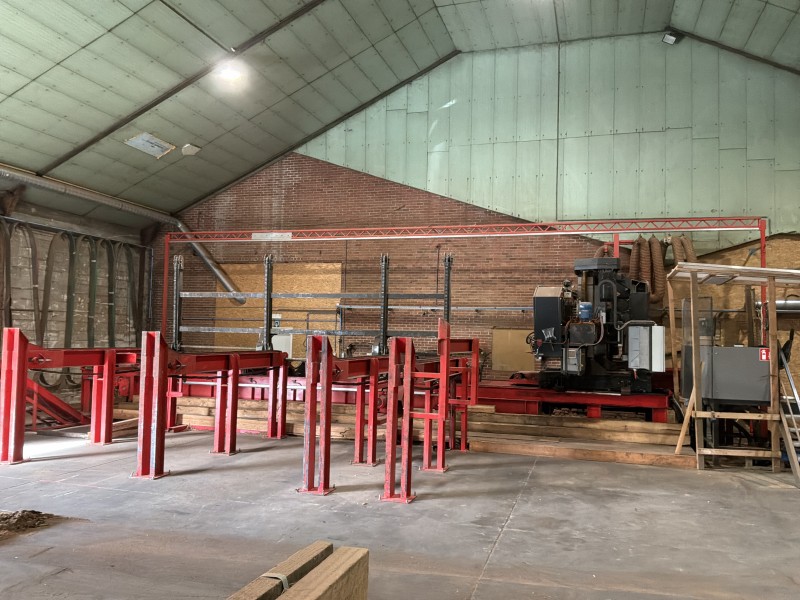

Total dimensions of setup: approximately 16,500 x 9,500 x 4,800 mm
Notes: signs of use; must be professionally disassembled by the buyer
