41 - Siegmund welding table
Bubikon | Switzerland
Combination 41+42 | CNC machine centres - CNC Vertical machine centres
CHF3,700.00
Share:
Product information
| Brand | Nikon |
| Amount | 1 |
| Buy amount | 1 |

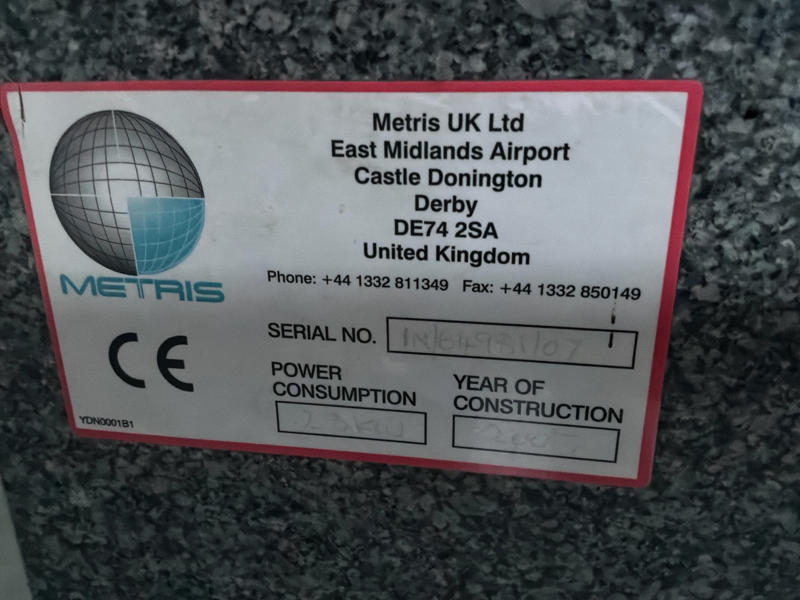

| Serial number | IN 64931/07 |
| Type | Integra 25-10-8 |
| Year | 2007 |
X-axis: 2500 mm
Y axis: 1000 mm
Z-axis: 800 mm
Machine length: 3259 mm
Machine width: 2011 mm
Machine height: 3510 mm

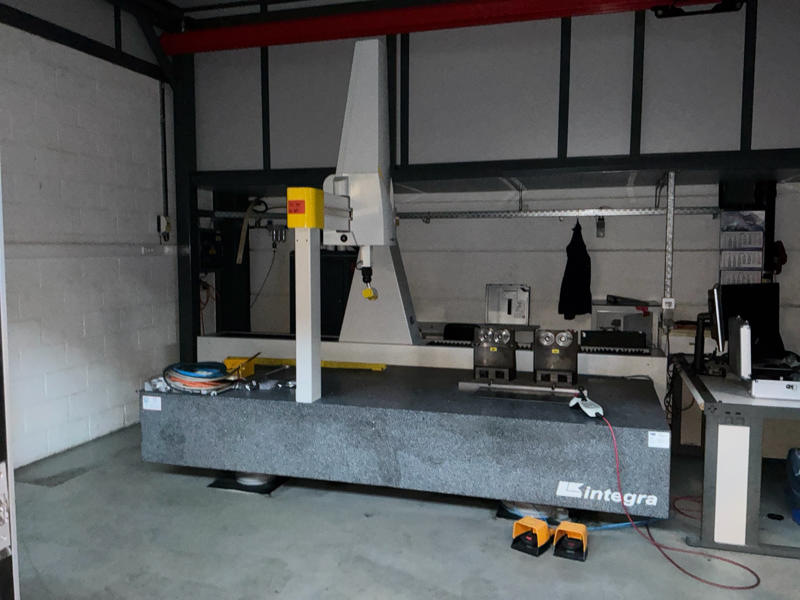

Model: LK V-SL
High-accuracy coordinate measuring machine (HA)

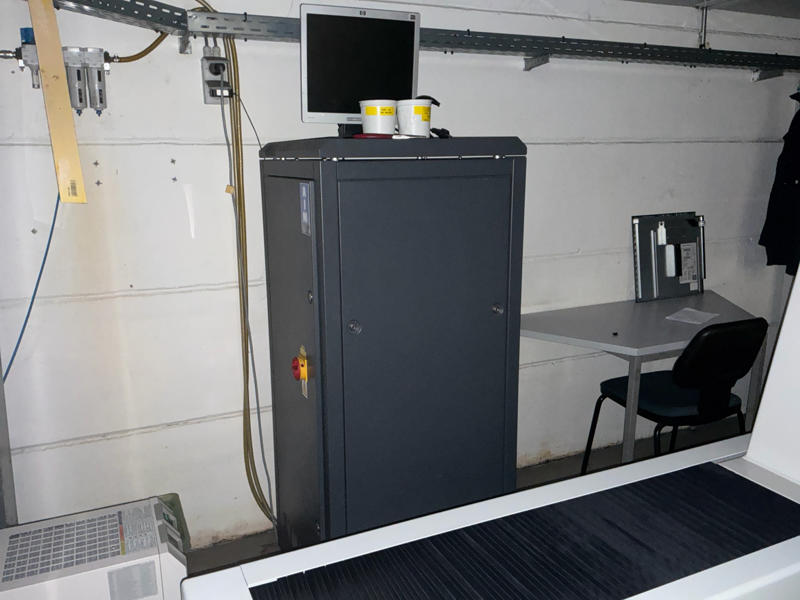

Renishaw control system
Probe head controller: PHC 10-2
Interface selector: 191-2
Probe interface: PI 200
Laser control system: LC60DX
Laser scanner accuracy: 9 µm

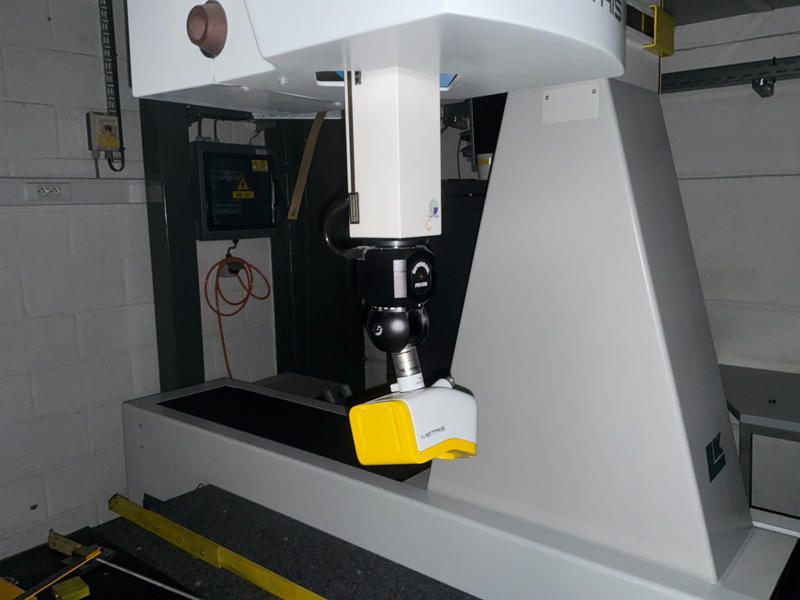

Renishaw PH10M motorized indexing measuring head
A-axis rotation: ±180°
B-axis rotation: 0-115°
Indexation step: 7.5°
Total positions: 720
Maximum stylus weight: 300 g
Maximum stylus length: 300 mm
Position repeatability: ±0.4 µm
SCHUNK - quick-change clamping system for use on CNC machines.
It is intended for securing pallets, clamping workpieces on the machine table with very high positioning accuracy (up to 0.005 mm).
Manufacturer: SCHUNK (Germany)
Model: VERO-S NSE plus 90
Type: Quick-change clamping module
Module diameter: 90 mm
Operating pressure: 6 bar
Clamping force: up to 25,000 N (25 kN)
Material: hardened stainless steel
Operation: Pneumatic operation with mechanical self-locking
Positioning accuracy: ≤ 0.005 mm
Last calibration: 19-09-2024
Renishaw control system:
Probe head controller: PHC 10-2
Interface selector 191-2
Probe interface PI 200
TP 200 Renishaw probe
Laser control system.
Renishaw PH10M - Motorized indexable measuring head.
Rotational axes:
A-axis: ±180°
B-axis: 0-115°
Indexing step: 7.5°
→ giving a total of 720 positive positives
Interface:
Autojoint/M8 connector (compatible with modular test systems such as Renishaw TP200, SP25M or Nikon/Metris laser scanners)
Maximum stylus weight: approx. 300gr
Maximum stylus length: up to 300 mm
Position repeatability: ±0.4 µm (0.0004 mm)
Applications:
Measurement of parts with complex shapes (turbine blades, molds, housings, etc.).
Used with probes such as Renishaw SP25M, TP200 or Nikon/Metris LC15Dx
Compatible with most CMM brands (DEA, Hexagon, Mitutoyo, Wenzel, LK, etc.)
