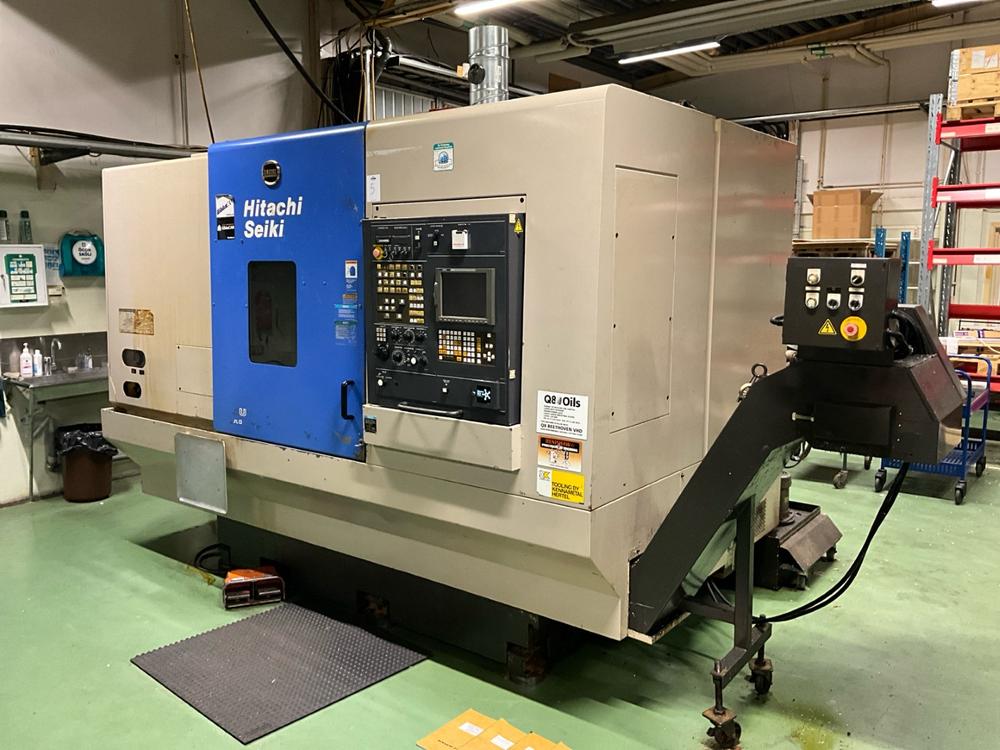

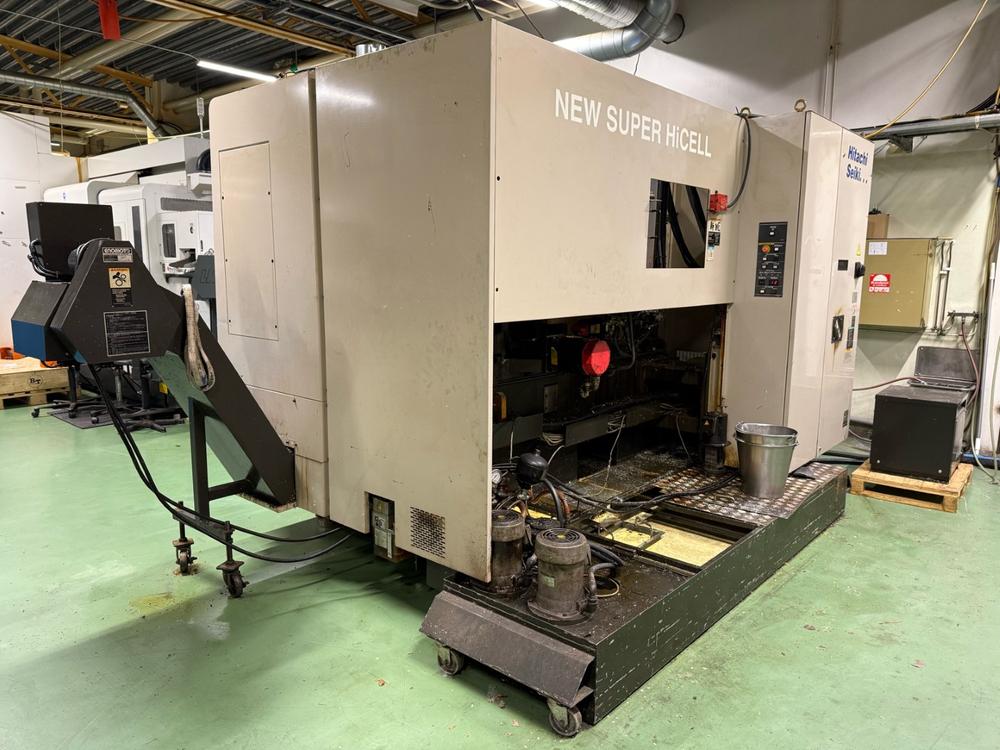

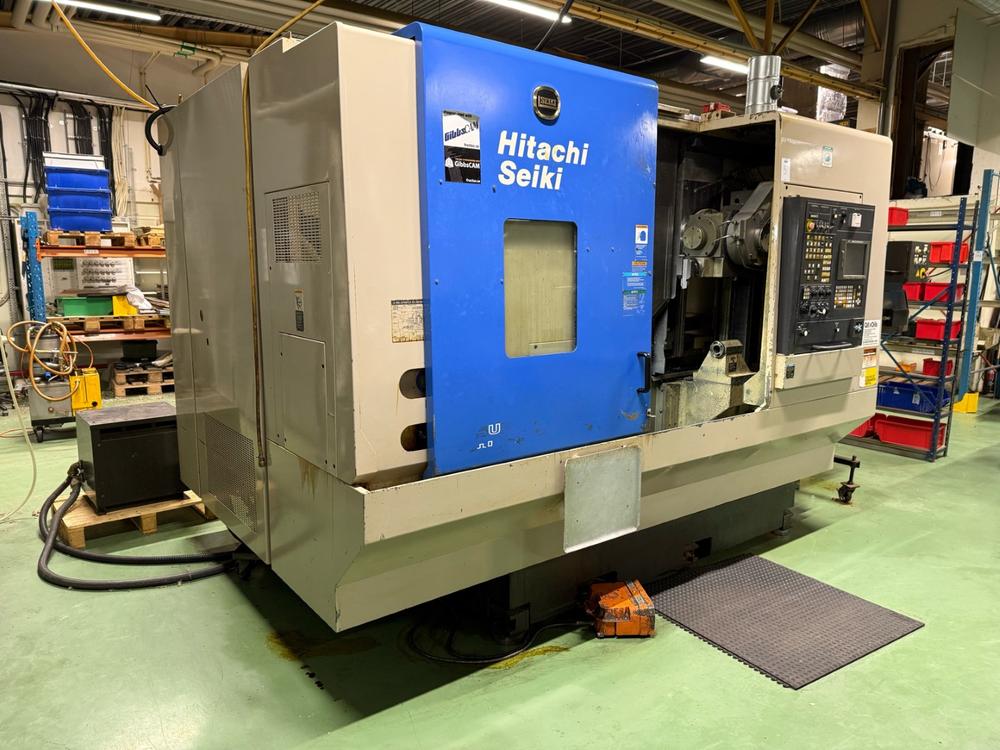

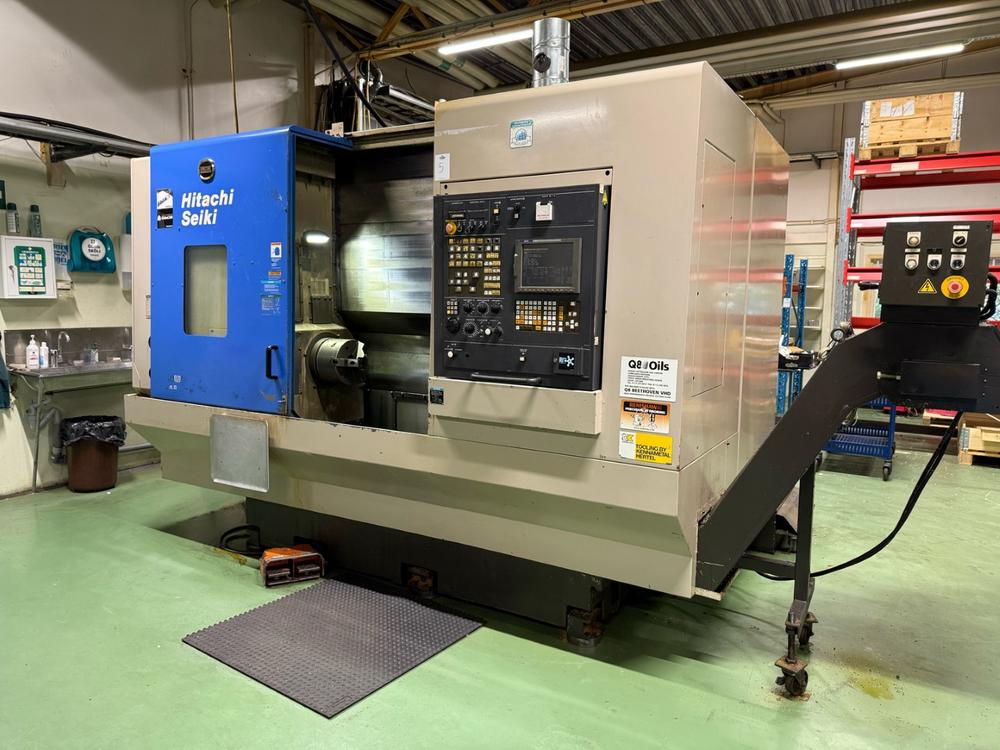

5 - 1999 Hitachi seiki CH250 Multi operation lathe
Norsborg | SE
Puja inicial
Puja actual
Puja final
2.000,00 SEK
0
Pujar
Pujas
Mayor postor
Superado
Mi última puja: 0,00 SEK (Puja automática)
Compartir
Información del producto
| Brand | Hitachi seiki |
| Type | CH250 |
| Year | 1999 |
| Amount | 1 |
Maximum Turning Diameter: 500 mm
Maximum Turning Diameter with Live Tooling: 370 mm
Maximum Turning Length: 720 mm
Bar Capacity: 65 mm
Spindle Bore: 65 mm
Maximum Spindle Speed: 4,000 RPM
Milling Spindle Speed: 80–8,000 RPM

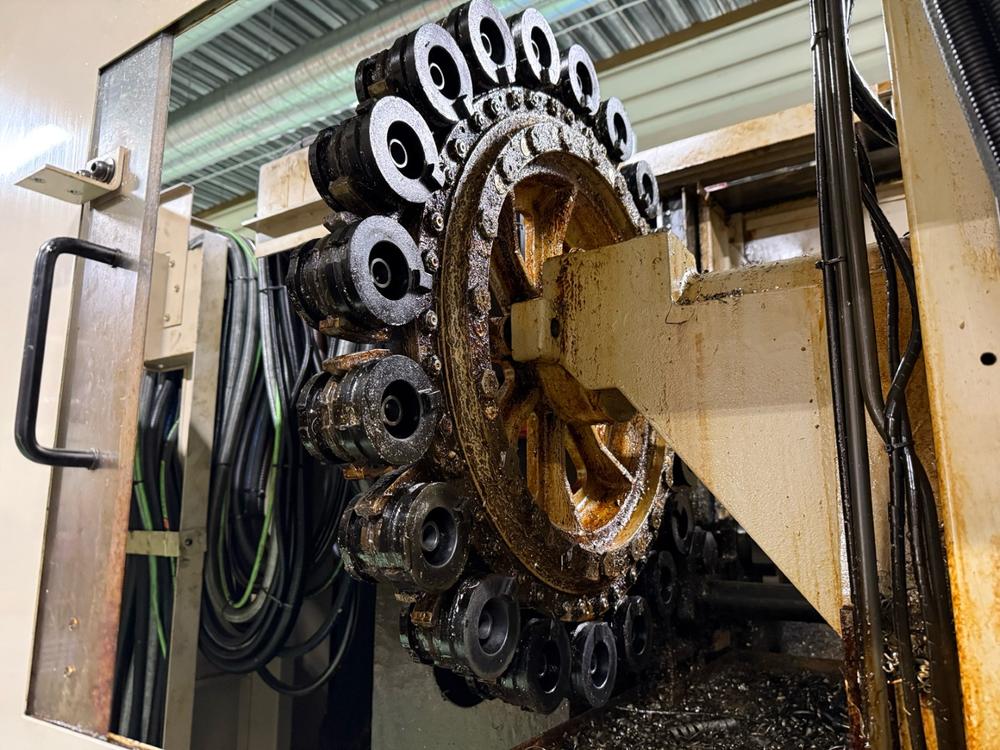

Tool Magazine Capacity: 20
Tool Holder Type: KV4540

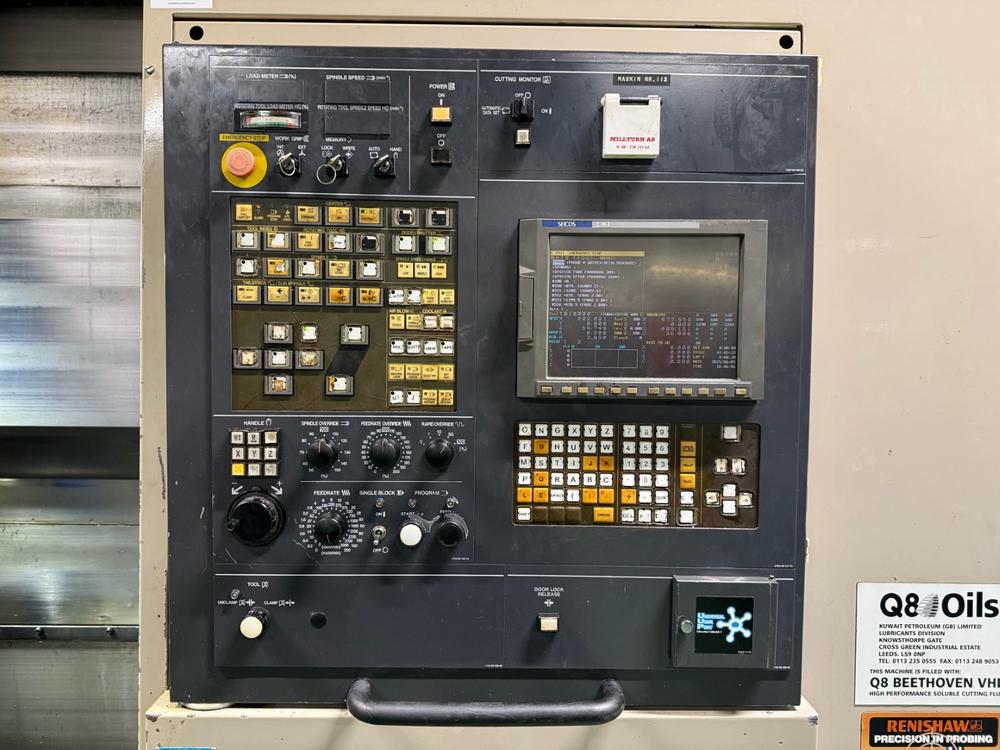

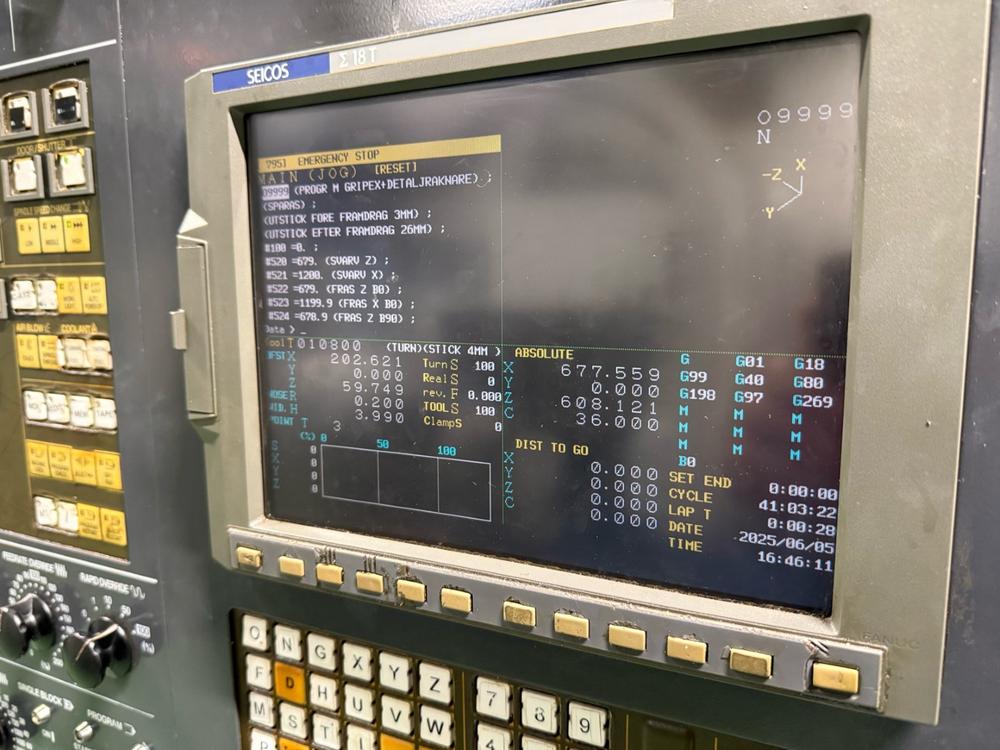

Control System: Seicos 16T (Fanuc 16iT)
X-Axis Travel: 600 mm
Z-Axis Travel: 1,000 mm
Y-Axis Travel: ±75 mm
B-Axis Travel: 858 mm
C-Axis indexation: 0.001°
X/Z-Axis Rapid Traverse: 30 m/min
Y-Axis Rapid Traverse: 15 m/min
Machine Weight: 8,000 kg
Dimensions (LxWxH): 3,300x1,930x2,290 mm
Combinación
Este lote es parte de una combinación: Combination 5, 101, 102, 107, 268
Información adicional
Catalogue under construction. Pickup days for small, easy pickup lots, tools, workshop etc. are scheduled and without appointment for September 8, 9 and 10 from 09:00 to 16:00. Buyers of large machines, specific lots and installations will be contacted right after the sale to schedule the pickup of those lots by appointment (mandatory late week 37 and/or during week 38 latest). Contact details of a preferred and professional international service partner (for pickup assistance, dismantling and/or fully serviced lot transportation) will be shared with the buyers right after the sale.
Maximum Turning Diameter: 500 mm
Maximum Turning Diameter with Live Tooling: 370 mm
Maximum Turning Length: 720 mm
Bar Capacity: 65 mm
Spindle Bore: 65 mm
Maximum Spindle Speed: 4,000 RPM
Milling Spindle Speed: 80–8,000 RPM
Tool Magazine Capacity: 20
Tool Holder Type: KV4540
Control System: Seicos 16T (Fanuc 16iT)
X-Axis Travel: 600 mm
Z-Axis Travel: 1,000 mm
Y-Axis Travel: ±75 mm
B-Axis Travel: 858 mm
C-Axis indexation: 0.001°
X/Z-Axis Rapid Traverse: 30 m/min
Y-Axis Rapid Traverse: 15 m/min
Machine Weight: 8,000 kg
Dimensions (LxWxH): 3,300x1,930x2,290 mm
