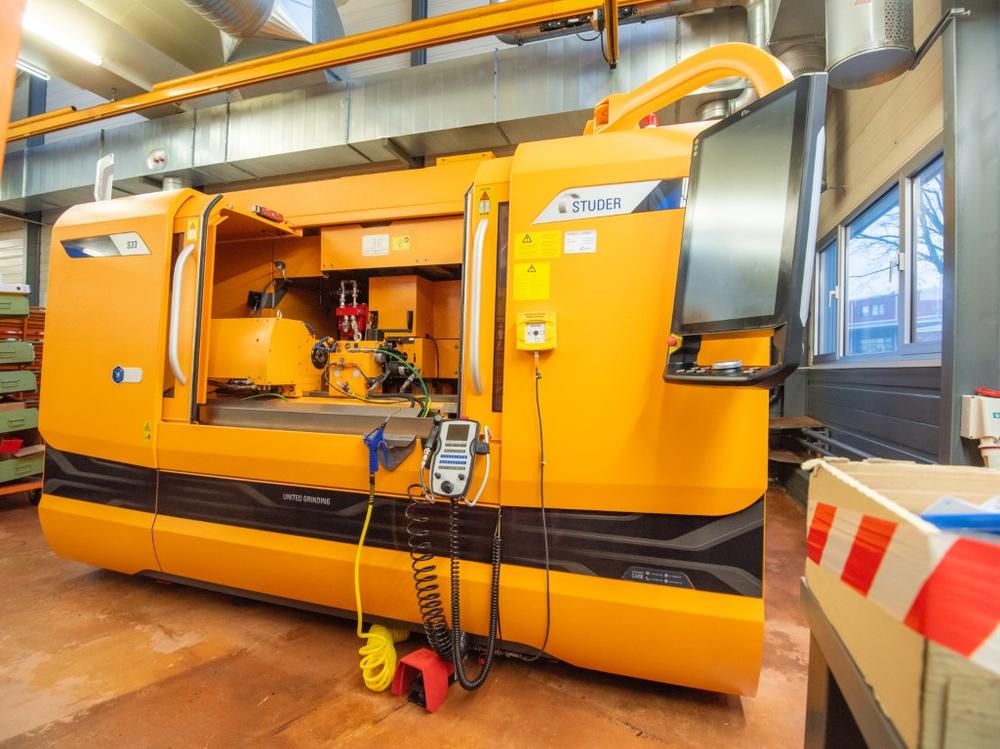

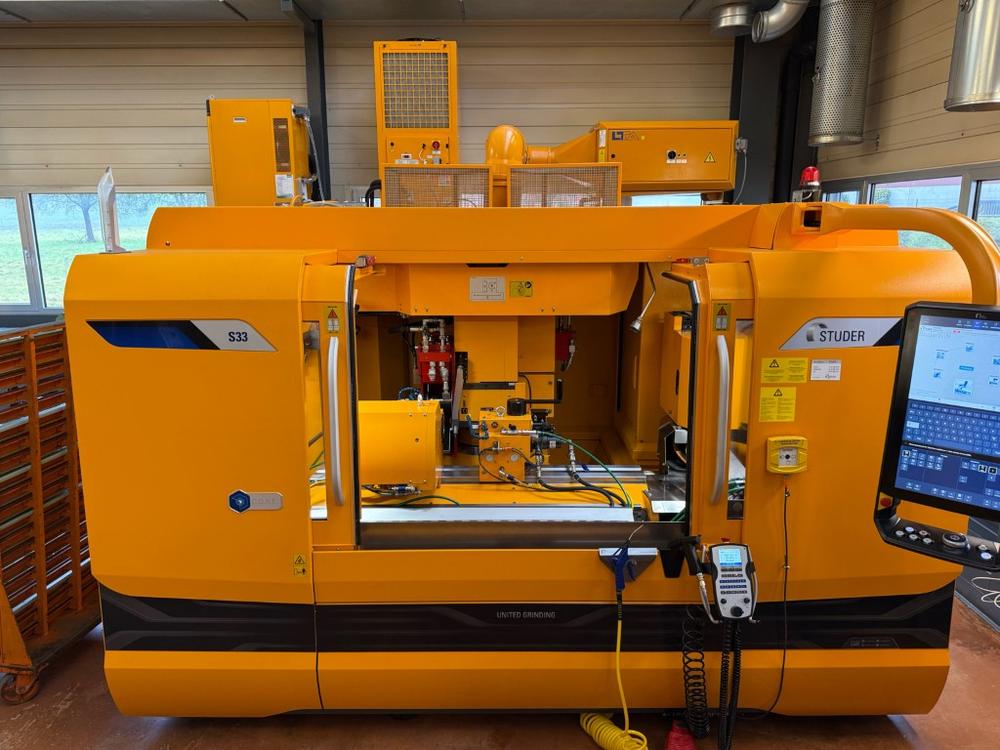

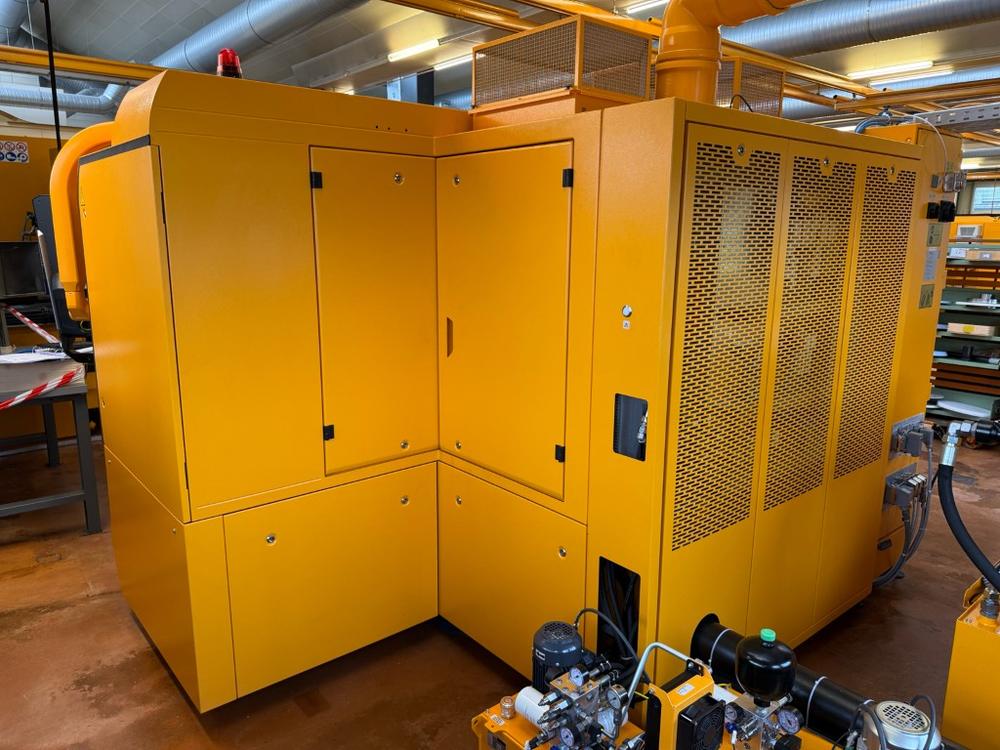

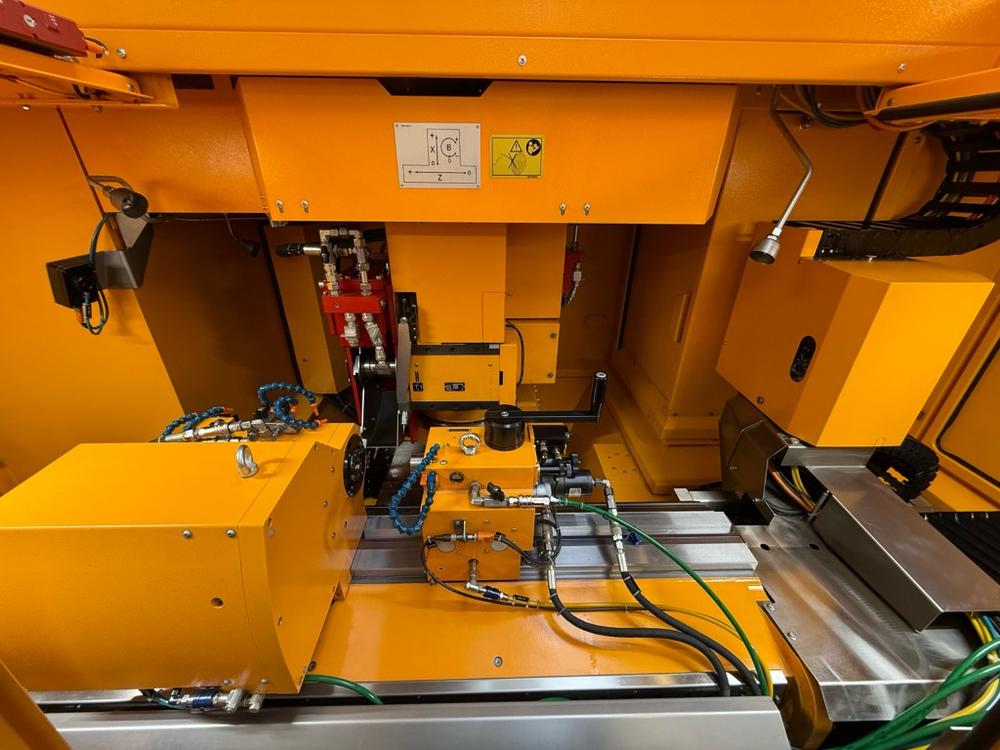

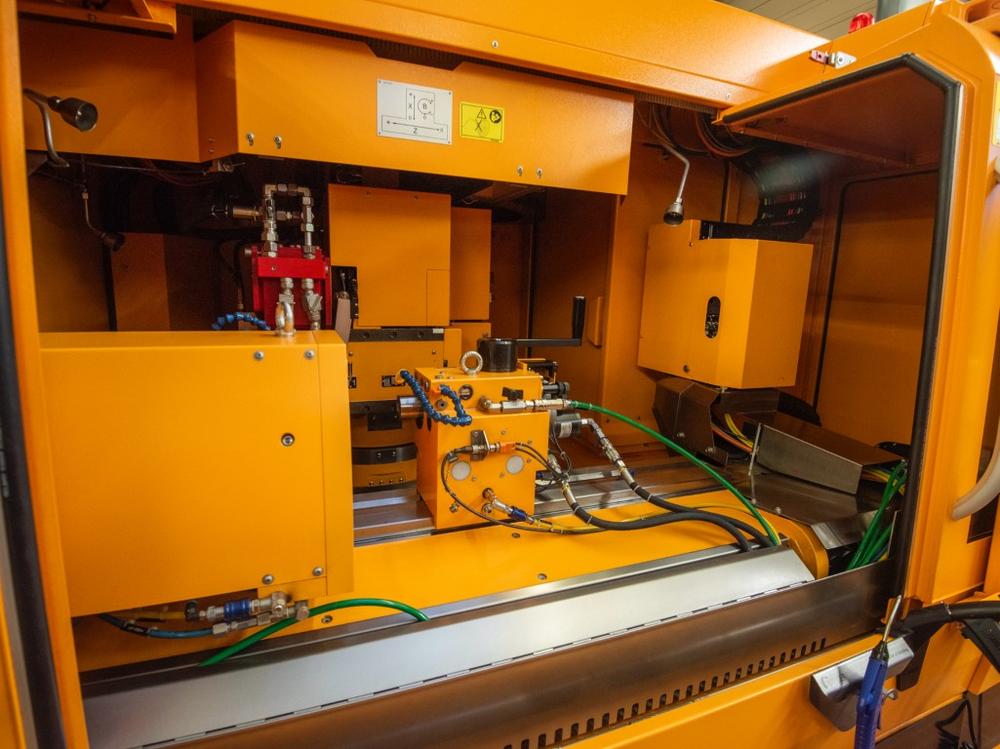

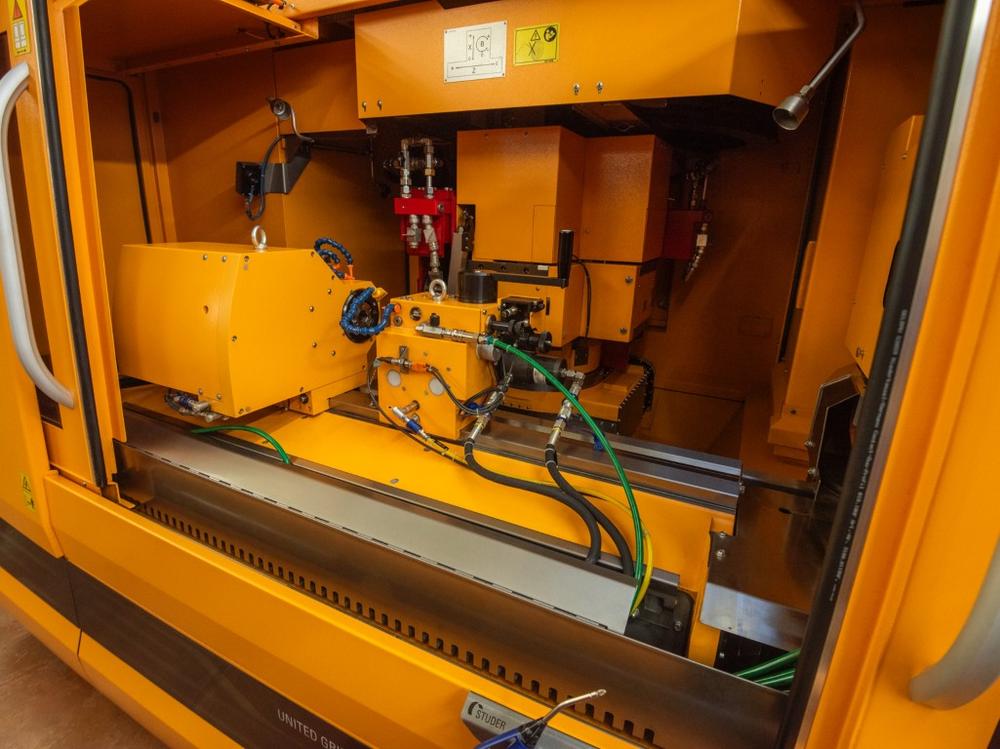

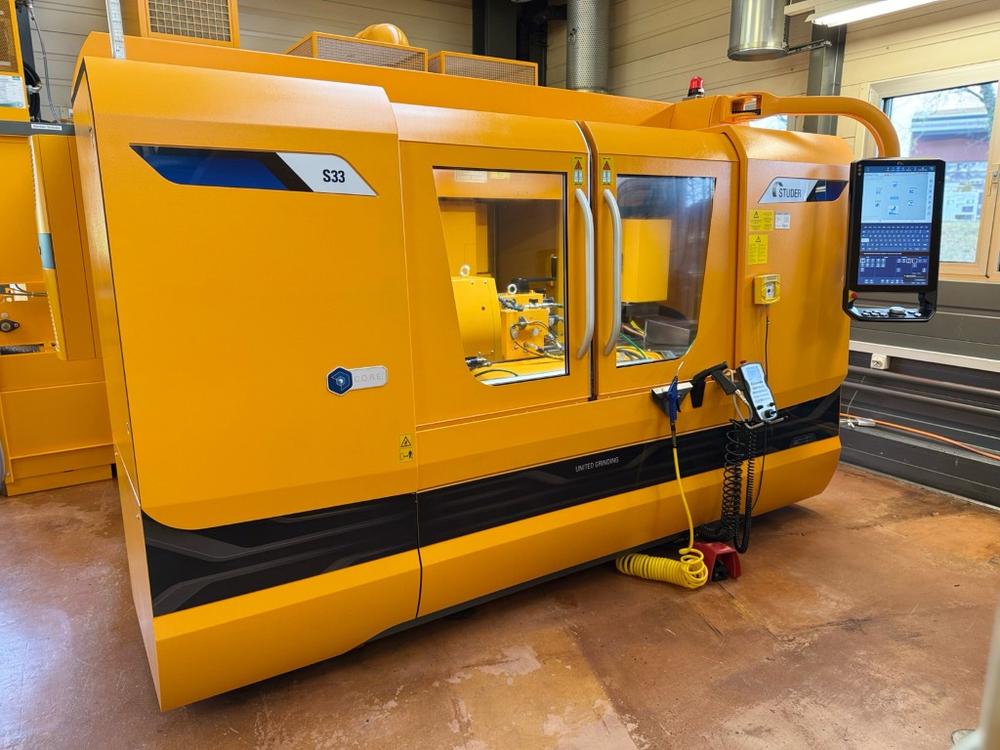

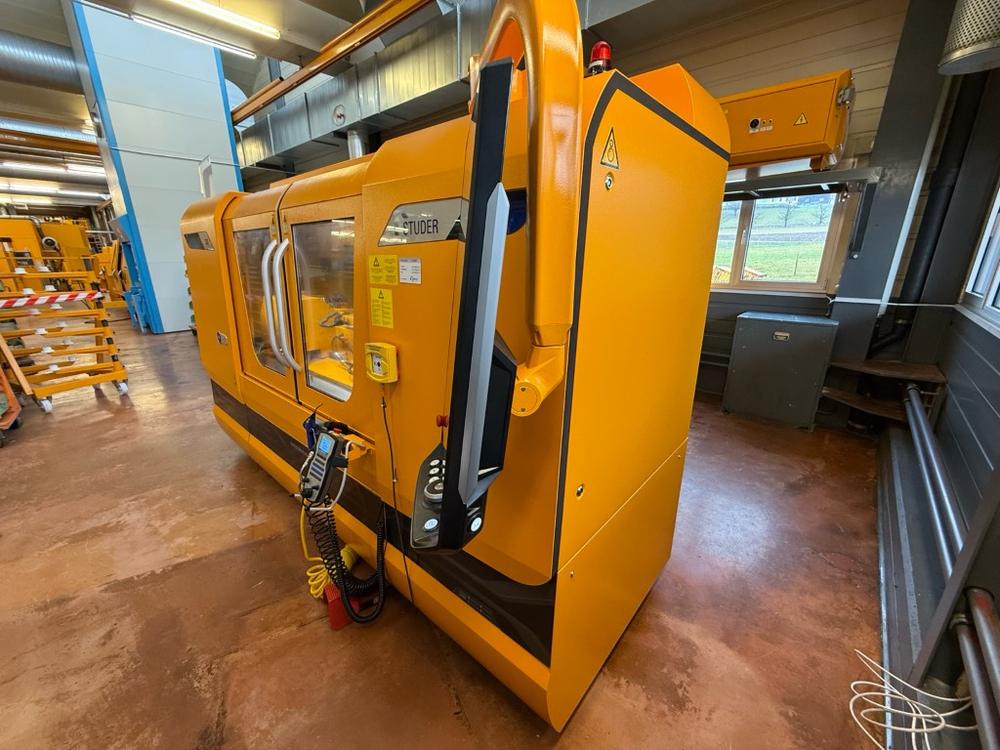

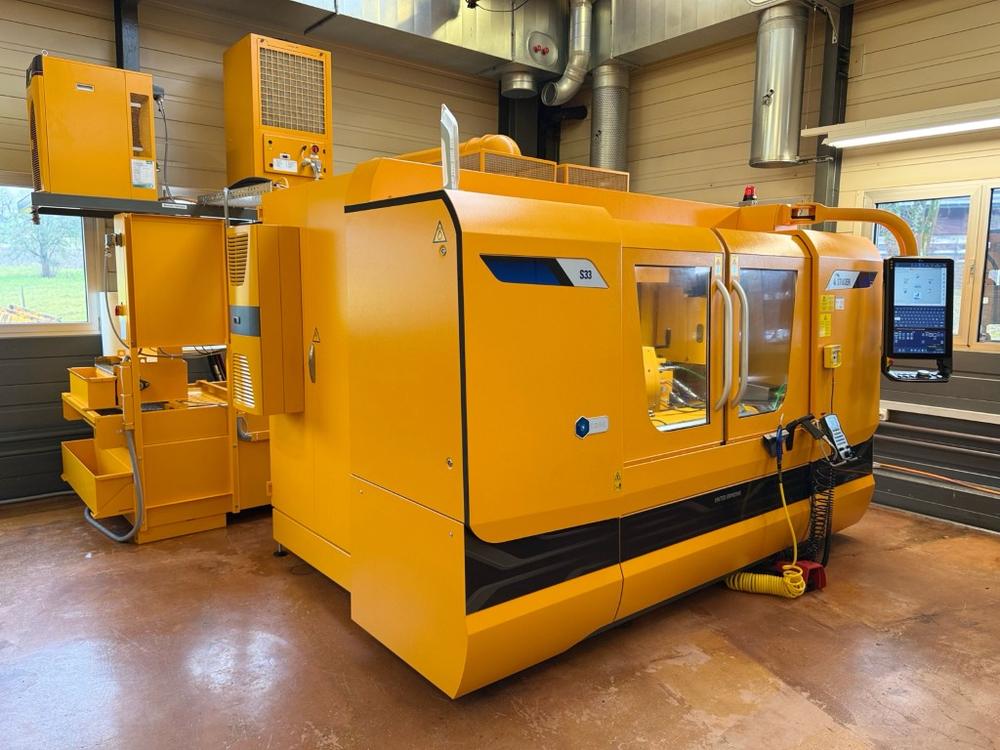

1 - 2023 Studer S33 2023 Studer S33 CNC cylindrical grinding machine
Rümlang | CH
Starting bid
Current bid
Final bid
€195,000.00
0
Bid
Bids
Highest bidder
Outbid
My last bid: €0.00 (Auto bid)
Share:
Product information
| Brand | Studer |
| Amount | 1 |

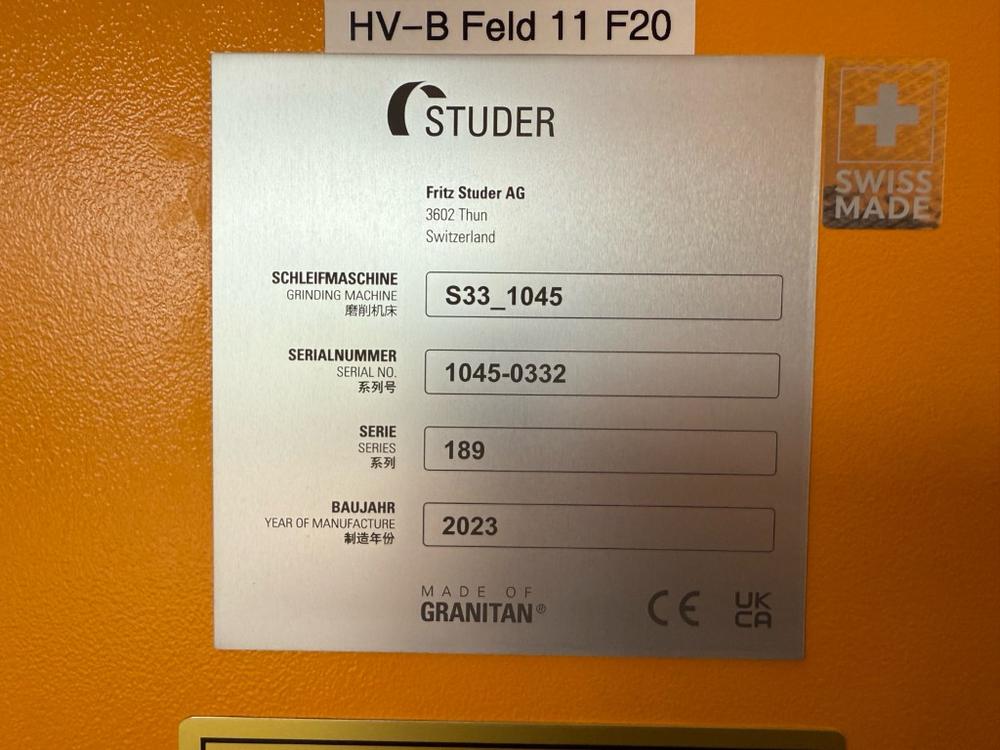

| Serial number | 1045-0332 |
| Type | S33 |
| Year | 2023 |

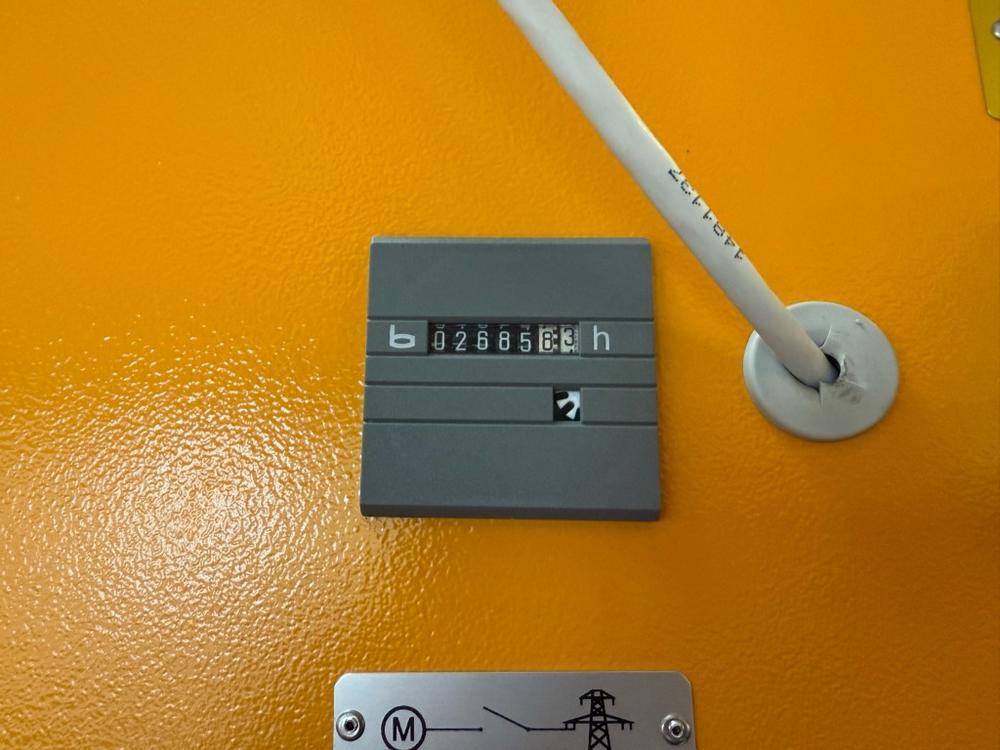

Power on Hours: 4976
Distance Between Centers: 650 mm;
Center Height: 175 mm;
Maximum weight workpiece: 150 kg;
X-Axis Travel: 370 mm;
Z-Axis Travel: 800 mm;
B-Axis Swivel: -30° +225°;
C-Axis Accuracy: +/- 0.5°;

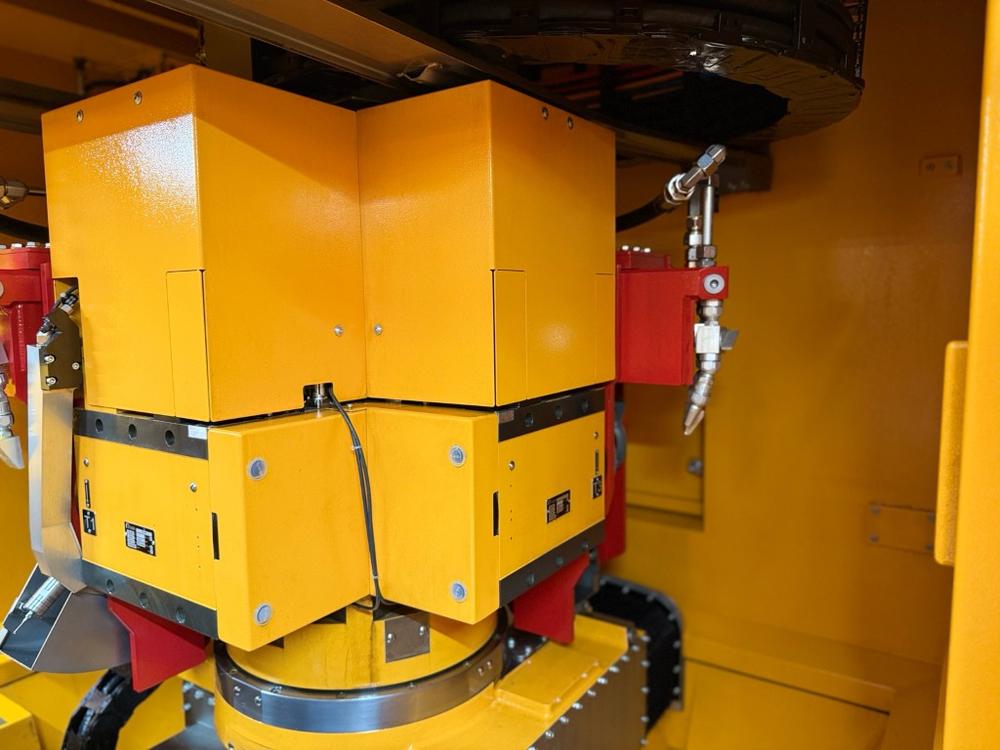

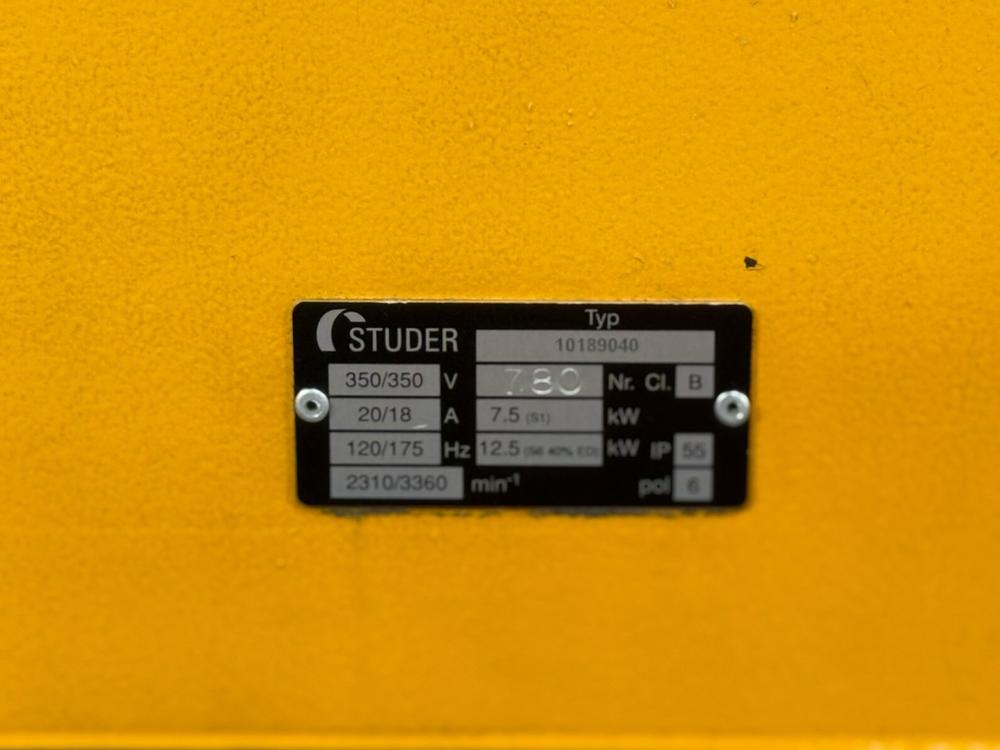

Grinding Spindel power: 12,5 kW;

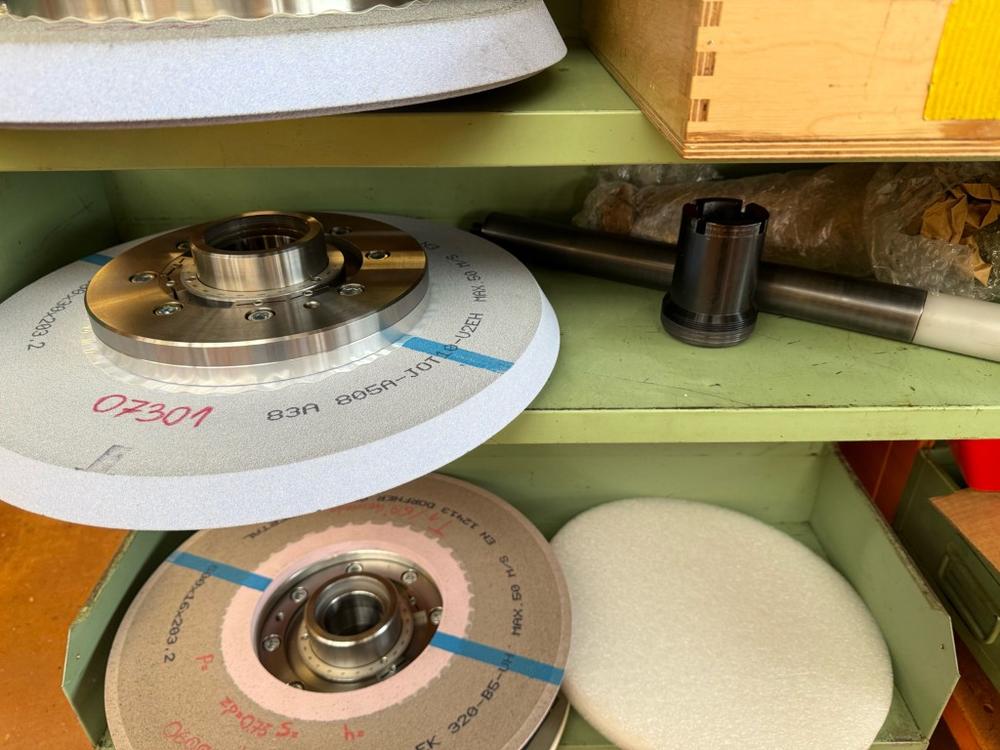

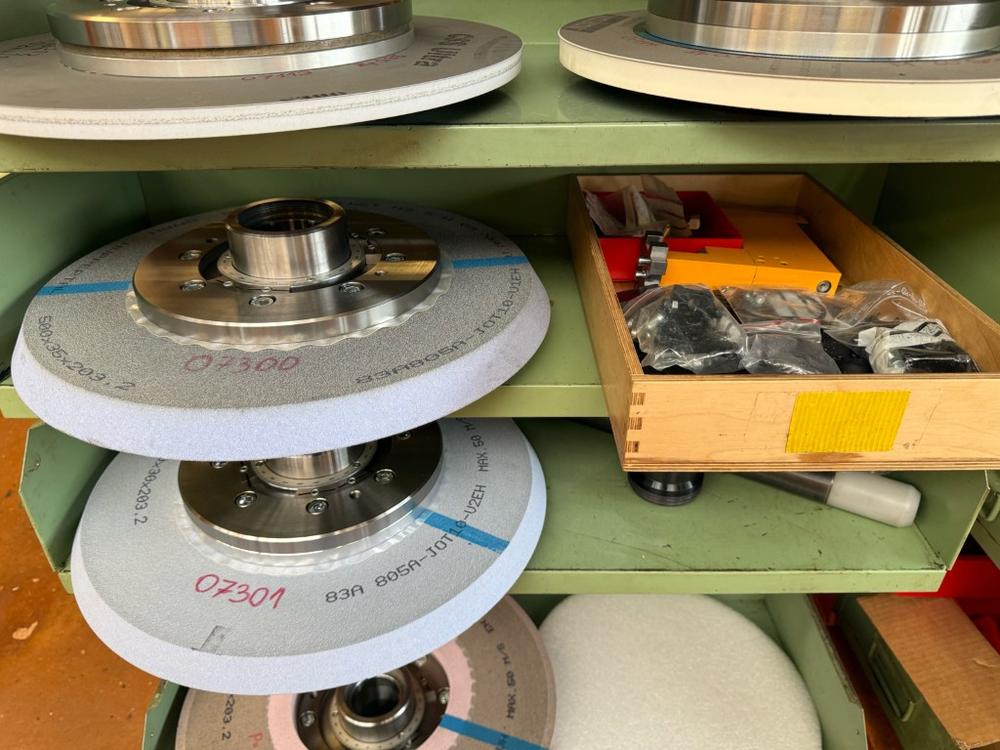

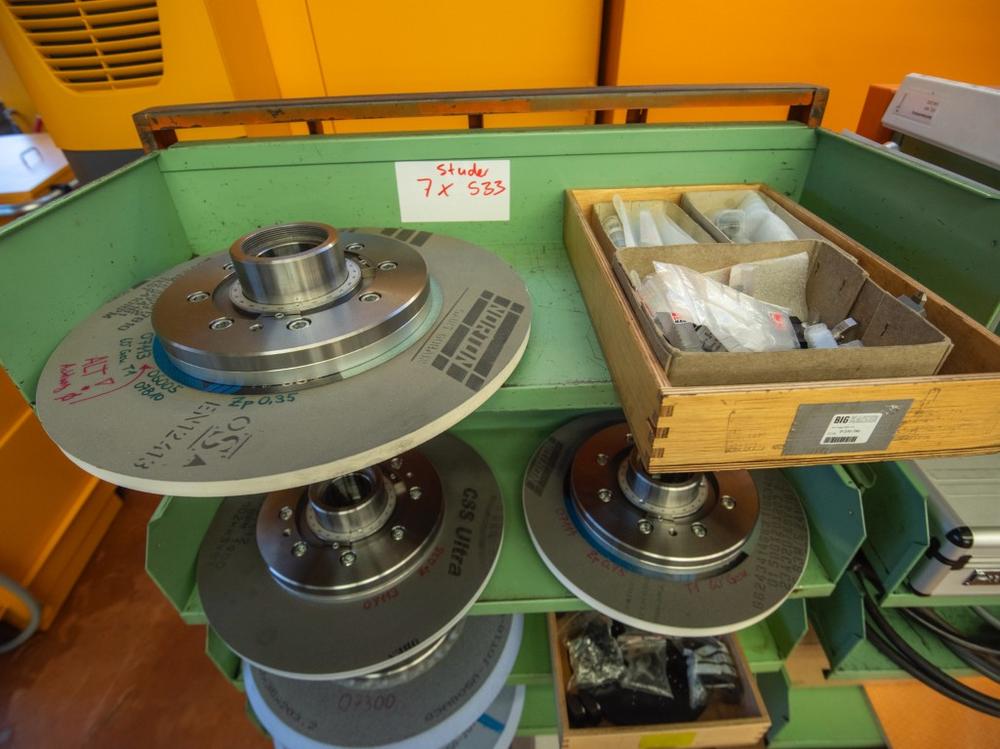

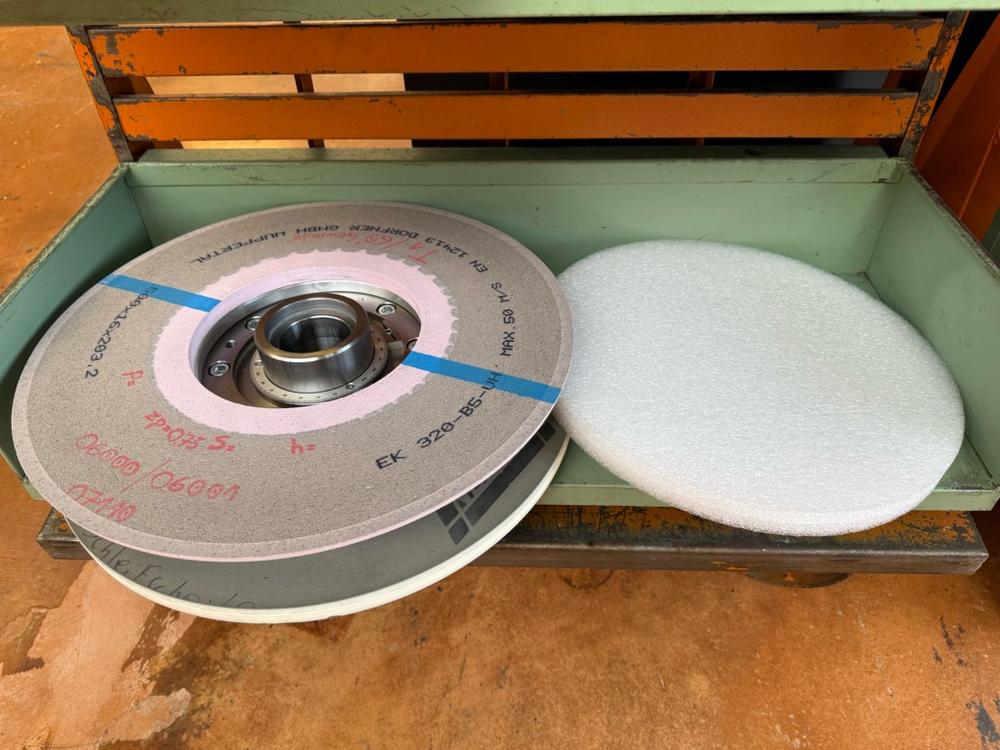

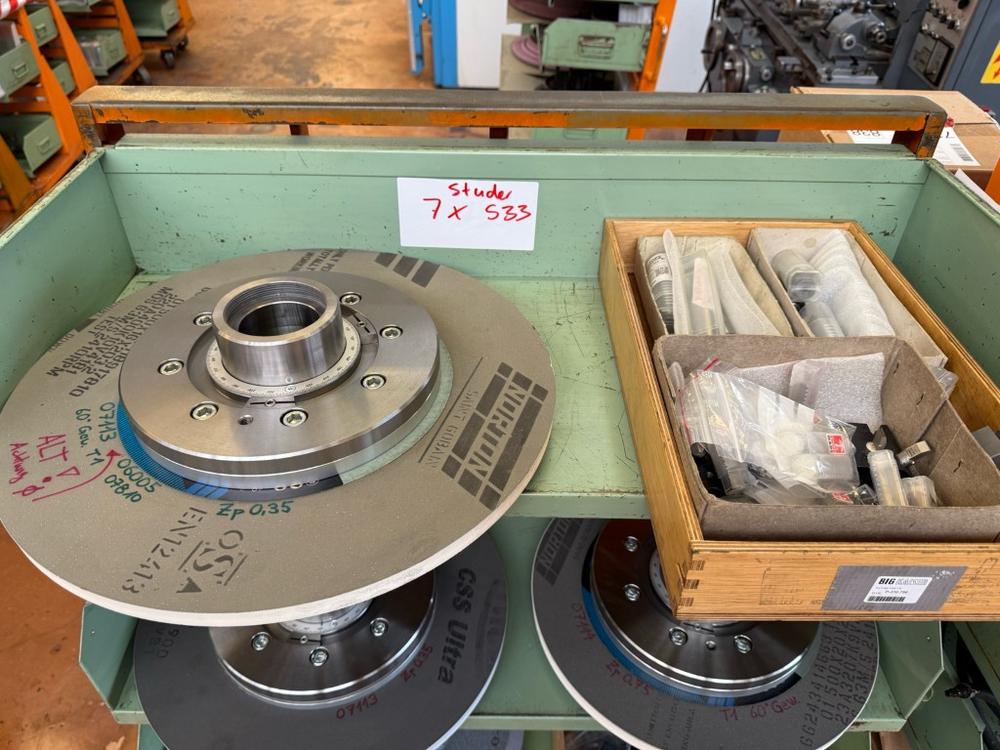

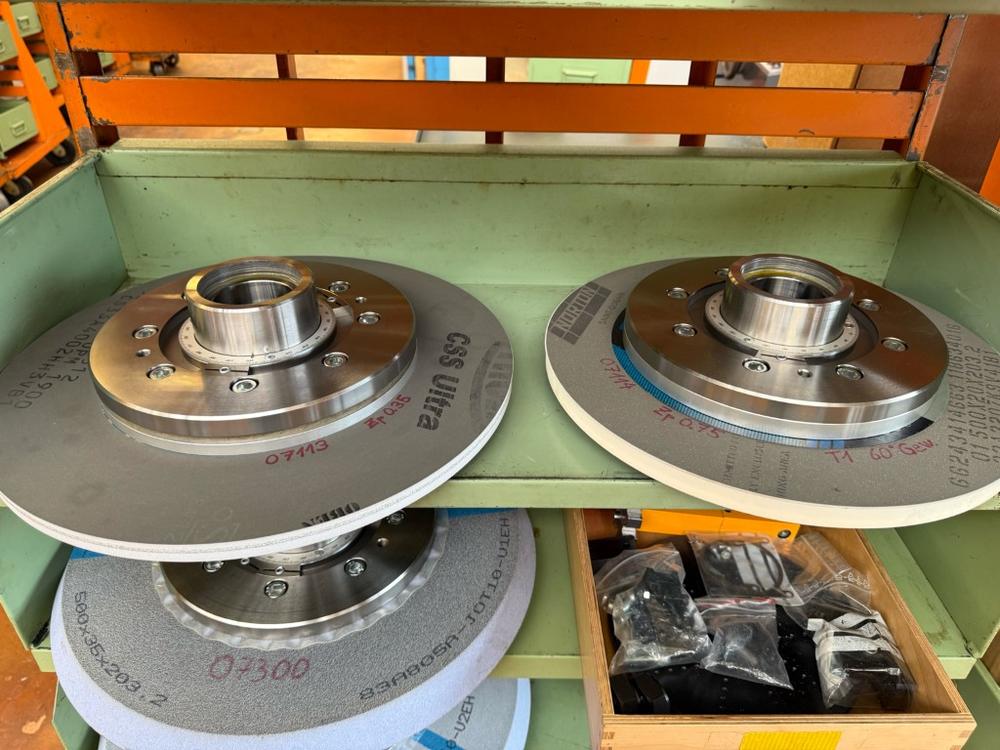

Grinding weel maximum size: 2x 500x80 mm;
Grinding weel capacity: T1: 1.982 rpm T2: 42.970 rpm;

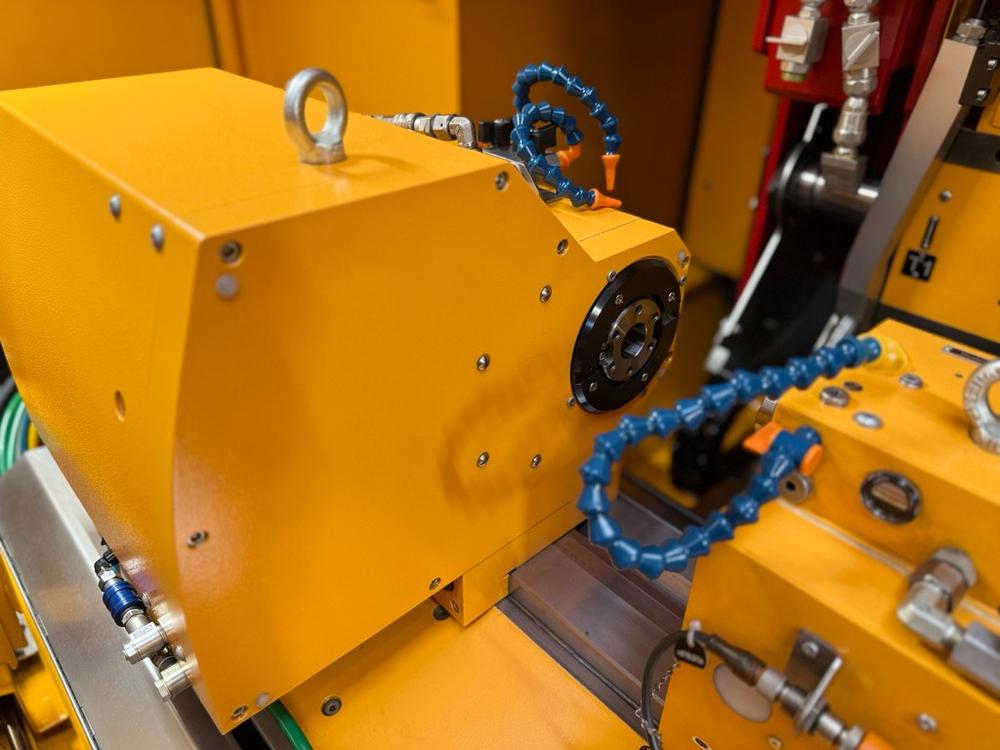

Workpiece spindel head: MK4;
Workpiece spindel capacity: 1-1500 rpm;
Workpiece tailstock head: MK3;

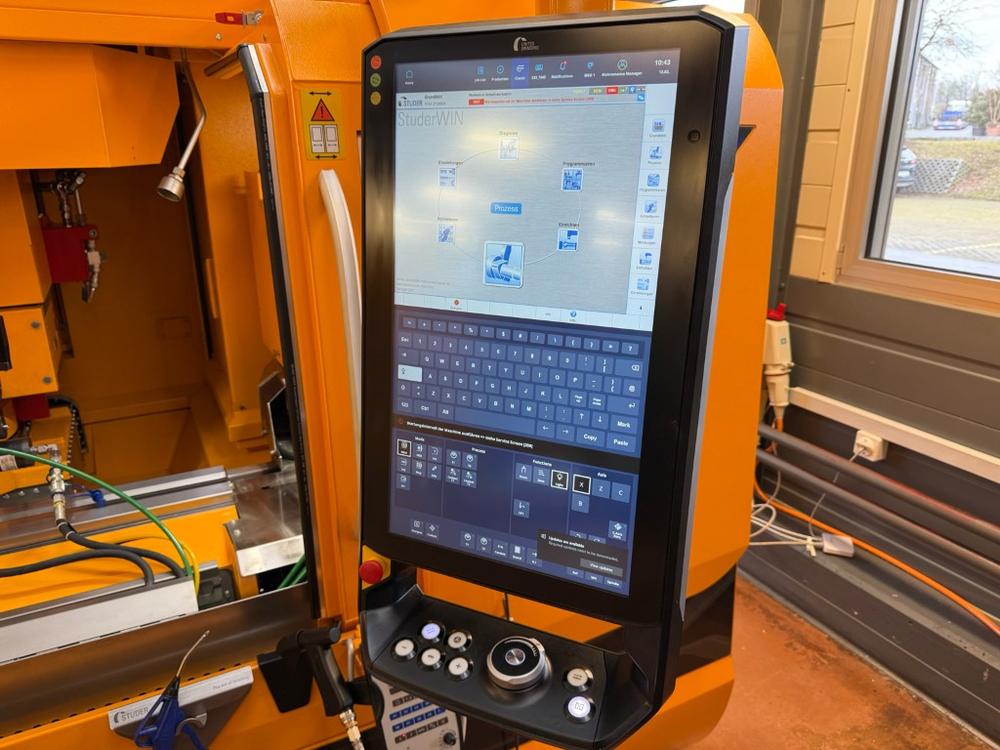

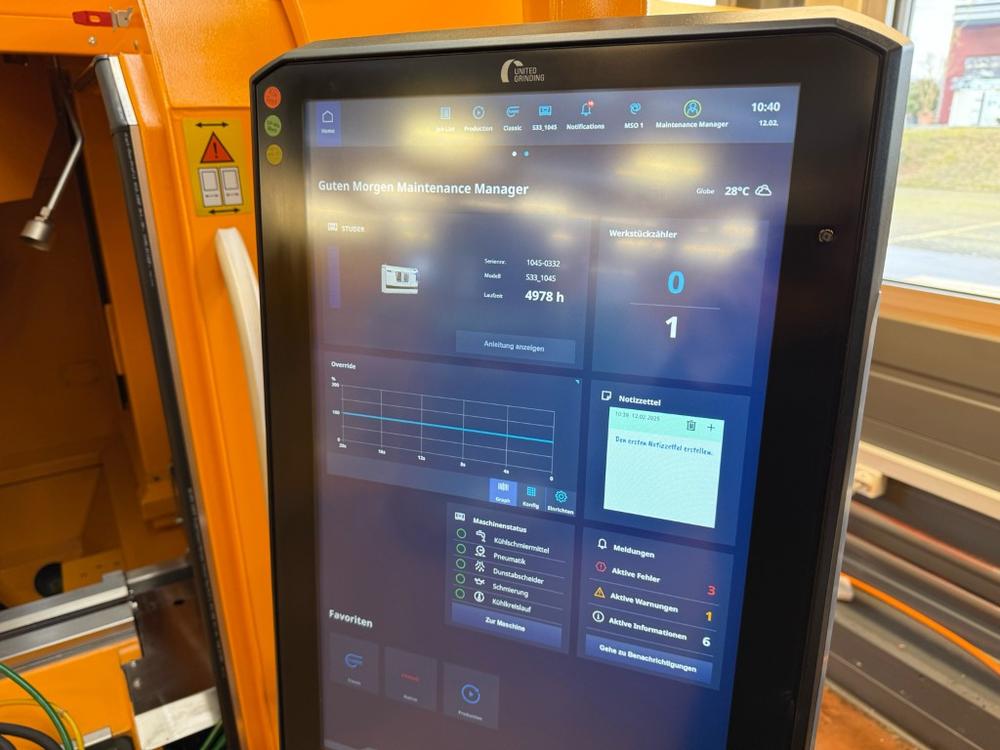

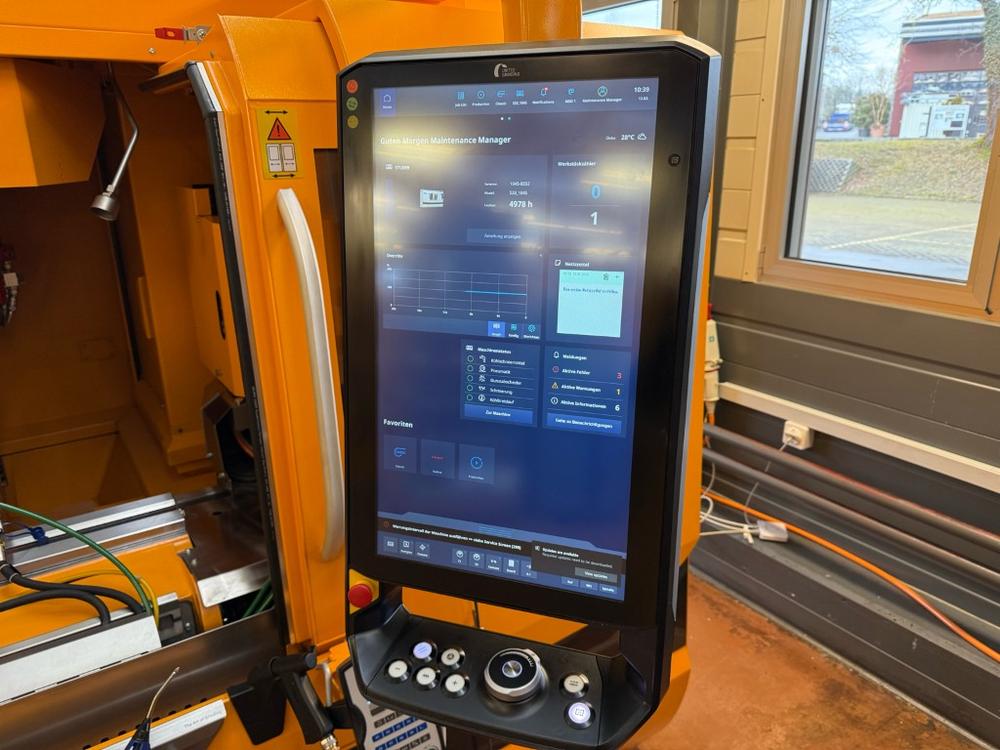

Control system: Fanuc 31i-B;
Machine dimensions LxWxH: 2100x3250x2150mm

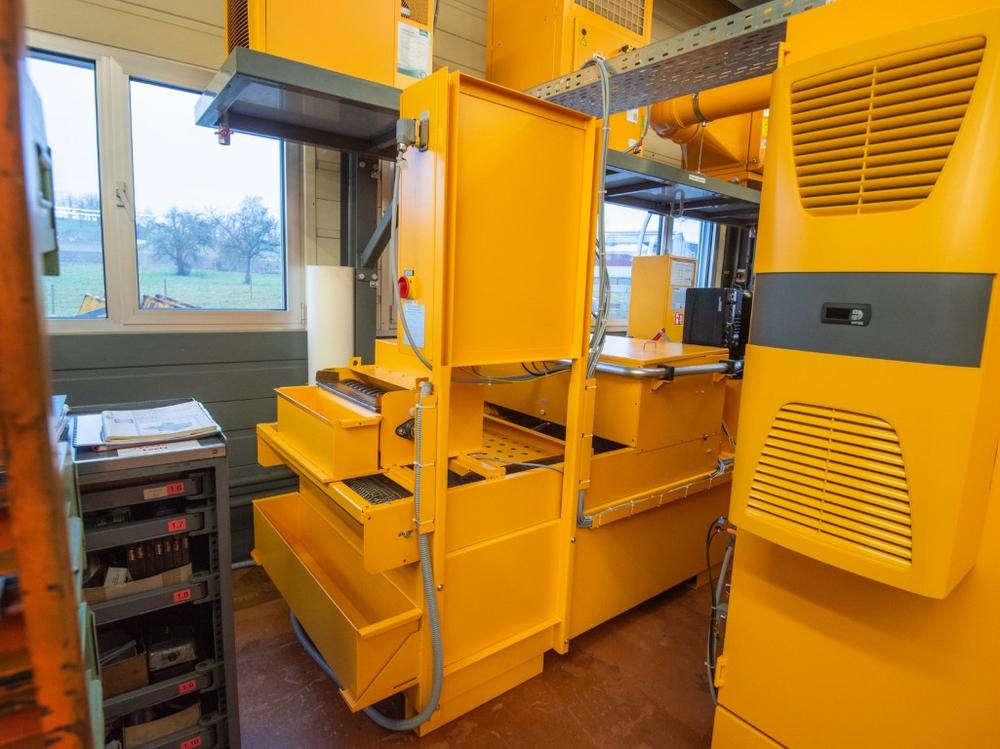

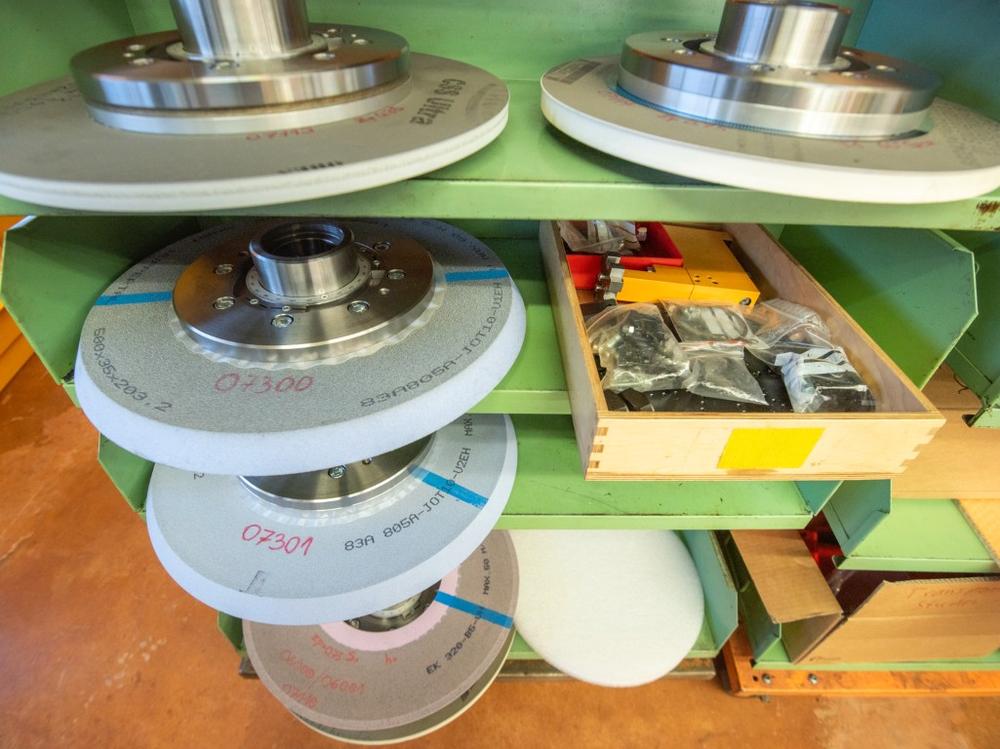

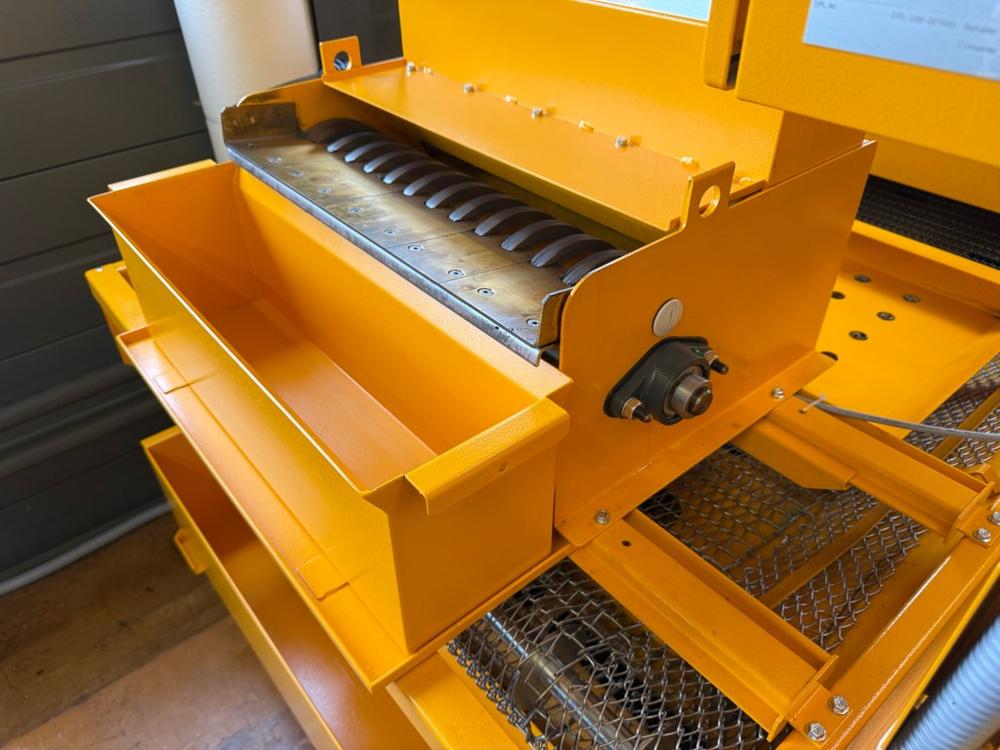

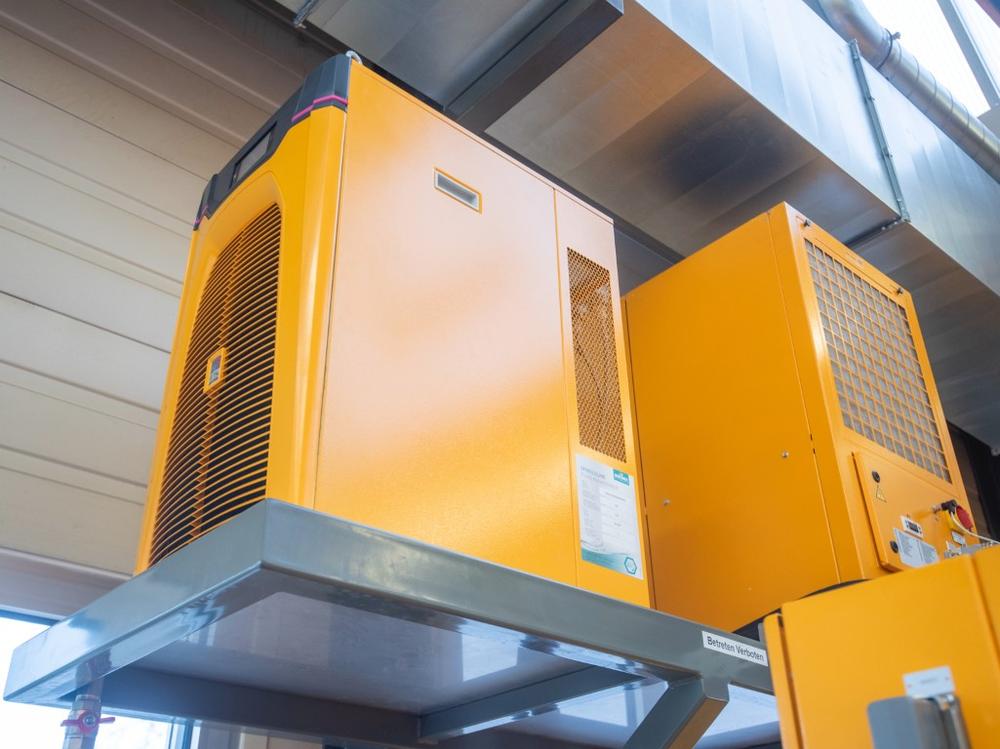

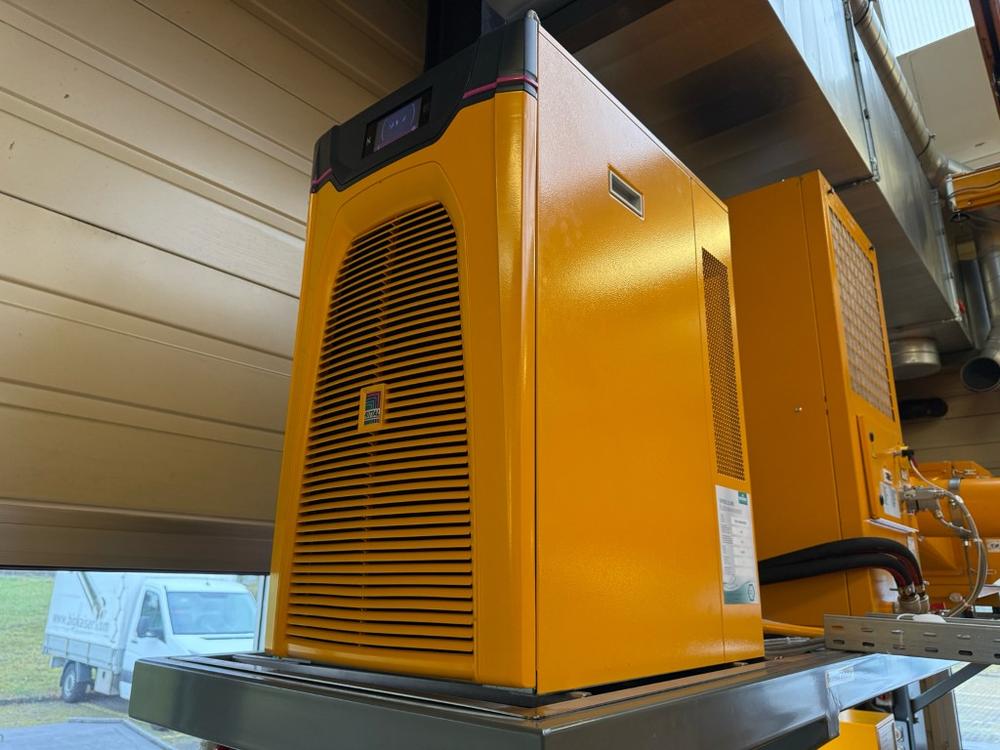

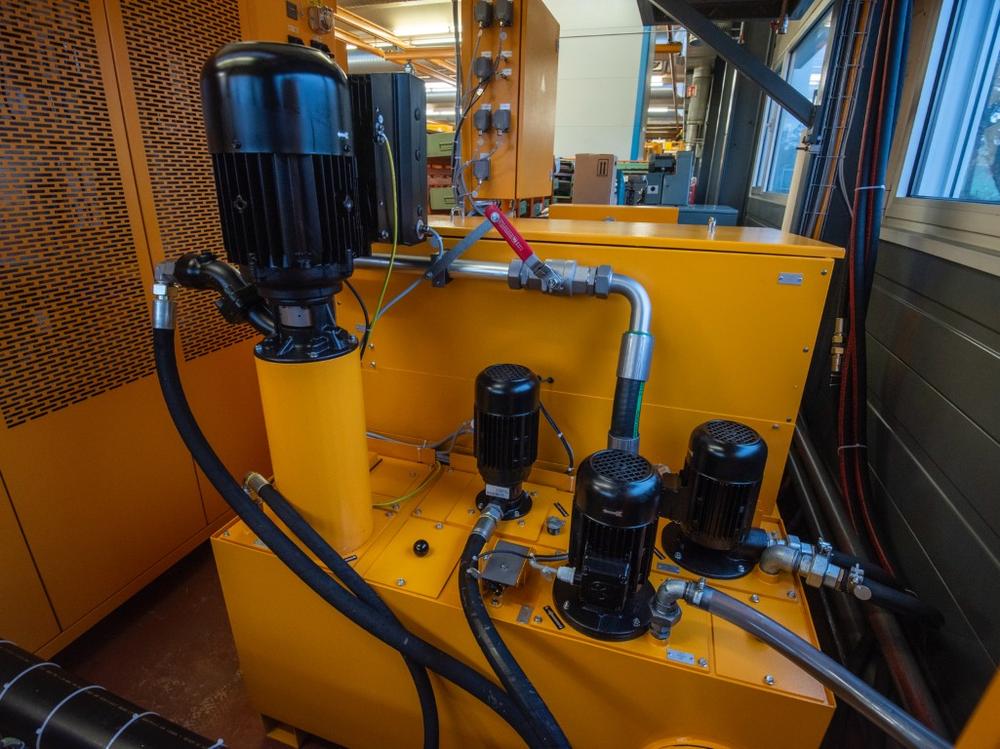

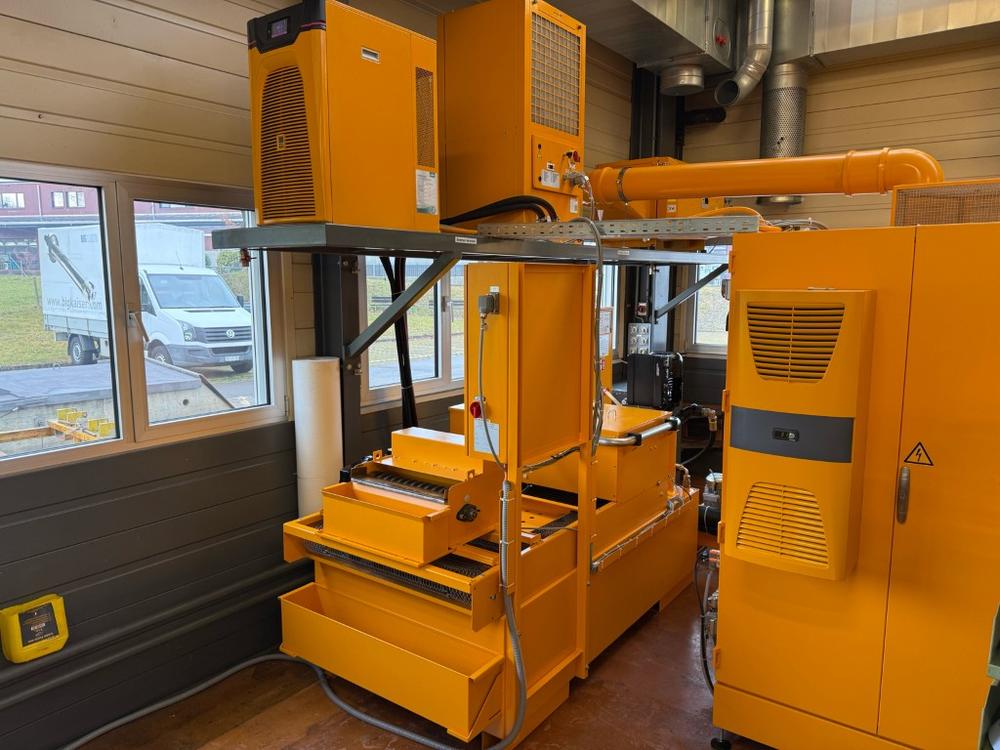

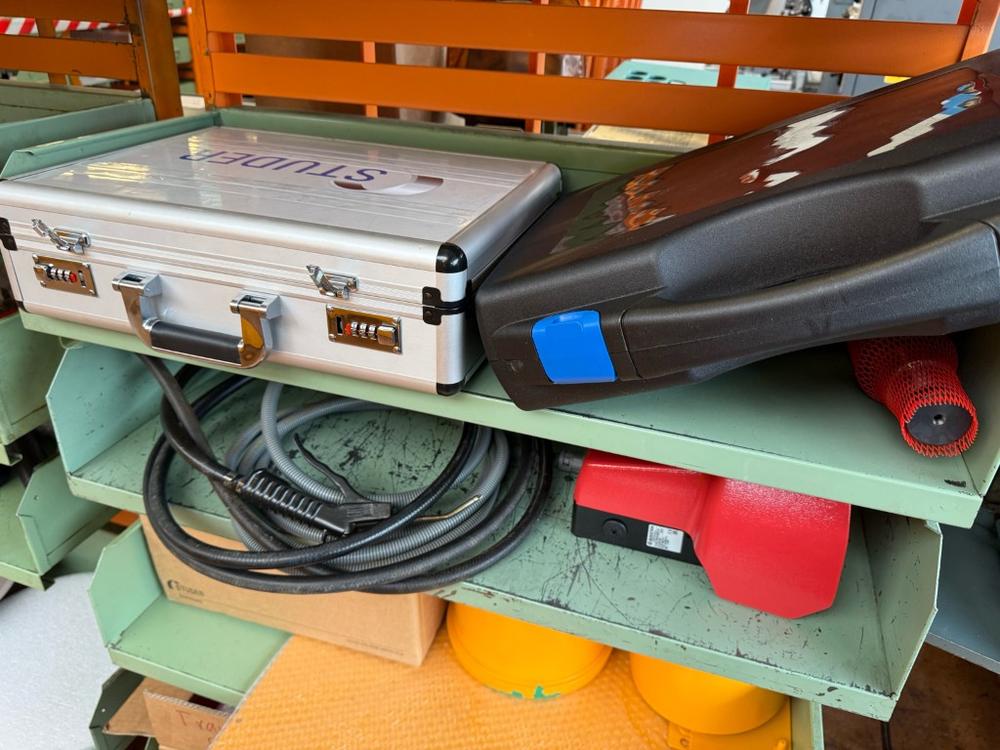

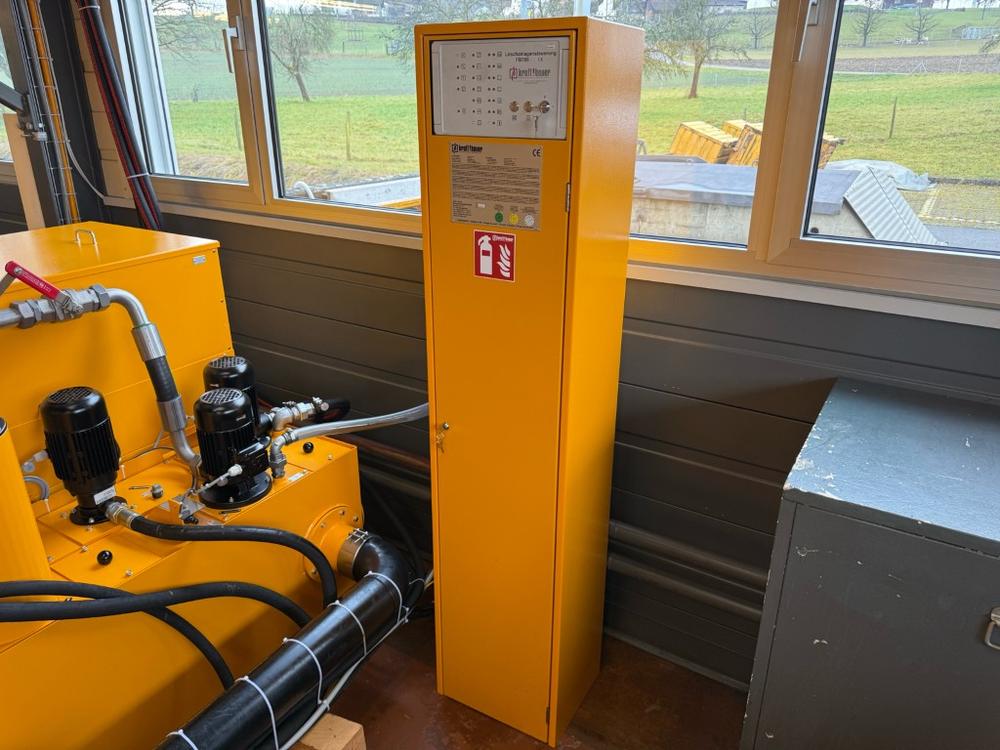

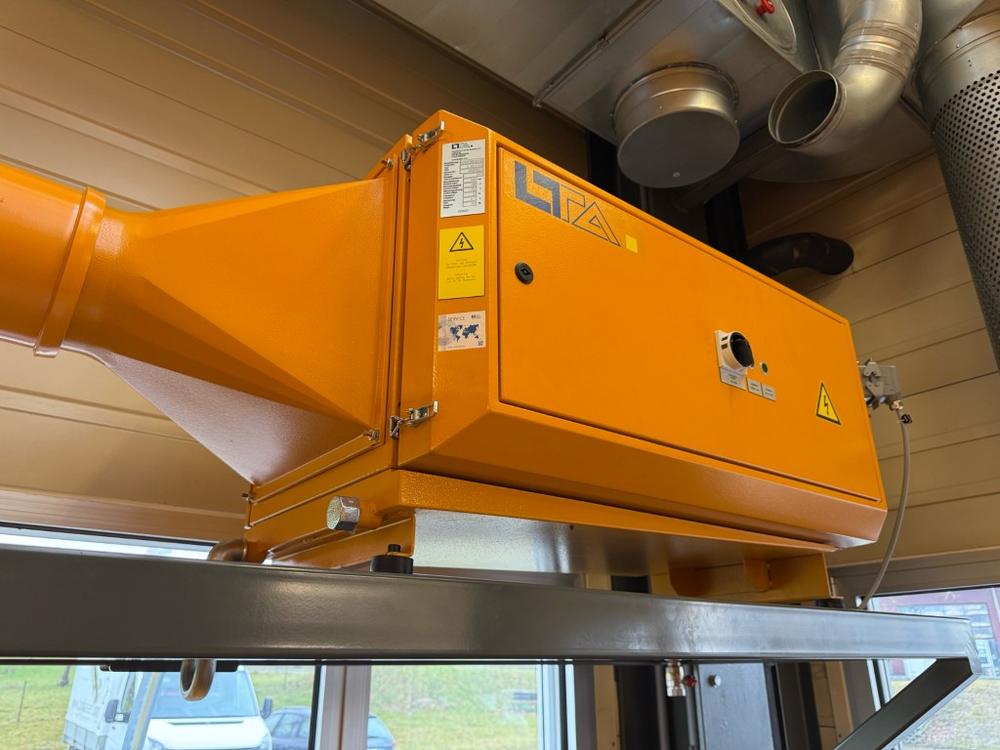

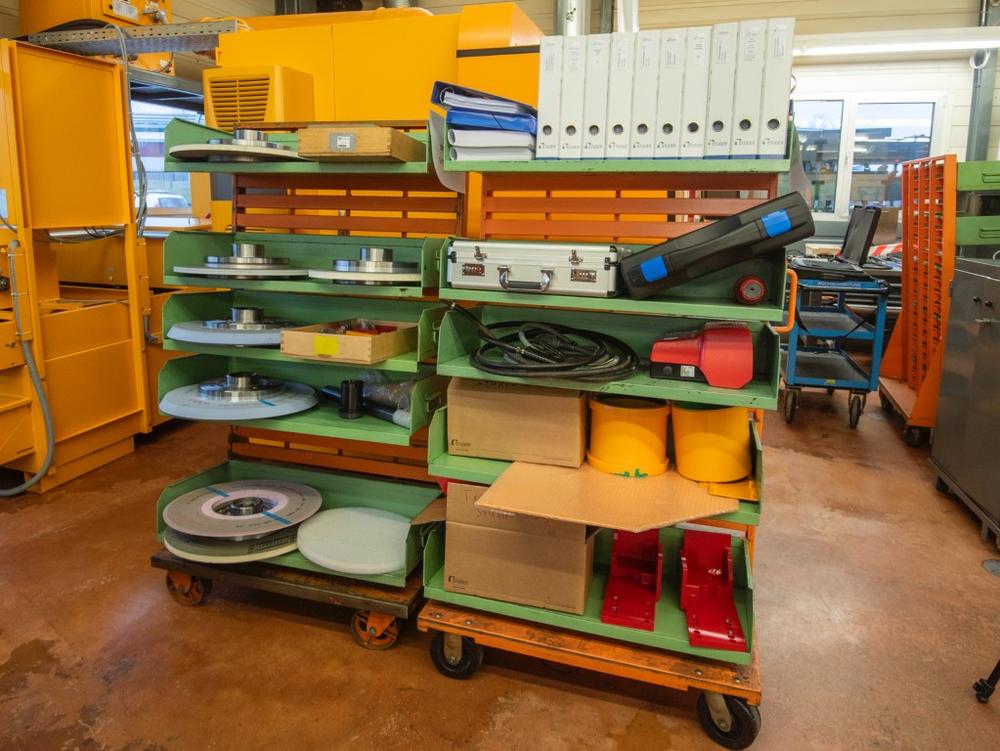

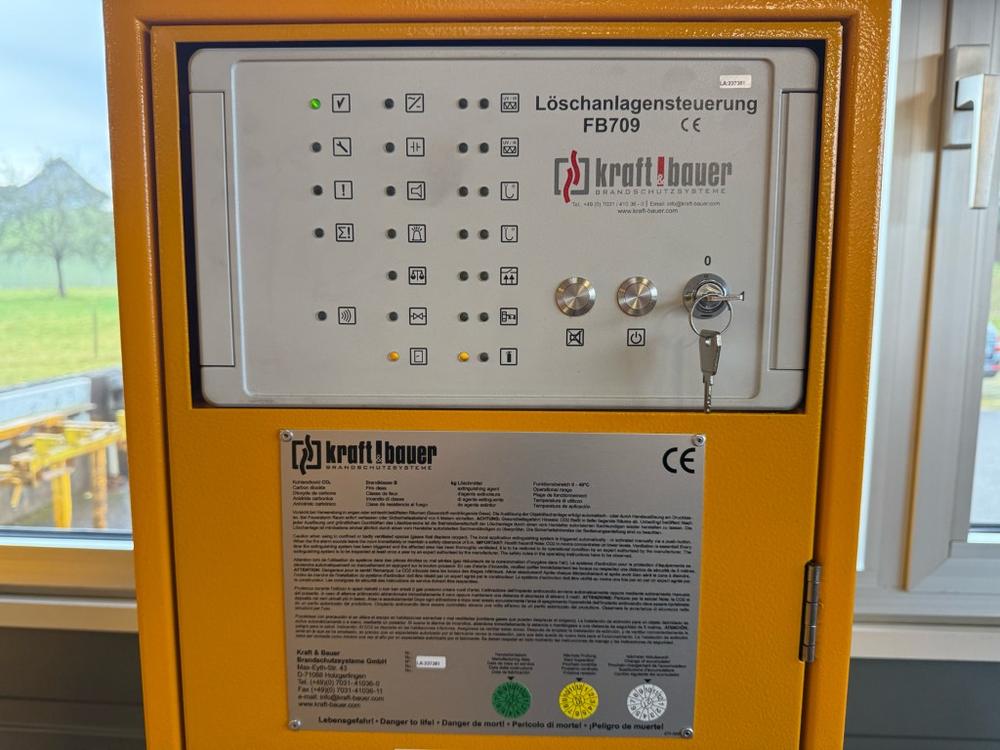

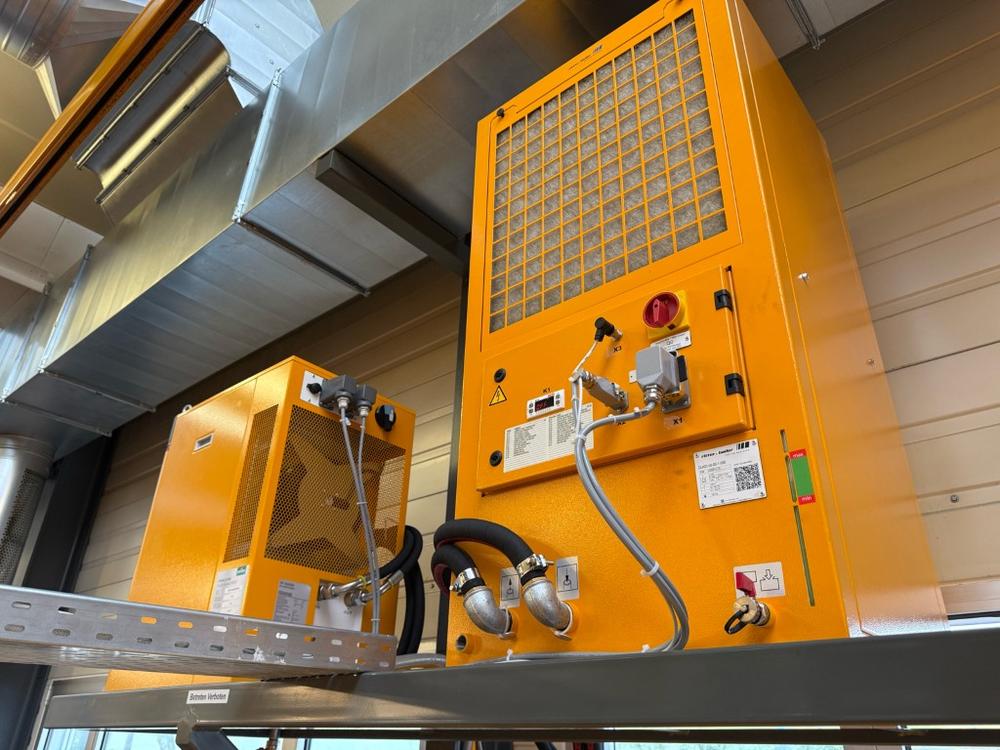

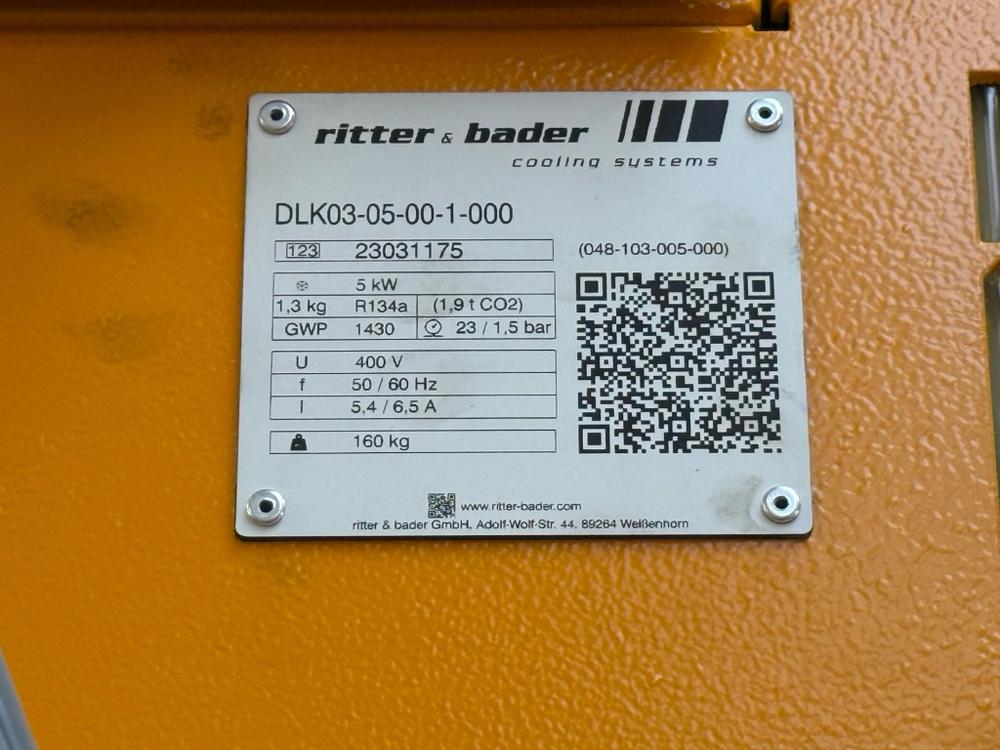

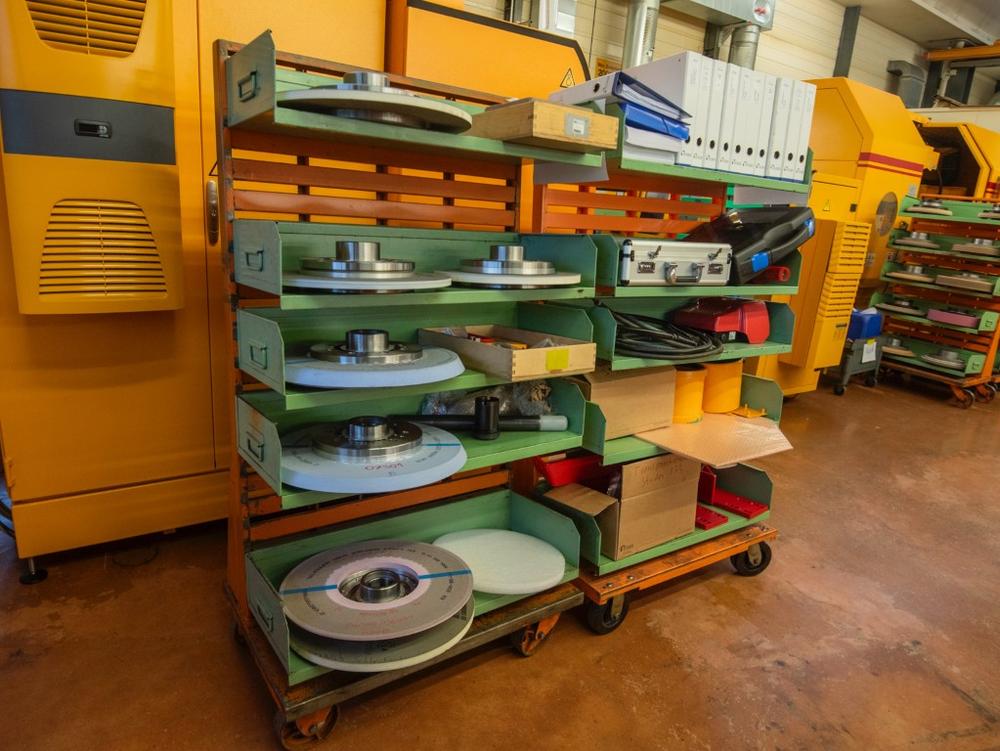

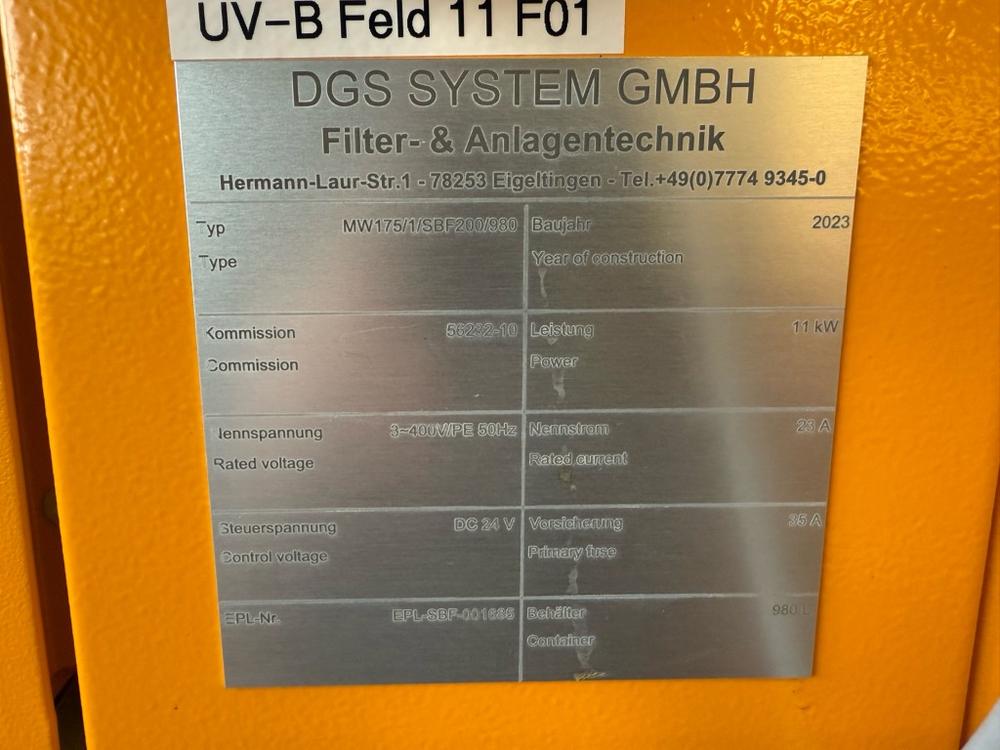

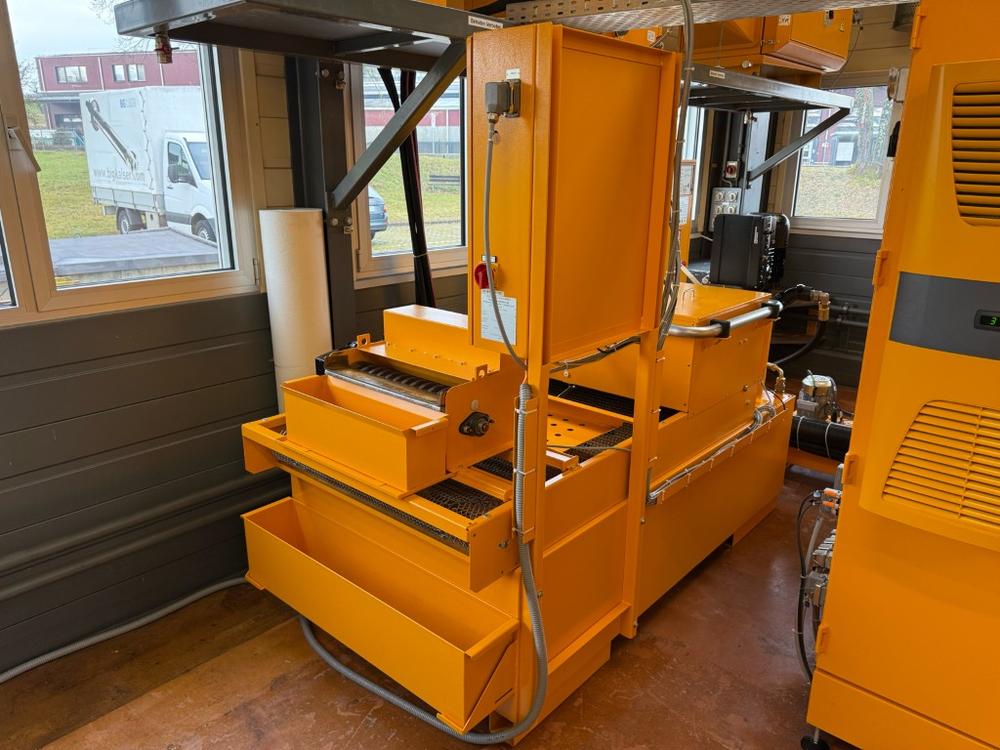

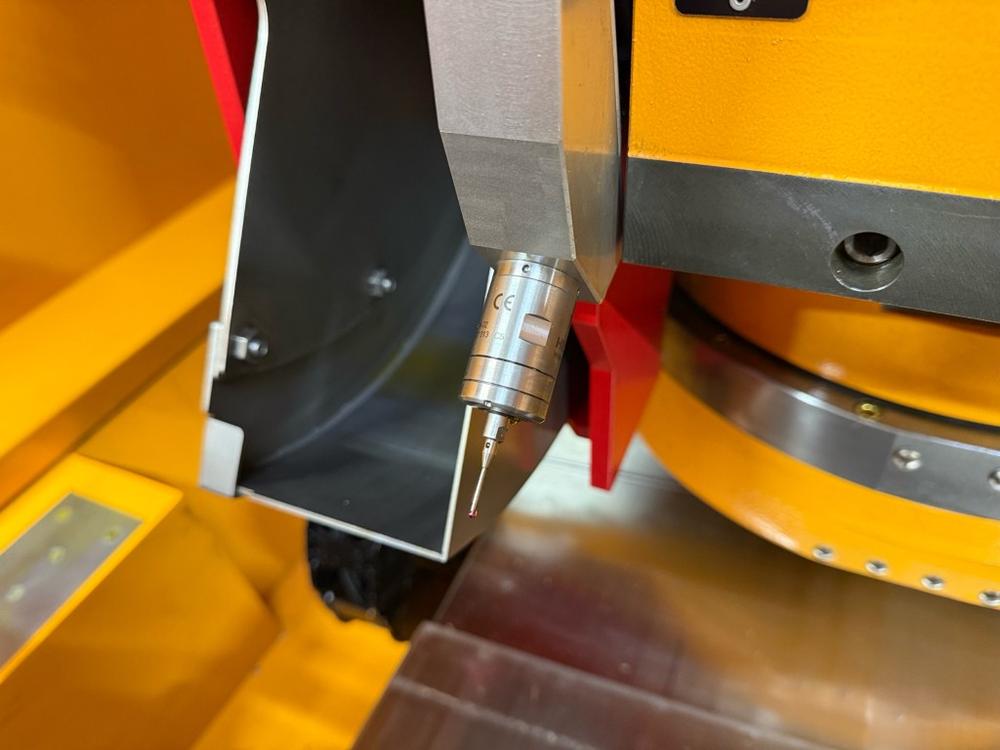

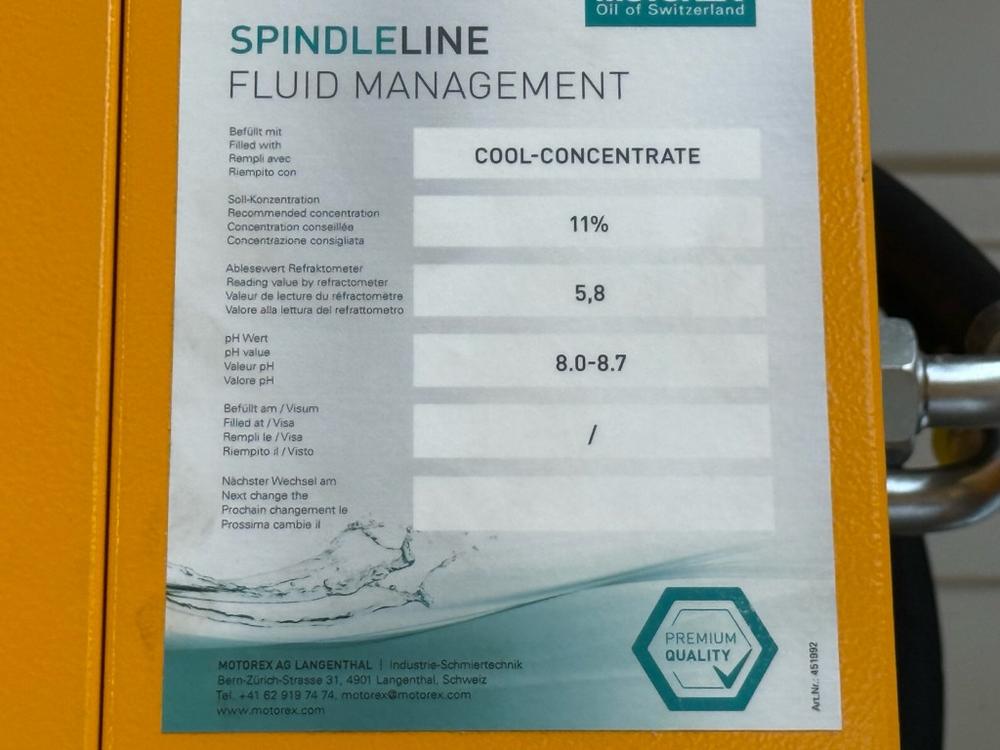

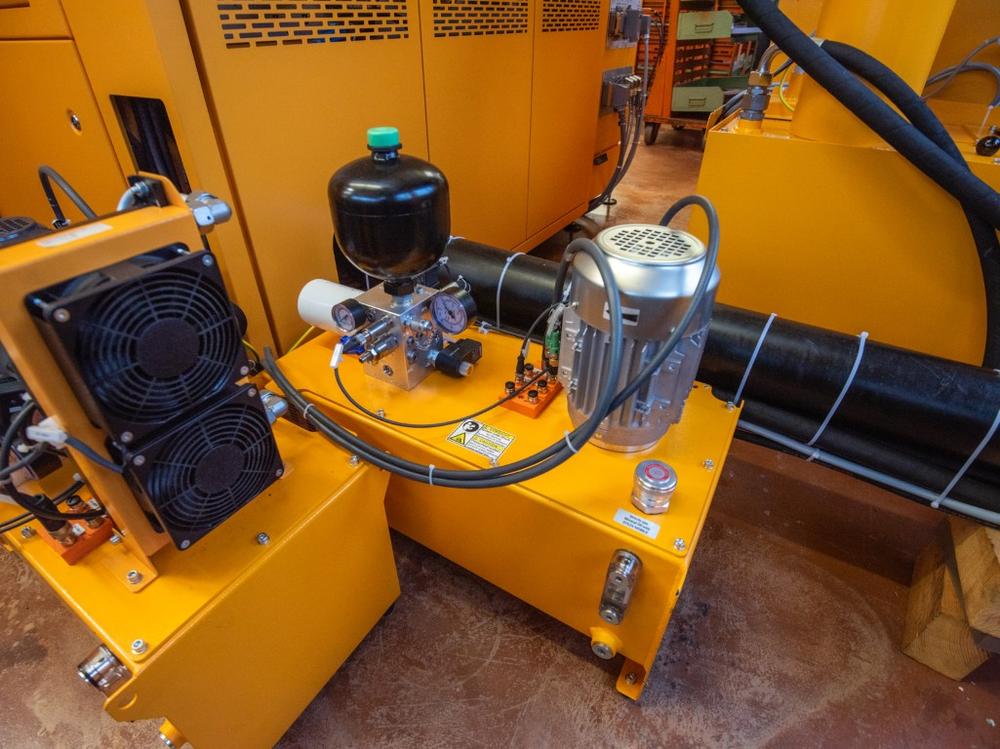

Equipped with: measuring prope, Kraft & Bauer fire extinguis installation, LTA oil mist separator, DGS paper filter, motorex/Ritter & bader coolers, grinding weels, documentation;
