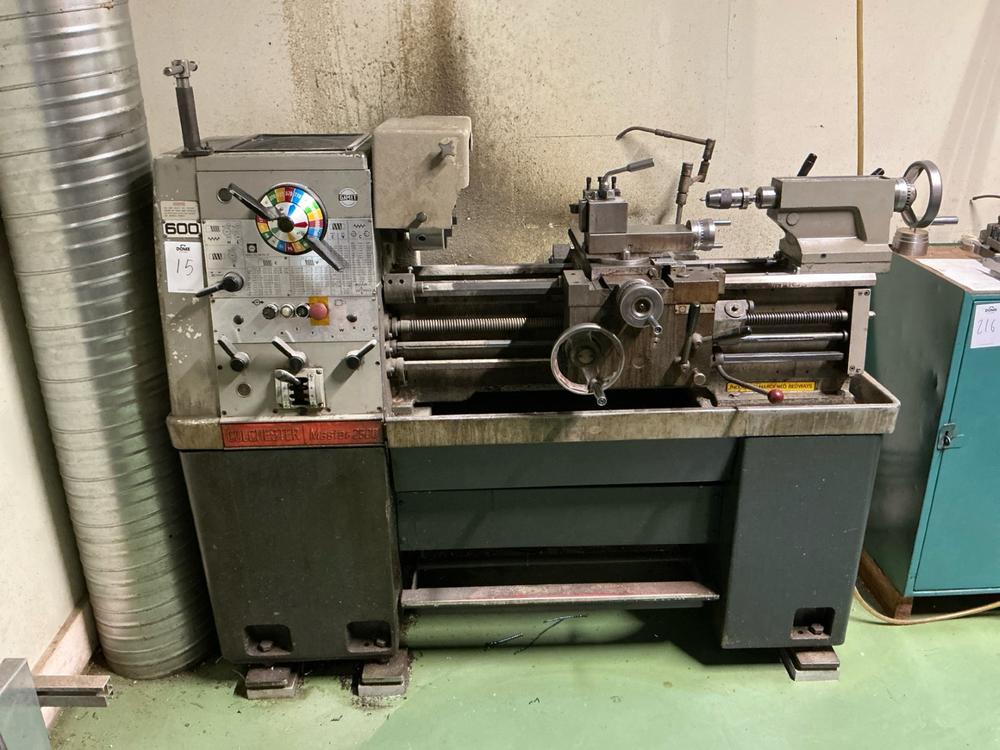

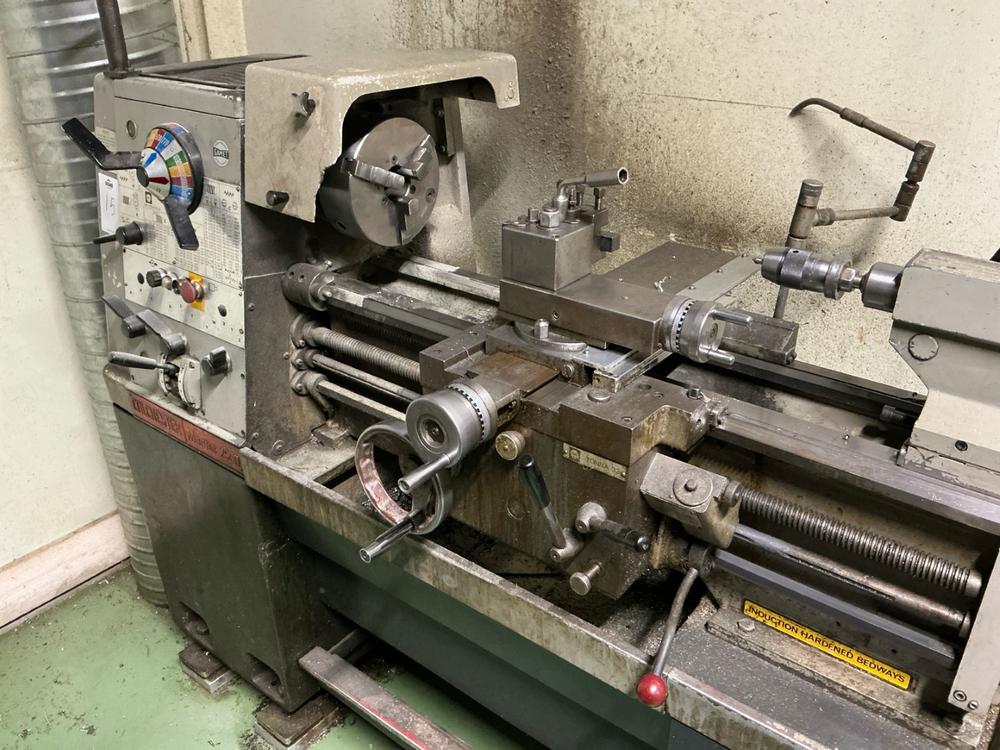

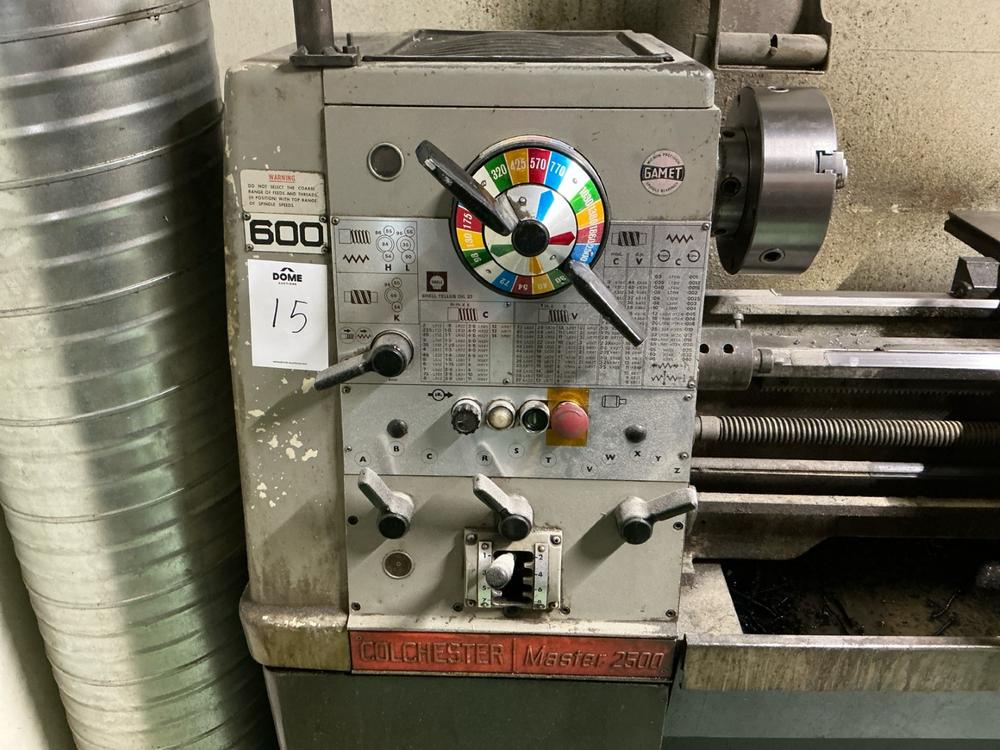

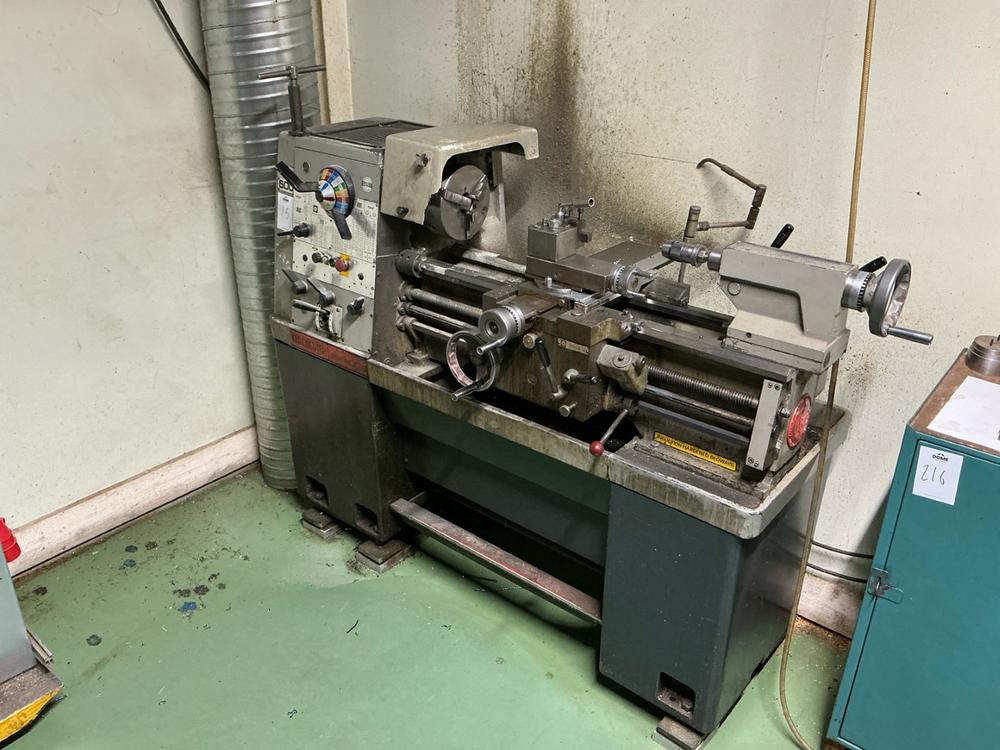

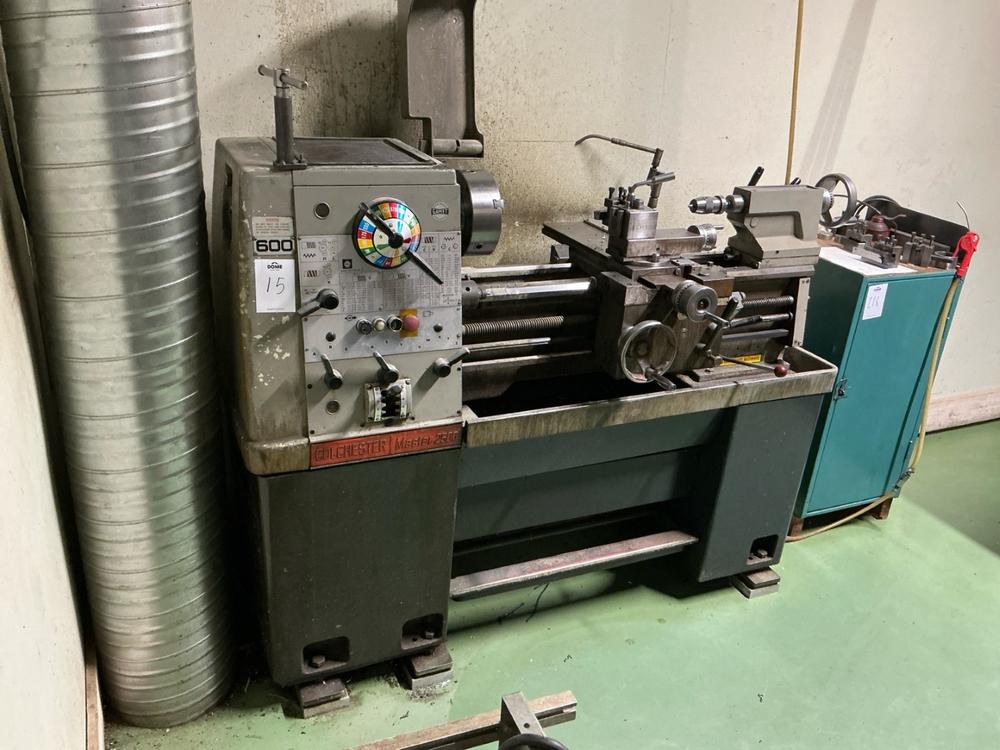

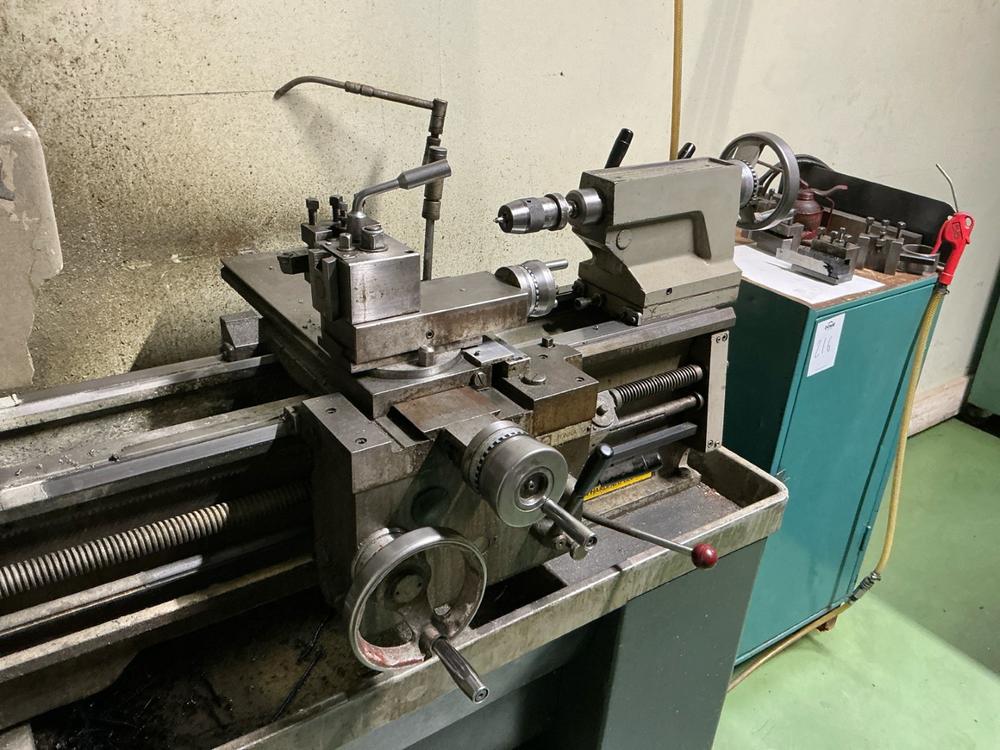

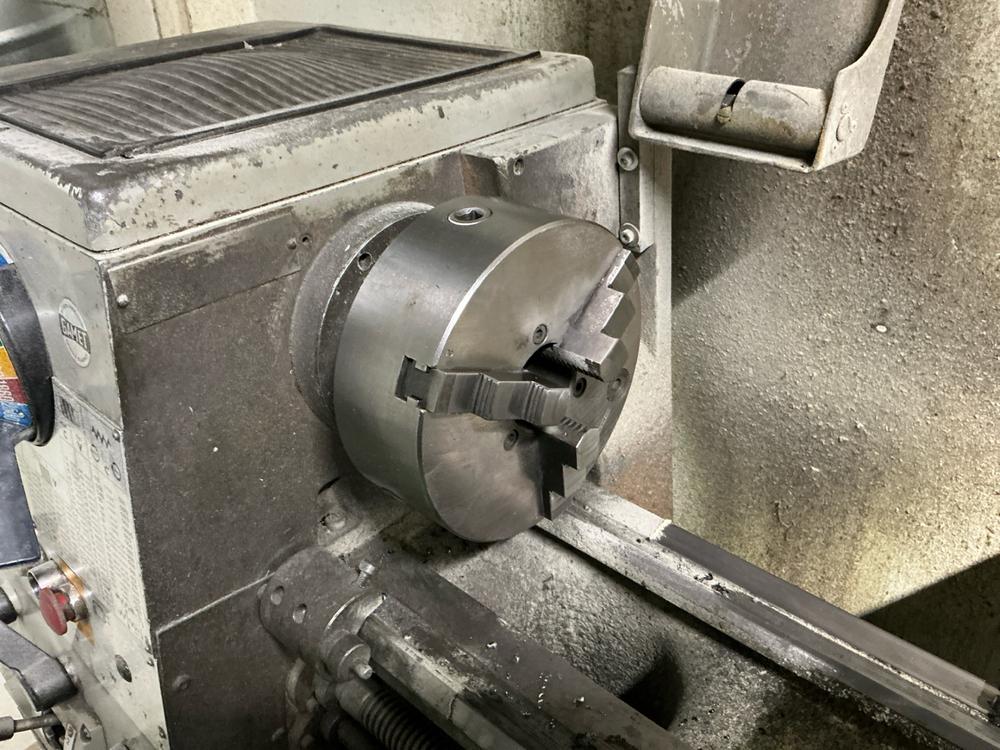

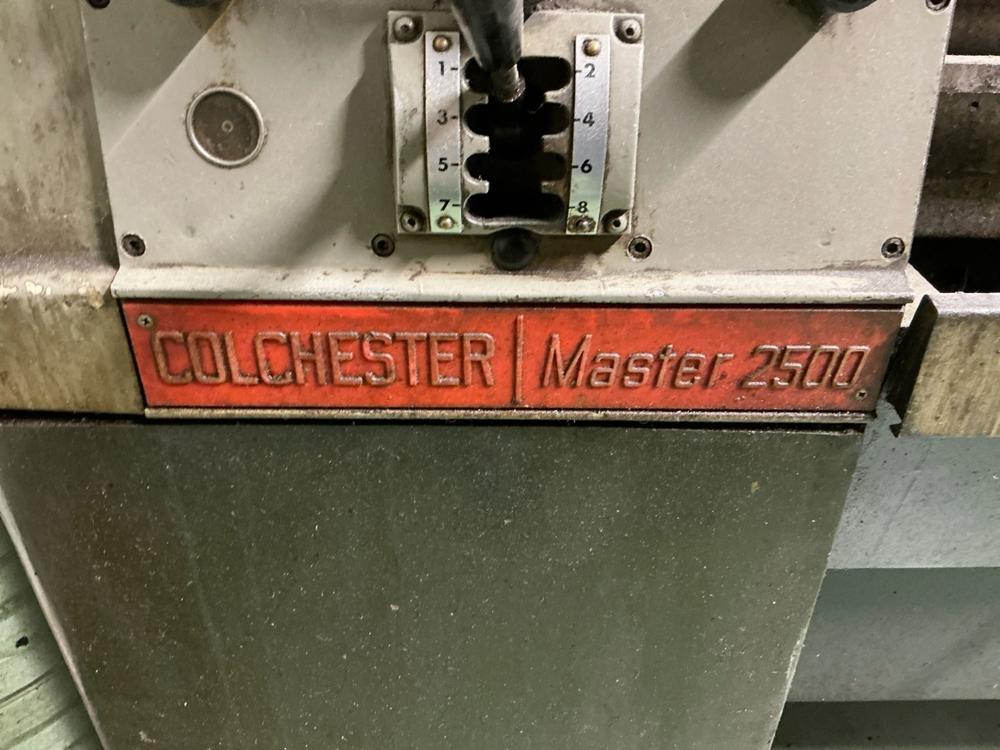

15 - Colchester Master 2500 Lathe
Norsborg | SE
Puja inicial
Puja actual
Puja final
250,00 SEK
0
Pujar
Pujas
Mayor postor
Superado
Mi última puja: 0,00 SEK (Puja automática)
Compartir
Información del producto
| Brand | Colchester |
| Type | Master 2500 |
| Amount | 1 |
Center height: 165 mm
Center width: 635 mm
Swing over bed: 335 mm
Swing over cross slide: 210 mm
Swing in gap: 480 mm
Distance in front of faceplate: 115 mm
Spindle bore (max. bar size): 40 mm
Spindle nose: 4 in. D1 Camlock
Spindle taper: MK 3
Tailstock taper: MK 3
Bed width: 230 mm
Cross slide travel: 210 mm
Top slide travel: 72 mm
Tailstock sleeve travel: 145 mm
Number of spindle speeds: 16
Speed range: 30–2500 rpm
Machine total width: 890 mm
Machine total length: 1195 mm
Drive: 2-step belt
Motor: 5 hp
Combinación
Este lote es parte de una combinación: Combination Lot 15, 216
Información adicional
Catalogue under construction. Pickup days for small, easy pickup lots, tools, workshop etc. are scheduled and without appointment for September 8, 9 and 10 from 09:00 to 16:00. Buyers of large machines, specific lots and installations will be contacted right after the sale to schedule the pickup of those lots by appointment (mandatory late week 37 and/or during week 38 latest). Contact details of a preferred and professional international service partner (for pickup assistance, dismantling and/or fully serviced lot transportation) will be shared with the buyers right after the sale.
Center height: 165 mm
Center width: 635 mm
Swing over bed: 335 mm
Swing over cross slide: 210 mm
Swing in gap: 480 mm
Distance in front of faceplate: 115 mm
Spindle bore (max. bar size): 40 mm
Spindle nose: 4 in. D1 Camlock
Spindle taper: MK 3
Tailstock taper: MK 3
Bed width: 230 mm
Cross slide travel: 210 mm
Top slide travel: 72 mm
Tailstock sleeve travel: 145 mm
Number of spindle speeds: 16
Speed range: 30–2500 rpm
Machine total width: 890 mm
Machine total length: 1195 mm
Drive: 2-step belt
Motor: 5 hp
