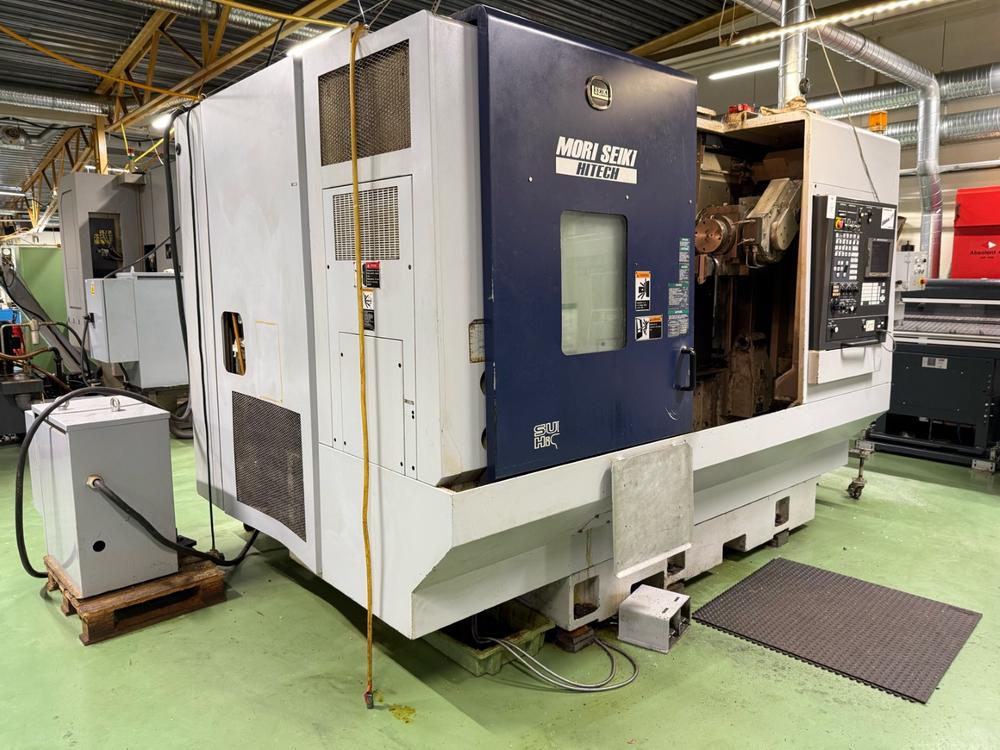

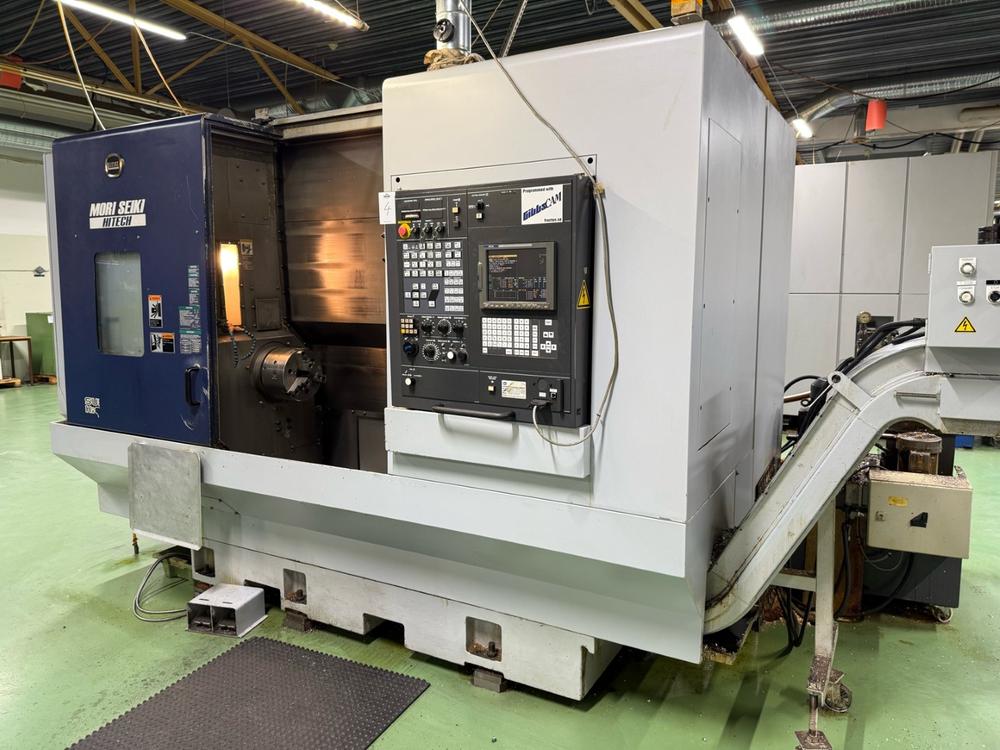

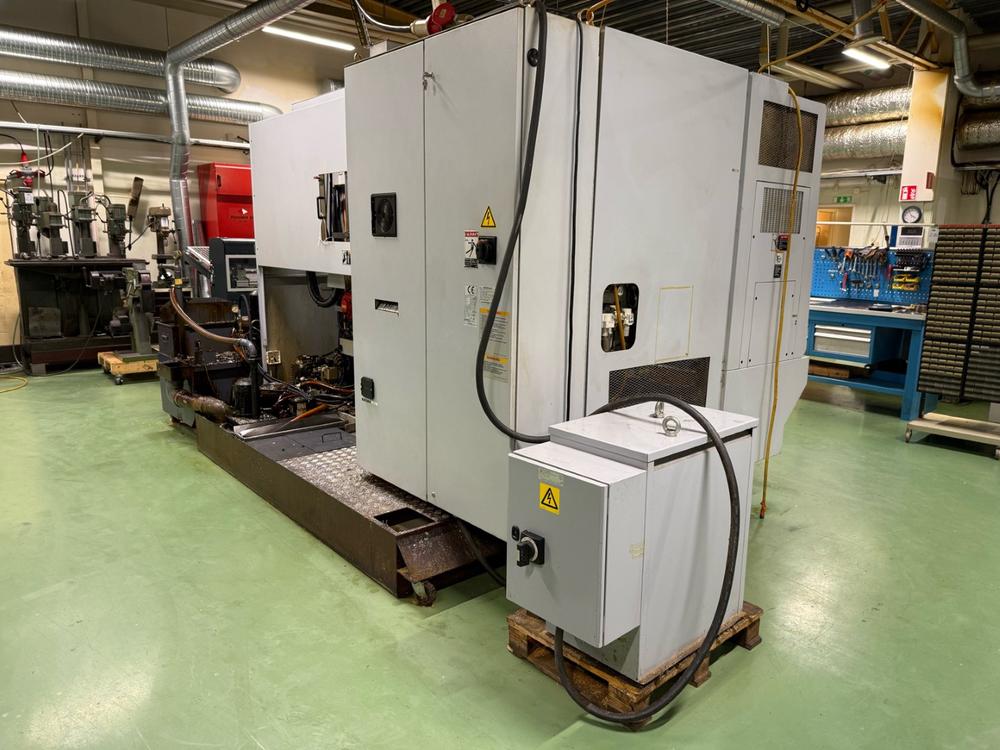

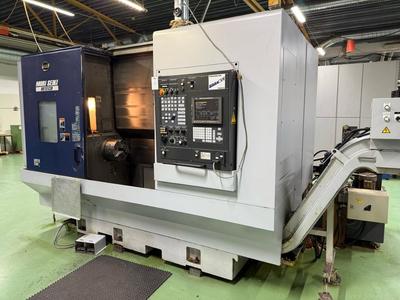

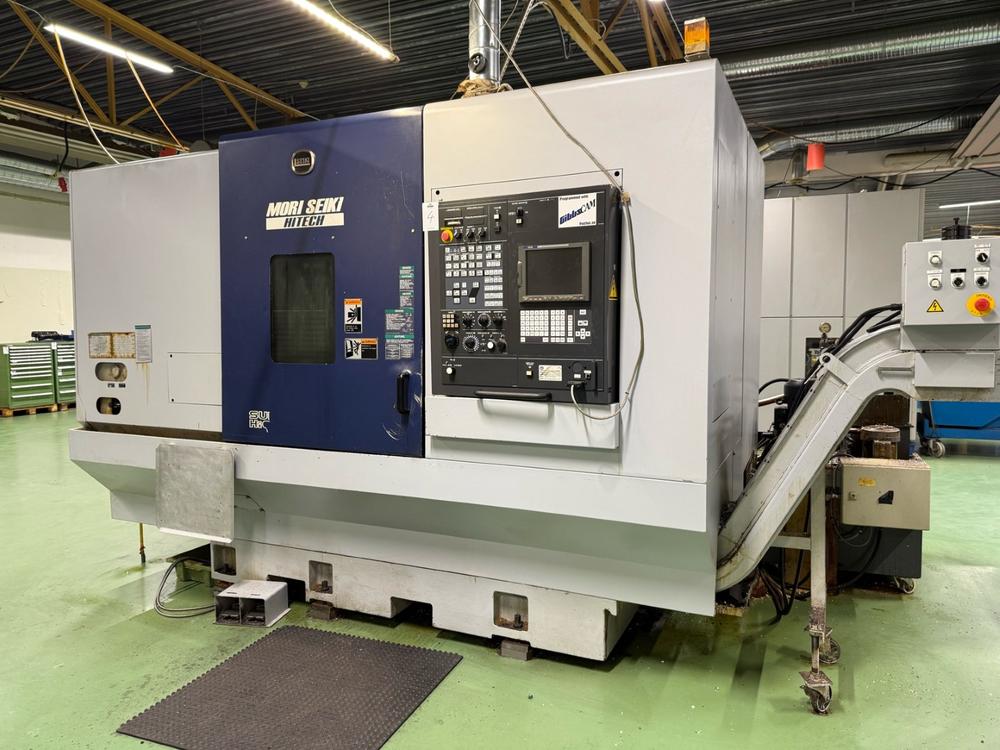

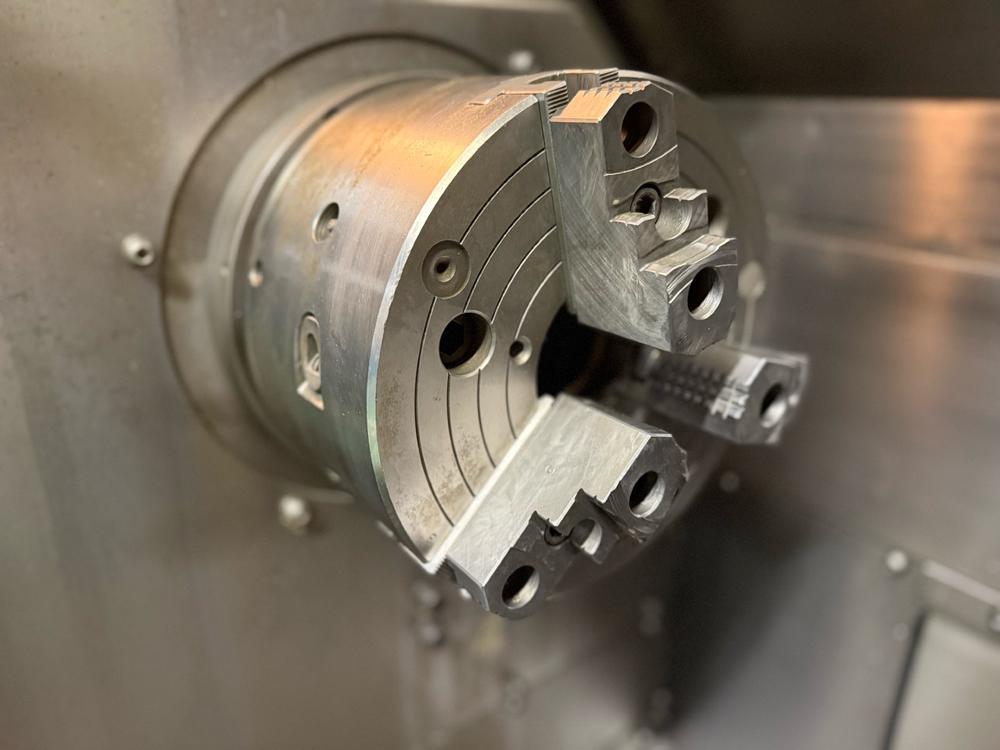

4 - 2003 Mori Seiki Hitec CH250 Multi operation lathe
Norsborg | SE
Puja inicial
Puja actual
Puja final
25.000,00 SEK
0
Pujar
Pujas
Mayor postor
Superado
Mi última puja: 0,00 SEK (Puja automática)
Compartir
Información del producto
| Marca | Mori seiki hitec |
| Type | CH250 |
| Year | 2003 |

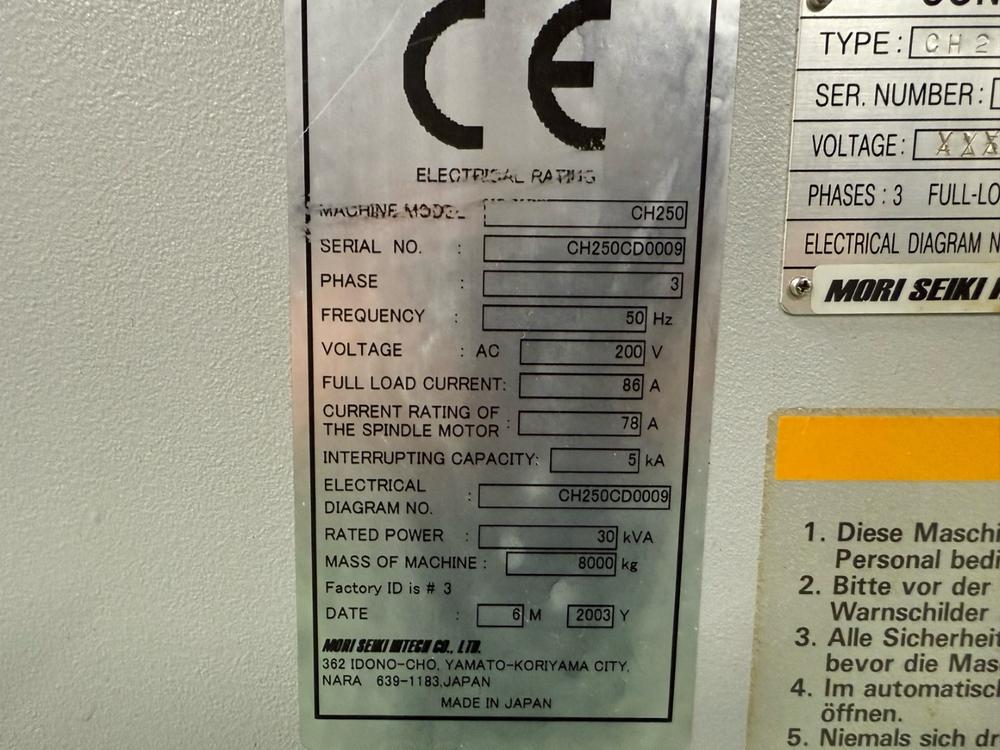

| Serial number | CH250CCD0009 |
| Amount | 1 |
Maximum Turning Diameter: 500 mm
Maximum Turning Diameter with Live Tooling: 370 mm
Maximum Turning Length: 720 mm
Bar Capacity: 65 mm
Spindle Bore: 67 mm
Maximum Spindle Speed: 4,000 RPM
Milling Spindle Speed: 80–8,000 RPM

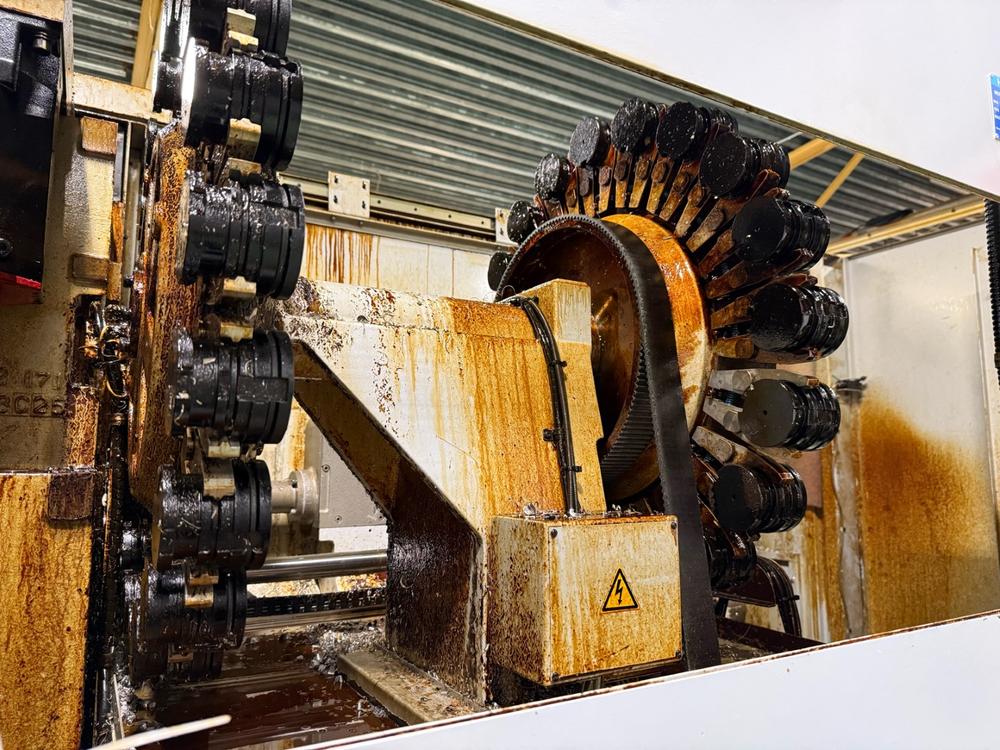

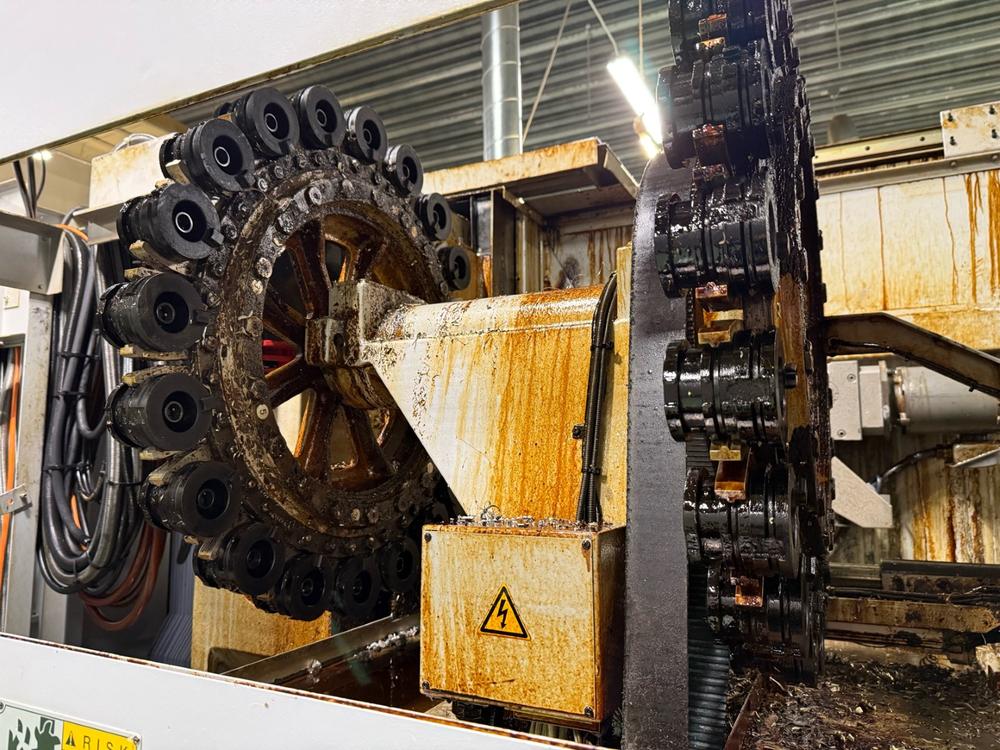

Tool Magazine Capacity: 40 tools (2 × 20)
Tool Holder Type: KV4540

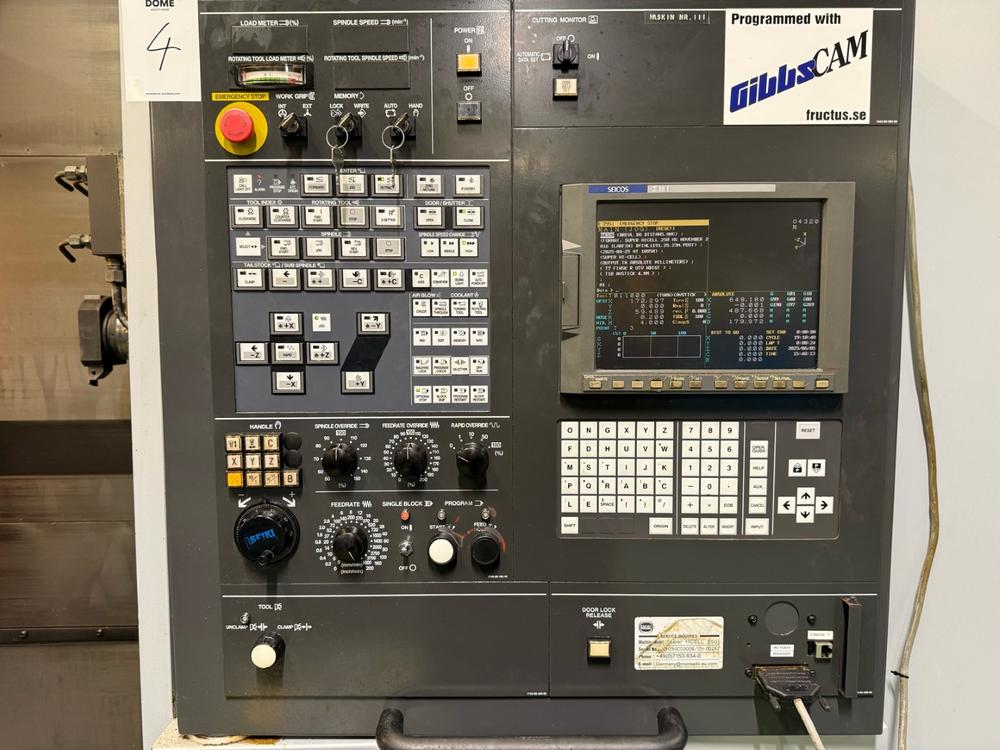

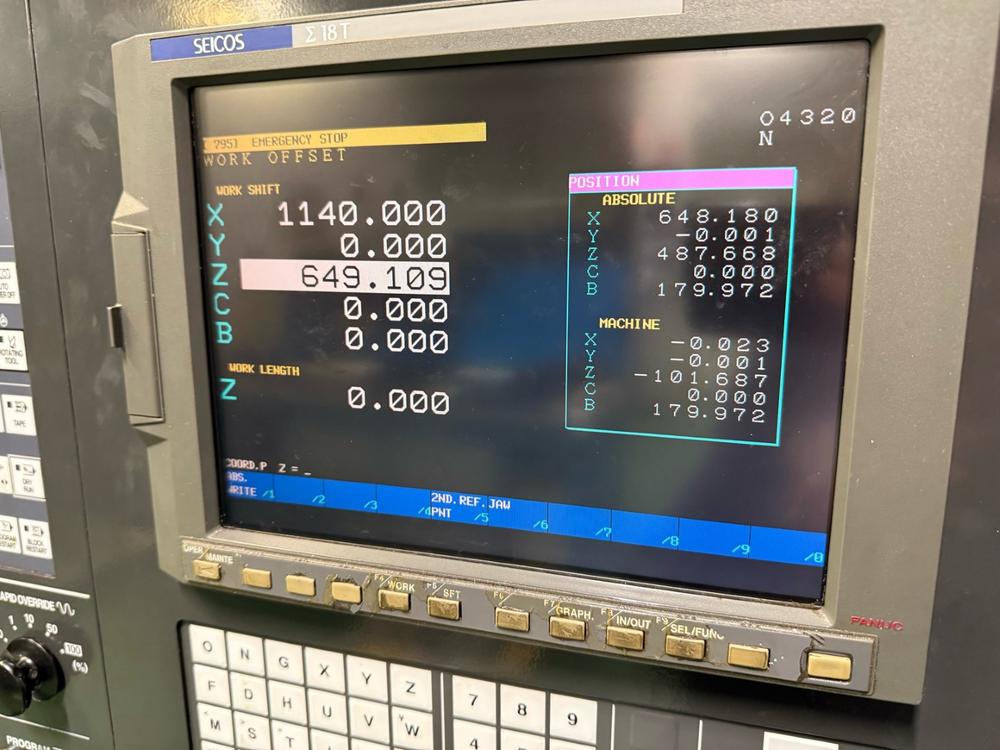

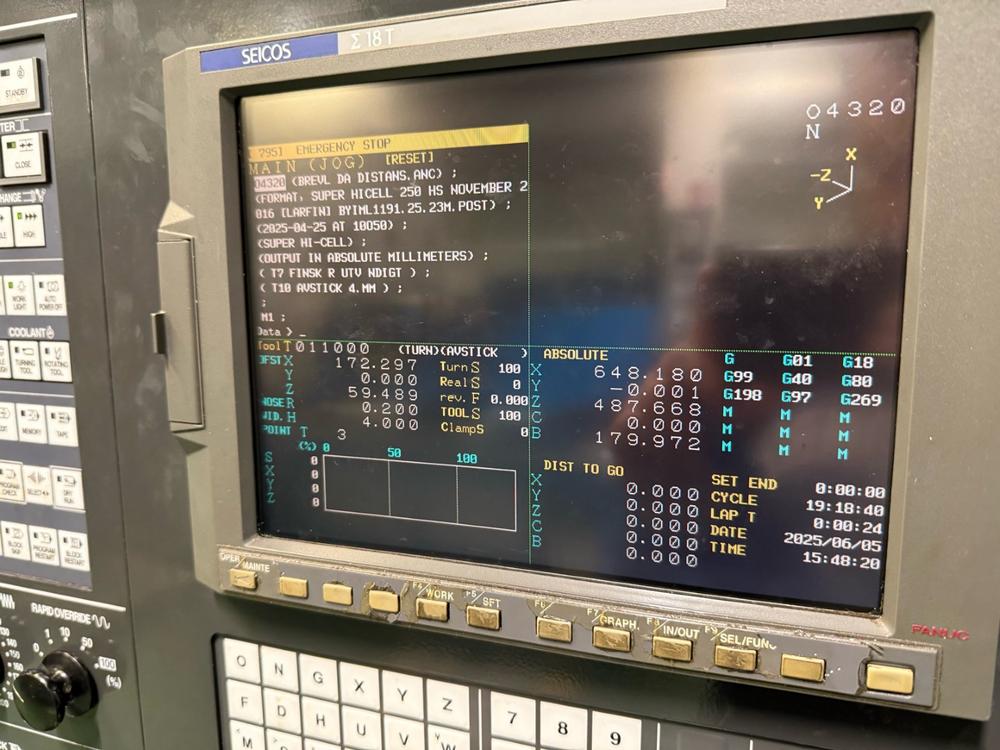

Control System: Fanuc series 18i

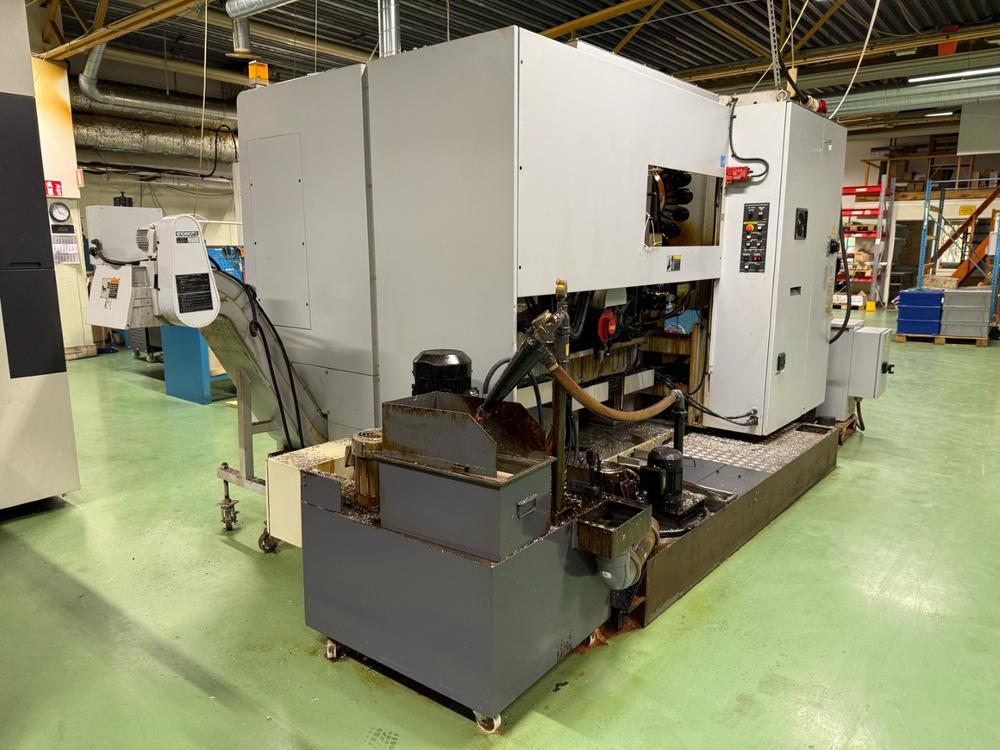

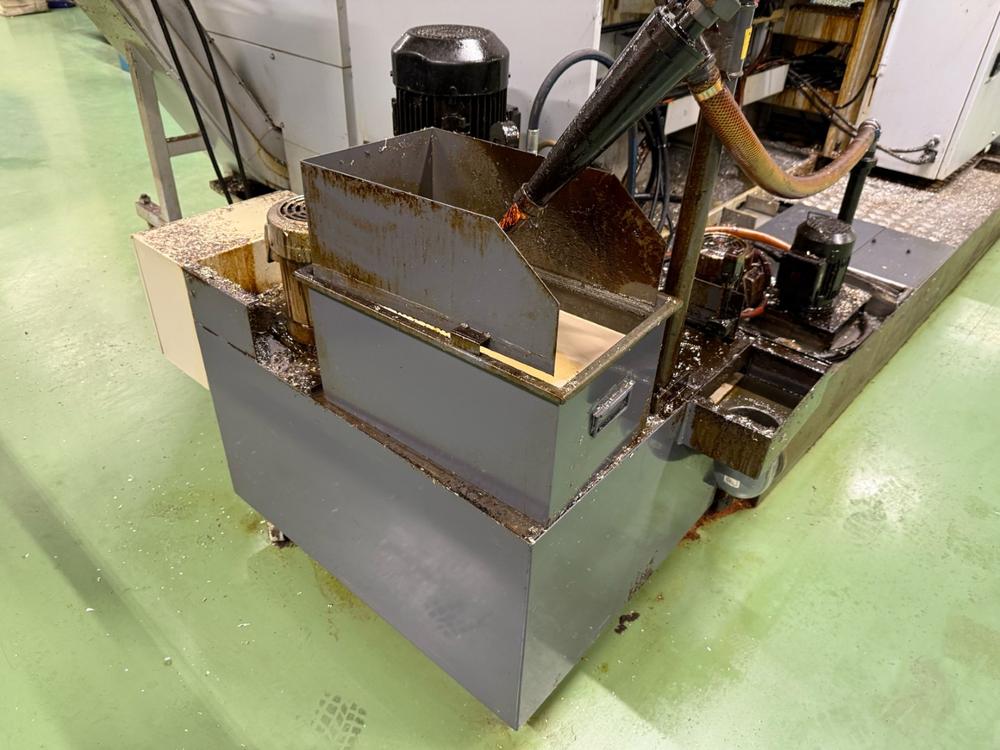

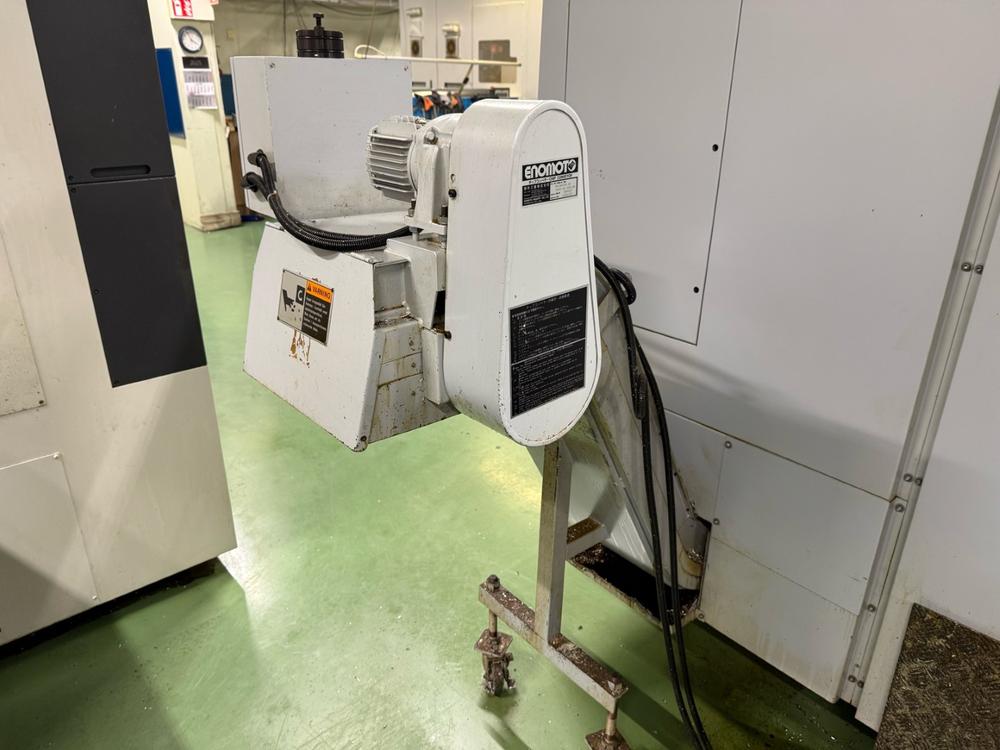

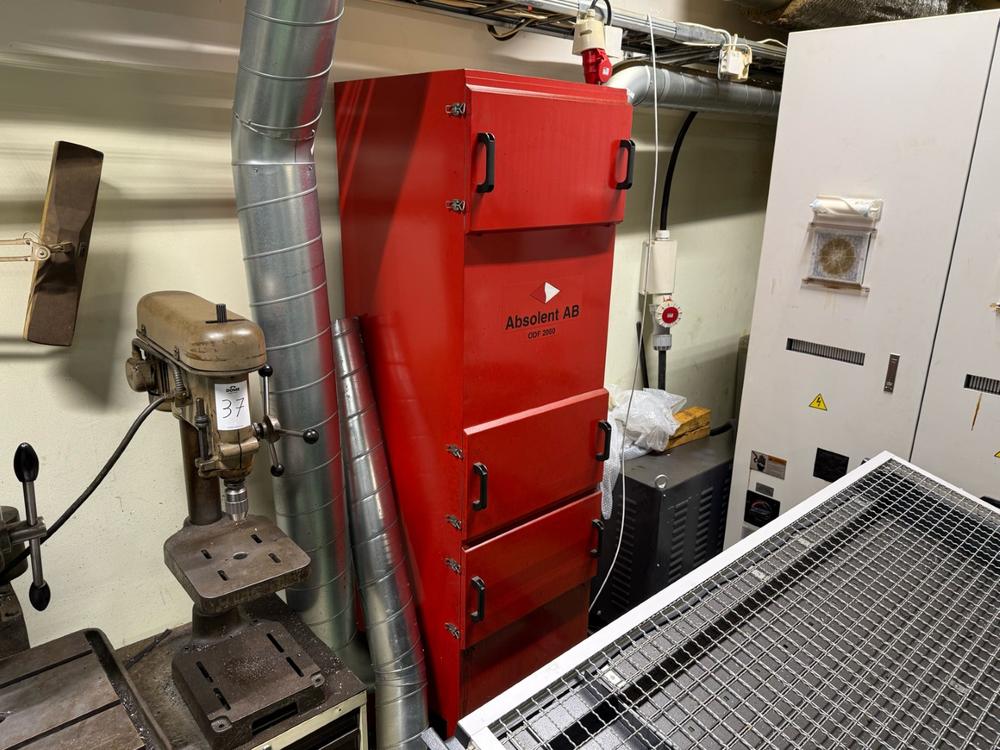

Equipped with: Absolent ab oil mist filter, enomoto chip conveyor, coolant filter, documentation
X-axis Travel: 600 mm
Z-axis Travel: 1,000 mm
Y-axis Travel: ±75 mm
B-axis travel: 858 mm
C1/C2-axis: 0.001° increments
X/Z-axis: 30 m/min
Y-axis: 15 m/min
Machine Weight: 8000 kg
Dimensions LxWxH: 3300x1930x2290mm
Combinación
Este lote es parte de una combinación: Combination 4, 254 – 261
Información adicional
Indicational exchange rate for SEK 10.000 is EUR 900. Pickup days for small, easy pickup lots, tools, workshop etc. are scheduled and without appointment for September 8, 9 and 10 from 09:00 to 16:00. Buyers of large machines, specific lots and installations will be contacted within 48 hours after the sale closure to schedule the pickup of those lots by appointment (mandatory late week 37 and/or during week 38 latest). Contact details of a preferred and professional international service partner (for pickup assistance, dismantling and/or fully serviced lot transportation) will be shared with the buyers right after the sale.
Maximum Turning Diameter: 500 mm
Maximum Turning Diameter with Live Tooling: 370 mm
Maximum Turning Length: 720 mm
Bar Capacity: 65 mm
Spindle Bore: 67 mm
Maximum Spindle Speed: 4,000 RPM
Milling Spindle Speed: 80–8,000 RPM
Tool Magazine Capacity: 40 tools (2 × 20)
Tool Holder Type: KV4540
Control System: Fanuc series 18i
Equipped with: Absolent ab oil mist filter, enomoto chip conveyor, coolant filter, documentation
X-axis Travel: 600 mm
Z-axis Travel: 1,000 mm
Y-axis Travel: ±75 mm
B-axis travel: 858 mm
C1/C2-axis: 0.001° increments
X/Z-axis: 30 m/min
Y-axis: 15 m/min
Machine Weight: 8000 kg
Dimensions LxWxH: 3300x1930x2290mm
