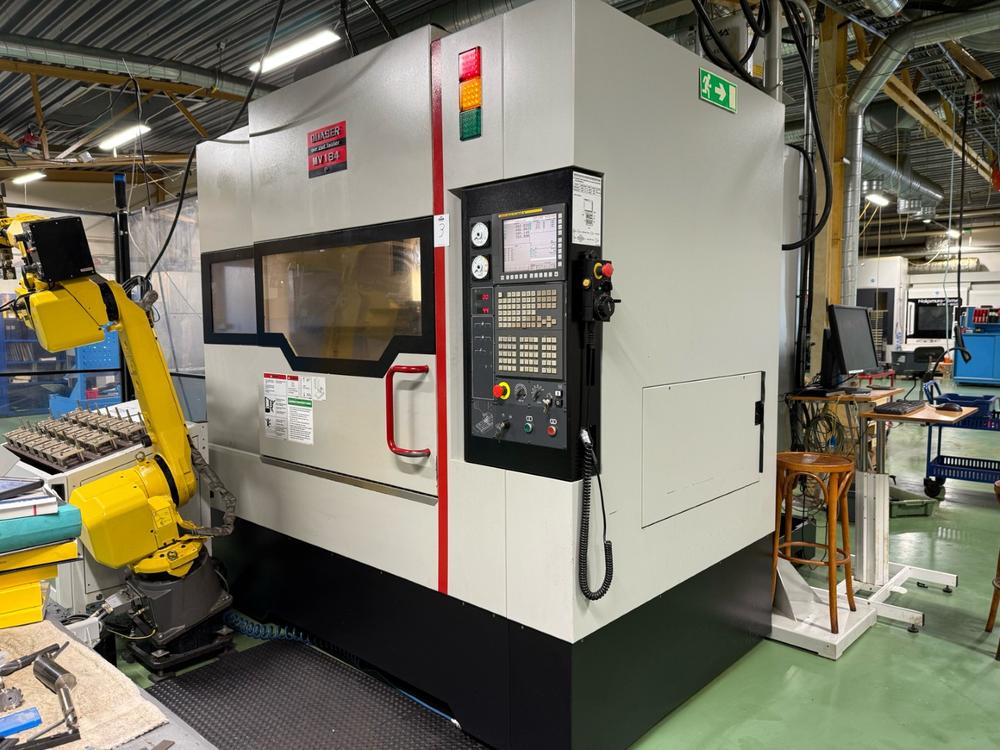

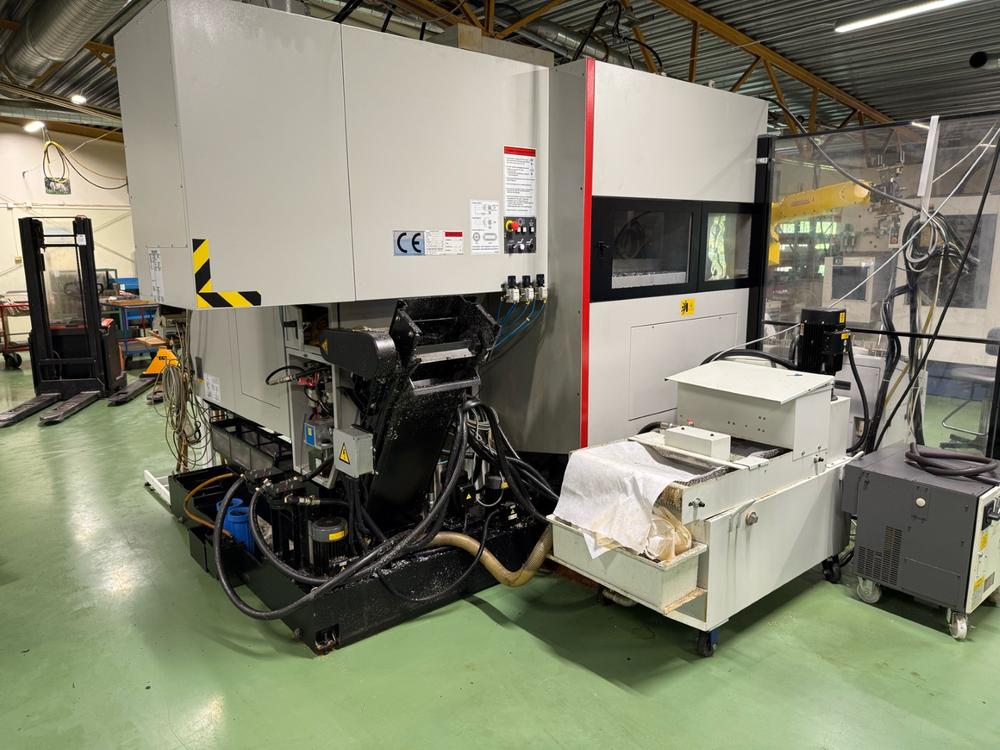

3 - 2014 Quaser MV184 Vertical multi operation lathe
Norsborg | SE
23
Pujar
Pujas
Mayor postor
Superado
Mi última puja: 0,00 SEK (Puja automática)
Compartir
Información del producto

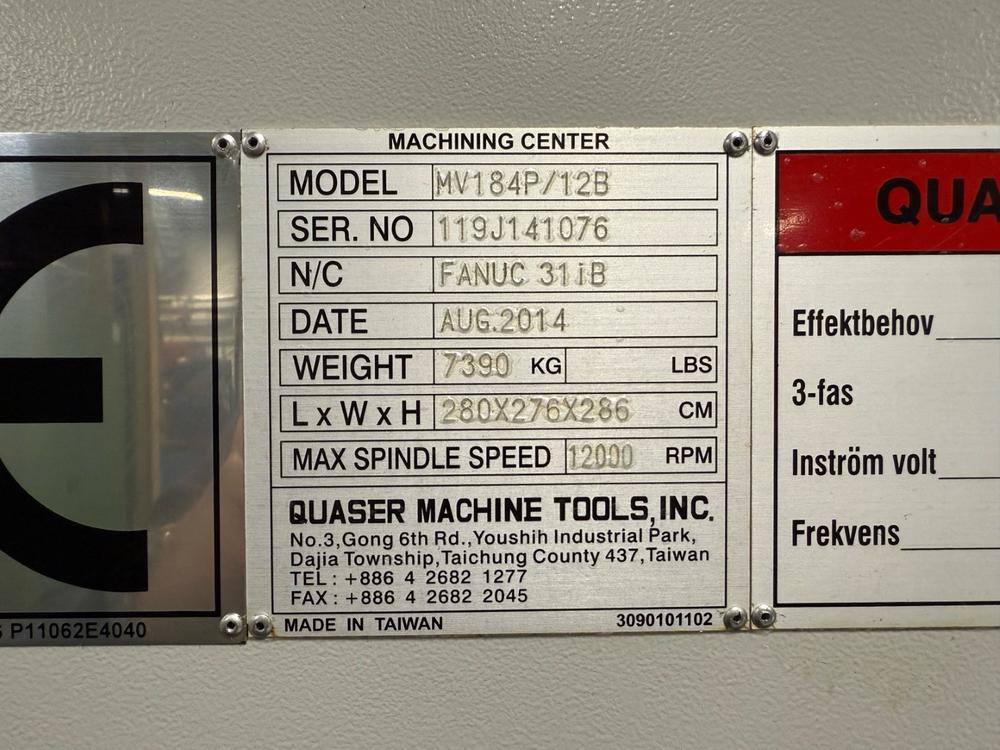

| Marca | Quaser |
| Type | MV184 |
| Year | 2014 |
| Serial number | 119J141076 |
| Amount | 1 |
Run time: 13642H

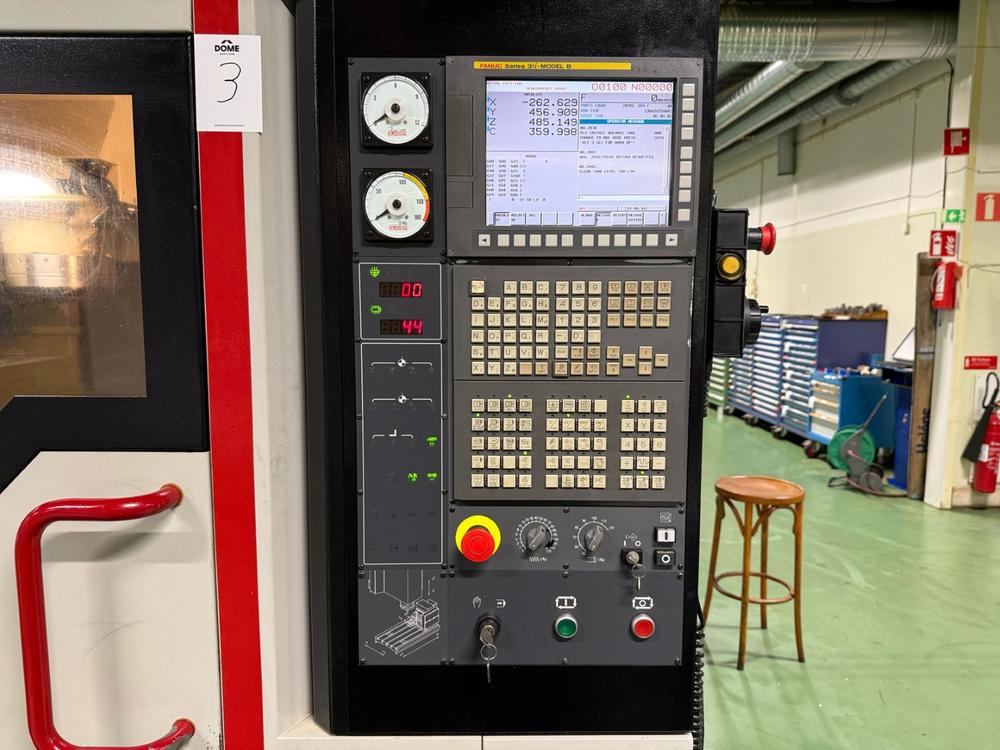

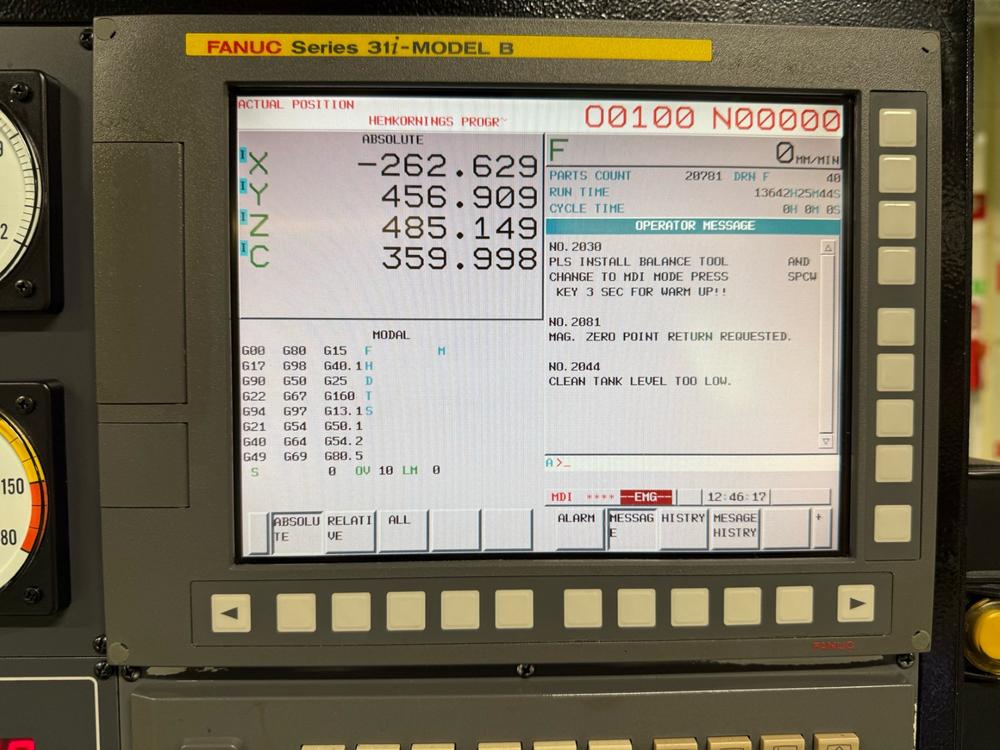

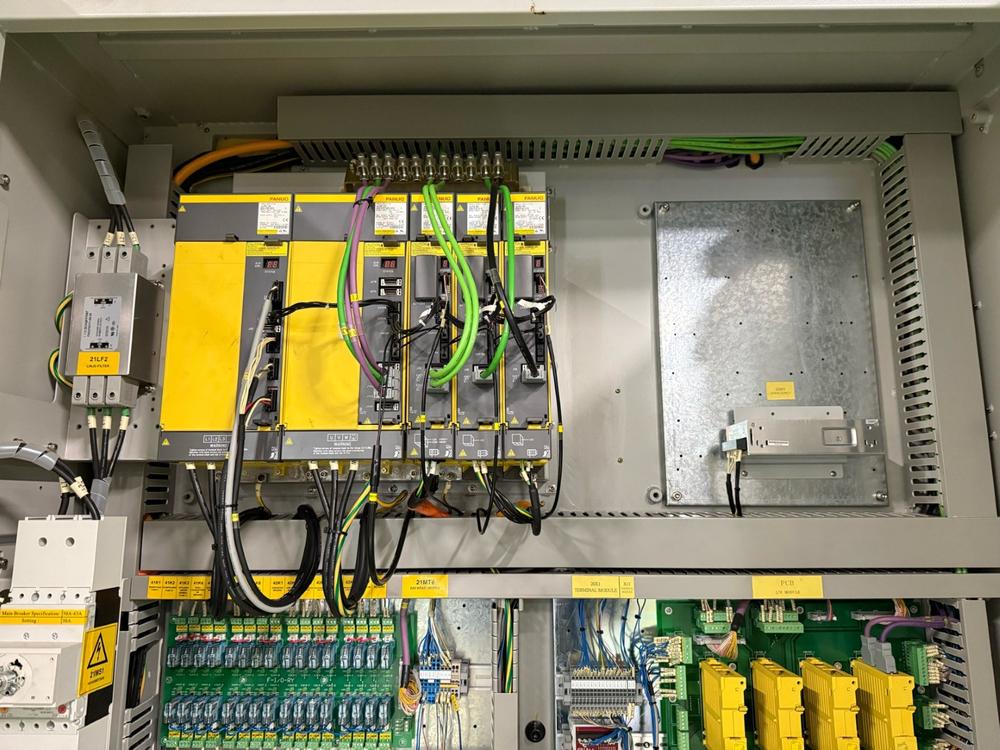

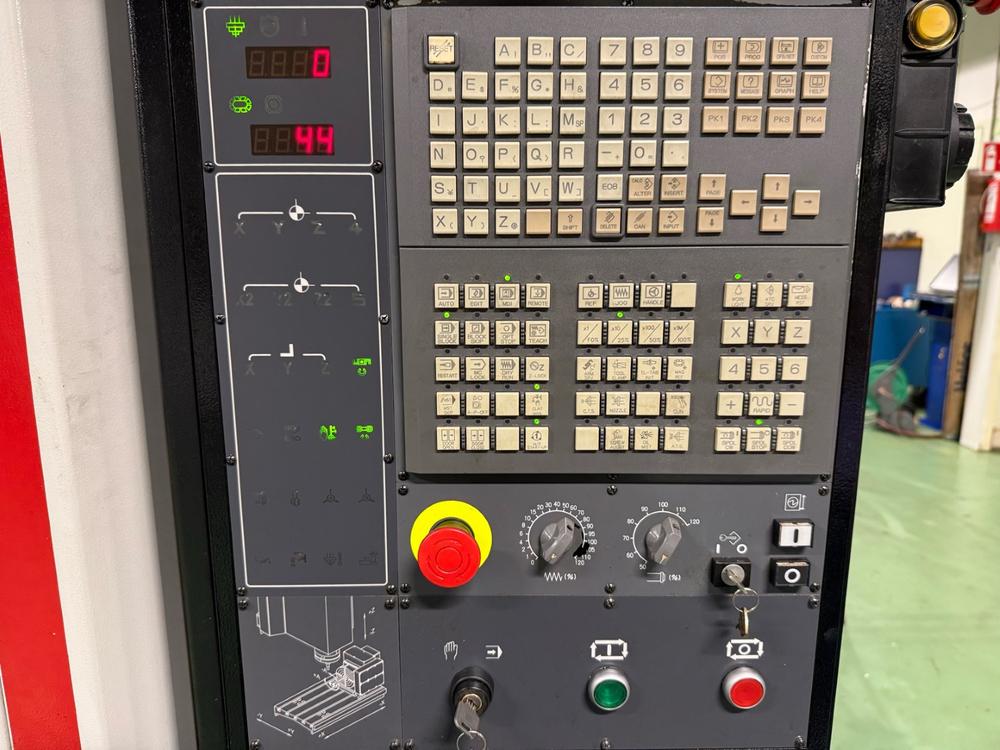

Control System: FANUC Series 31i-B

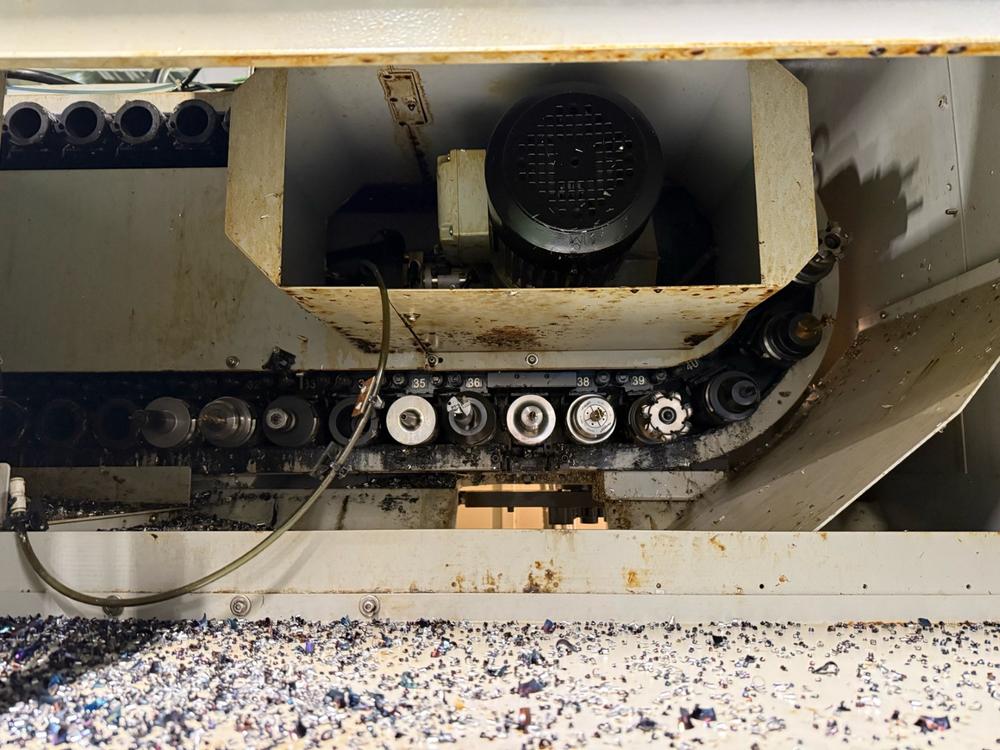

Tool Magazine Capacity: 48

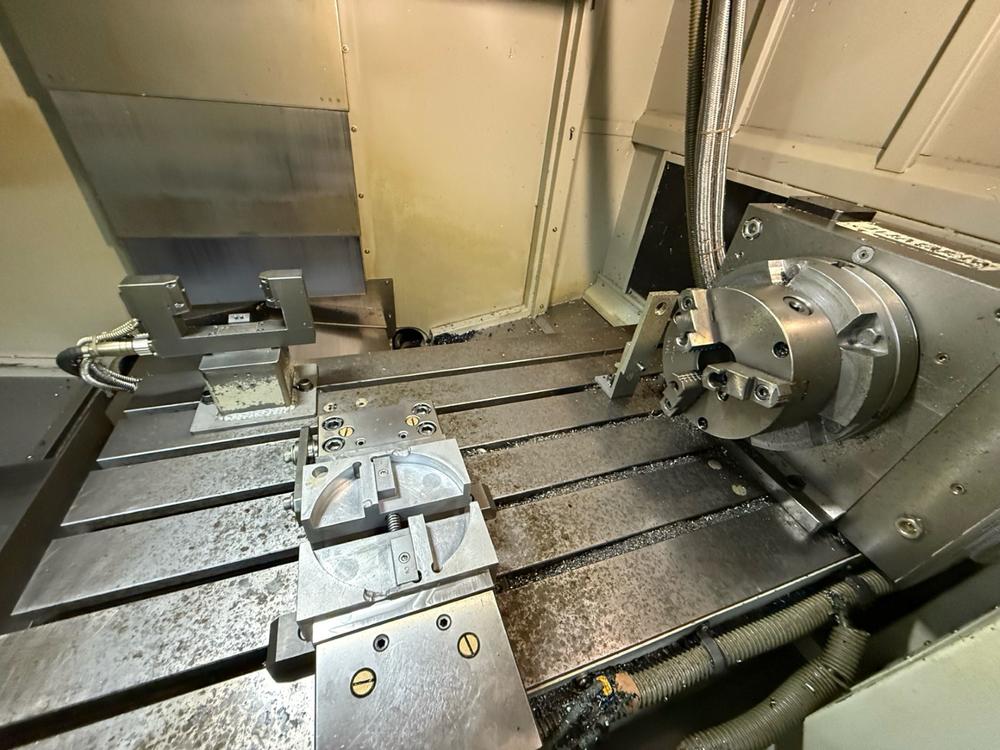

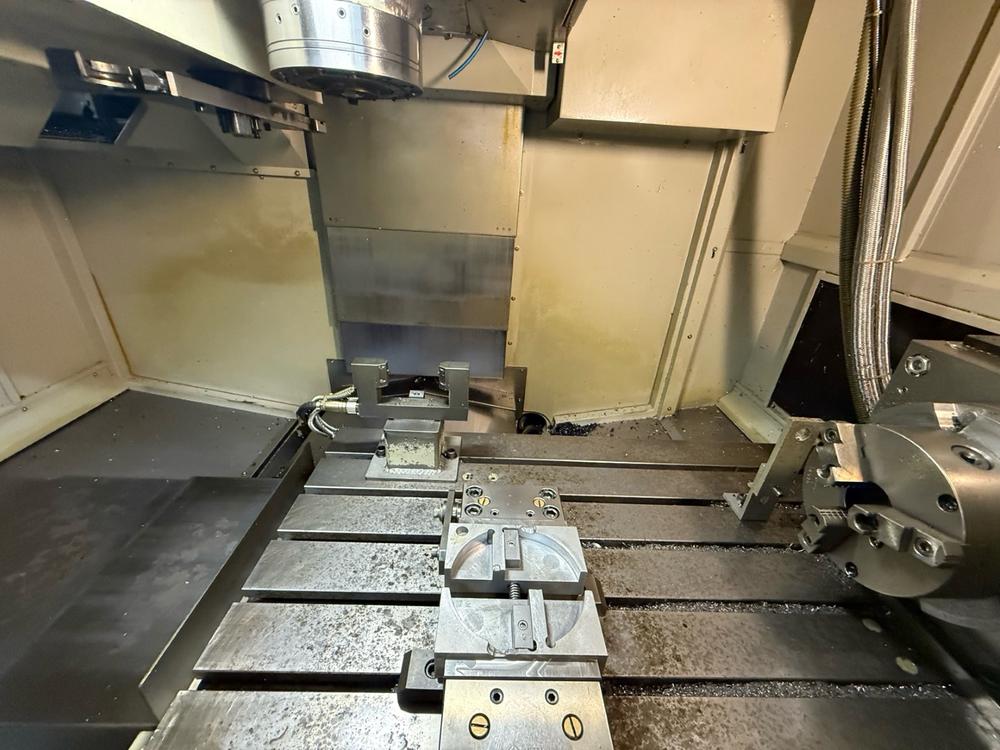

T-slot table Size: 1,200x600 mm
Maximum Table Load: 500 kg
True spindle cooling: yes

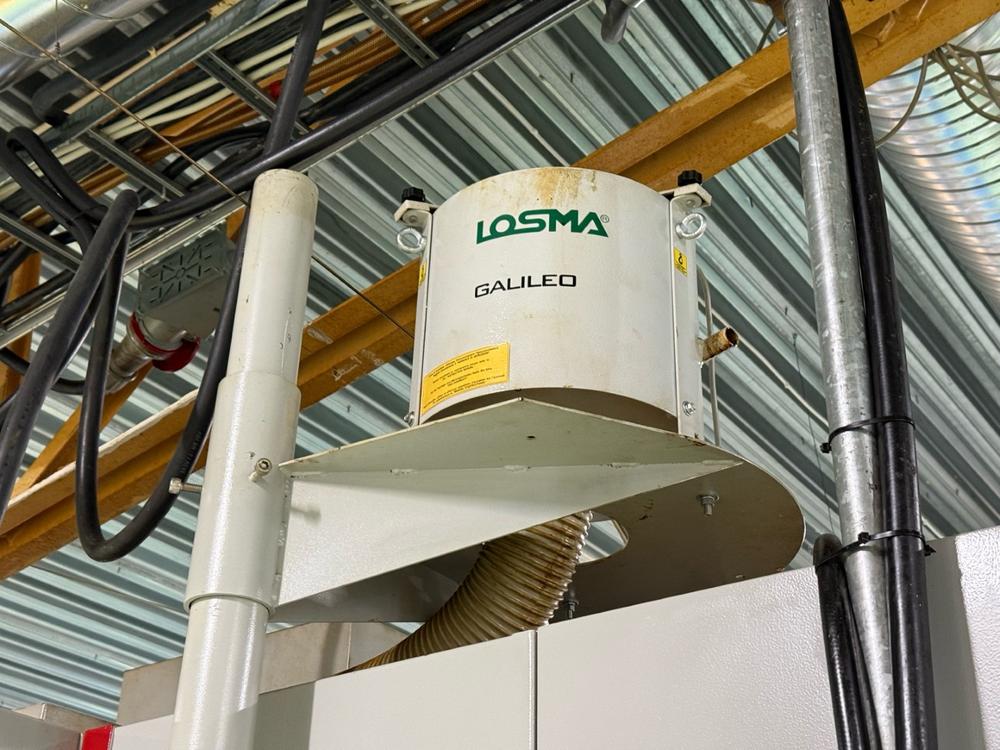

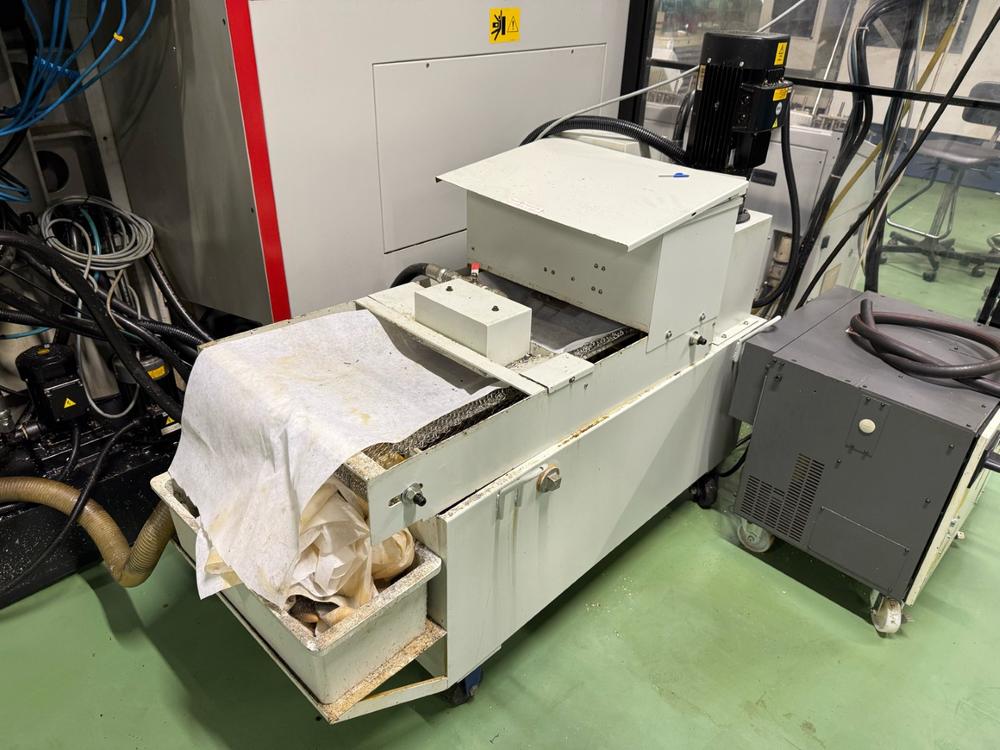

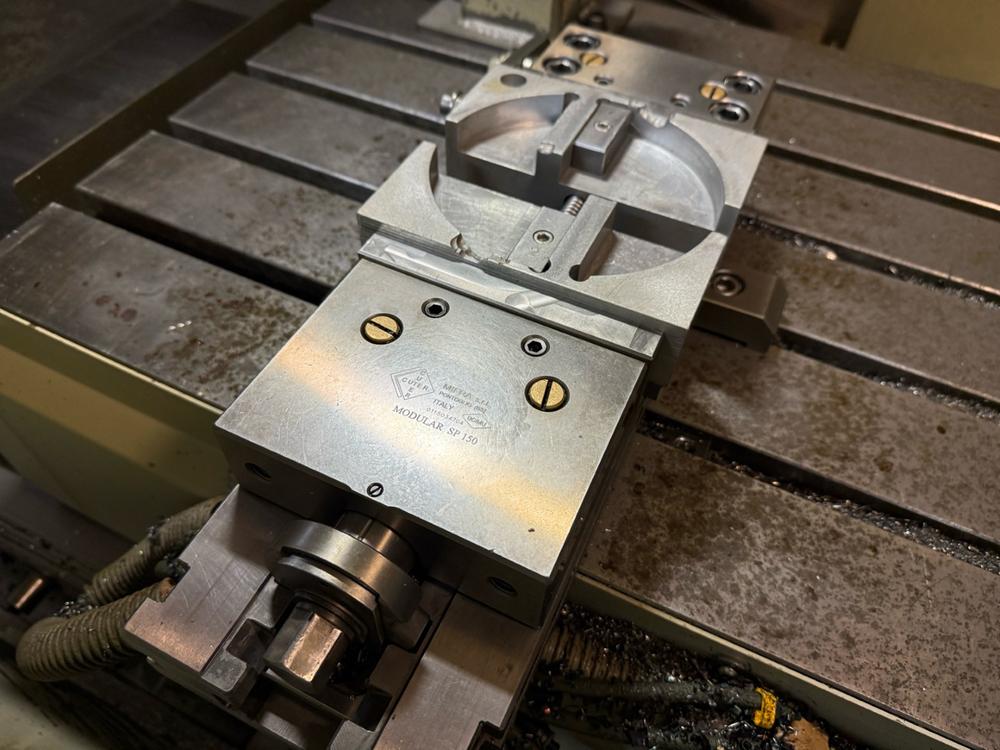

Equipped with: Losma oil mist filter, paper filter, hydraulic vise, documentation, tooling

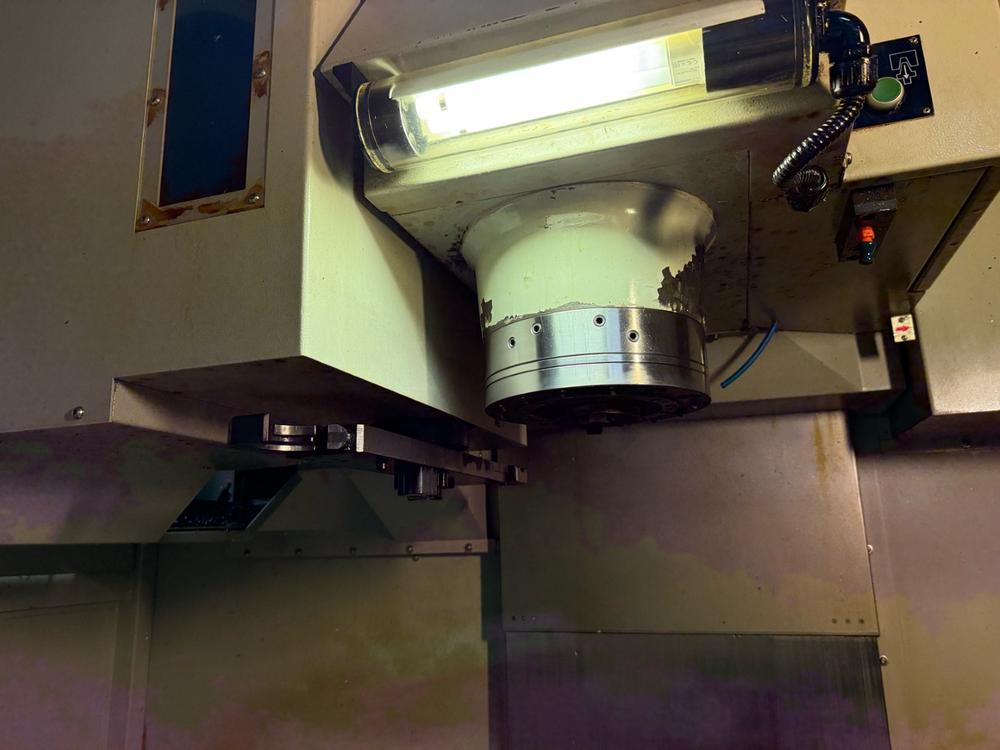

Spindel and axis
Max Spindle Speed: 12,000 RPM
Toolholder type: BT40
X-axis Travel: 1,020 mm
Y-axis Travel: 610 mm
Z-axis Travel: 610 mm

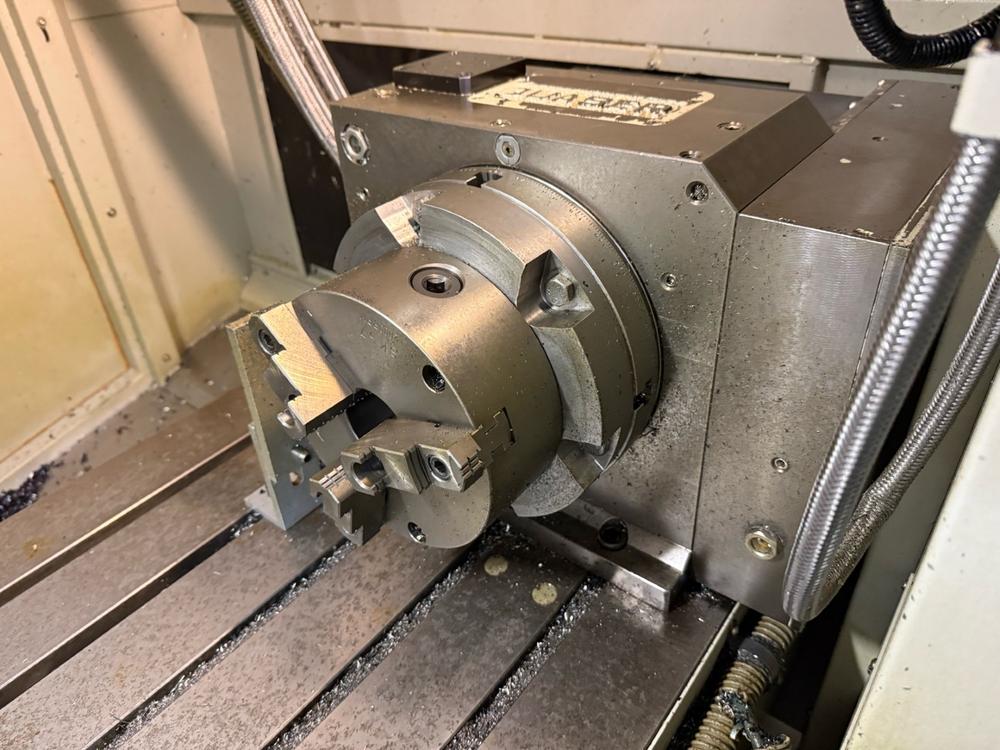

equipped with C-axis
Spindle Nose to Table Surface: 100–710 mm
X/Y-axis Rapid Traverse: 40 m/min
Z-axis Rapid Traverse: 36 m/min
Machine Weight: 7390 kg
Machine Dimensions (LxWxH): 2800x2760x2860mm
Combinación
Este lote es parte de una combinación: Combination 3, 11, 179 – 183, 321
Información adicional
Indicational exchange rate for SEK 10.000 is EUR 900. Pickup days for small, easy pickup lots, tools, workshop etc. are scheduled and without appointment for September 8, 9 and 10 from 09:00 to 16:00. Buyers of large machines, specific lots and installations will be contacted within 48 hours after the sale closure to schedule the pickup of those lots by appointment (mandatory late week 37 and/or during week 38 latest). Contact details of a preferred and professional international service partner (for pickup assistance, dismantling and/or fully serviced lot transportation) will be shared with the buyers right after the sale.
