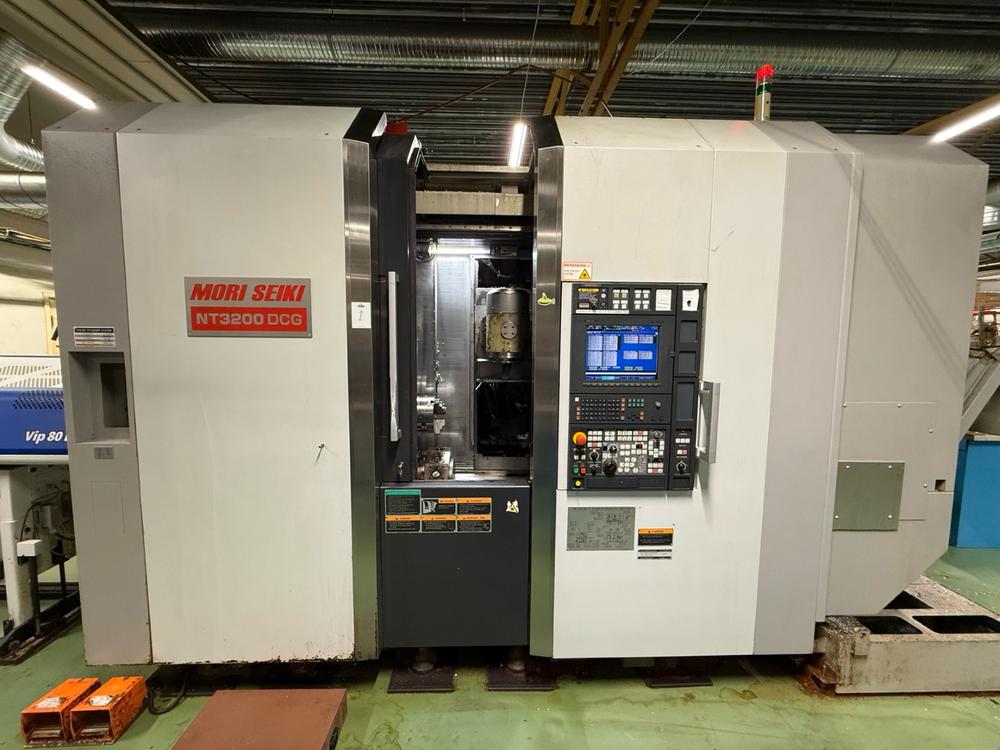

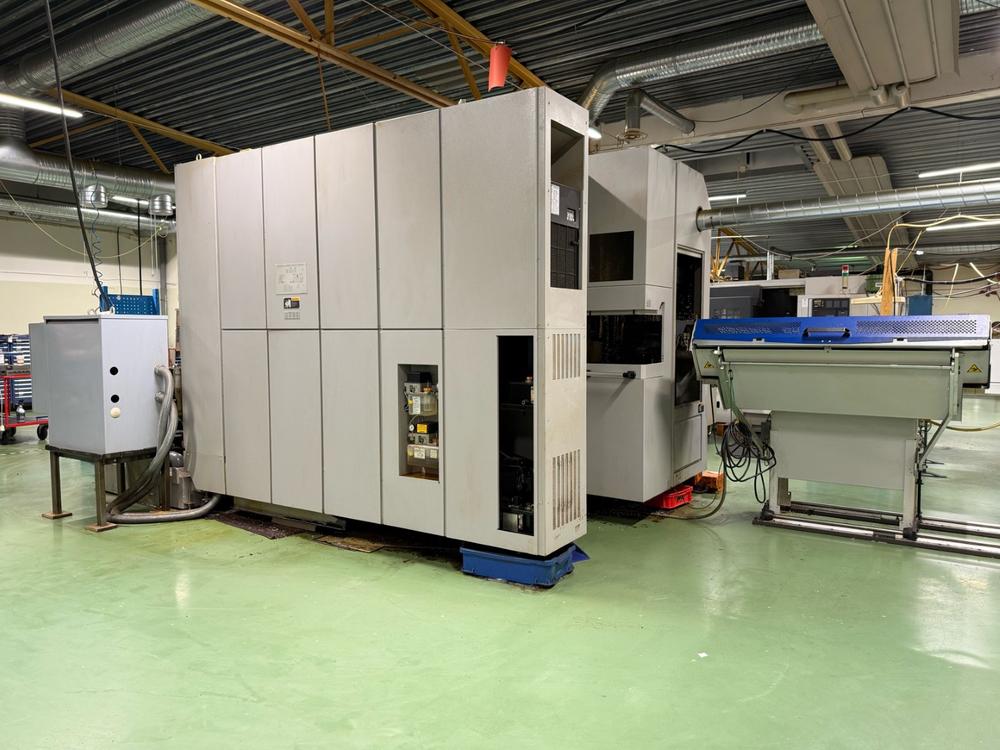

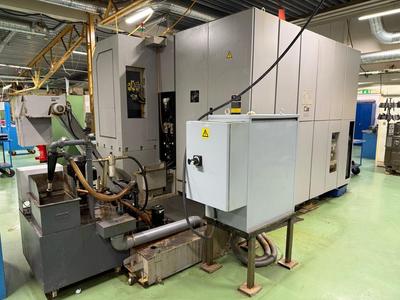

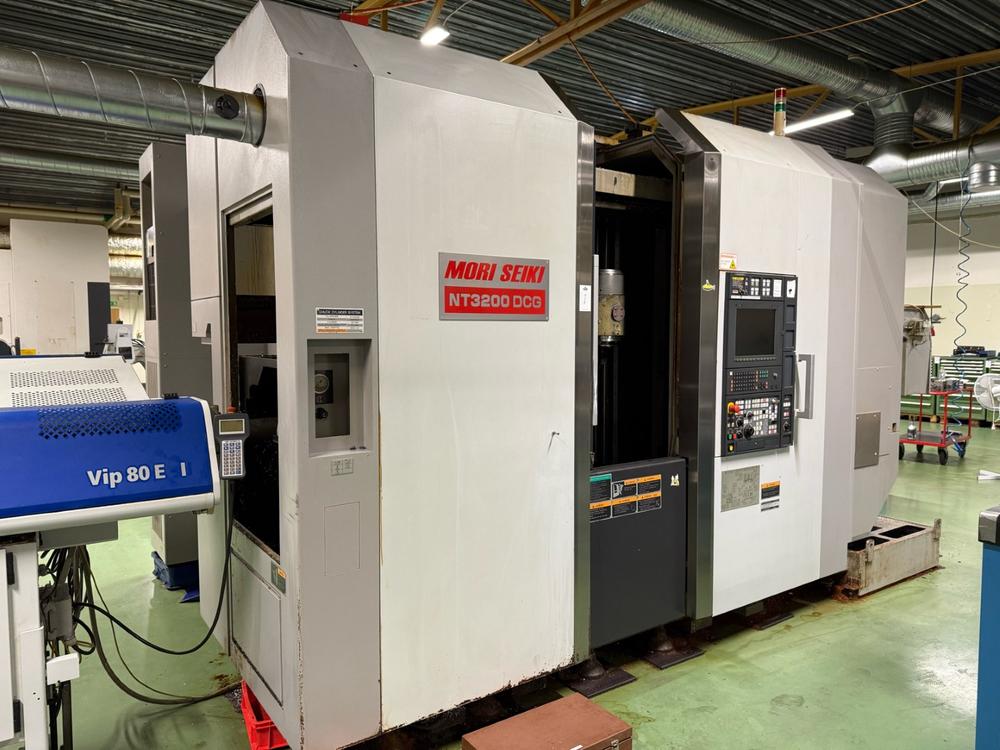

1 - 2007 Mori seiki NT3200 CNC lathe
Norsborg | SE
Puja inicial
Puja actual
Puja final
5.000,00 SEK
0
Pujar
Pujas
Mayor postor
Superado
Mi última puja: 0,00 SEK (Puja automática)
Compartir
Información del producto
| Brand | Mori seiki |
| Type | NT3200 |
| Year | 2007 |

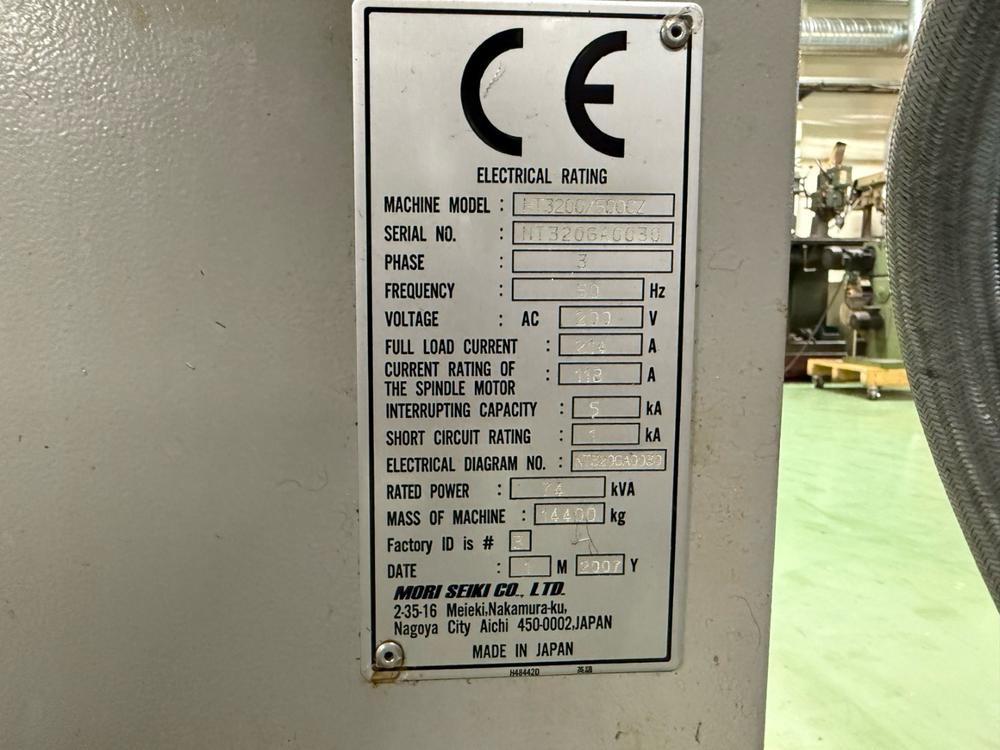

| Serial number | NT320GA0030 |
| Amount | 1 |
Run time: 7976H
Maximum turning diameter (milling head): 600mm
Maximum turning diameter (turret): 210mm
Maximum turning length: 1045mm
Spindel bore: 67mm

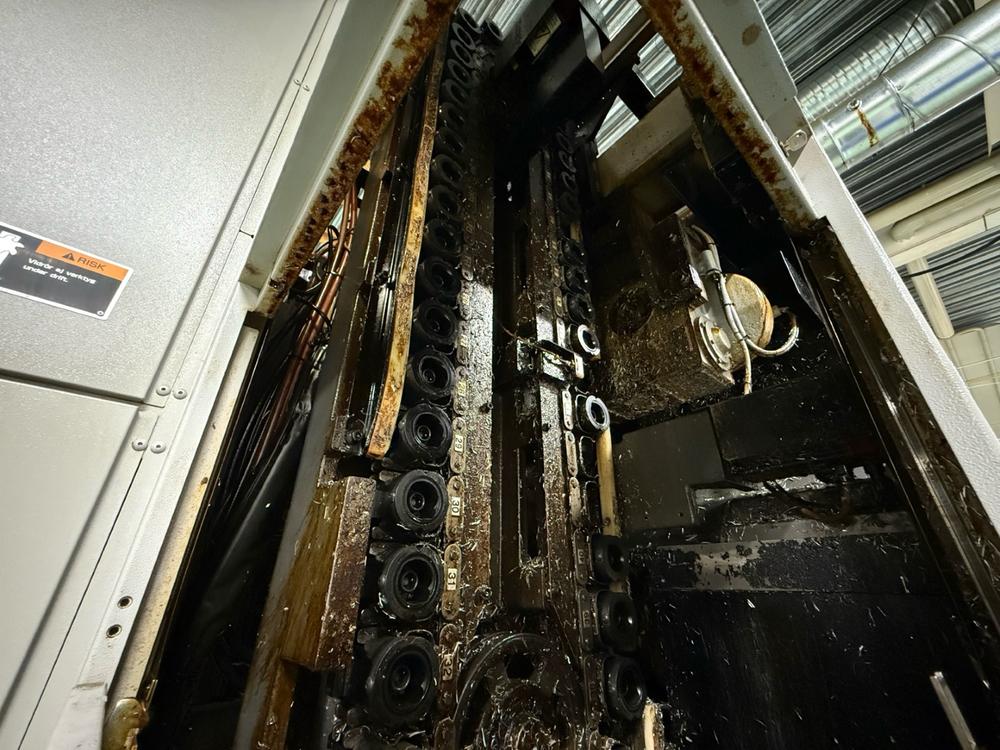

Number of tool spaces: 40

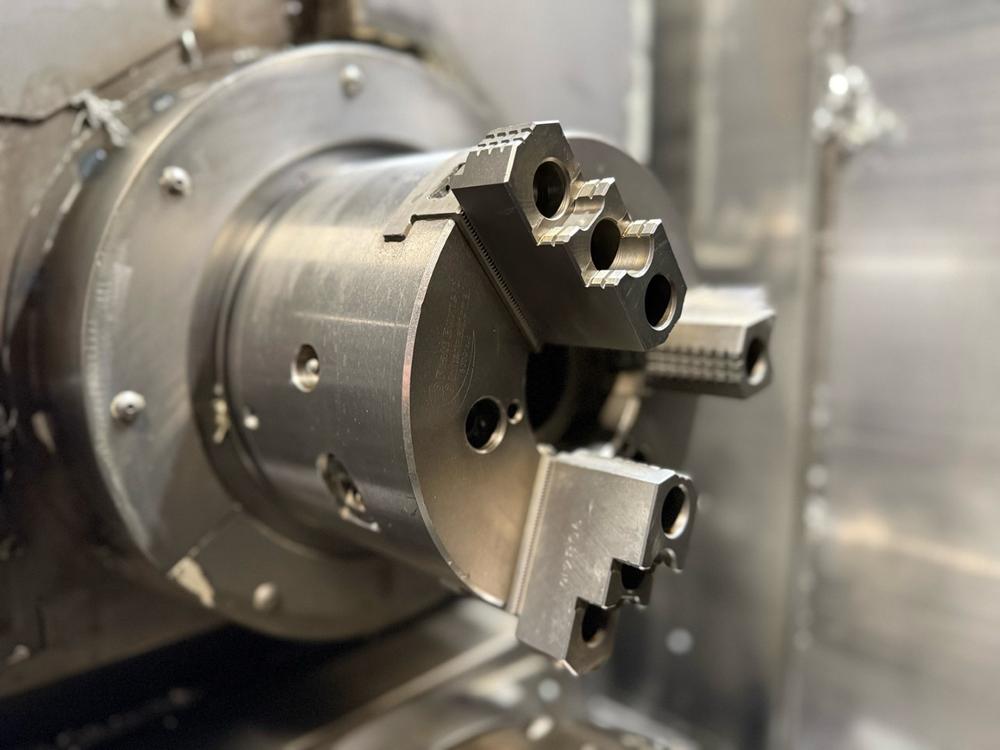

Spindel: Kitagawa SS1666
Spindel speed: 5000 RPM

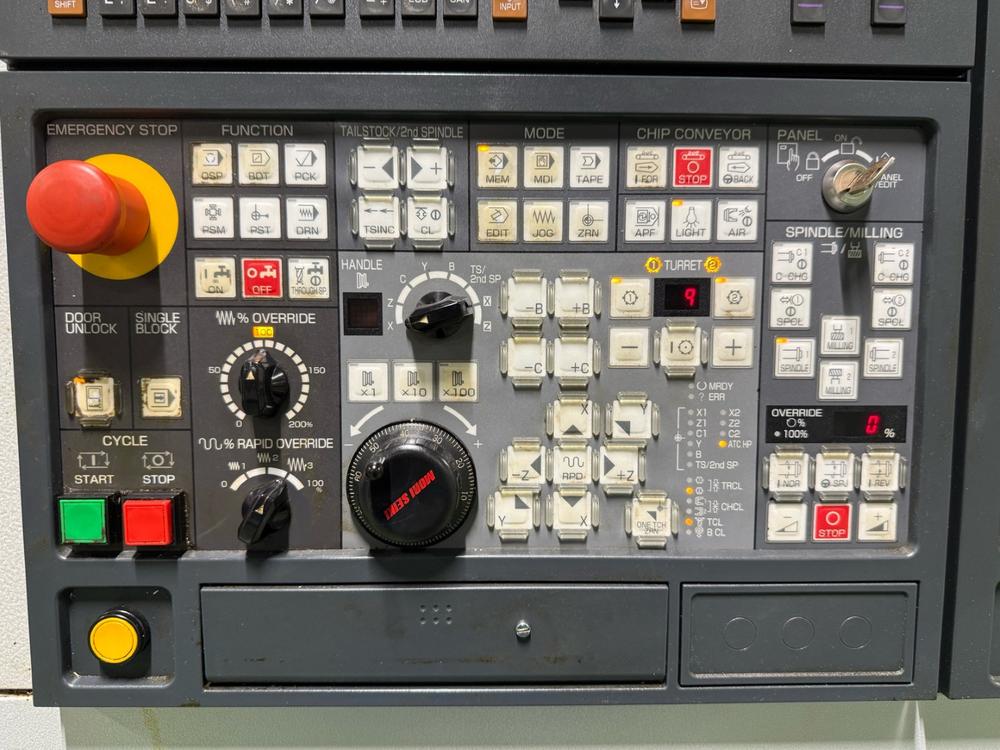

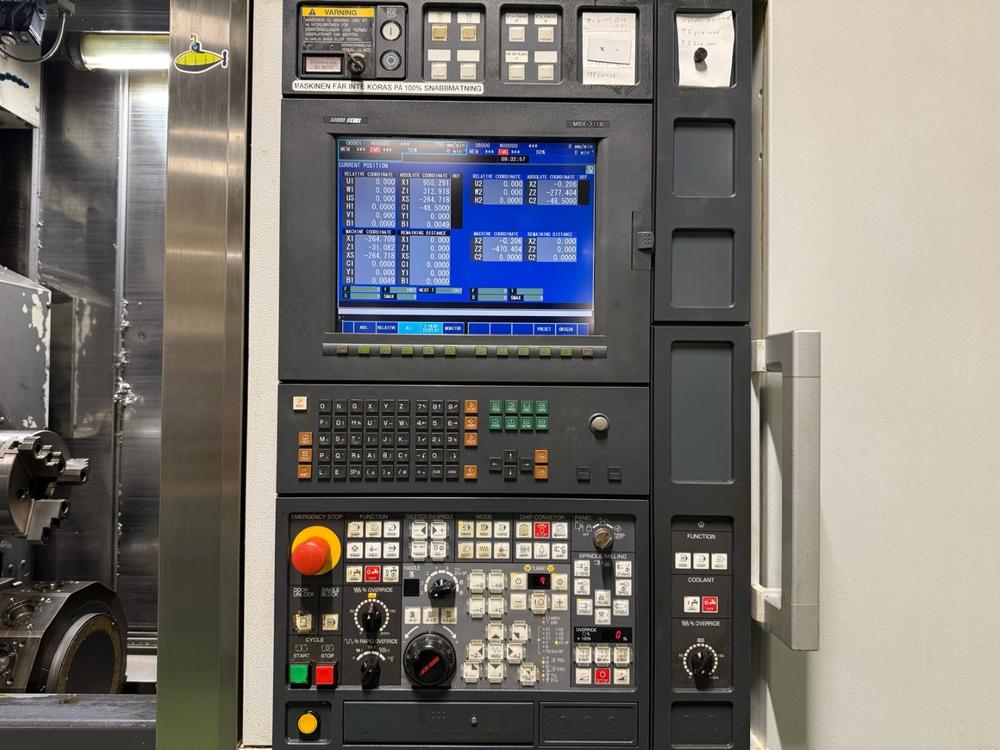

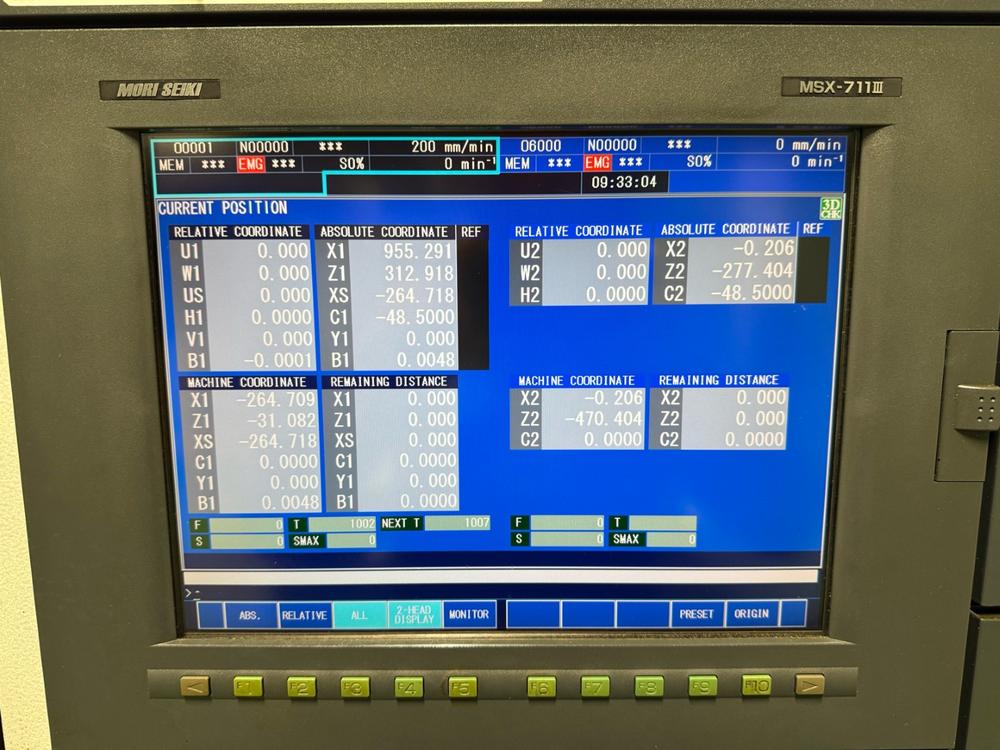

Control system: Fanuc Series 31i

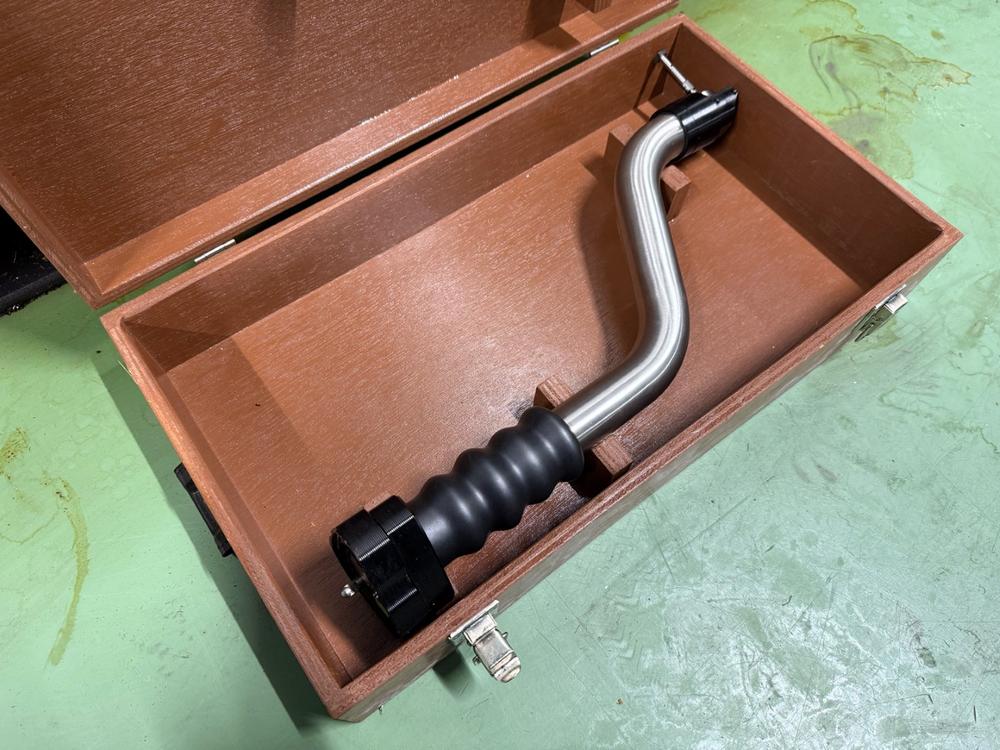

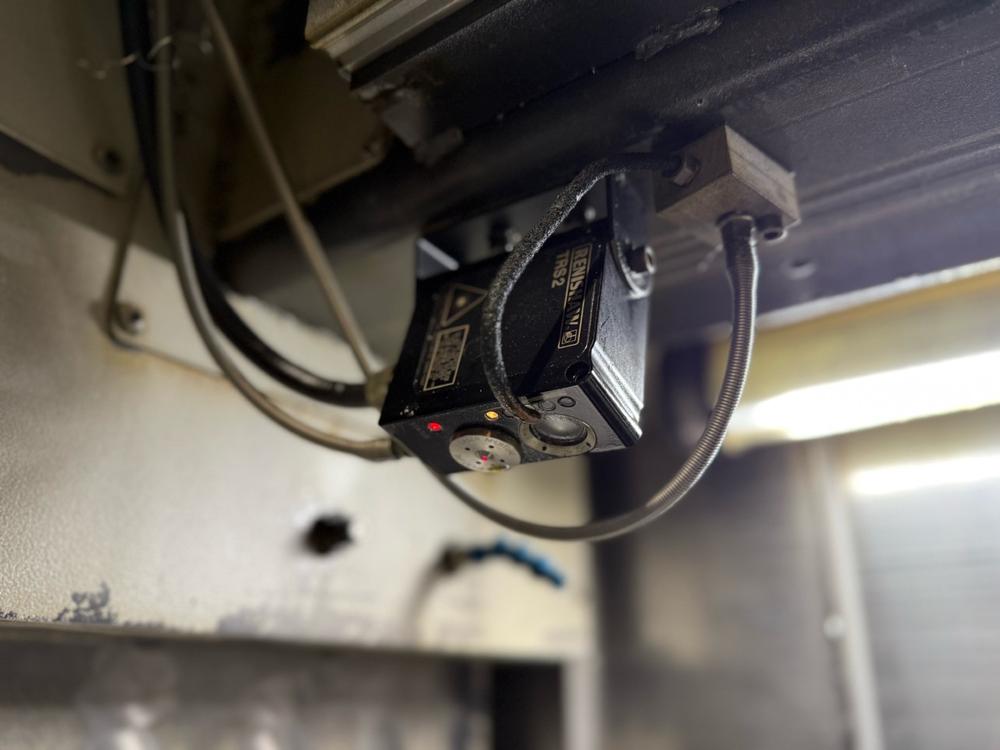

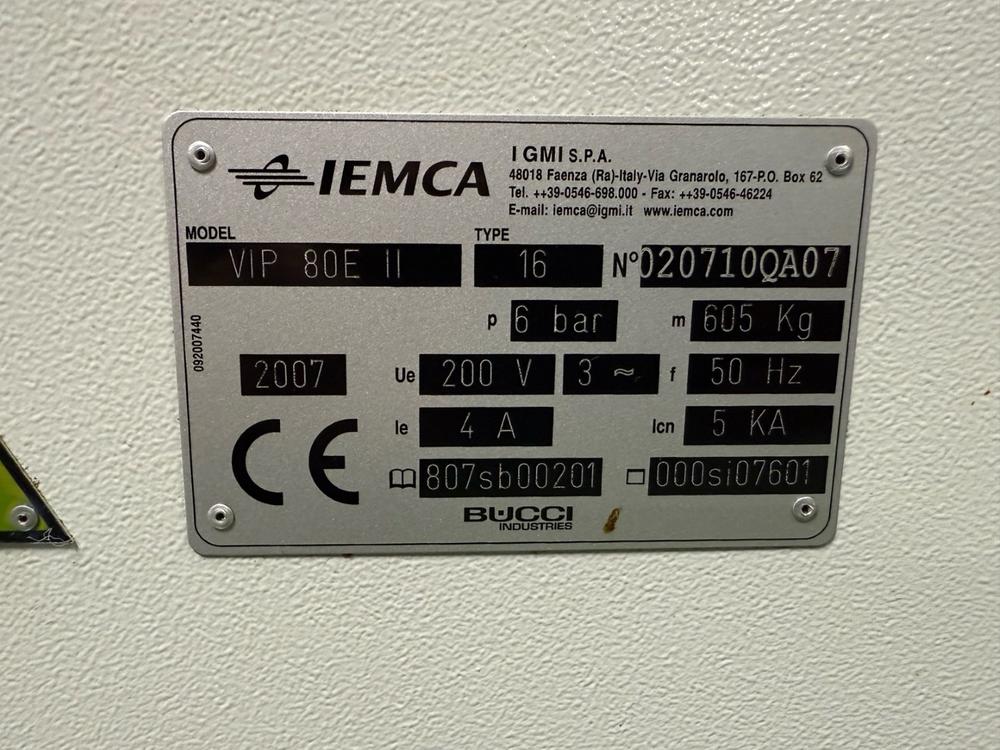

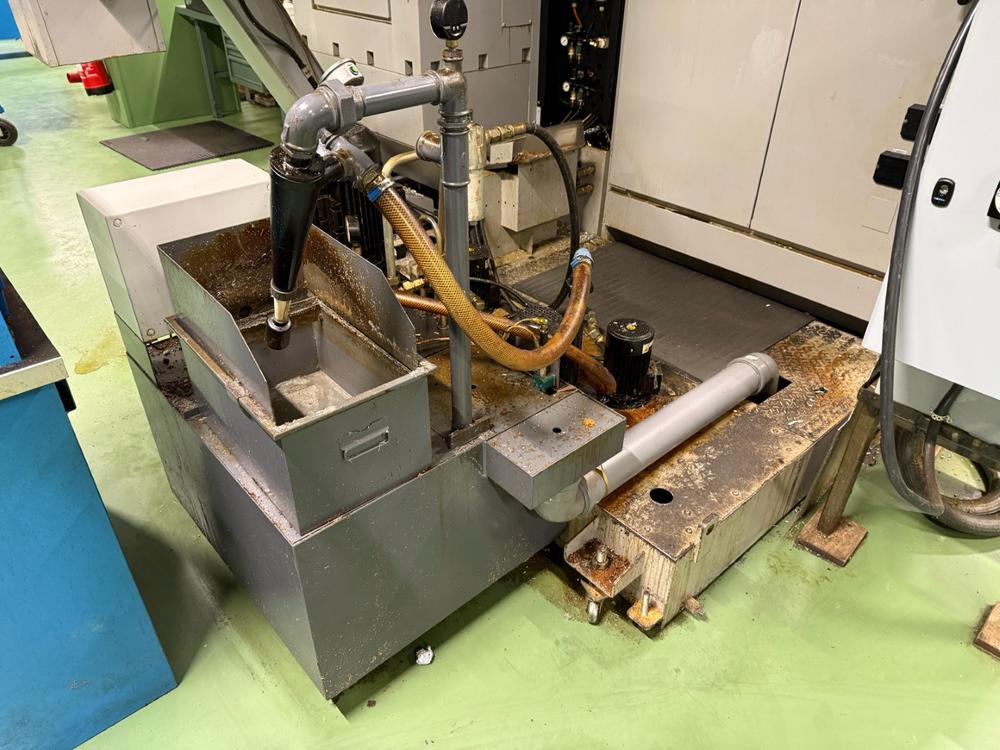

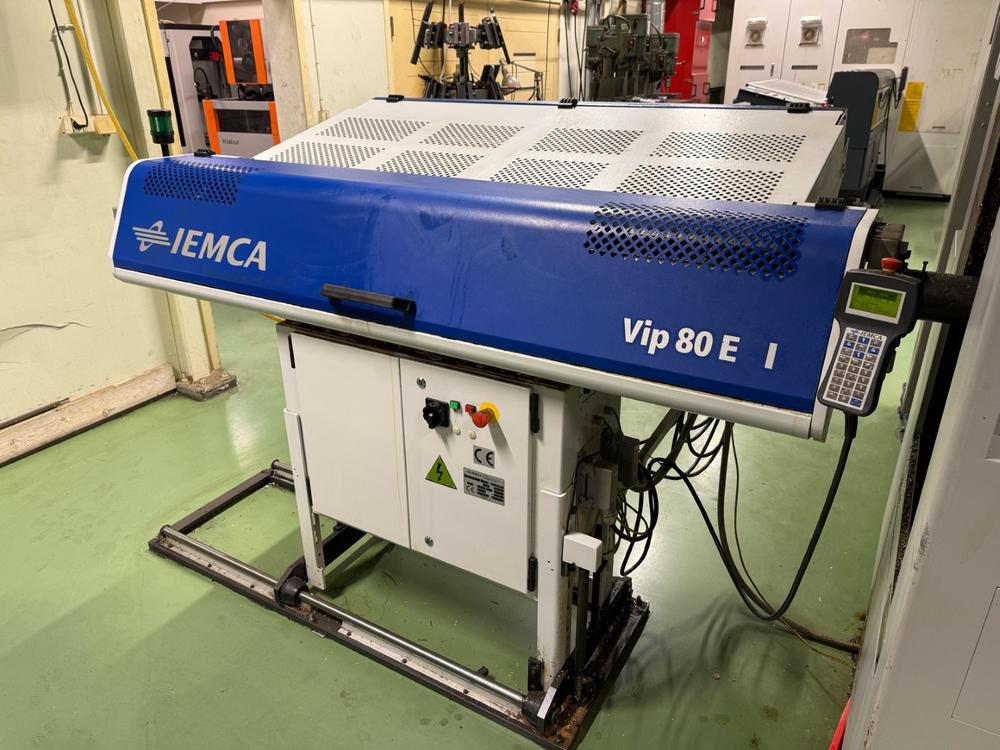

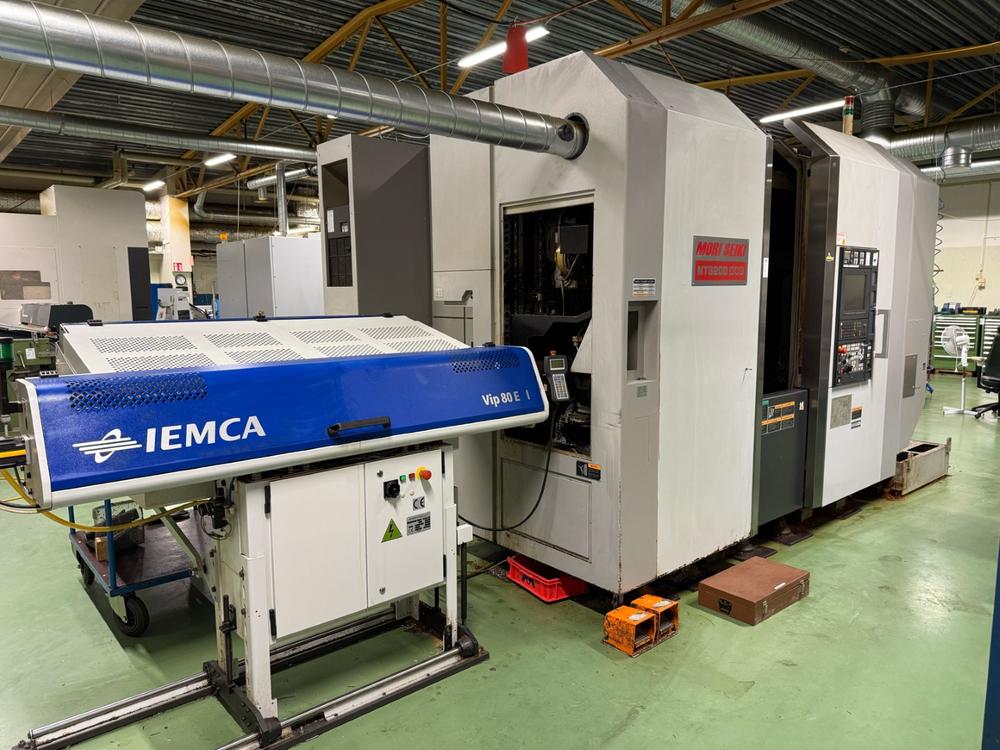

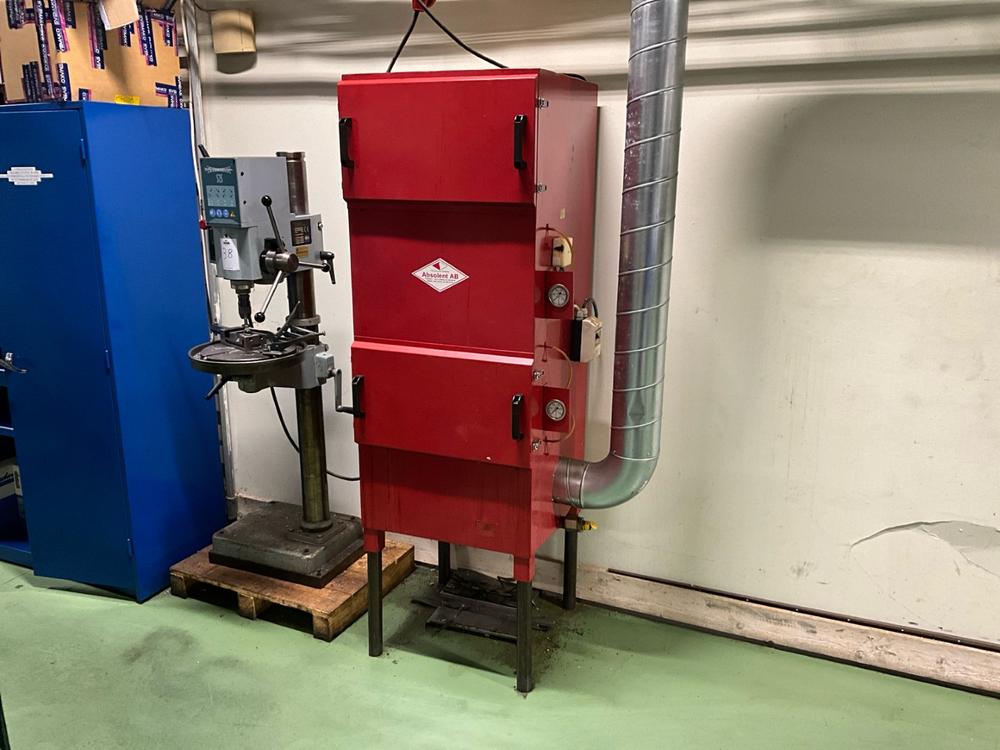

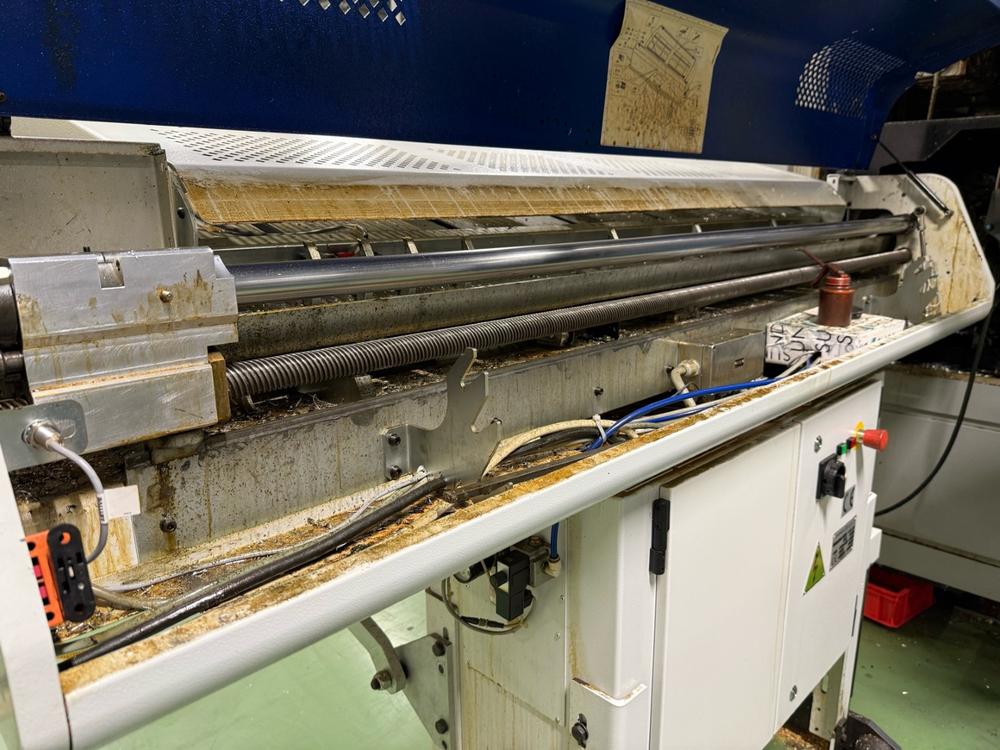

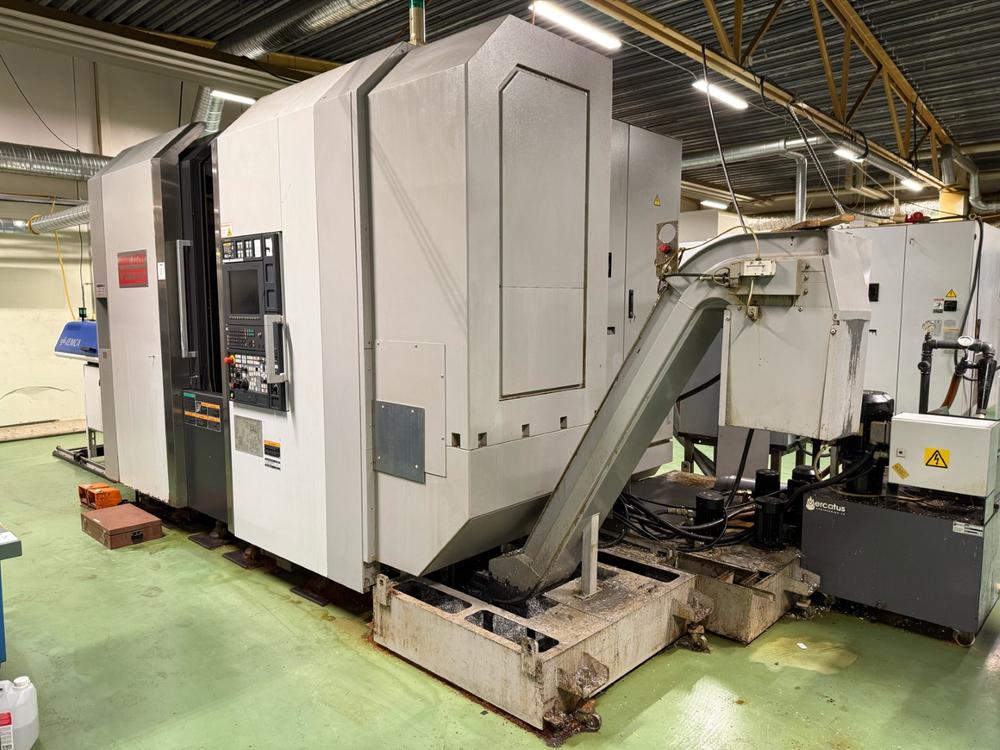

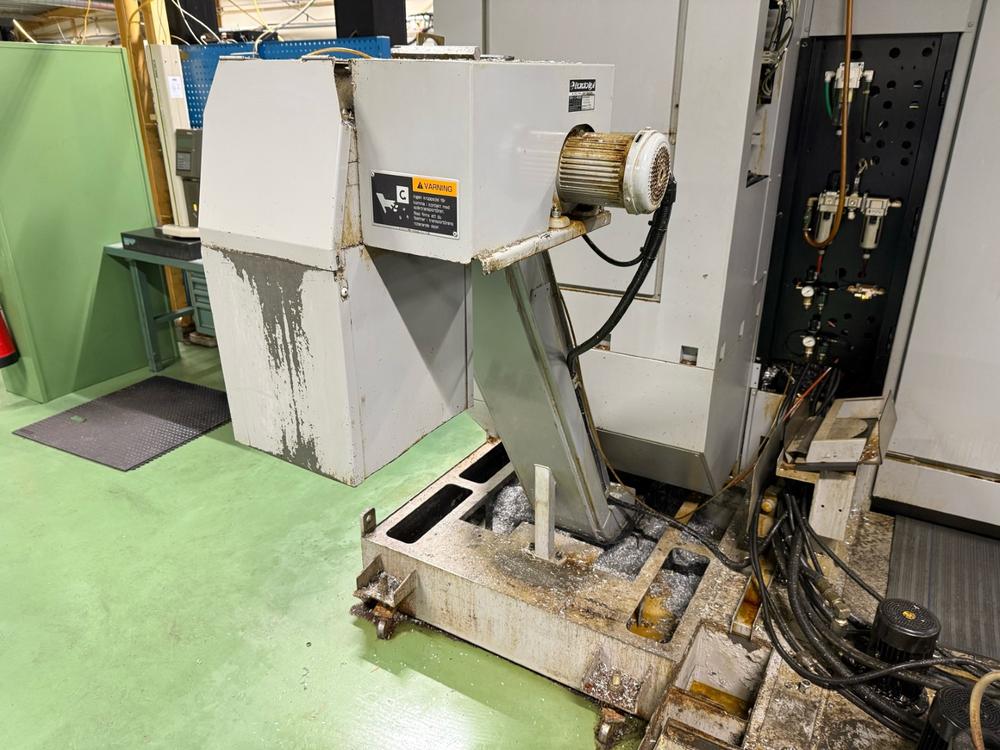

Equipped with: tool presetter,Absolent AB oil mist filter, 2007 IEMCA Vip 80 E I Bar feeder, Enomoto chip conveyor, Ercoatius coolant filter, documentation

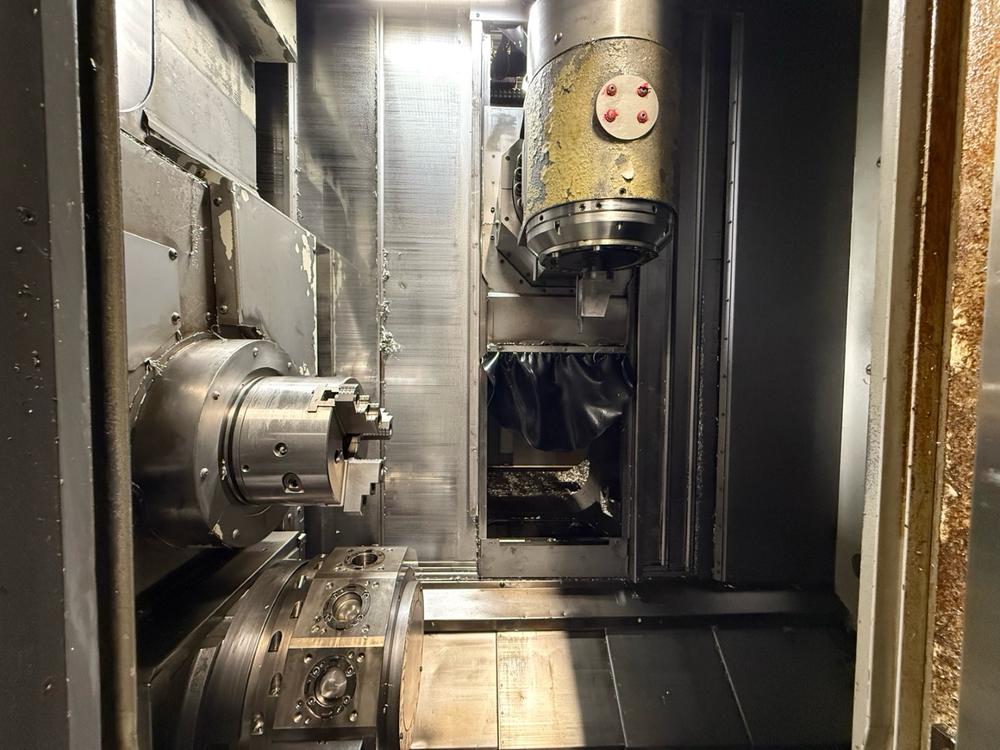

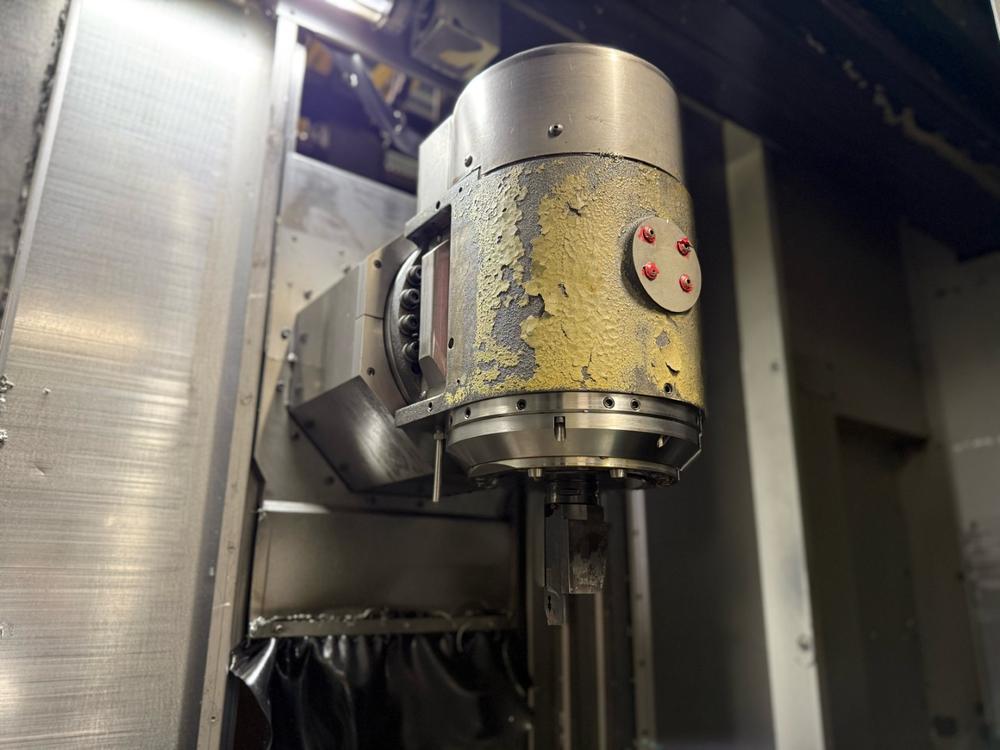

Milling head
Maximum speed: 12000 RPM
Tool shaft size: C5
X-axis travel: 685mm
Y-axis travel: ±125mm
Z-axis travel: 1075mm
B-axis travel: ±120°
X/Z-axis rapid traverse: 50 m/min
Y-axis rapid traverse: 30 m/min

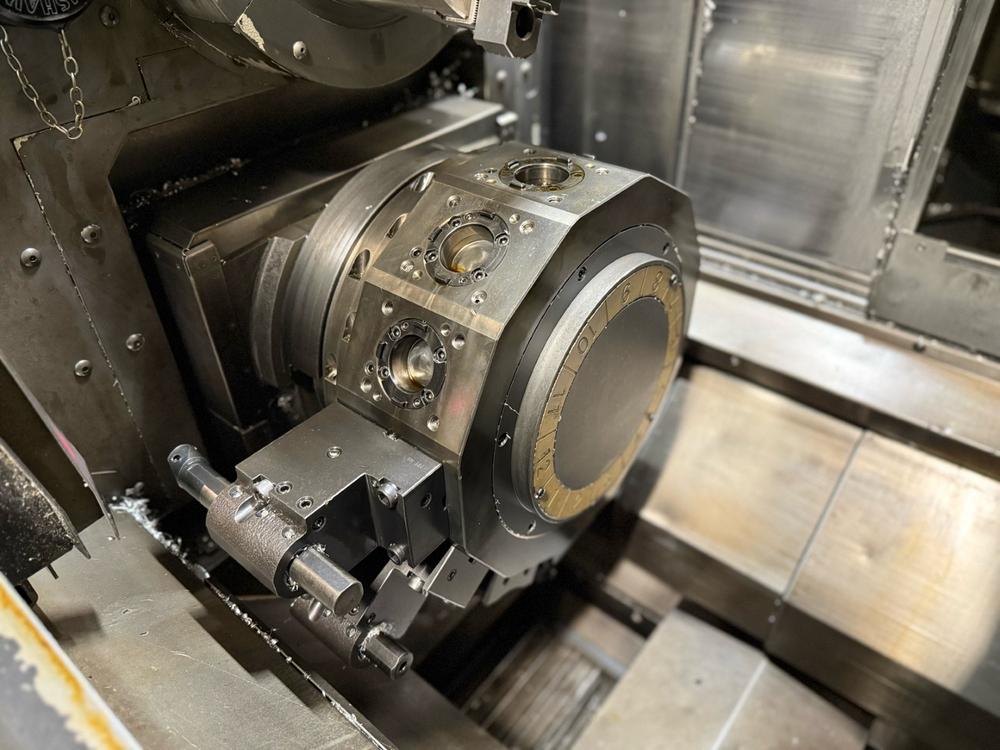

Turret
Number of tool places: 12
Driven tool speed: 6000 RPM
X-axis travel: 130mm
Z-axis travel: 970mm
X/Z-axis rapid traverse: 30 m/min
Machine dimensions LxWxH: 5200x3100x3000mm
Own weight: 14400 kg
Combinación
Este lote es parte de una combinación: Combination 1, 240, 108-111
Información adicional
Catalogue under construction. Pickup days for small, easy pickup lots, tools, workshop etc. are scheduled and without appointment for September 8, 9 and 10 from 09:00 to 16:00. Buyers of large machines, specific lots and installations will be contacted right after the sale to schedule the pickup of those lots by appointment (mandatory late week 37 and/or during week 38 latest). Contact details of a preferred and professional international service partner (for pickup assistance, dismantling and/or fully serviced lot transportation) will be shared with the buyers right after the sale.
Run time: 7976H
Maximum turning diameter (milling head): 600mm
Maximum turning diameter (turret): 210mm
Maximum turning length: 1045mm
Spindel bore: 67mm
Number of tool spaces: 40
Spindel: Kitagawa SS1666
Spindel speed: 5000 RPM
Control system: Fanuc Series 31i
Equipped with: tool presetter,Absolent AB oil mist filter, 2007 IEMCA Vip 80 E I Bar feeder, Enomoto chip conveyor, Ercoatius coolant filter, documentation
Milling head
Maximum speed: 12000 RPM
Tool shaft size: C5
X-axis travel: 685mm
Y-axis travel: ±125mm
Z-axis travel: 1075mm
B-axis travel: ±120°
X/Z-axis rapid traverse: 50 m/min
Y-axis rapid traverse: 30 m/min
Turret
Number of tool places: 12
Driven tool speed: 6000 RPM
X-axis travel: 130mm
Z-axis travel: 970mm
X/Z-axis rapid traverse: 30 m/min
Machine dimensions LxWxH: 5200x3100x3000mm
Own weight: 14400 kg
