Informazioni sul prodotto
| Marchio | SACHMAN |
| Type | MP212 |
| Year | 2006 |
| Serial number | 203364 |
| Amount | 1 |
SACHMAN MP212

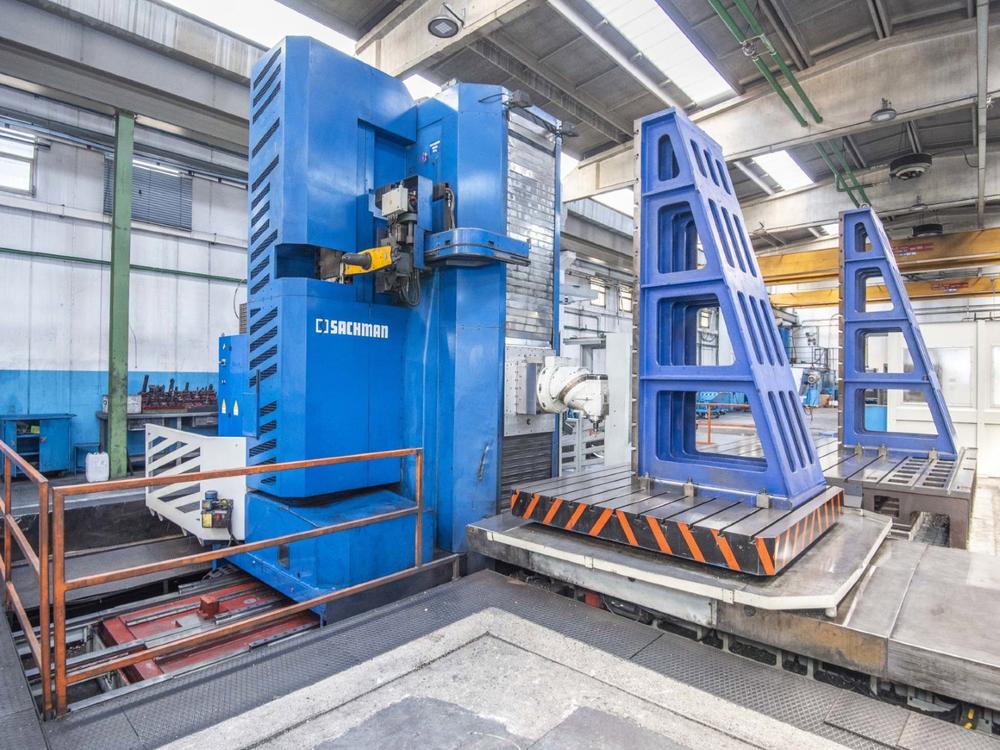

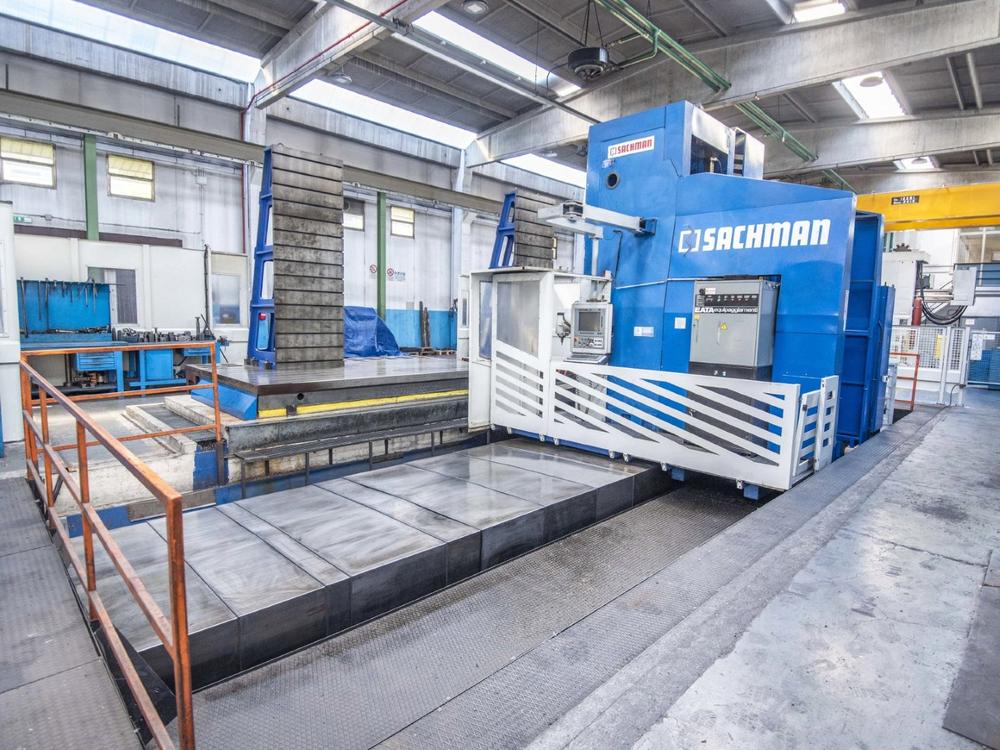

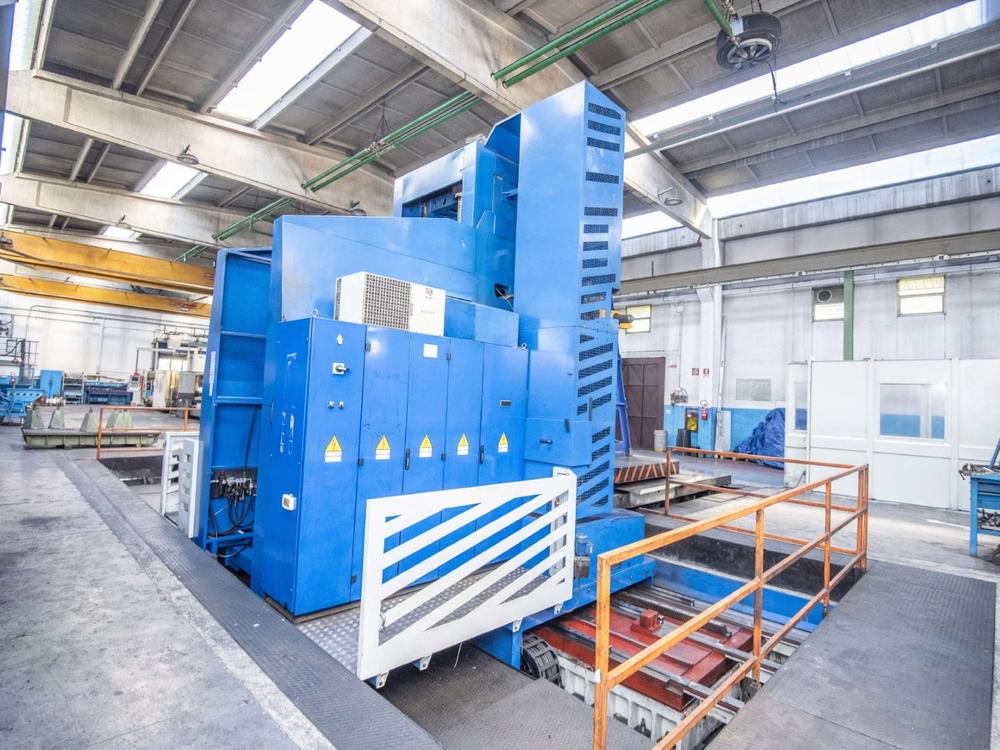

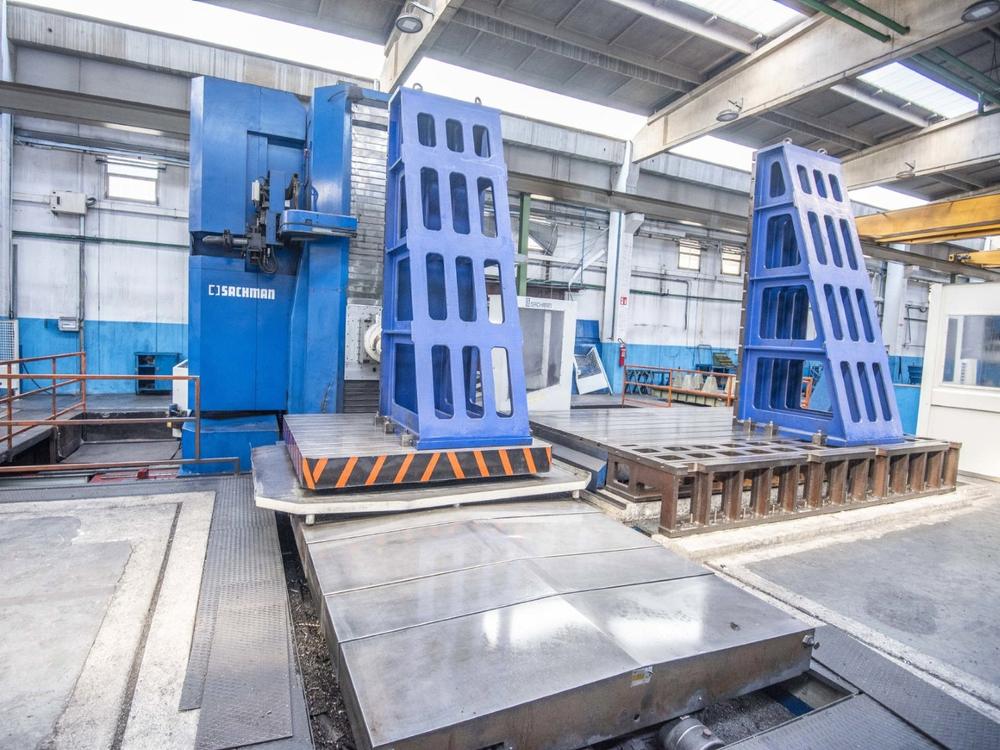

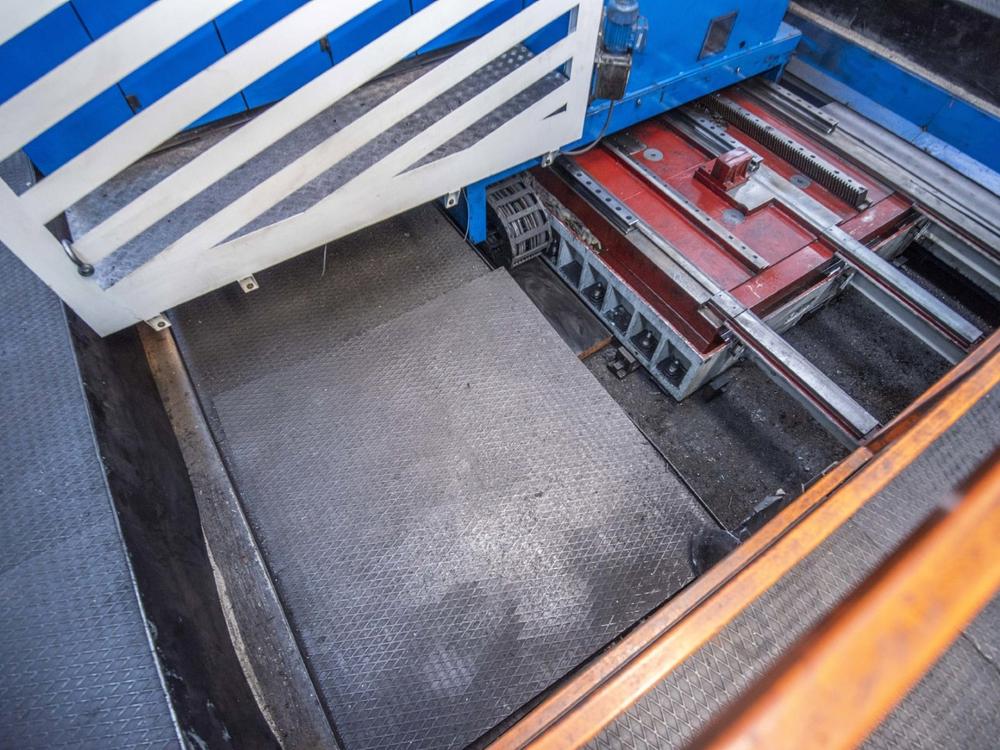

SACHMAN MP212 TRAVELLING COLUMN MILLING MACHINE
FIDIA C20 CNC
AXIS TRAVEL:
X 6000 mm
Y 1400 mm
Z 2500 mm
WORKTOP:
1 x 4000 x 2000 mm table
1 x 2000 x 2000 mm rotary table
Load capacity 15,000 kg
Table travel 1500 mm
SPINDLE
KOSMO 3 automatic universal head
Maximum speed 5,000 rpm
Spindle motor power 37/55 kW
Maximum torque 1298 Nm
Spindle connection type ISO 50
DIMENSIONS AND WEIGHTS
Approximate overall dimensions on the ground mm 12,000 x 9,000 mm
Weight approximately 66,800 kg
COMPLETE WITH:
40-station automatic tool changer

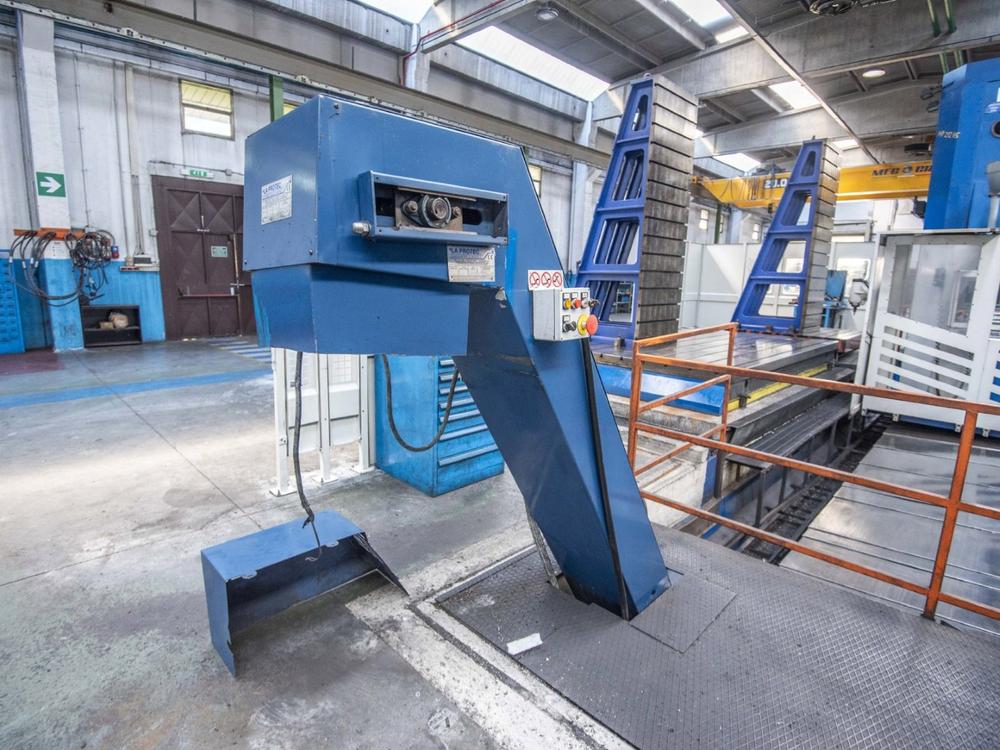

Chain chip conveyor

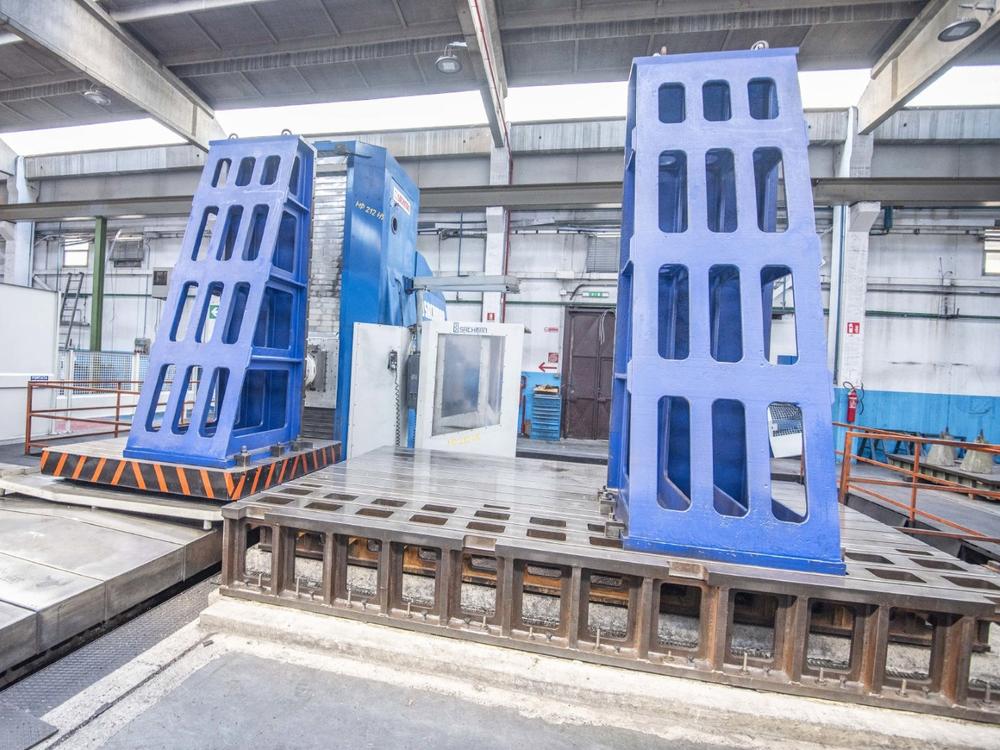

2 squares 3,000 x 1,200 x 1,000 mm
USED MACHINE
YEAR 2006
Informazioni importanti
All buyers will be informed within 48 hours after the auction closure about their actual pick-up day being in week 18 &19.
SACHMAN MP212
SACHMAN MP212 TRAVELLING COLUMN MILLING MACHINE
FIDIA C20 CNC
AXIS TRAVEL:
X 6000 mm
Y 1400 mm
Z 2500 mm
WORKTOP:

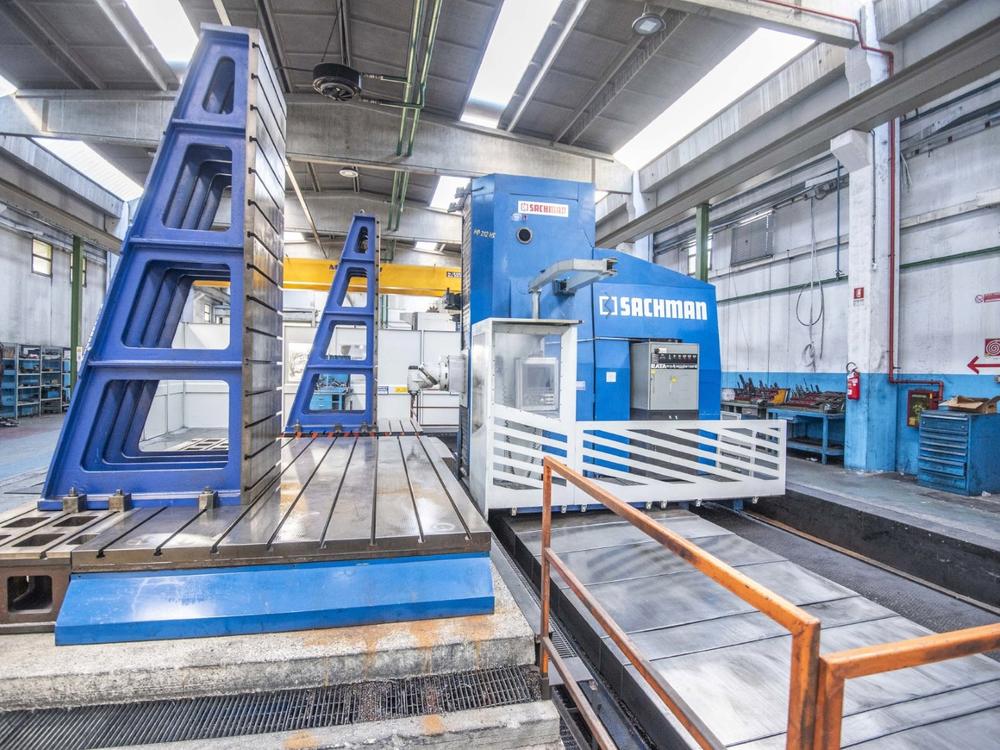

1 x 4000 x 2000 mm table
1 x 2000 x 2000 mm rotary table
Load capacity 15,000 kg
Table travel 1500 mm
SPINDLE
KOSMO 3 automatic universal head
Maximum speed 5,000 rpm
Spindle motor power 37/55 kW
Maximum torque 1298 Nm
Spindle connection type ISO 50
DIMENSIONS AND WEIGHTS
Approximate overall dimensions on the ground mm 12,000 x 9,000 mm
Weight approximately 66,800 kg
COMPLETE WITH:
40-station automatic tool changer
Chain chip conveyor
2 squares 3,000 x 1,200 x 1,000 mm
USED MACHINE
YEAR 2006
