8 - 2002 FAVOLE DM 1000/250T HYDRAULIC PRESS
Venaria Reale | IT
Offerta iniziale
Offerta attuale
Offerta finale
125.000,00 €
0
Offri
Offerte
Maggior offerente
Superato
La mia ultima offerta: 0,00 € (Offerta automatica)
Condividere
Informazioni sul prodotto
| Marchio | FAVOLE |
| Type | DM 1000/250T |
| Year | 2002 |
| Serial number | 8202 |
| Amount | 1 |
Auctioneer's indicative value: EUR 200.000 - EUR 300.000

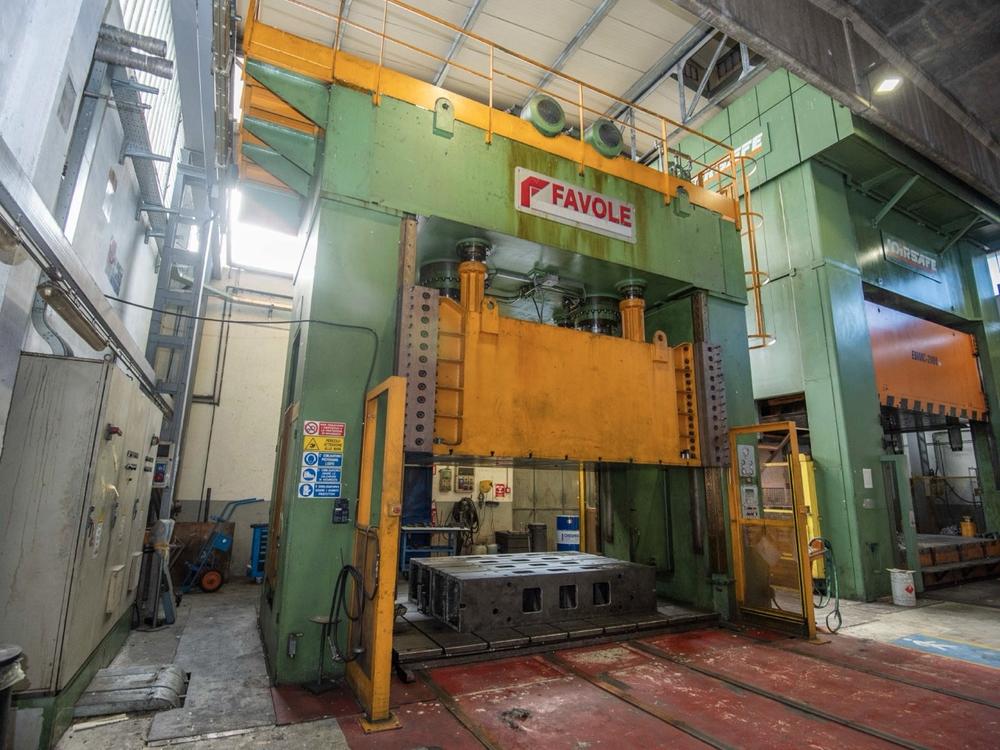

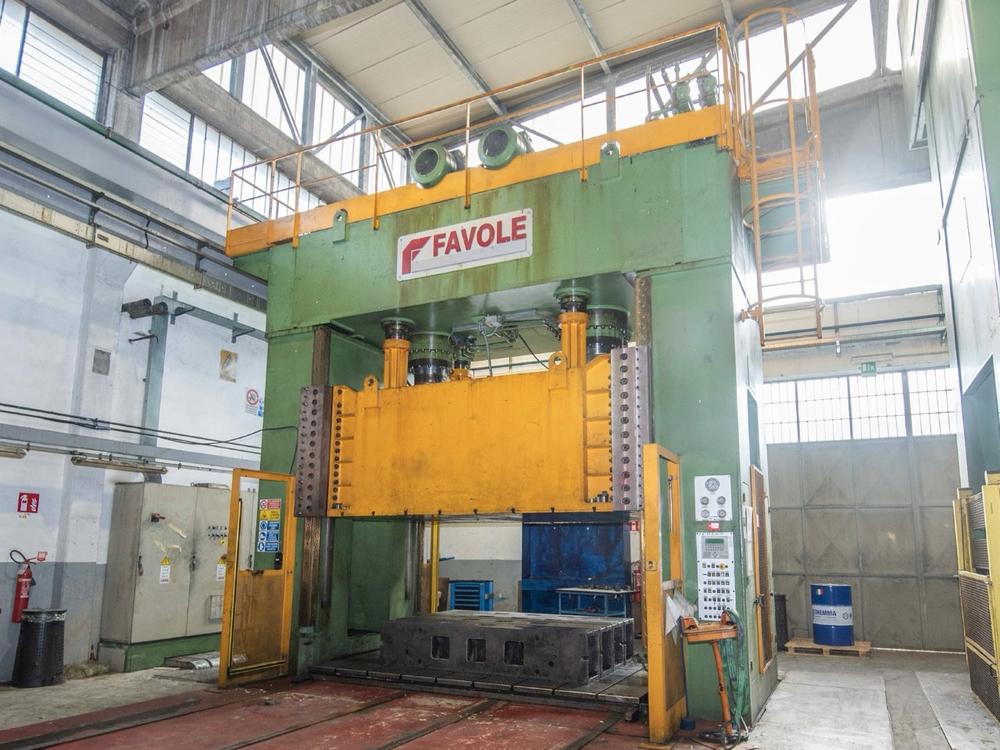

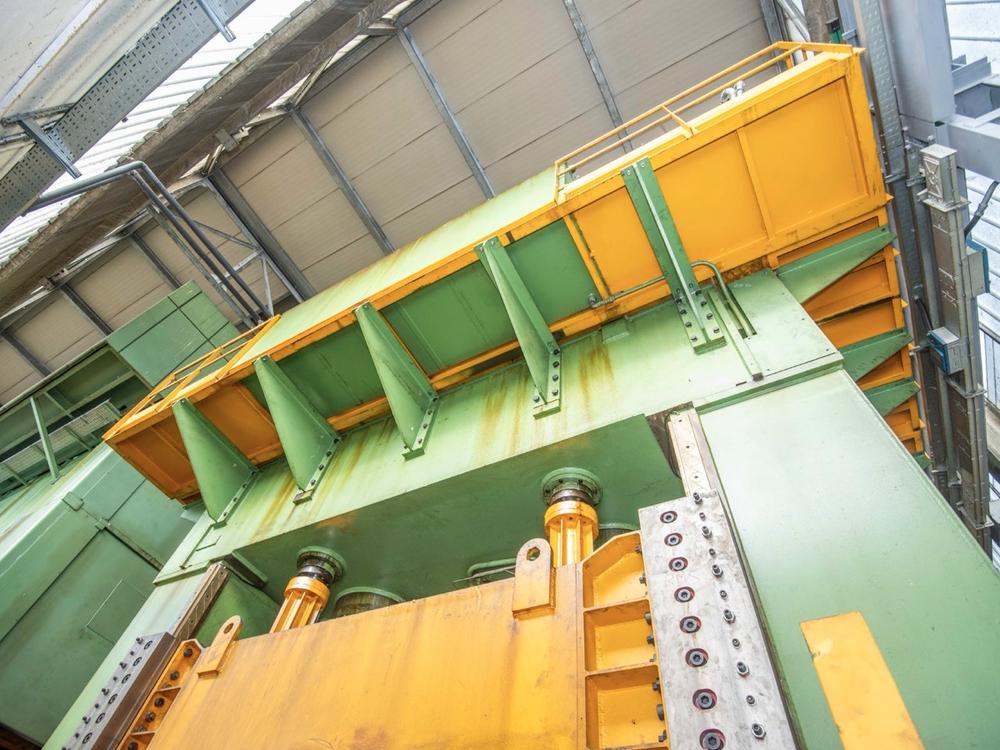

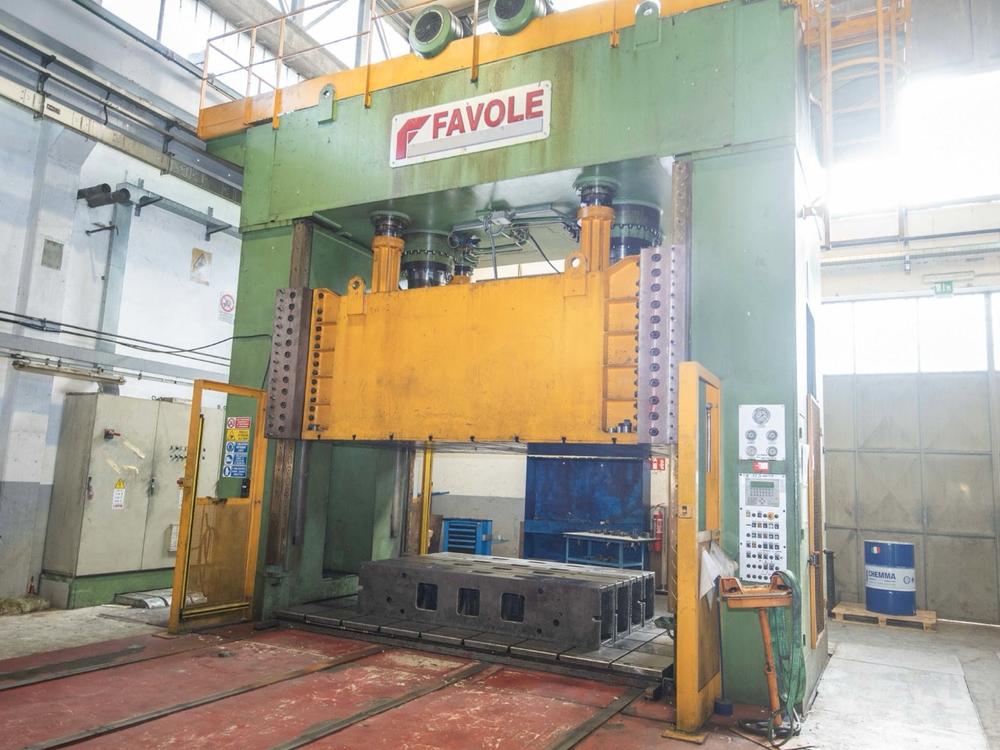

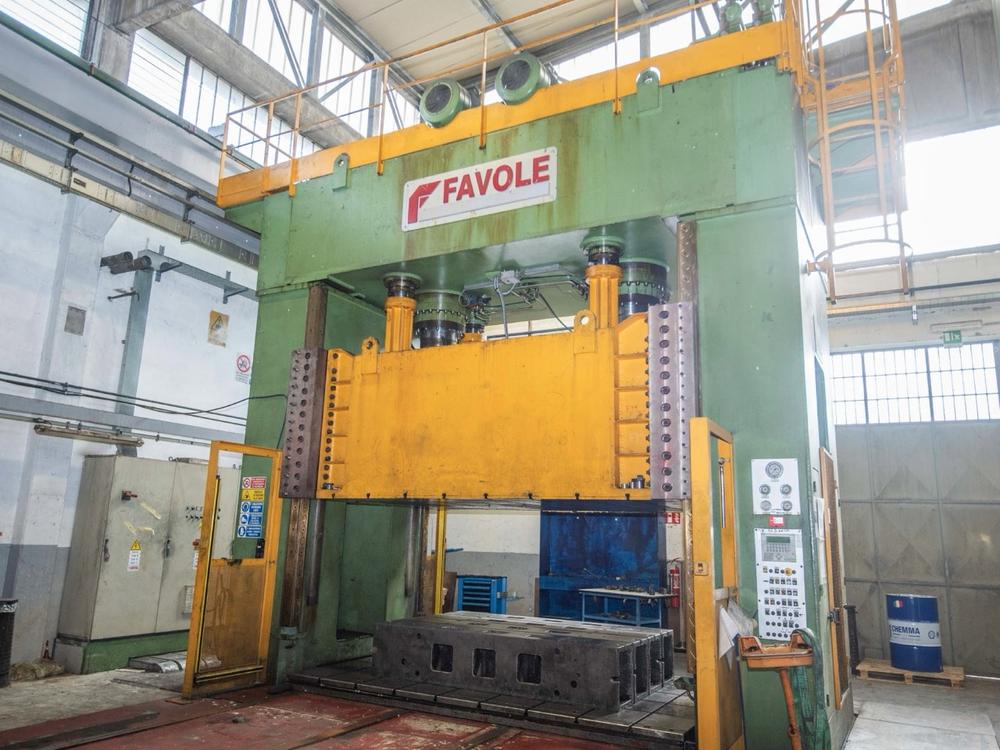

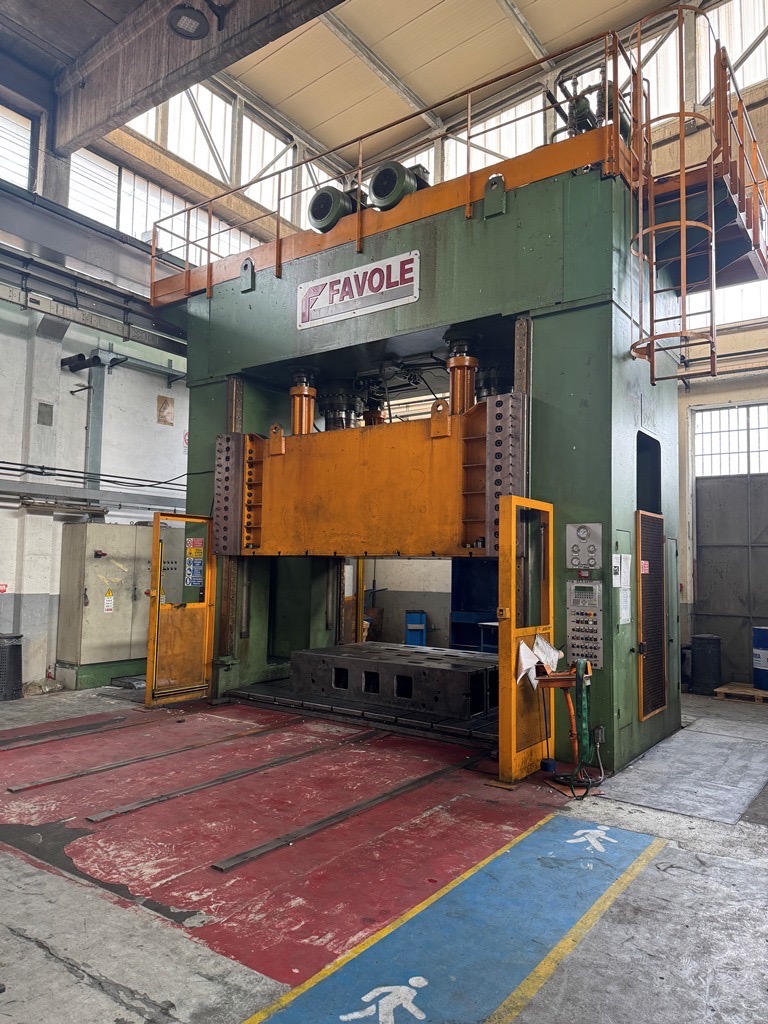

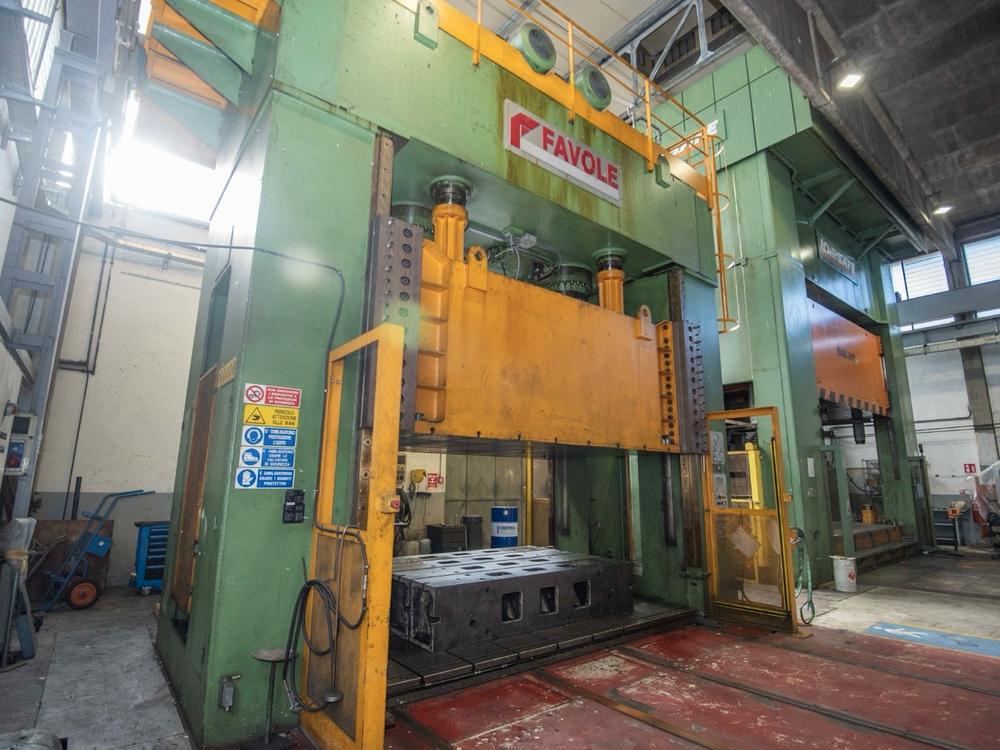

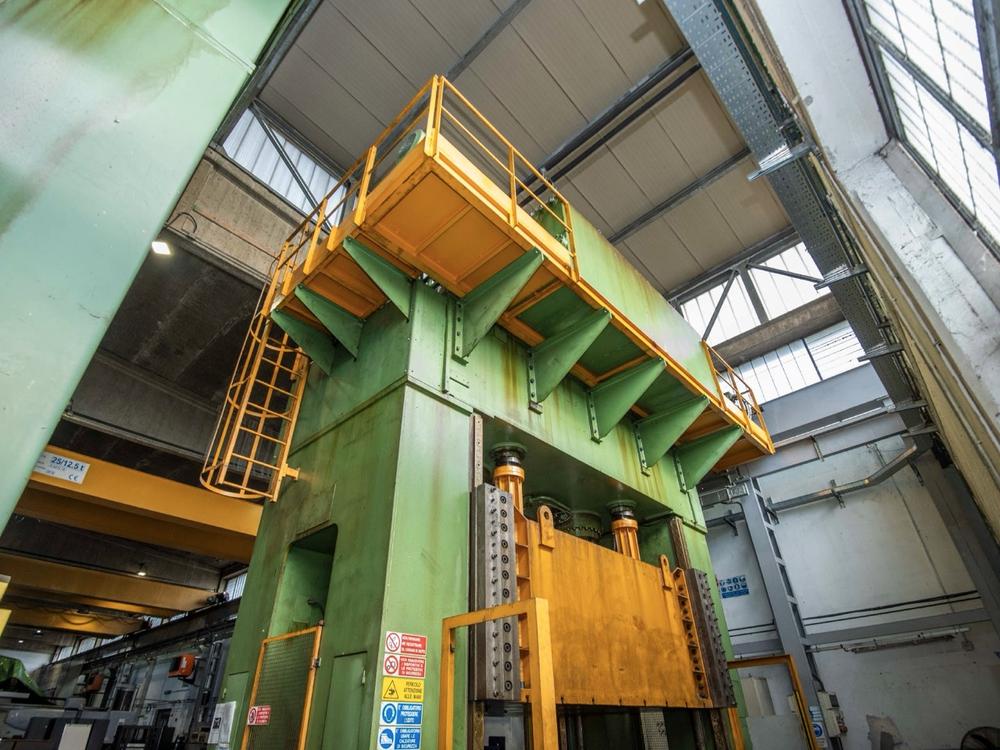

OLEODIDAMIC PRESS FAVOLE mod. DM 1000/250T
Adjustable nominal force 1.000 Ton
Nominal return force 180 Ton
Maximum blank holder reaction force 250 Ton
Upper moving table approach speed mm/s 350
Working speed (closing/pressing) mm/s 0 ÷ 45
Upper moving table return speed mm/s 220
Blank holder return speed mm/s 100
Vertical daylight between open tables mm 2.300
Frontal gap between uprights mm 4.040

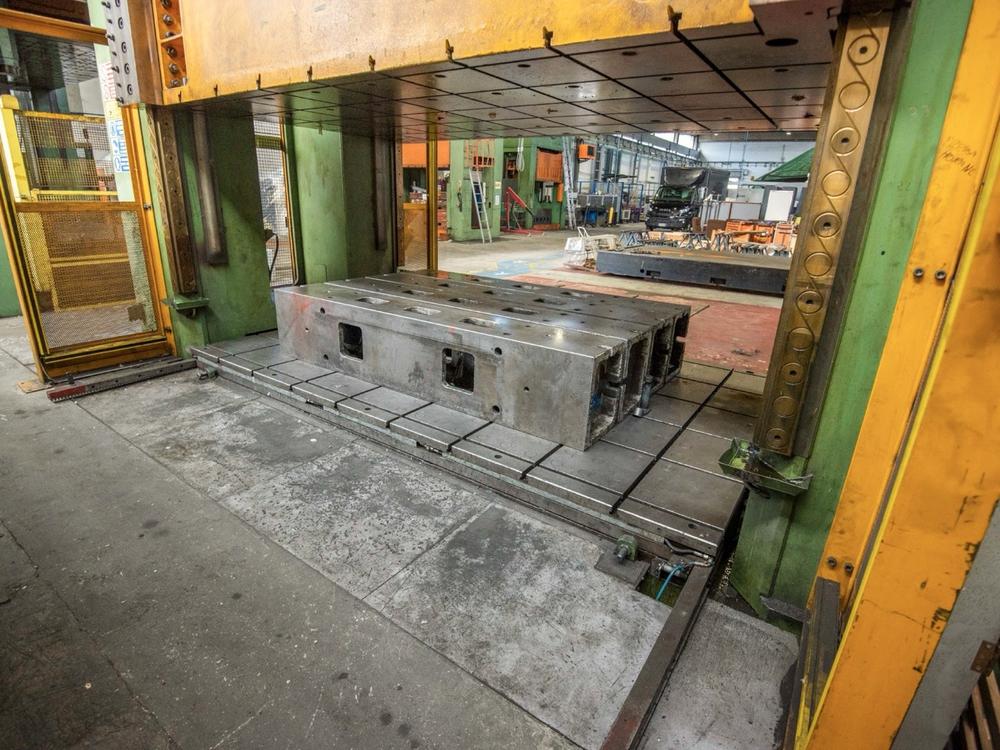

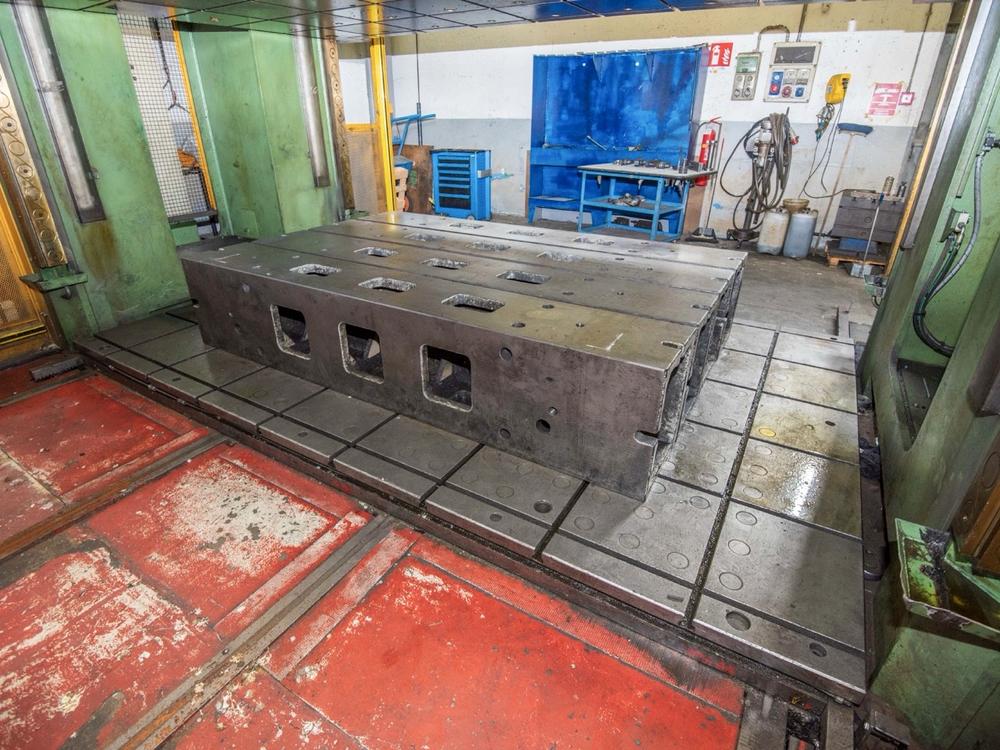

Usable worktable dimensions mm 4.000 x 2.500
Max die weight Kg 30.000
Moving table stroke mm 1.000
Usable blank holder stroke mm 1.000
Usable blank holder table dimensions mm 3.700 x 2.400
Frontal width of the press mm 6.000
Lateral width of the press mm 2.800
Walkway width mm 800
Total height of the press mm 10.600
Max height above floor level mm 7.200
Pit depth (below floor level) mm 3.400
Informazioni importanti
All buyers will be informed within 48 hours after the auction closure about their actual pick-up day being in week 18 &19.
Auctioneer's indicative value: EUR 200.000 - EUR 300.000
OLEODIDAMIC PRESS FAVOLE mod. DM 1000/250T
Adjustable nominal force 1.000 Ton
Nominal return force 180 Ton
Maximum blank holder reaction force 250 Ton
Upper moving table approach speed mm/s 350
Working speed (closing/pressing) mm/s 0 ÷ 45
Upper moving table return speed mm/s 220
Blank holder return speed mm/s 100
Vertical daylight between open tables mm 2.300
Frontal gap between uprights mm 4.040
Usable worktable dimensions mm 4.000 x 2.500
Max die weight Kg 30.000
Moving table stroke mm 1.000
Usable blank holder stroke mm 1.000
Usable blank holder table dimensions mm 3.700 x 2.400
Frontal width of the press mm 6.000
Lateral width of the press mm 2.800
Walkway width mm 800
Total height of the press mm 10.600
Max height above floor level mm 7.200
Pit depth (below floor level) mm 3.400
