Informazioni sul prodotto
| Marchio | Favole |
| Type | DM 1000/250T |
| Year | 2002 |
| Serial number | 8202 |
| Amount | 1 |

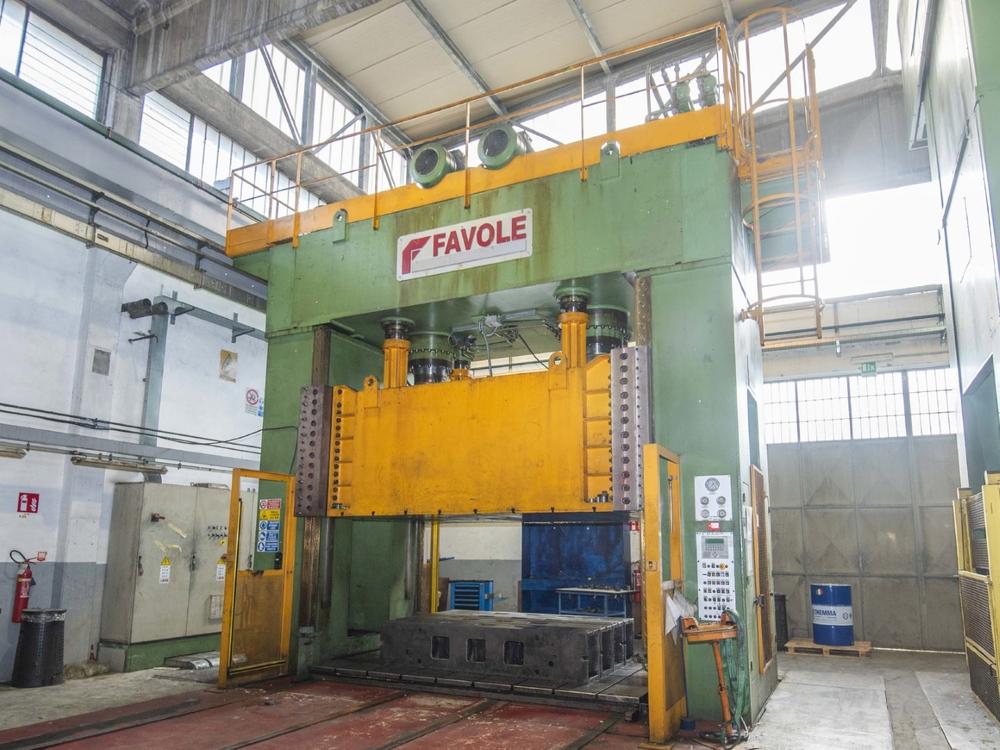

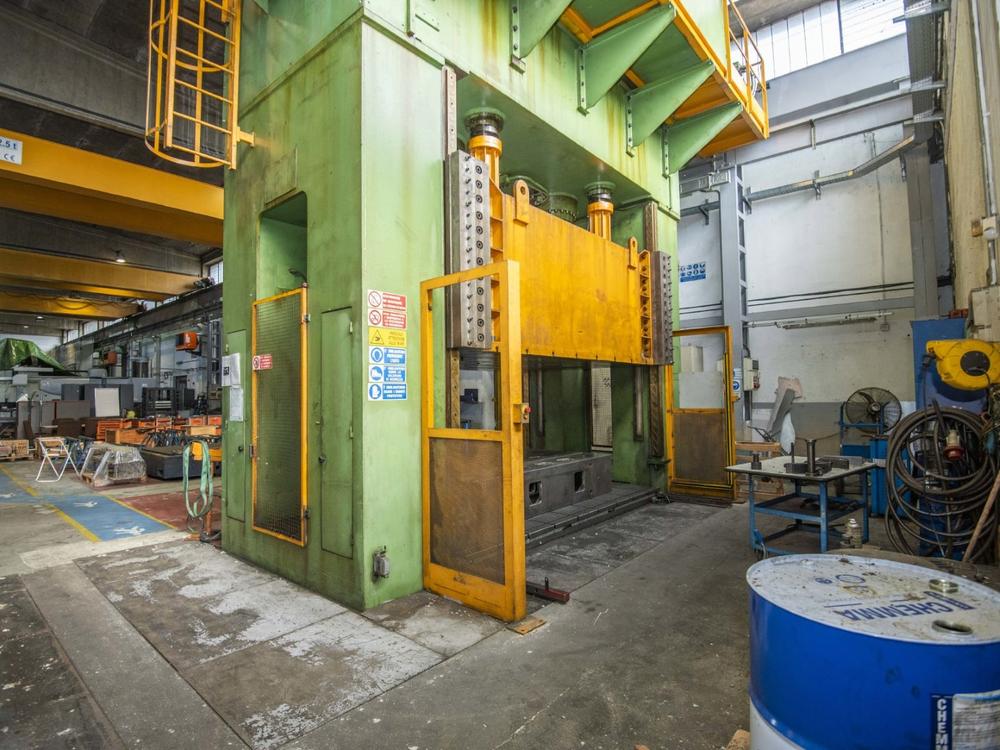

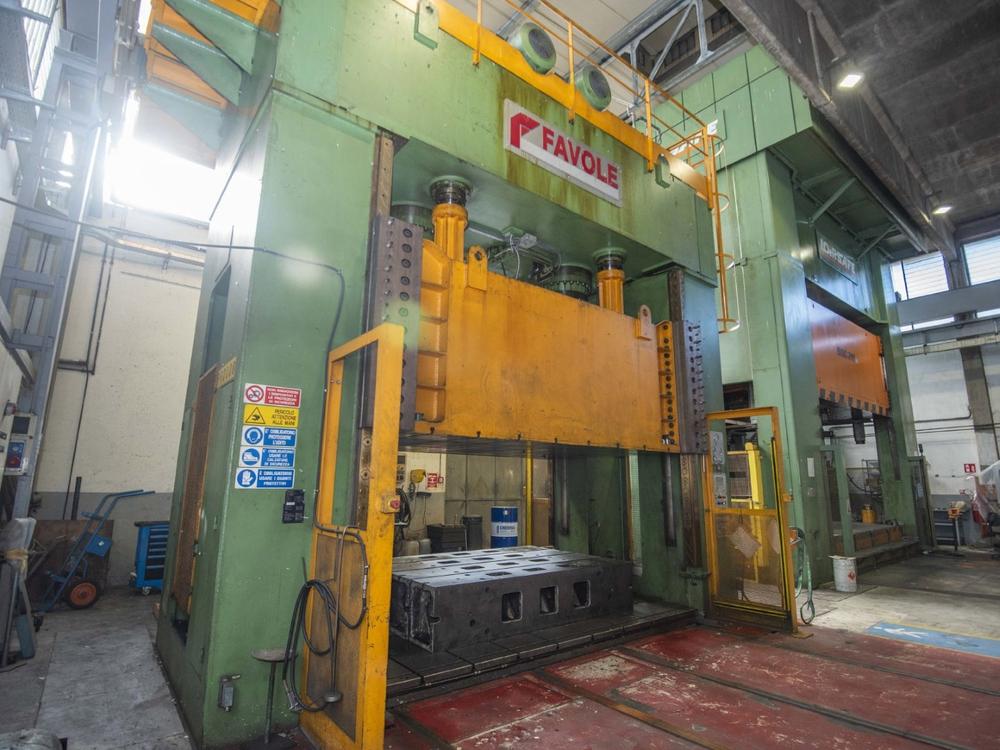

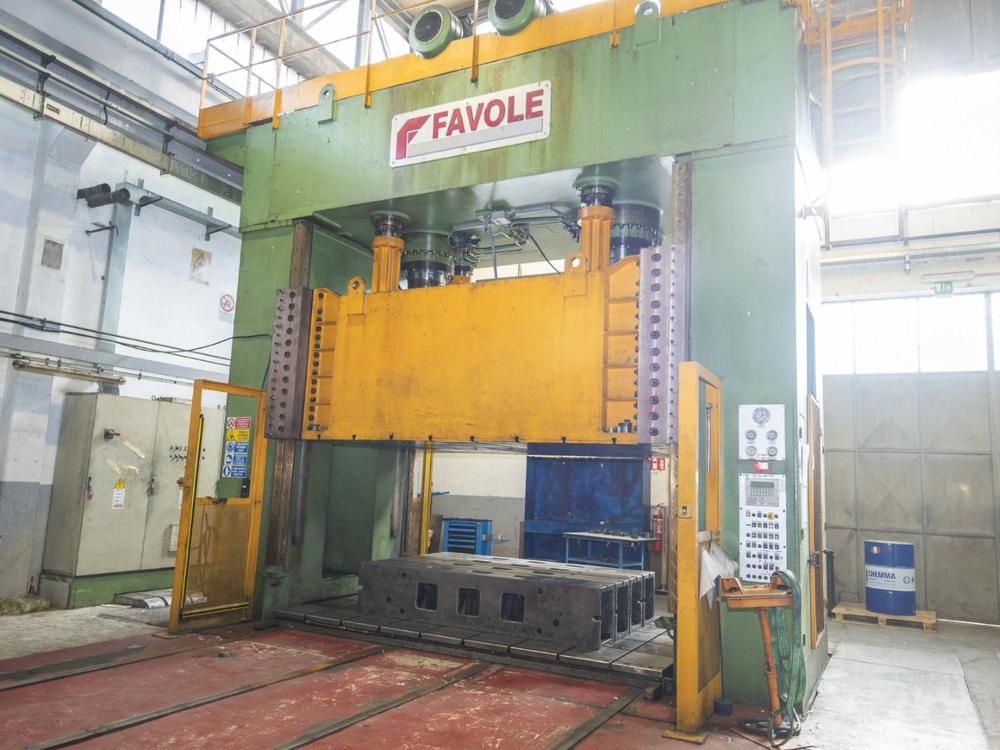

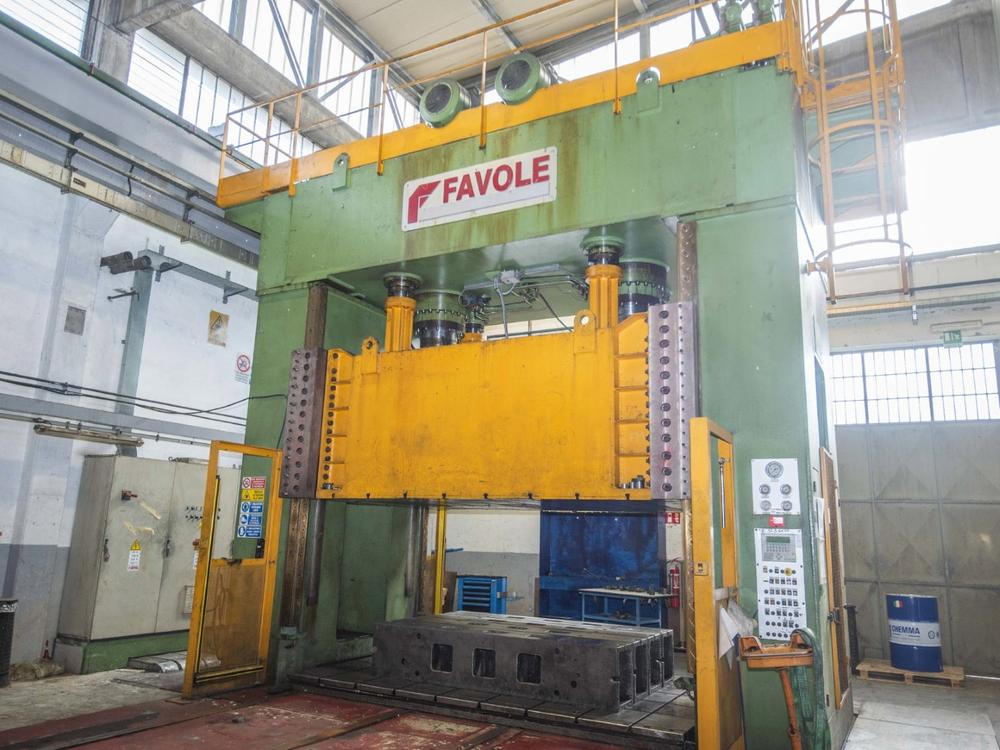

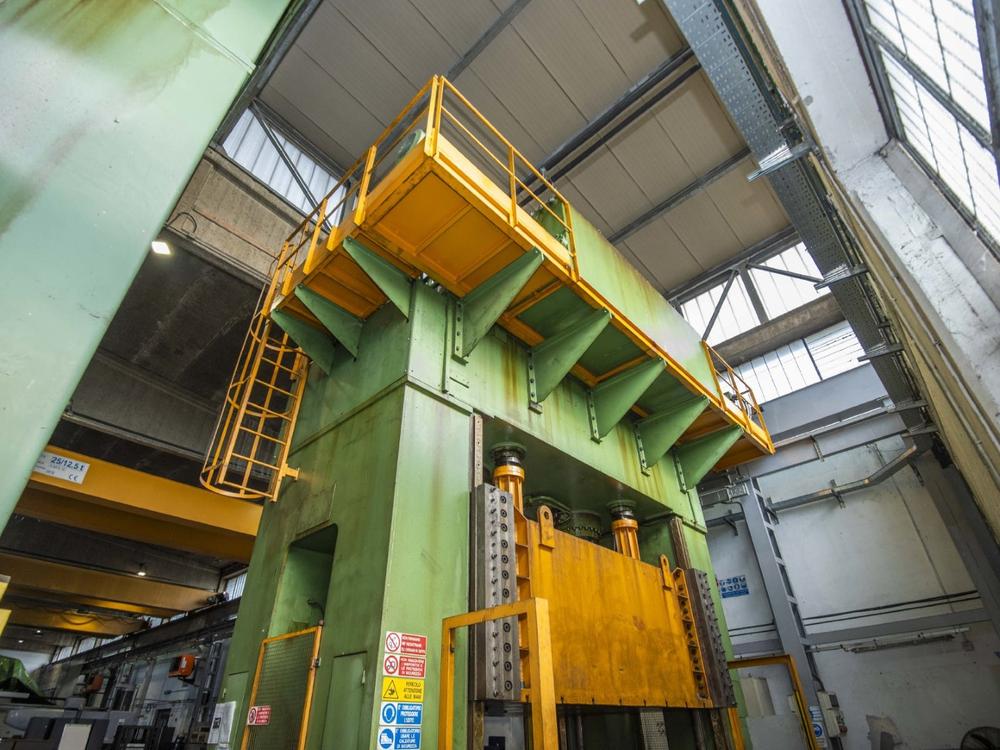

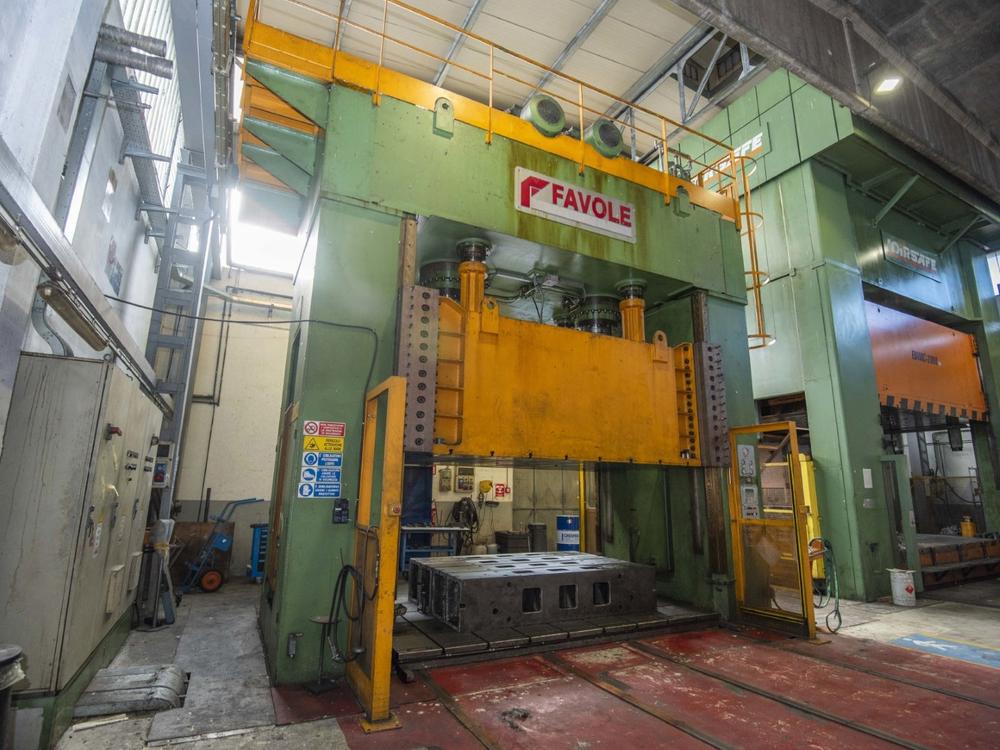

HYDRAULIC
PRESSURE mod. DM 1000/250T
Adjustable nominal force 1,000 tons
Nominal return force 180 tons

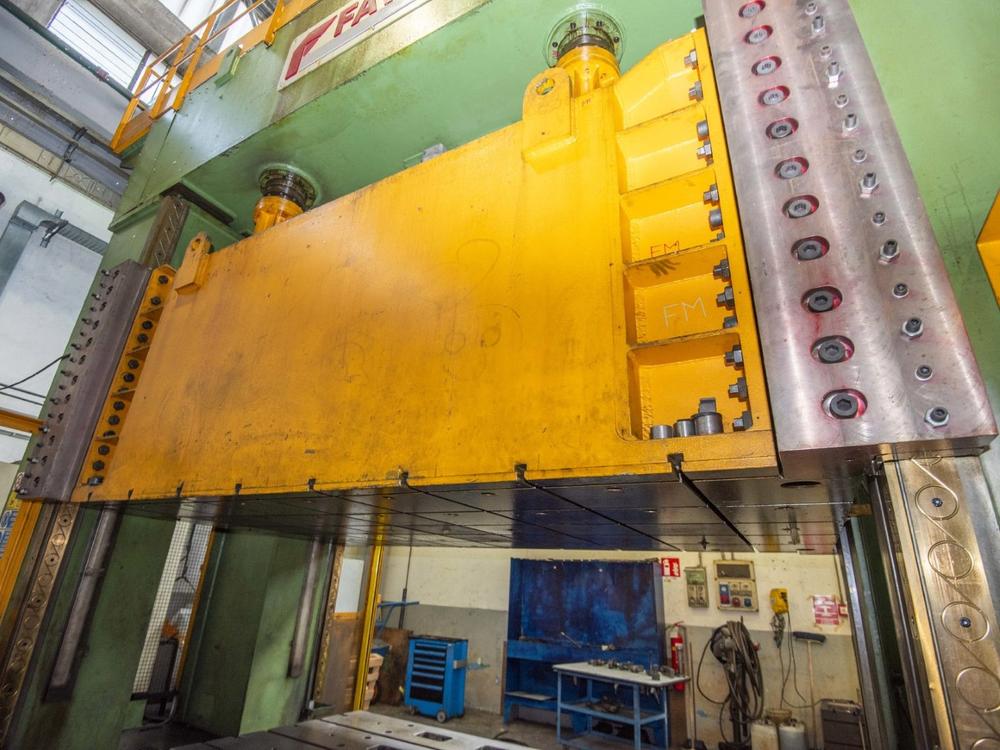

Maximum blank holder reaction force 250 tons
Upper moving table approach speed 350 mm/s
Approaching/pressing working speed 0 ÷ 45 mm/s
Upper moving table return speed 220 mm/s
Blank holder return speed 100 mm/s
Vertical clearance between open tables 2,300 mm
Front clearance between uprights 4,040 mm

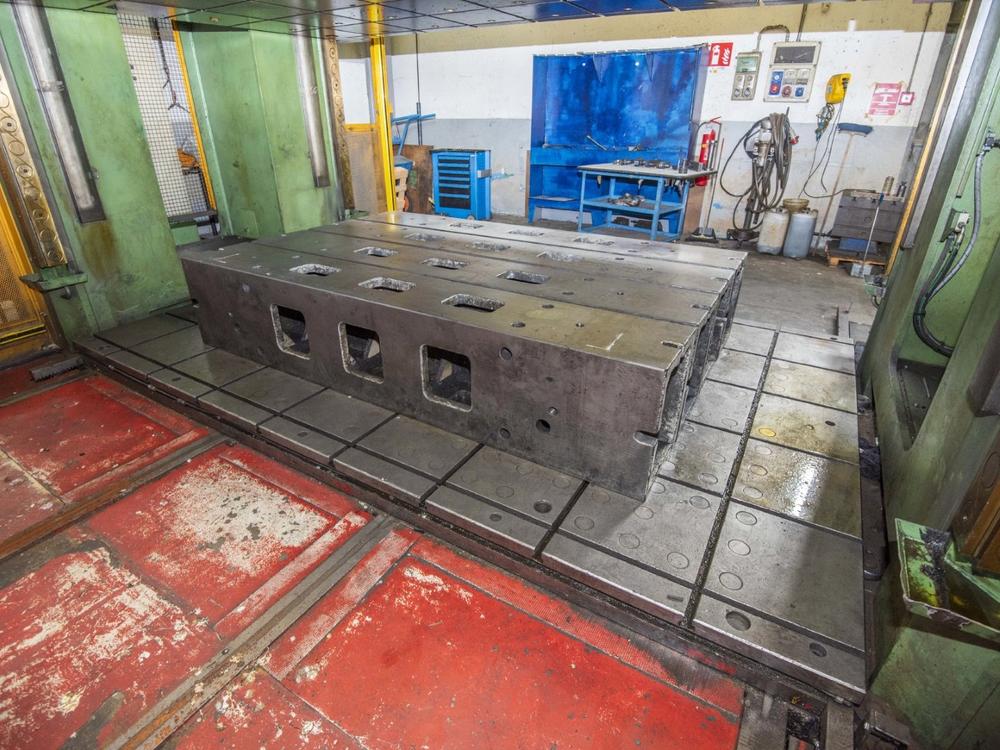

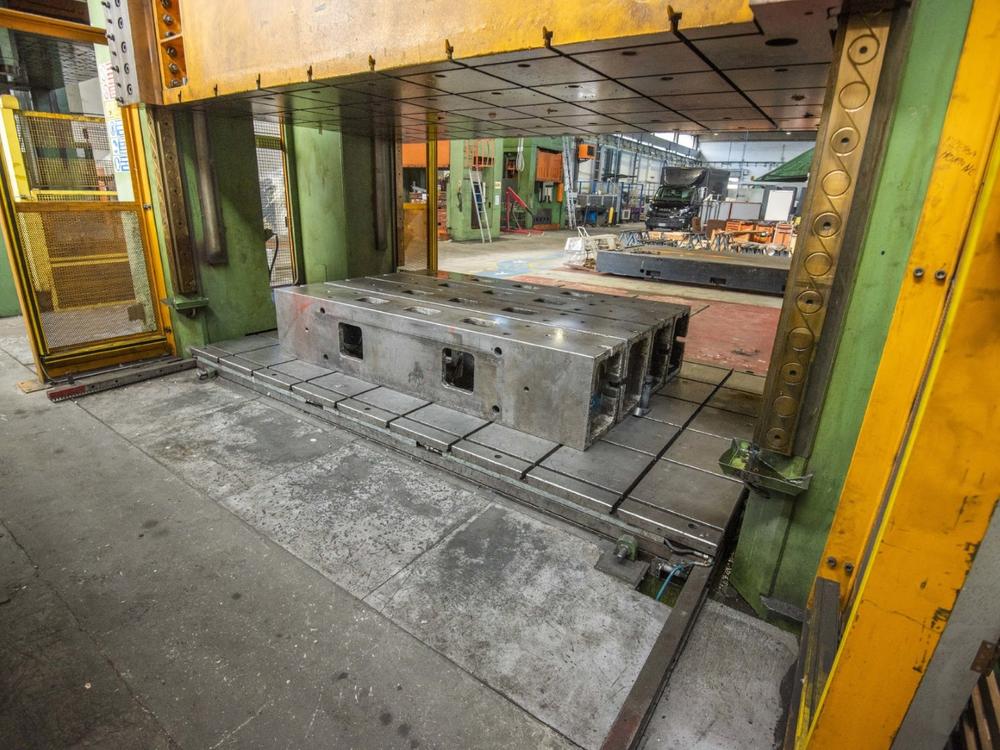

Work table effective dimensions 4,000 x 2,500 mm
Maximum die weight 30,000 kg
Moving table stroke 1,000 mm
Blank holder effective stroke 1,000 mm
Blank holder effective dimensions 3,700 x 2,400 mm
Press front width 6,000 mm
Press side width 2,800 mm
Cab width 800 mm
Press total height 10,600 mm
Maximum height above ground 7,200 mm
Depth below ground (pit) 3,400 mm
Informazioni importanti
All buyers will be informed within 48 hours after the auction closure about their actual pick-up day being in week 18 &19.
HYDRAULIC
PRESSURE mod. DM 1000/250T
Adjustable nominal force 1,000 tons
Nominal return force 180 tons
Maximum blank holder reaction force 250 tons
Upper moving table approach speed 350 mm/s
Approaching/pressing working speed 0 ÷ 45 mm/s
Upper moving table return speed 220 mm/s
Blank holder return speed 100 mm/s
Vertical clearance between open tables 2,300 mm
Front clearance between uprights 4,040 mm
Work table effective dimensions 4,000 x 2,500 mm
Maximum die weight 30,000 kg
Moving table stroke 1,000 mm
Blank holder effective stroke 1,000 mm
Blank holder effective dimensions 3,700 x 2,400 mm
Press front width 6,000 mm
Press side width 2,800 mm
Cab width 800 mm
Press total height 10,600 mm
Maximum height above ground 7,200 mm
Depth below ground (pit) 3,400 mm
