Informazioni sul prodotto

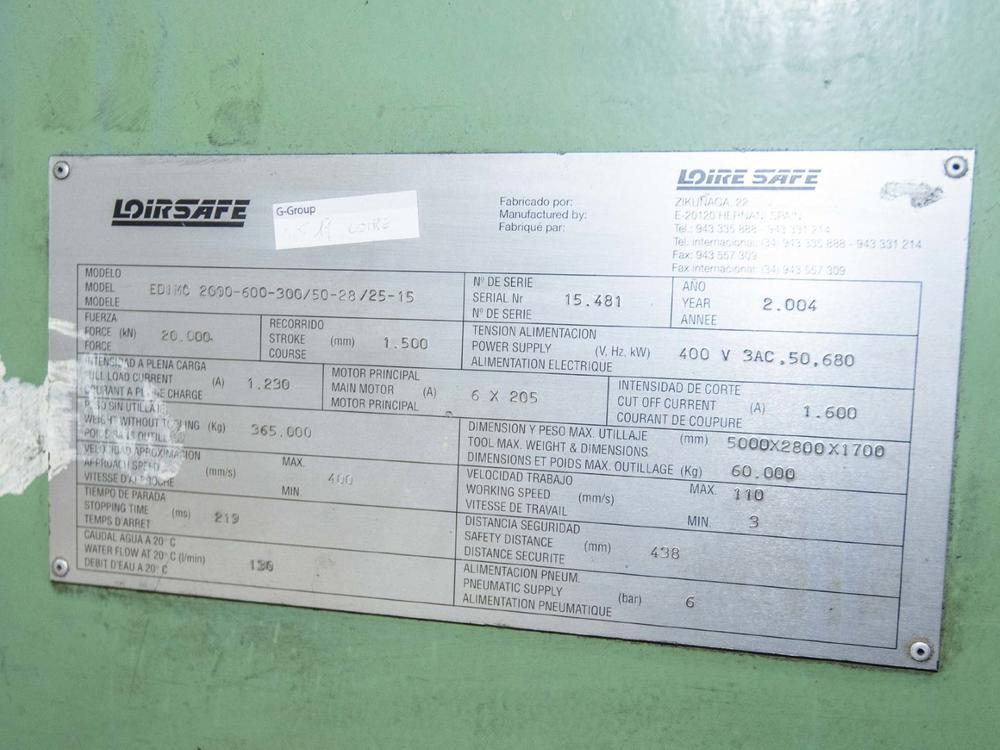

| Marchio | LOIRE SAFE |
| Type | EDIMC 2000 |
| Year | 2004 |
| Serial number | 15481 |
| Amount | 1 |

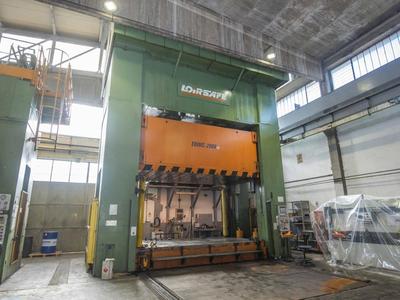

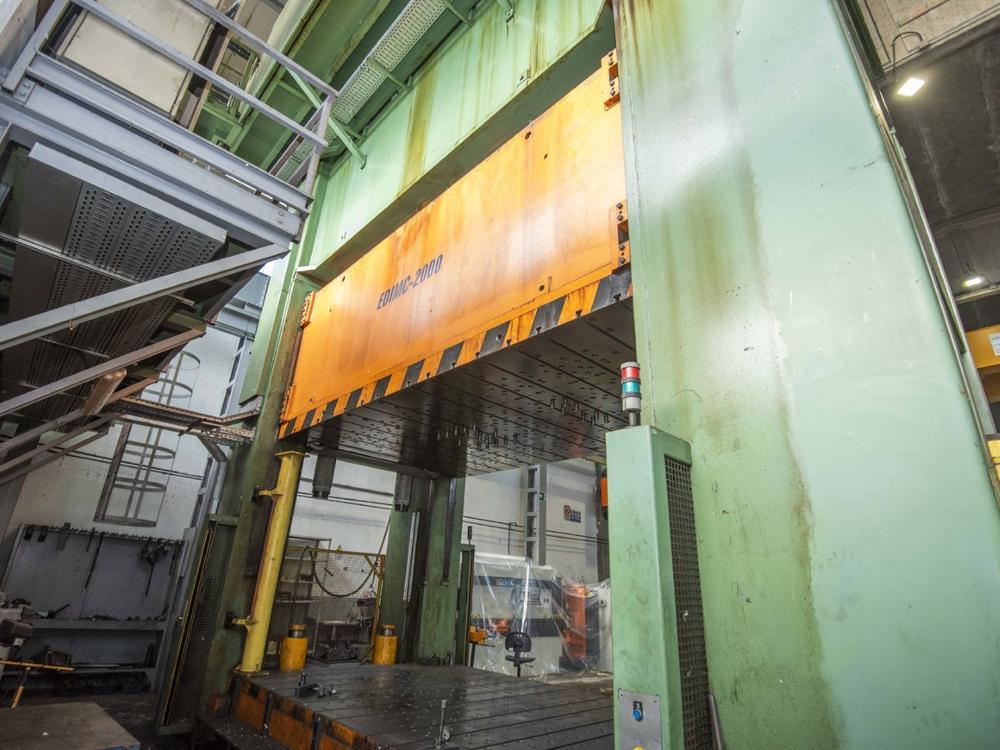

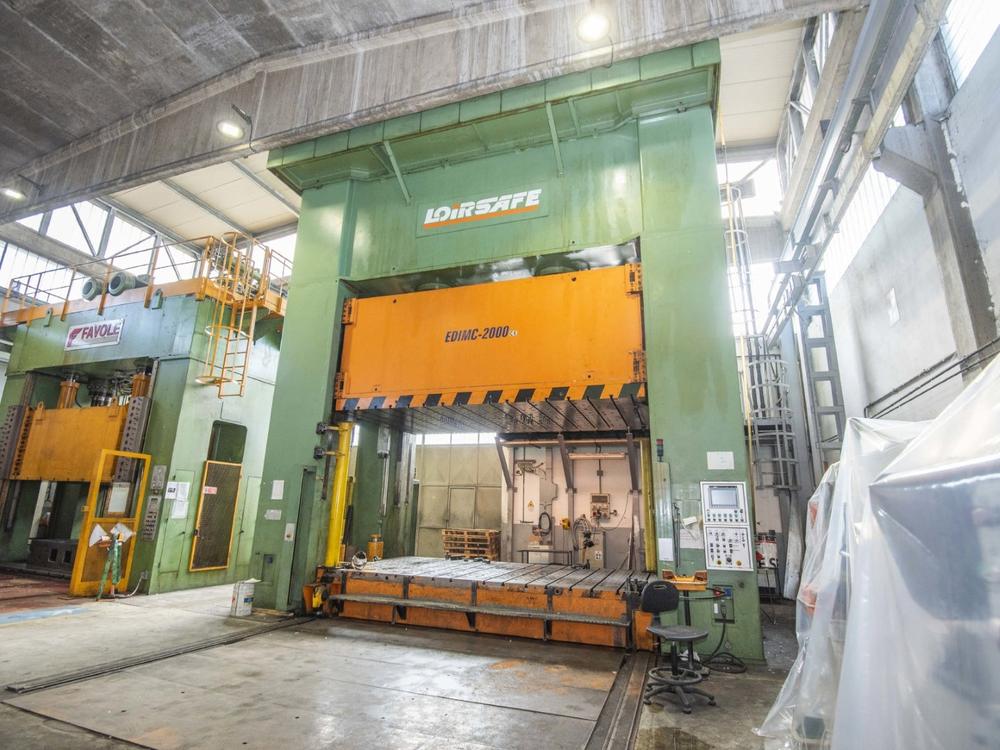

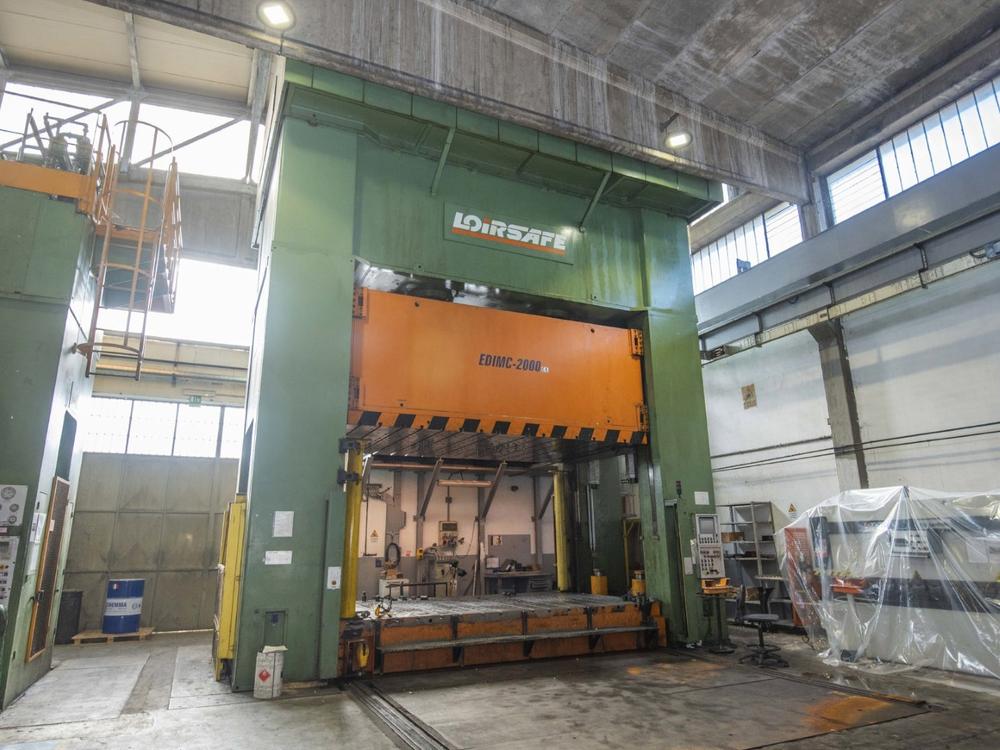

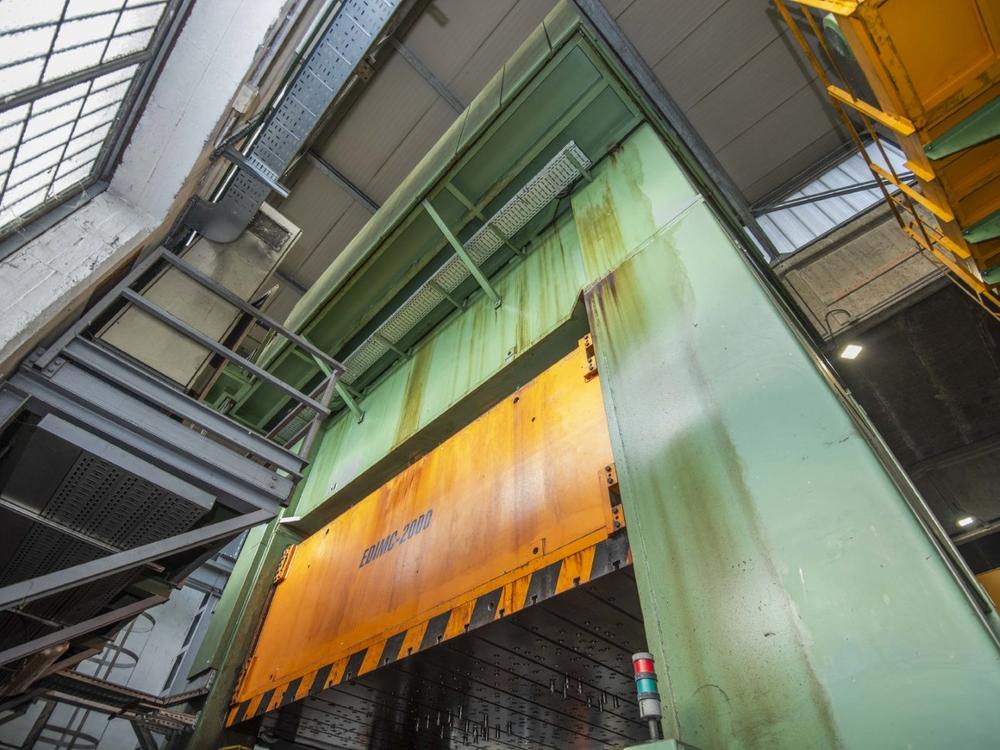

LOIRE SAFE EDIMC 2000 HYDRAULIC PRESS
Maximum adjustable slide force: 200 to 2,000 tons
No. 4 Cylinders
Net slide return force 130 tons
Maximum workpiece dimensions 5,000 x 2,800 x 1,700 mm
Maximum workpiece weight 60,000 kg
Upper part weight 35,000 kg
Slide stroke 1,500 mm
Maximum clearance between worktops 2,500 mm
Minimum clearance between worktops 1,000 mm
Front distance between uprights 5,100 mm
Lateral distance between uprights 2,000 mm

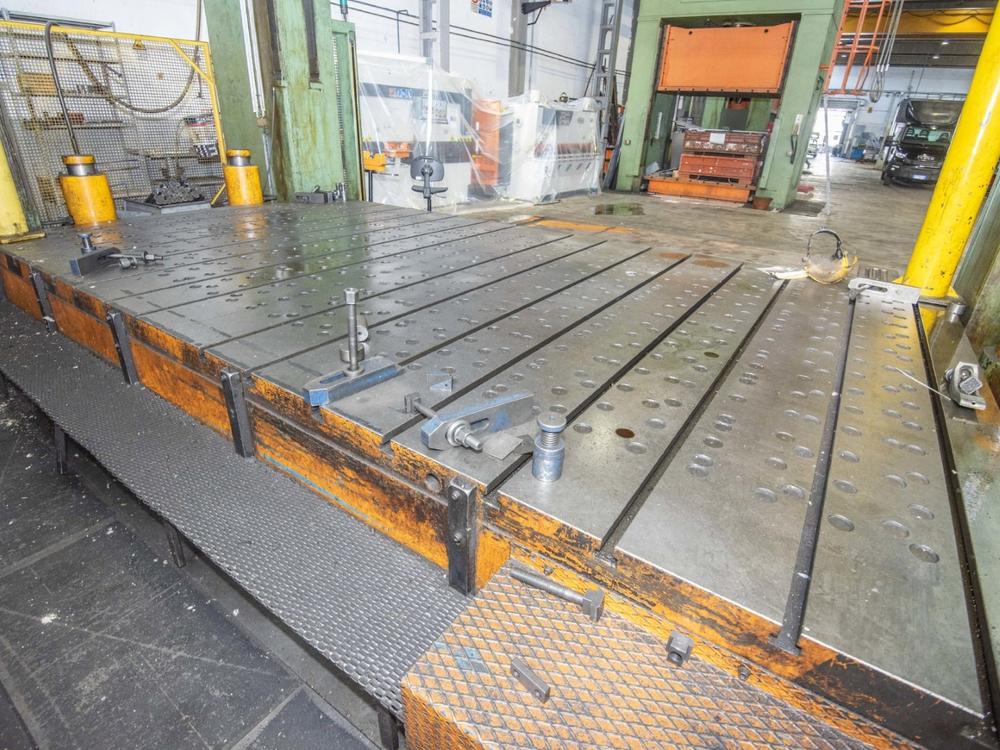

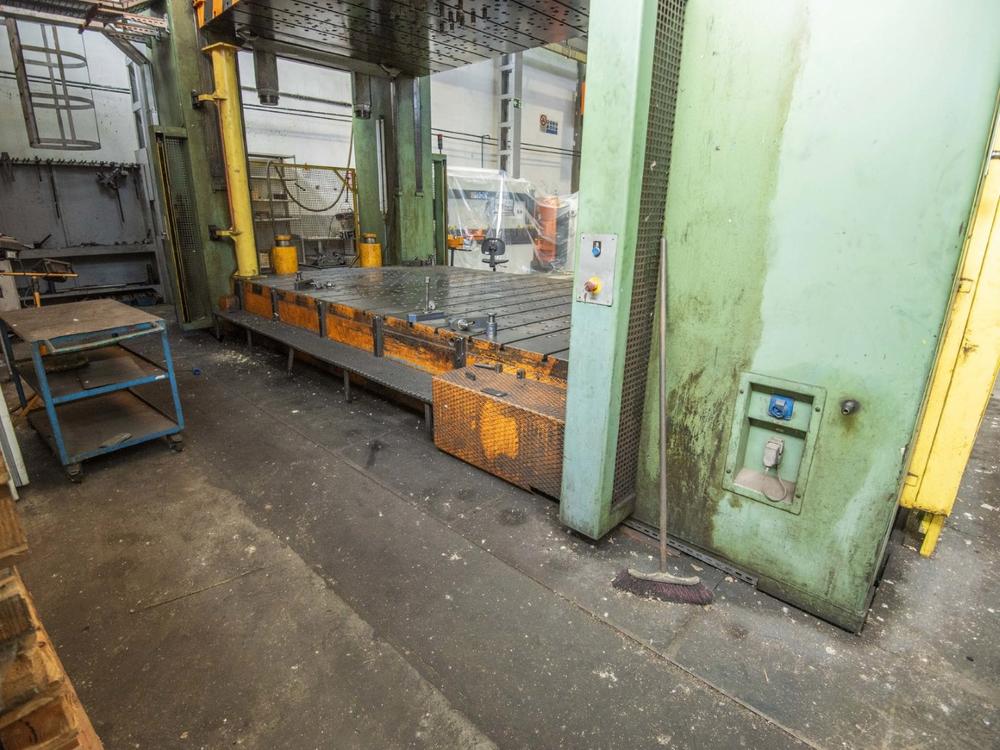

Moving Bolster Front:
Front 5,000 mm
Lateral 2,800 mm
Height above zero level 650 mm
External stroke 4,000 mm
Load capacity 60 tons

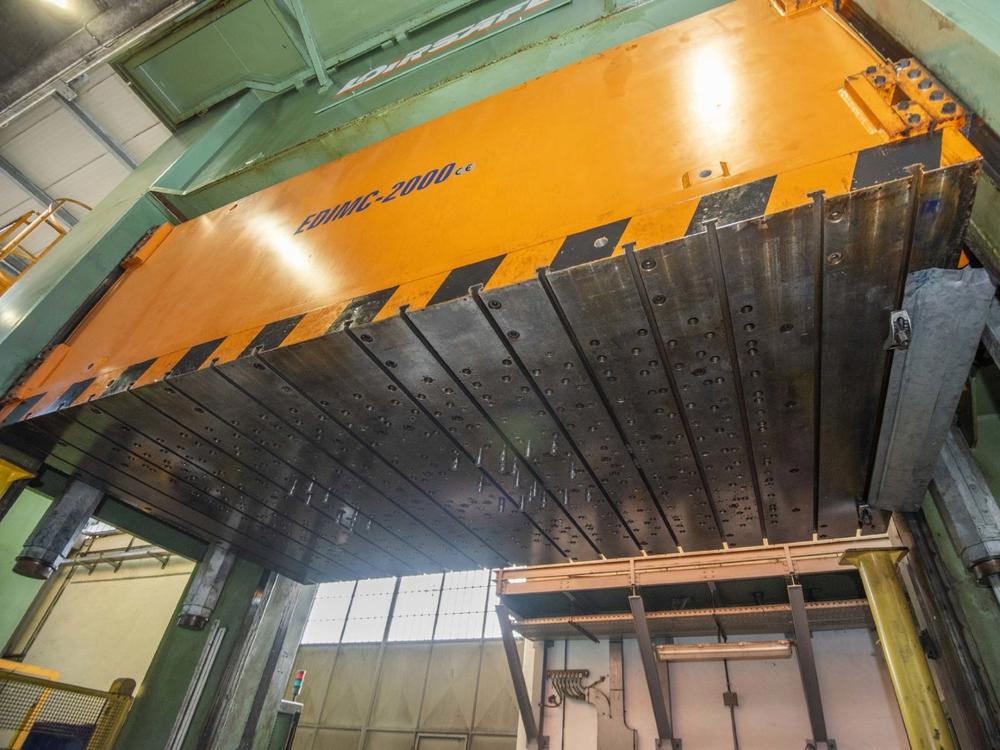

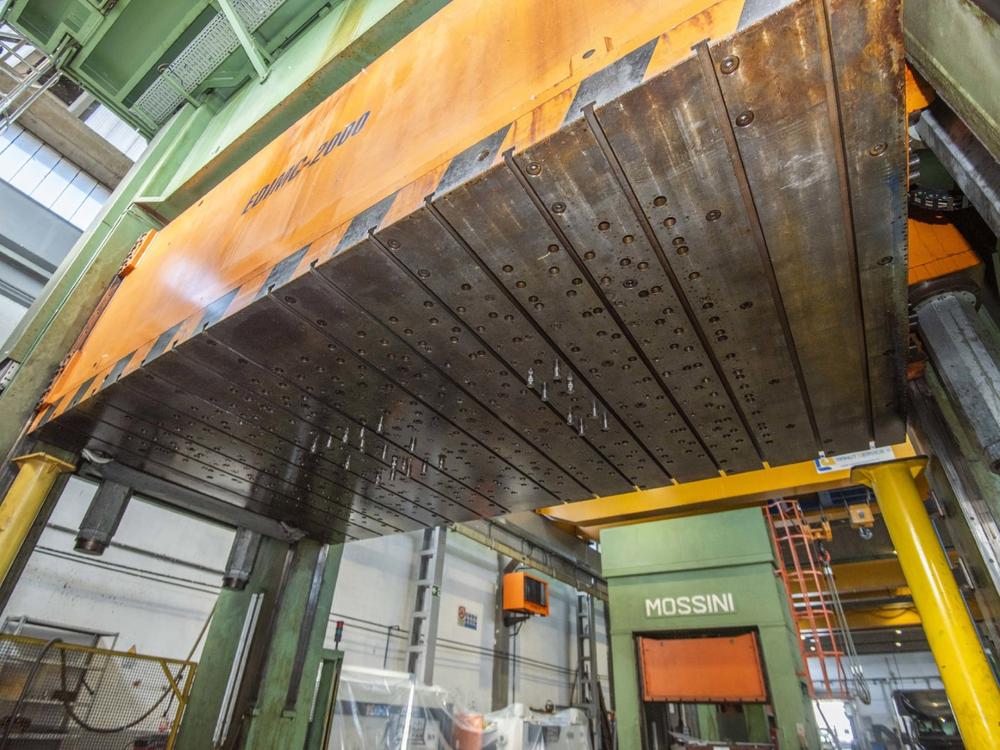

Slide Table:
Dimensions 5,000 x 2,800 mm
Number of guides 8
Guide height mm 1,800
Lower blank holder cushion (6 cylinders, force 600-6,000 kN)
Upper slide cushion (force 300-3,000 kN)
Spark plug diameter (40 mm) and center distances (150x150 / 200x200 mm)
Working speed:
Minimum 3 mm/s
Maximum 110 mm/s
Approach 400 mm/s
Return 350 mm/s
Stop time 219 ms
Safety distance 438 mm
Height above ground 9,800 mm
Minimum pit height 3,720 mm
Width above ground 7,400 mm
Pit width 8,350 mm
Depth 3,240 mm
Weight without tools 365,000 kg
Informazioni importanti
All buyers will be informed within 48 hours after the auction closure about their actual pick-up day being in week 18 &19.
LOIRE SAFE EDIMC 2000 HYDRAULIC PRESS
Maximum adjustable slide force: 200 to 2,000 tons
No. 4 Cylinders
Net slide return force 130 tons
Maximum workpiece dimensions 5,000 x 2,800 x 1,700 mm
Maximum workpiece weight 60,000 kg
Upper part weight 35,000 kg
Slide stroke 1,500 mm
Maximum clearance between worktops 2,500 mm
Minimum clearance between worktops 1,000 mm
Front distance between uprights 5,100 mm
Lateral distance between uprights 2,000 mm
Moving Bolster Front:
Front 5,000 mm
Lateral 2,800 mm
Height above zero level 650 mm
External stroke 4,000 mm
Load capacity 60 tons
Slide Table:
Dimensions 5,000 x 2,800 mm
Number of guides 8
Guide height mm 1,800
Lower blank holder cushion (6 cylinders, force 600-6,000 kN)
Upper slide cushion (force 300-3,000 kN)
Spark plug diameter (40 mm) and center distances (150x150 / 200x200 mm)
Working speed:
Minimum 3 mm/s
Maximum 110 mm/s
Approach 400 mm/s
Return 350 mm/s
Stop time 219 ms
Safety distance 438 mm
Height above ground 9,800 mm
Minimum pit height 3,720 mm
Width above ground 7,400 mm
Pit width 8,350 mm
Depth 3,240 mm
Weight without tools 365,000 kg
