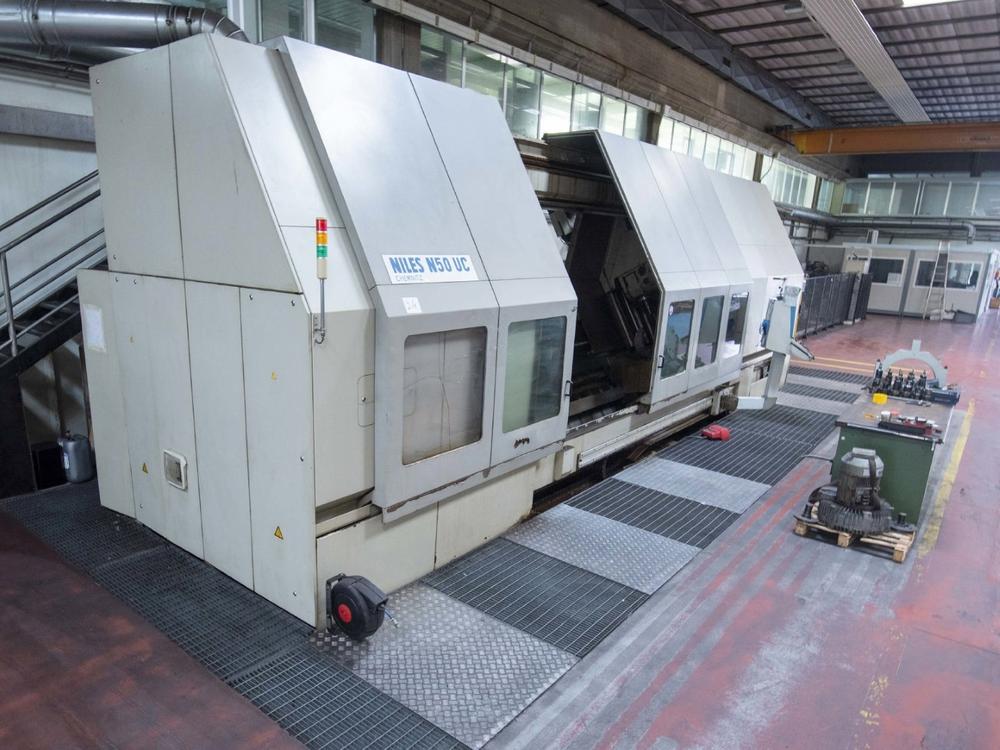

| Marchio | NILES |
| Type | N50UC |
| Serial number | 42.11 |
| Amount | 1 |

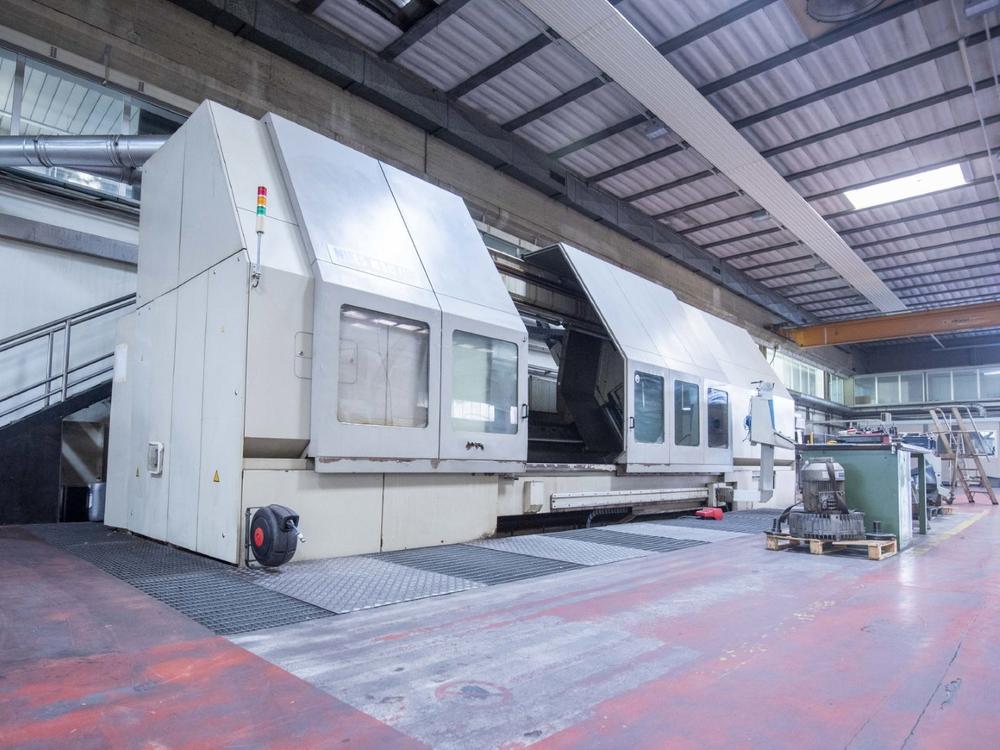

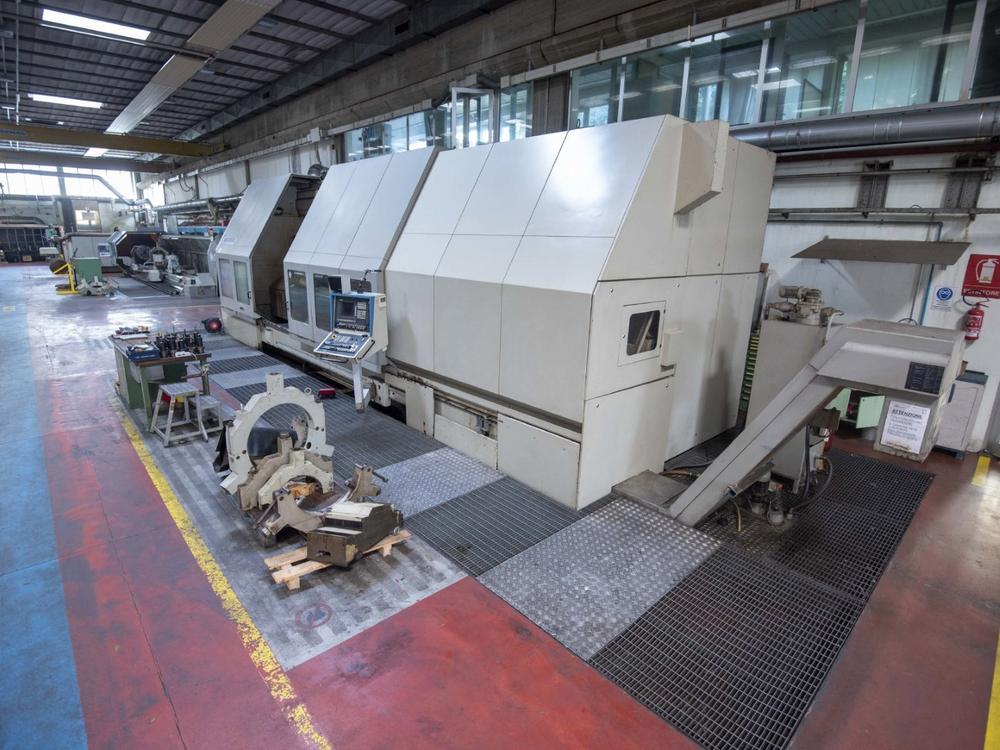

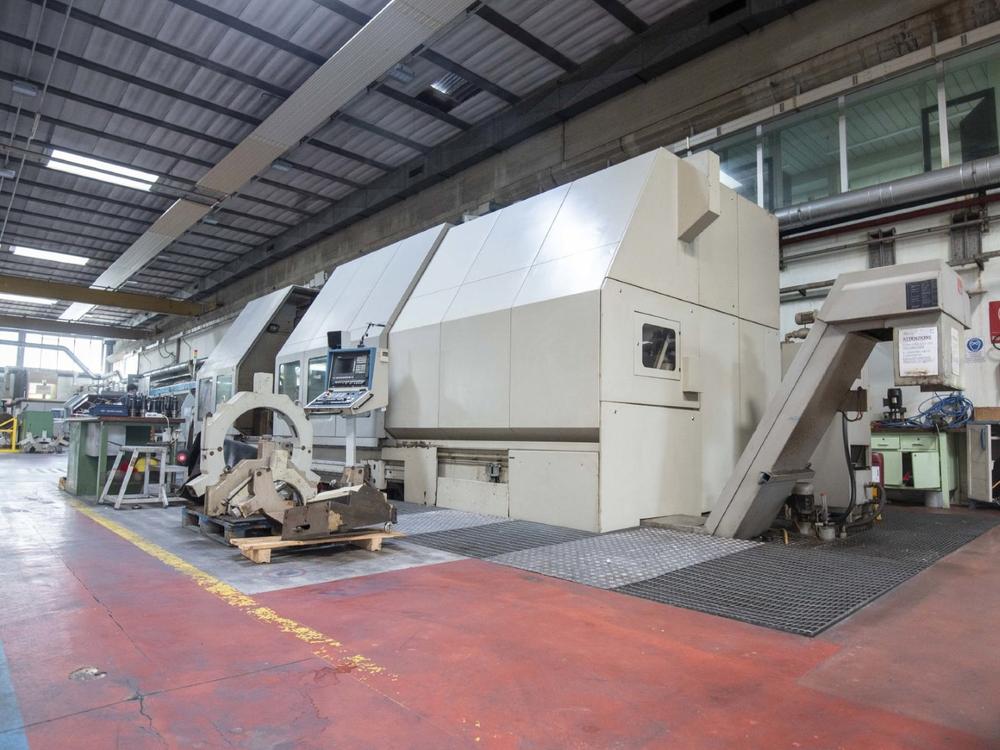

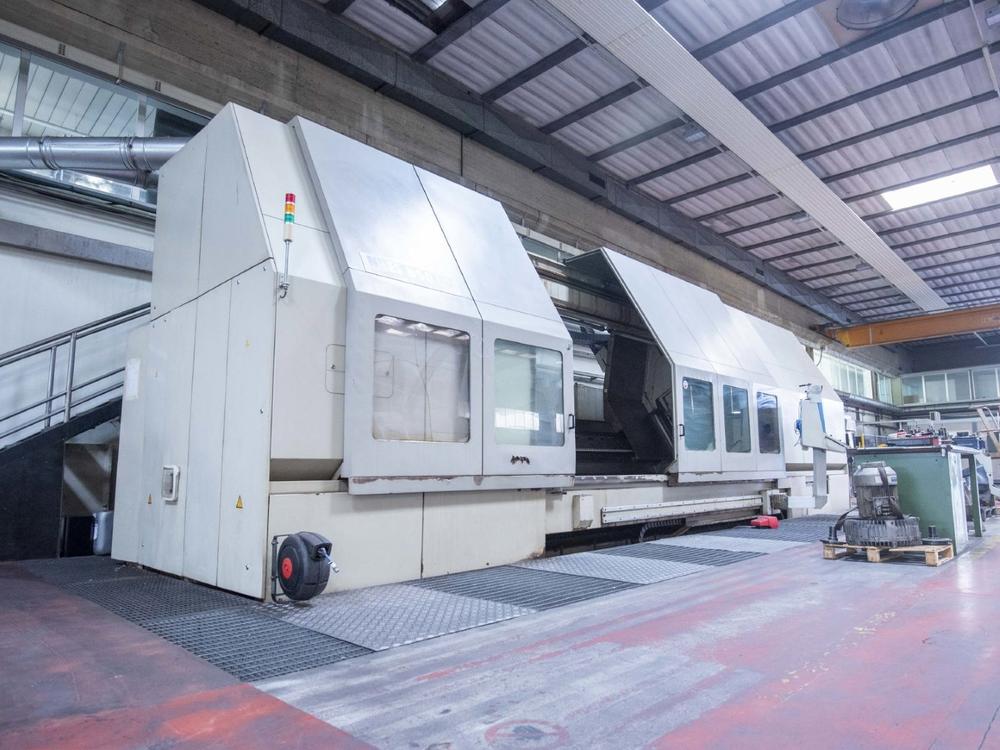

MULTITASKING LATHE
Siemens 840 CNC
CAPACITY:
Diameter over bed 940 mm
Turning diameter over entire length 900 mm
Maximum longitudinal slide travel 4225 mm
Distance between centers 5200 mm
AXIS TRAVELS:
X1 520 mm (outer 1 +12 +532 // outer 2 -25 +495)
X2 671 mm (+19 +690)
Z 5185 mm (+115 +5300)
Y 350 mm (-155 +195)
W 5075 mm (+110 +5175)
SPINDLE
Spindle motor S1/S3 76/100 kW
Maximum spindle speed 4-1620 rpm
Spindle torque 4840/6050 Nm
Spindle mount ASA 15
Bar passage 204 mm
Spindle orientation axis 0 to 359.5°
Load capacity between centers 6,000 kg

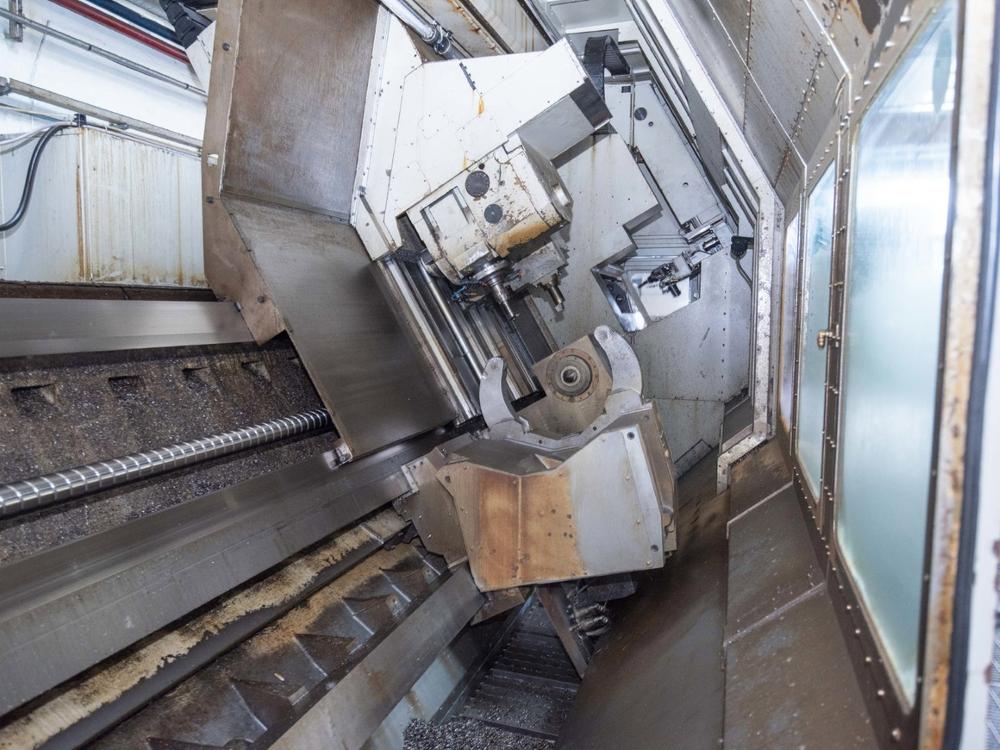

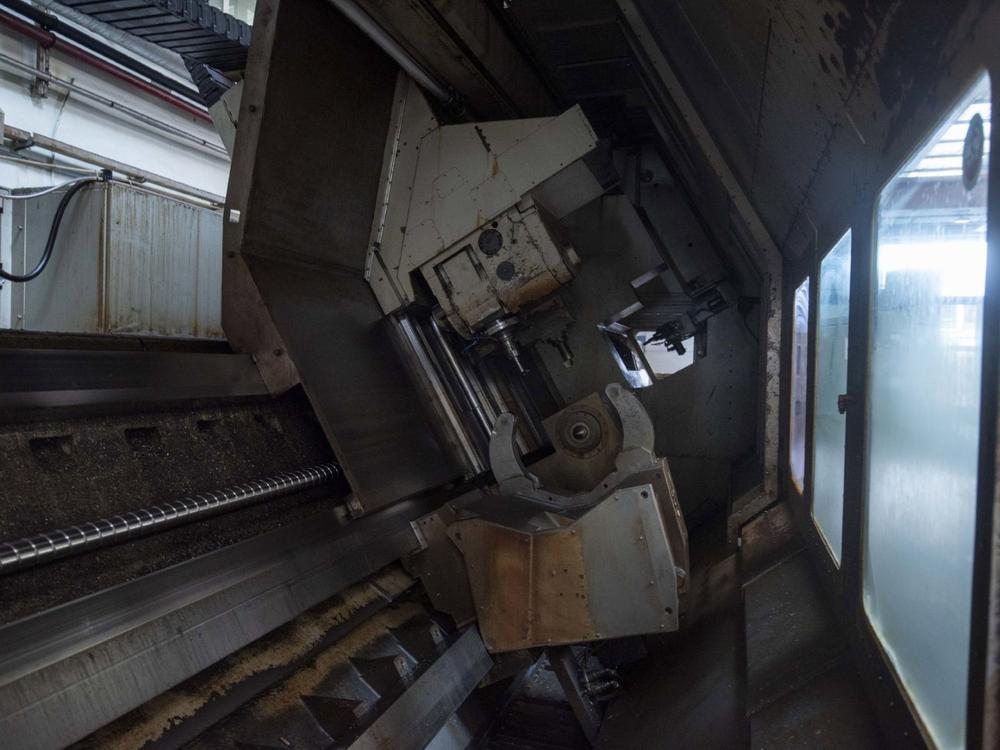

MILLING HEAD
HSK100 spindle connection
15 kW spindle motor
3-range spindle speed 4,500 rpm
Tilting milling head + - 90°
TURNING HEAD
HSK100 tool connection
Torque 3,000 Nm
Axial force 60 kN
AUTOMATIC TOOL CHANGE SYSTEM
48-station HSK100 chain tool changer
TAILSTOCK
Tailstock quill diameter 195 mm
Tailstock quill stroke 285 mm
Tailstock CM6
COMPLETE WITH

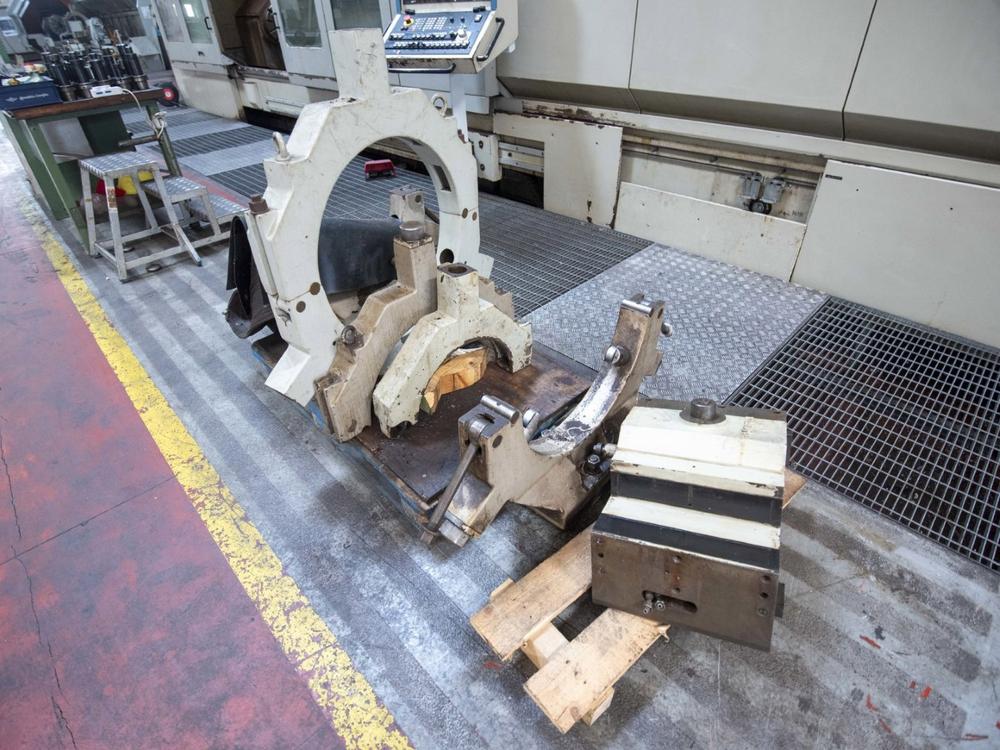

Autoblock 50-450 automatic steady rest
Chip conveyor
Coolant tank 850 l
Pump max. flow rate 40 l/min
OVERALL DIMENSIONS
Dimensions: 10820 x 3381 x 3600 mm
Weight 39,000 kg
Total connected power 205 kVA
Informazioni importanti
All buyers will be informed within 48 hours after the auction closure about their actual pick-up day being in week 18 &19.
MULTITASKING LATHE
Siemens 840 CNC
CAPACITY:
Diameter over bed 940 mm
Turning diameter over entire length 900 mm
Maximum longitudinal slide travel 4225 mm
Distance between centers 5200 mm
AXIS TRAVELS:
X1 520 mm (outer 1 +12 +532 // outer 2 -25 +495)
X2 671 mm (+19 +690)
Z 5185 mm (+115 +5300)
Y 350 mm (-155 +195)
W 5075 mm (+110 +5175)
SPINDLE
Spindle motor S1/S3 76/100 kW
Maximum spindle speed 4-1620 rpm
Spindle torque 4840/6050 Nm
Spindle mount ASA 15
Bar passage 204 mm
Spindle orientation axis 0 to 359.5°
Load capacity between centers 6,000 kg
MILLING HEAD
HSK100 spindle connection
15 kW spindle motor
3-range spindle speed 4,500 rpm
Tilting milling head + - 90°
TURNING HEAD
HSK100 tool connection
Torque 3,000 Nm
Axial force 60 kN
AUTOMATIC TOOL CHANGE SYSTEM
48-station HSK100 chain tool changer
TAILSTOCK
Tailstock quill diameter 195 mm
Tailstock quill stroke 285 mm
Tailstock CM6
COMPLETE WITH
Autoblock 50-450 automatic steady rest
Chip conveyor
Coolant tank 850 l
Pump max. flow rate 40 l/min
OVERALL DIMENSIONS
Dimensions: 10820 x 3381 x 3600 mm
Weight 39,000 kg
Total connected power 205 kVA
