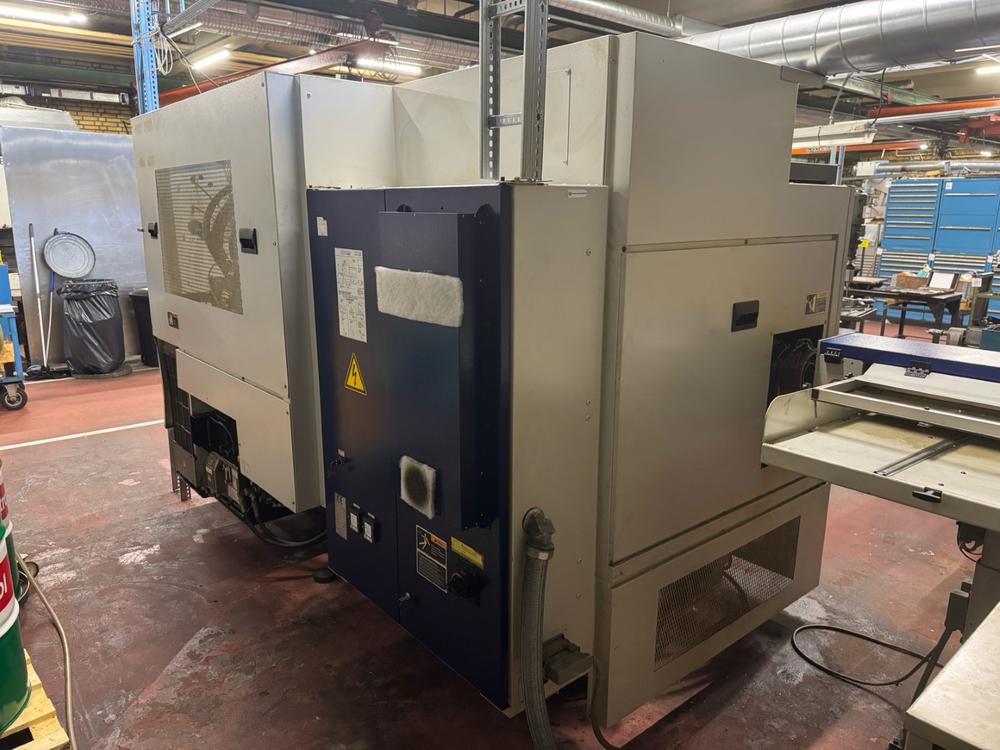

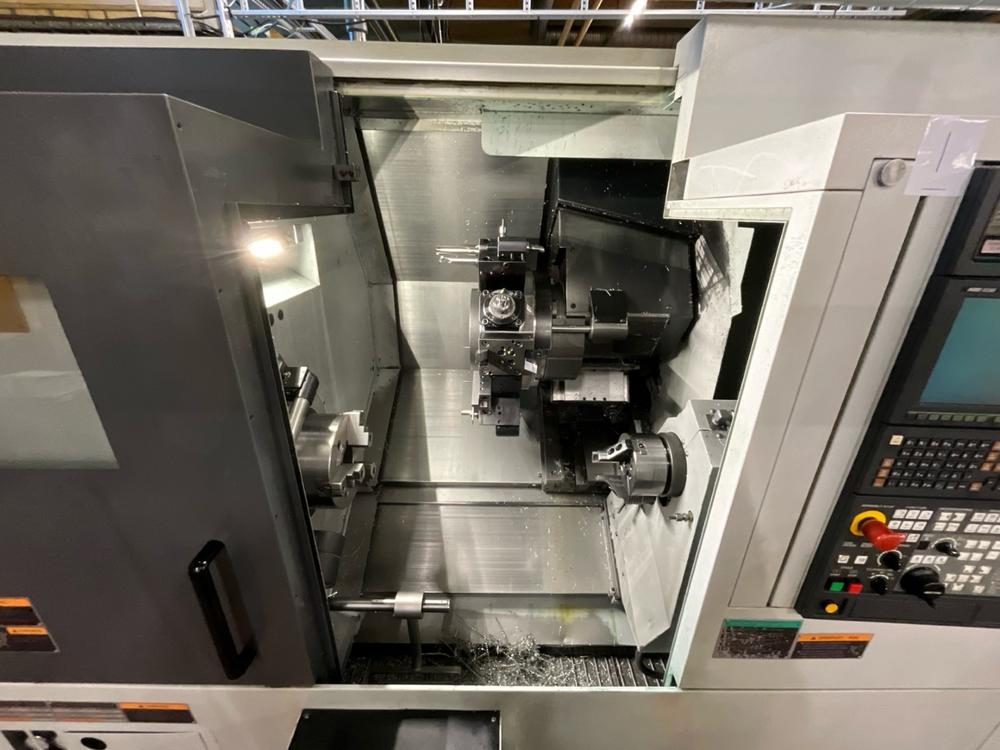

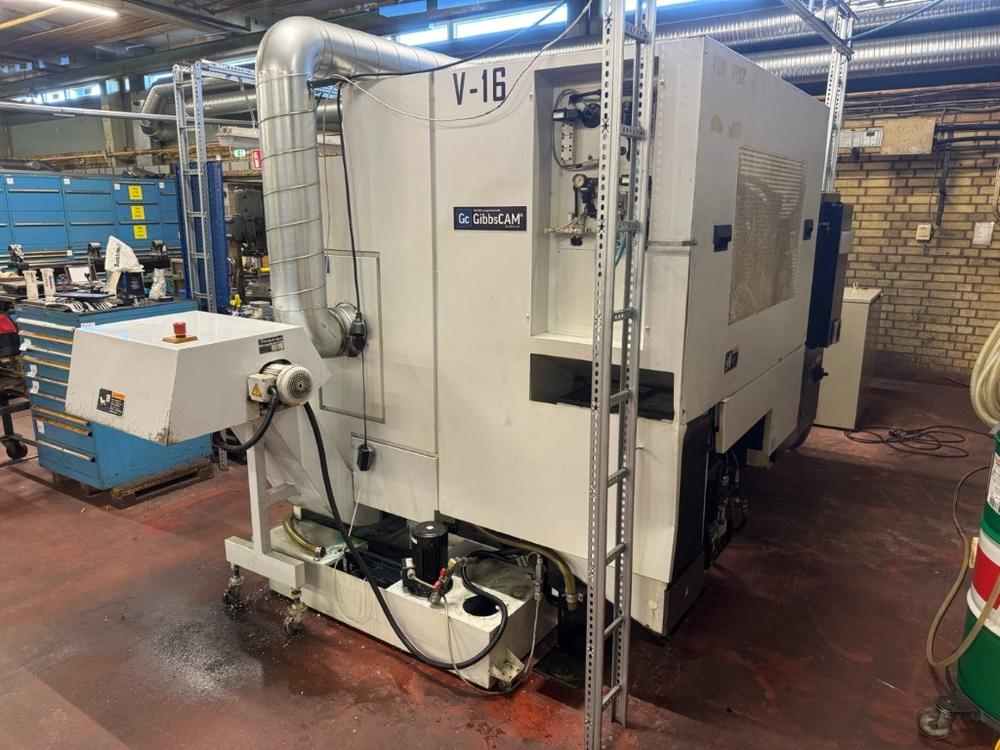

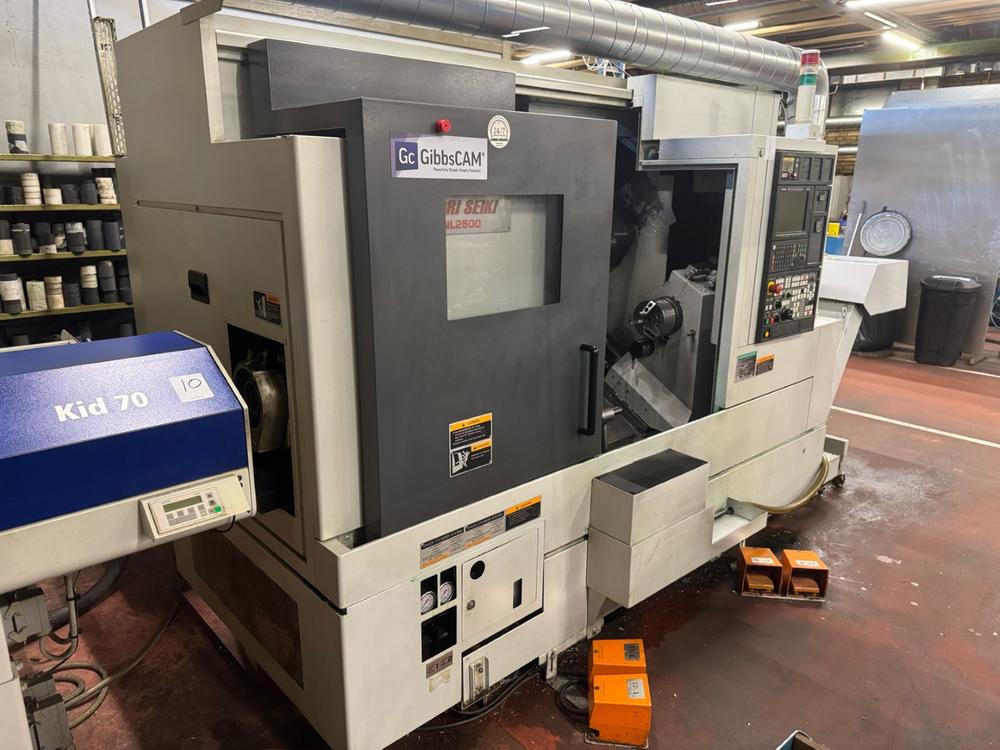

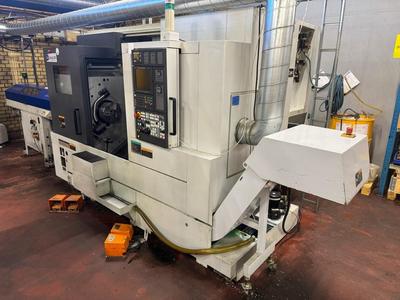

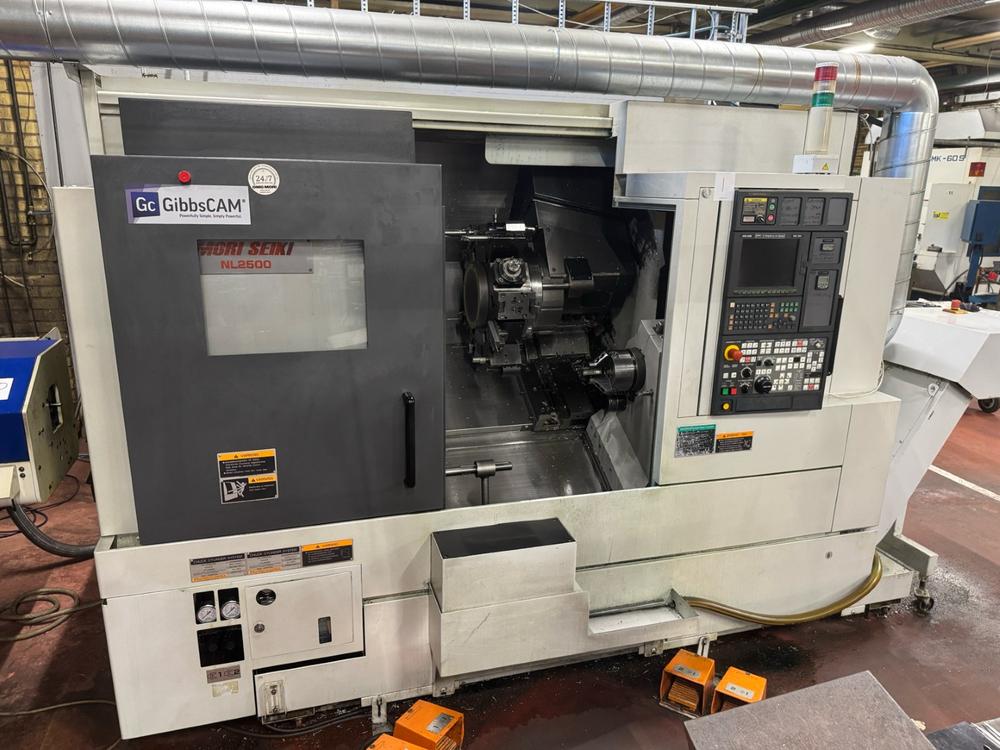

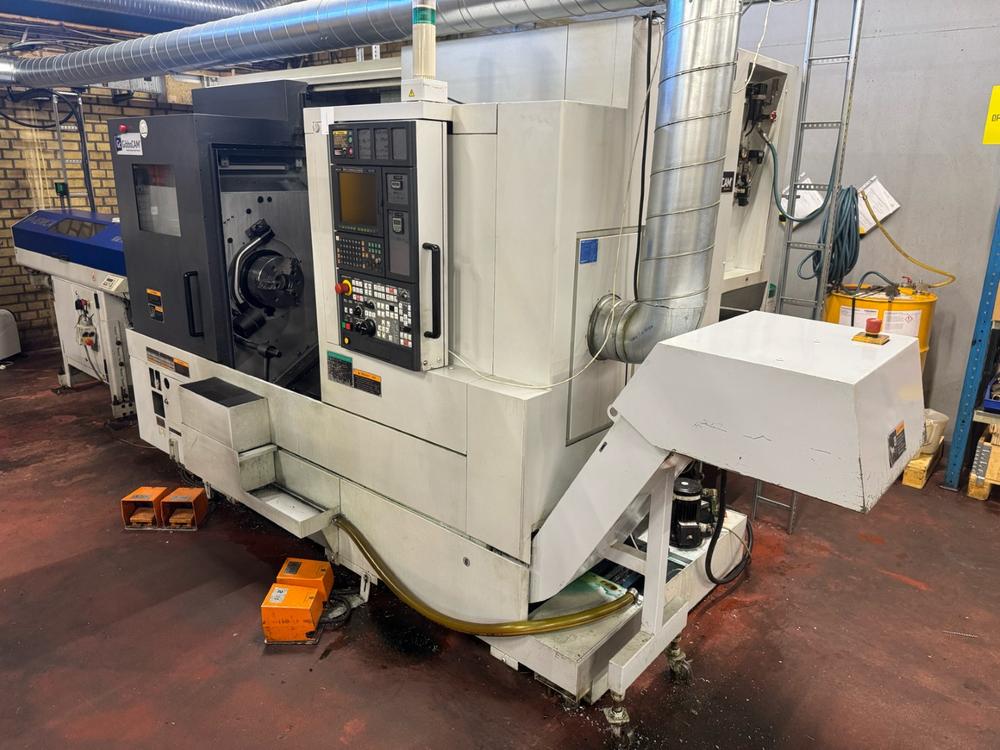

1 - 2004 Mori seiki NL2500SY/700 CNC lathe
Åskvädersgatan 2, 418 34 Göteborg | SE
8
Offri
Offerte
Maggior offerente
Superato
La mia ultima offerta: 0,00 SEK (Offerta automatica)
Condividere
Informazioni sul prodotto
| Marchio | Mori seiki |
| Type | NL2500SY/700 |
| Year | 2004 |

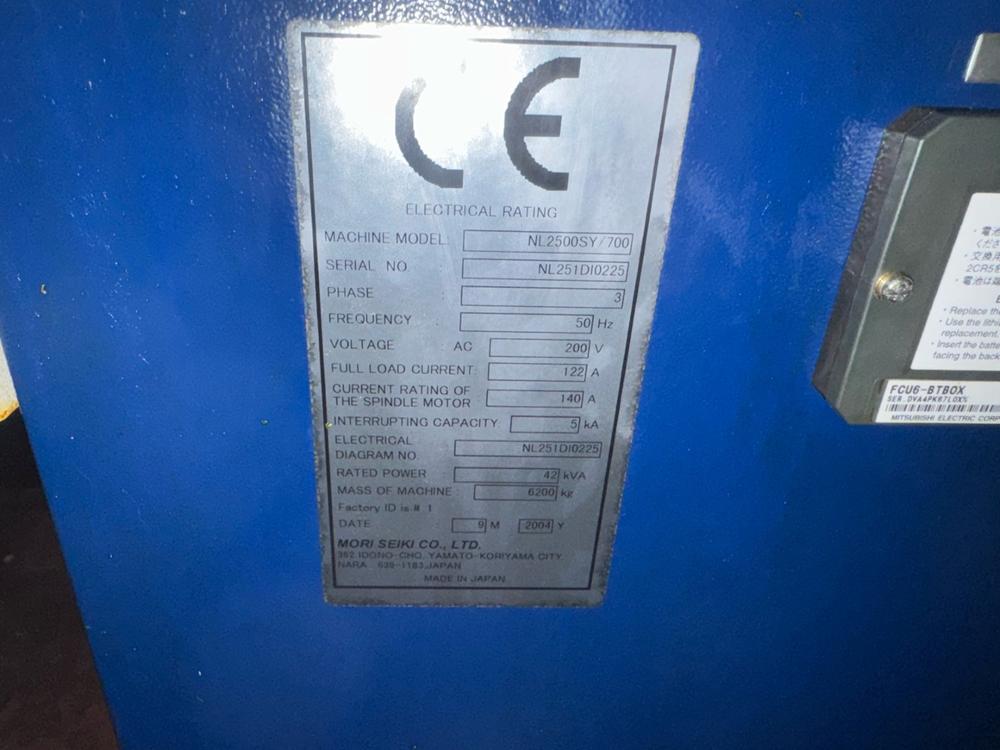

| Serial number | NL251D10225 |
| Amount | 1 |
| Buy amount | 1 |
Maximum Swing Over Bed: 923,8 mm
Maximum Swing Over Cross Slide: 755 mm
Maximum Turning Diameter: 356 mm
Maximum Turning Length: 705 mm

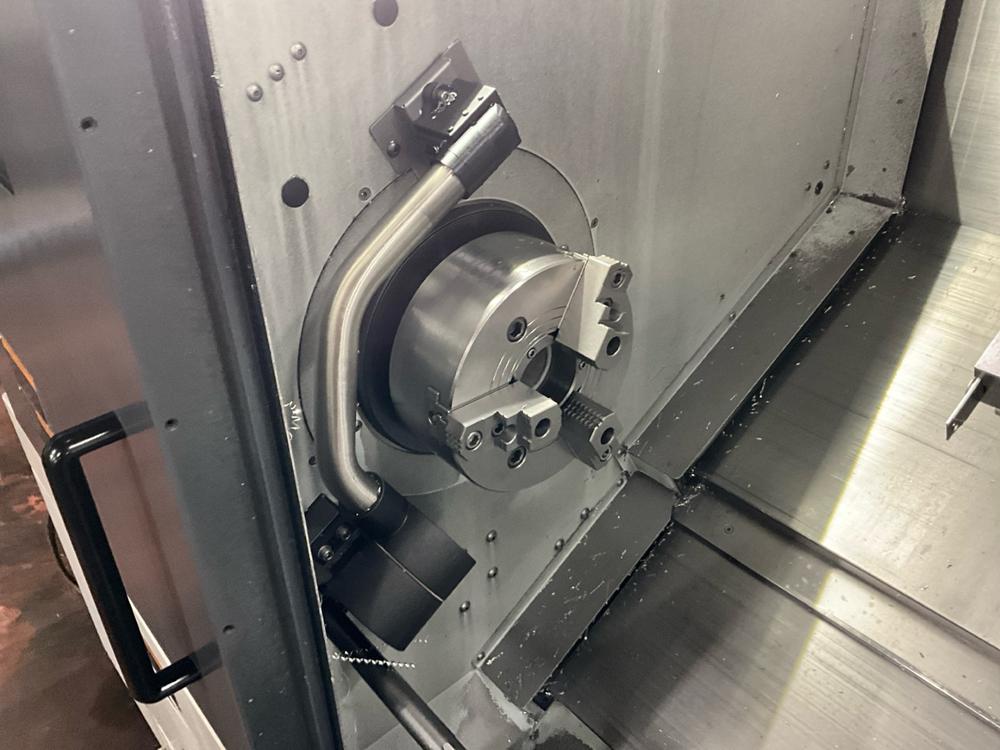

Spindel 1
Max spindel speed: 4000 RPM
Through-Spindle Hole Diameter: 91 mm

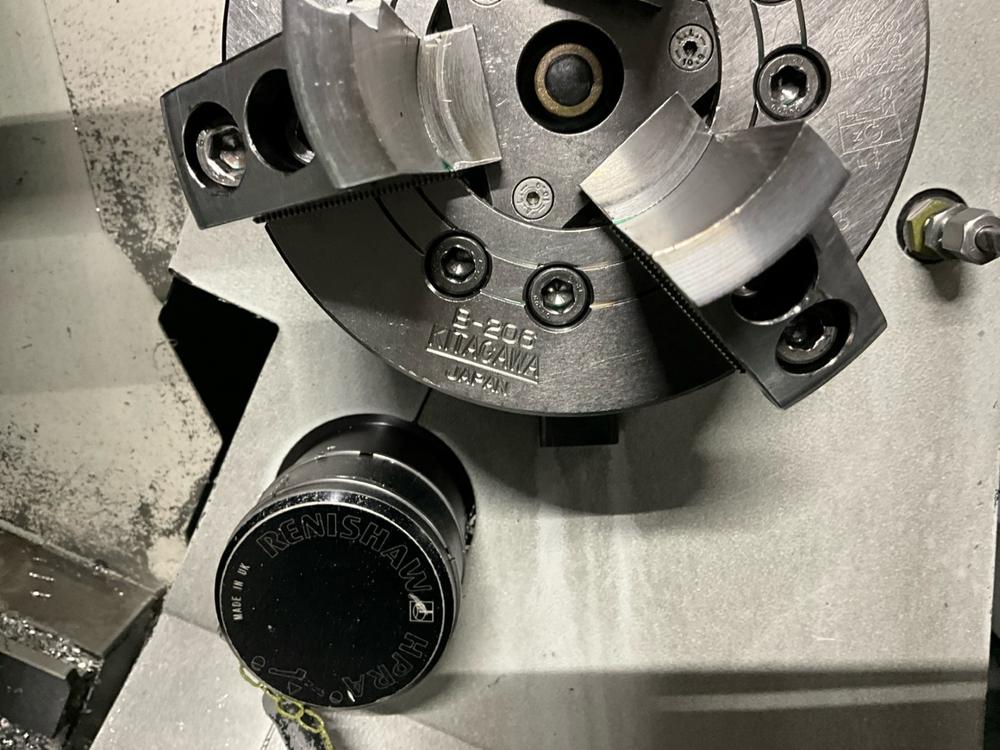

Chuck 10”

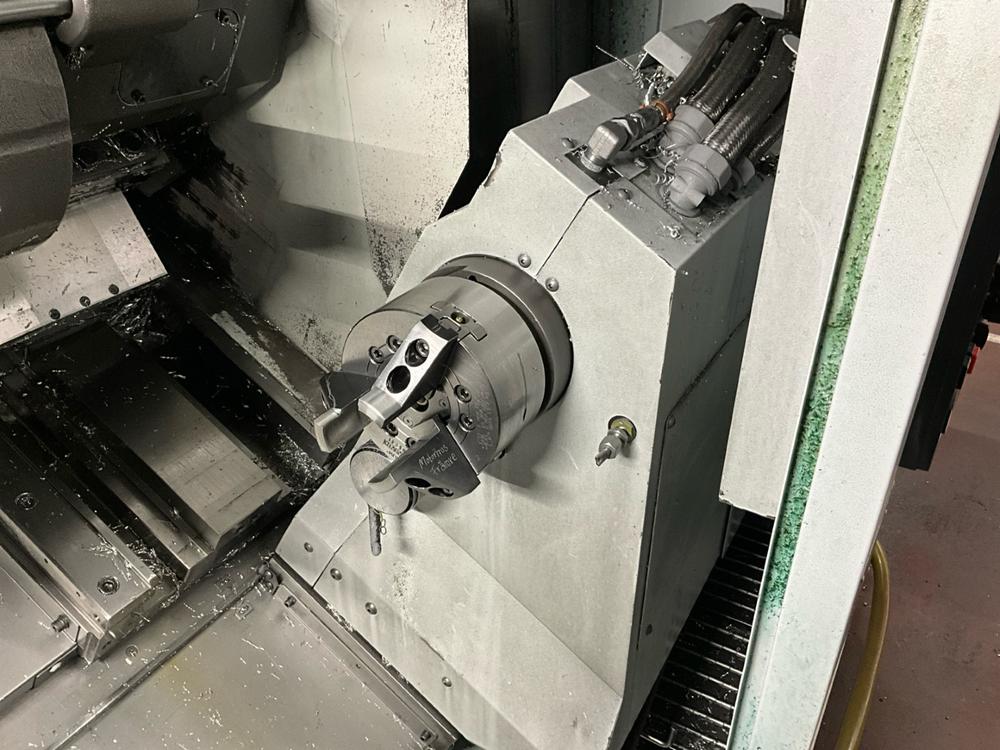

Spindel 2
Max spindel speed: 6000 RPM
Through-Spindle Hole Diameter: 43 mm
Chuck: 6”

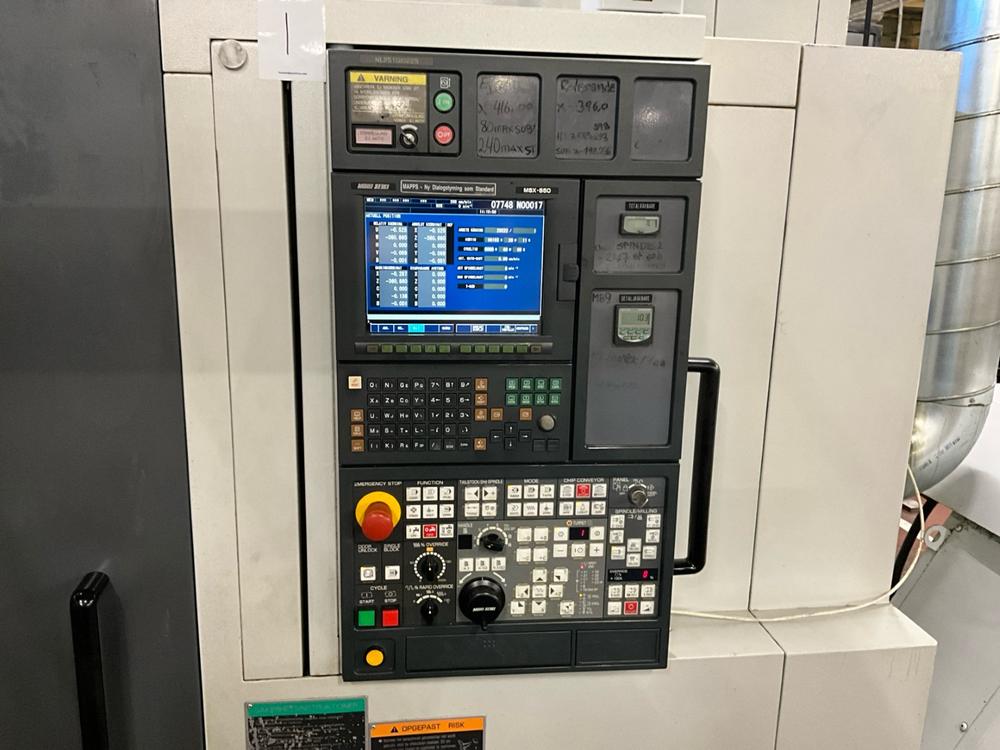

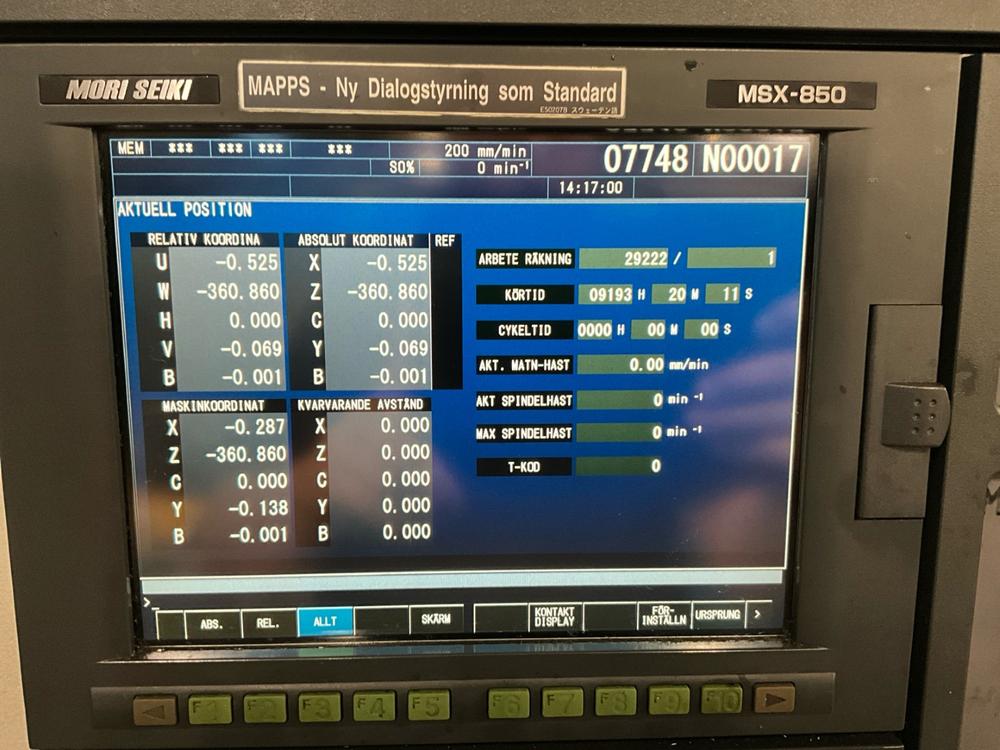

Control System: Mori Seiki MSX-850

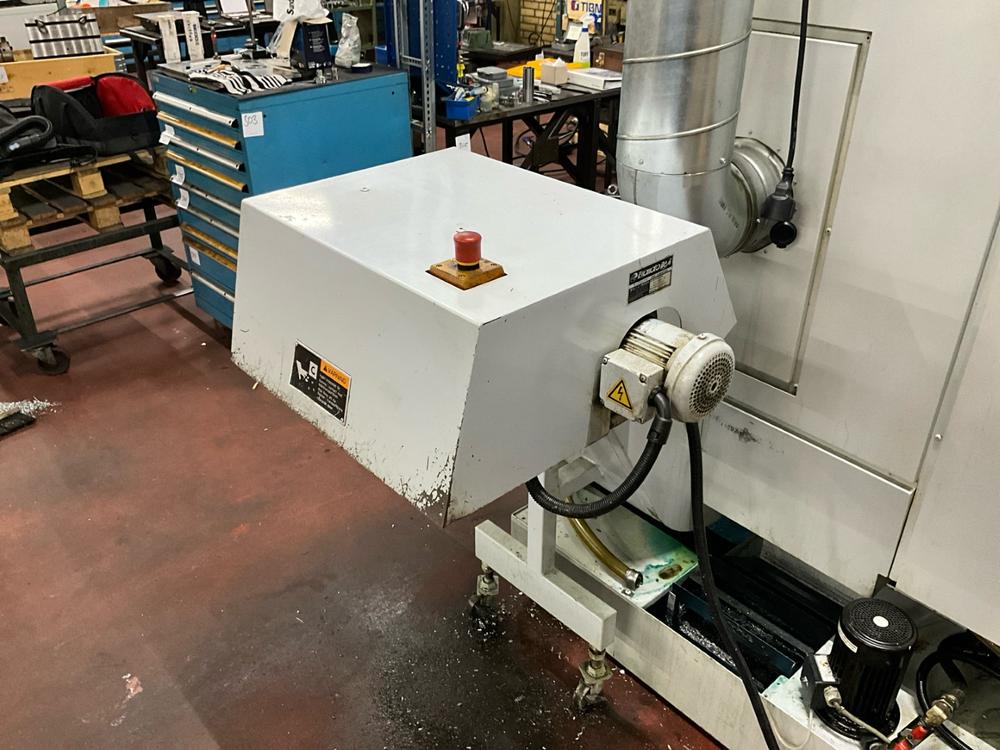

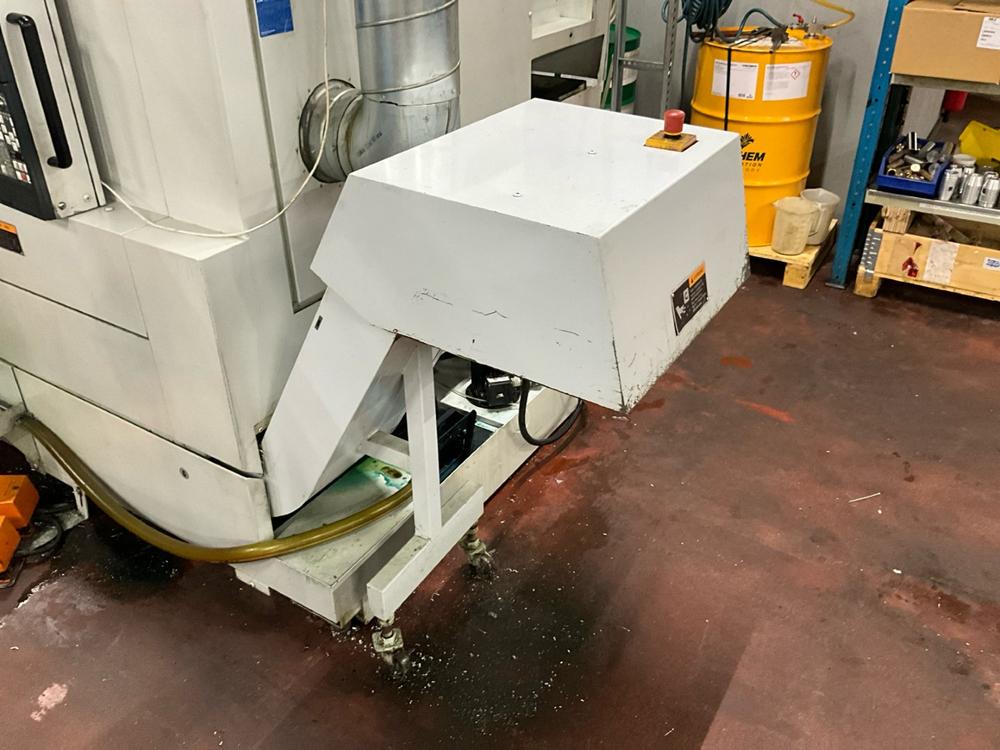

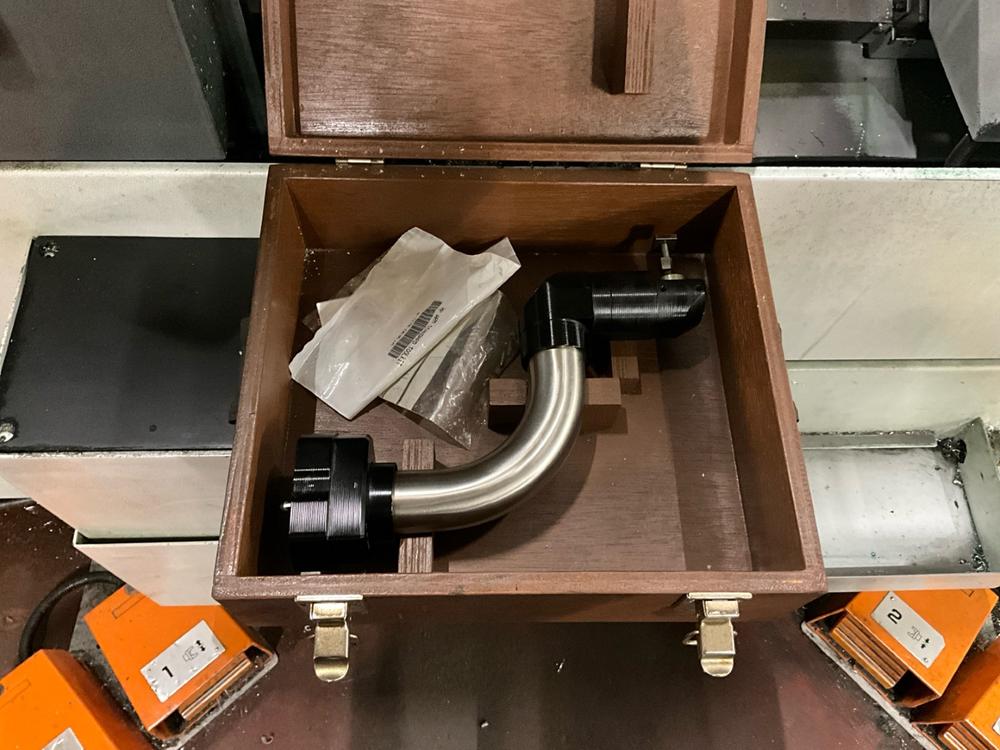

Equipped with: Toolpresetter, parts catcher, tailstock/chuck,
Number of Tool Stations: 12
Driven Tool Speed: 6000 RPM
X-axis Travel: 260 mm
Y-axis Travel: ±50 mm
Z-axis Travel: 795 mm
Spindel 2 B-axis Travel 795mm
X/Z/B-axis Rapid Traverse: 30 m/min
Y-axis Rapid Traverse: 10 m/min
Machine Dimensions LxWxH: 3700x1860x2150 mm
Machine Weight: 6200 kg
Combinazione
Questo lotto fa parte di una combinazione: Combination (1, 10, 289, 298, 302-307)
Informazioni aggiuntive
Pickup days are scheduled for September 30 and October 1, 2 and 3 from 09:00 to 16:00. Buyers will be contacted within 48 hours after the sale closure and will be appointed to 1 of these days (buyers will be spread over 4 days via a schedule for safety on site and crowd control). Contact details of a preferred and professional international service partner (for pickup assistance, dismantling and/or fully serviced lot transportation) will be shared with all buyers immediately after the sale. Lot numbers 1001-1012 are located at and originating from the bankruptcy of Larsson Finmekaniska in Norsborg near Stockholm (see closed auctions in Sweden) and including all available machine tools/tooling.
Maximum Swing Over Bed: 923,8 mm
Maximum Swing Over Cross Slide: 755 mm
Maximum Turning Diameter: 356 mm
Maximum Turning Length: 705 mm
Spindel 1
Max spindel speed: 4000 RPM
Through-Spindle Hole Diameter: 91 mm
Chuck 10”
Spindel 2
Max spindel speed: 6000 RPM
Through-Spindle Hole Diameter: 43 mm
Chuck: 6”
Control System: Mori Seiki MSX-850
Equipped with: Toolpresetter, parts catcher, tailstock/chuck,
Number of Tool Stations: 12
Driven Tool Speed: 6000 RPM
X-axis Travel: 260 mm
Y-axis Travel: ±50 mm
Z-axis Travel: 795 mm
Spindel 2 B-axis Travel 795mm
X/Z/B-axis Rapid Traverse: 30 m/min
Y-axis Rapid Traverse: 10 m/min
Machine Dimensions LxWxH: 3700x1860x2150 mm
Machine Weight: 6200 kg
