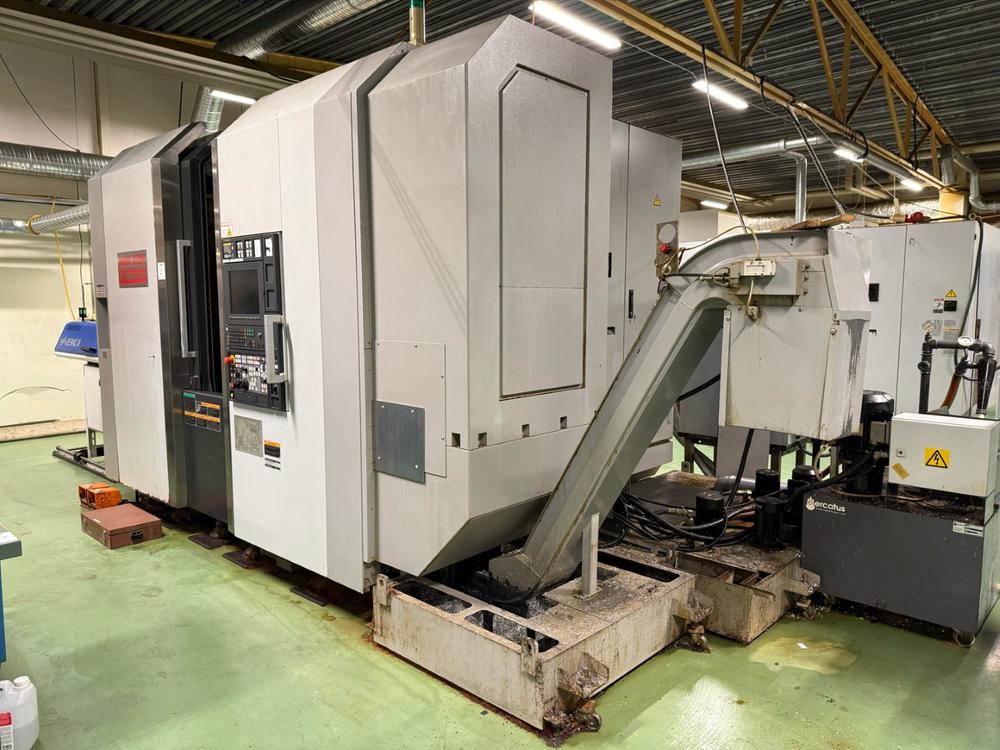

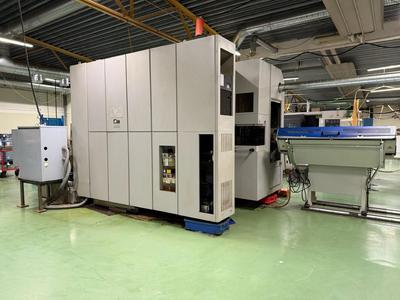

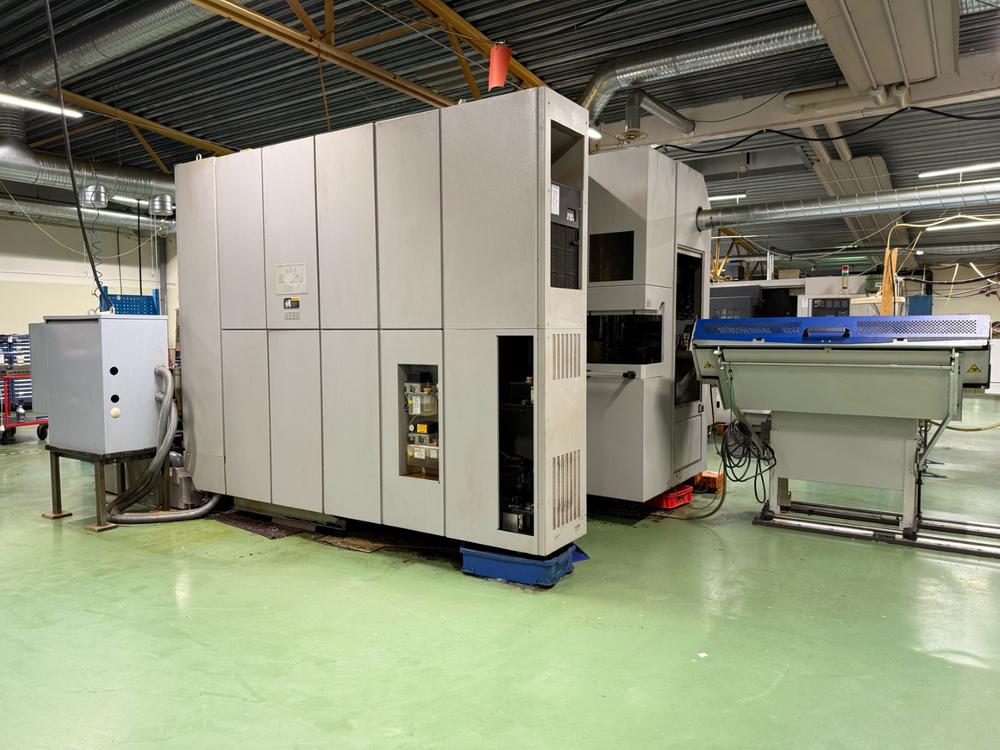

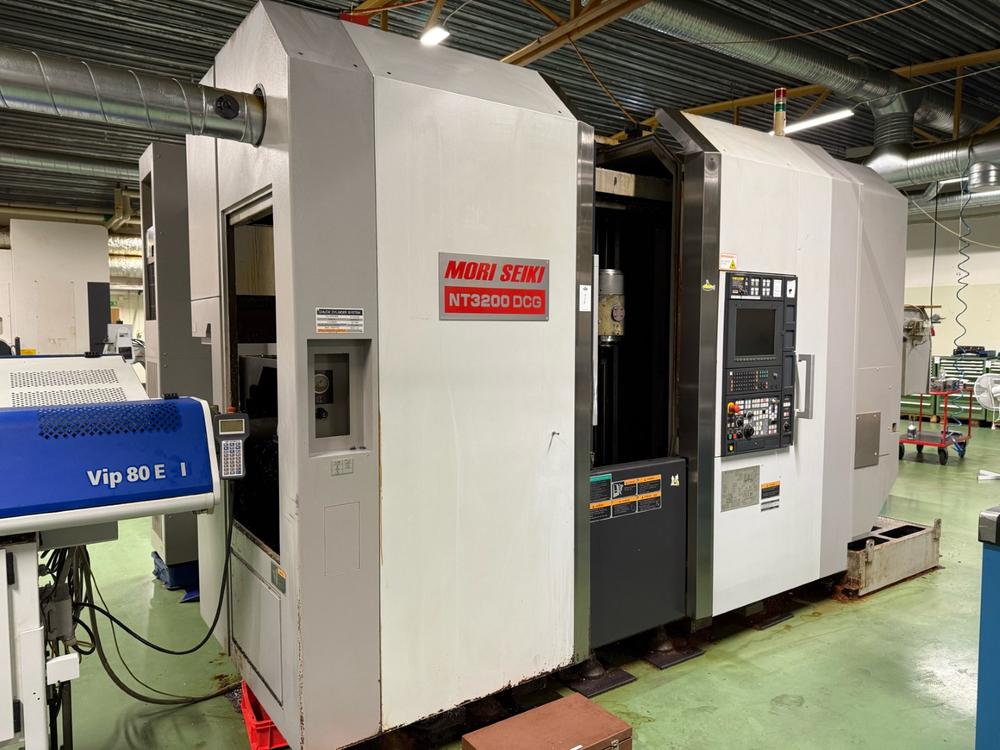

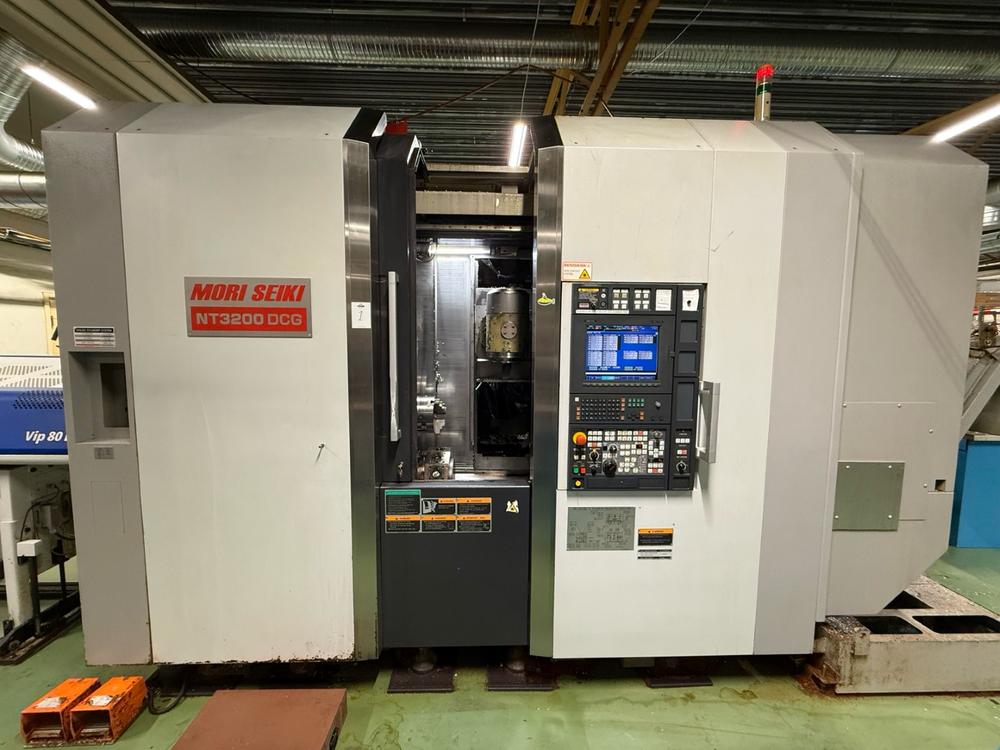

1001 - 2007 Mori Seiki NT3200 CNC lathe

Åskvädersgatan 2, 418 34 Göteborg | SE

Offerta iniziale Offerta attuale Offerta finale 200.000,00 SEK

0 Offri Offerte Maggior offerente Superato

La mia ultima offerta: 0,00 SEK (Offerta automatica)

Accedi per fare un'offerta Crea un account

Condividere

Informazioni sul prodotto

Marchio	Mori seiki
Type	NT 3200 DCG
Year	2007

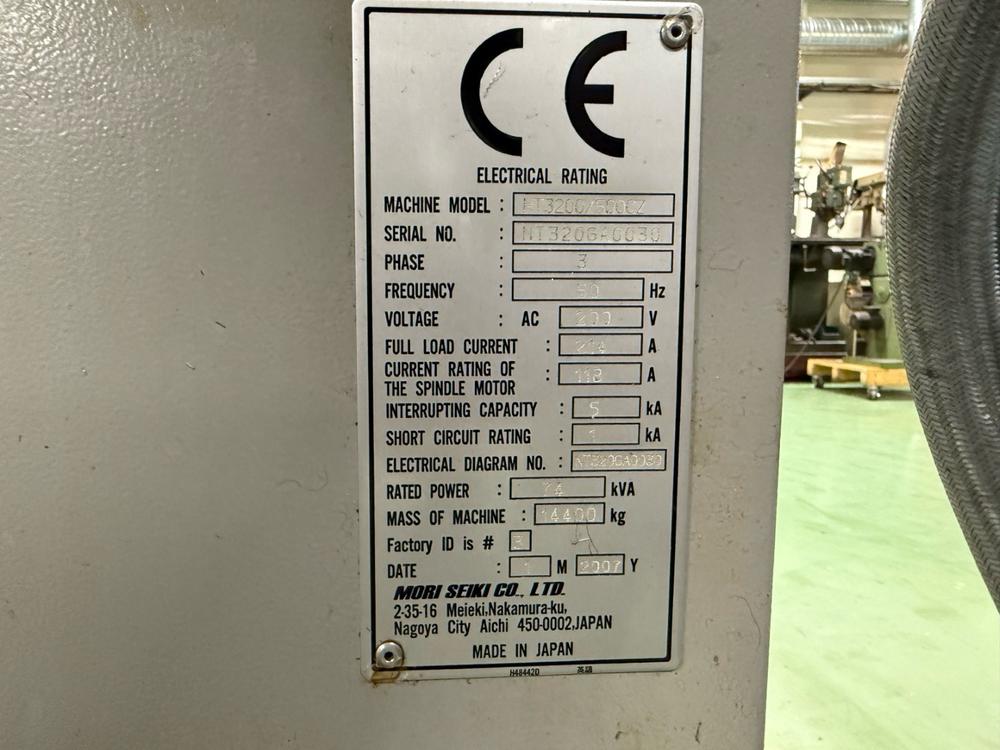

Serial number	NT320GA0030

Run time: 7976H
Maximum turning diameter (milling head): 600mm
Maximum turning diameter (turret): 210mm
Maximum turning length: 1045mm
Spindel bore: 67mm

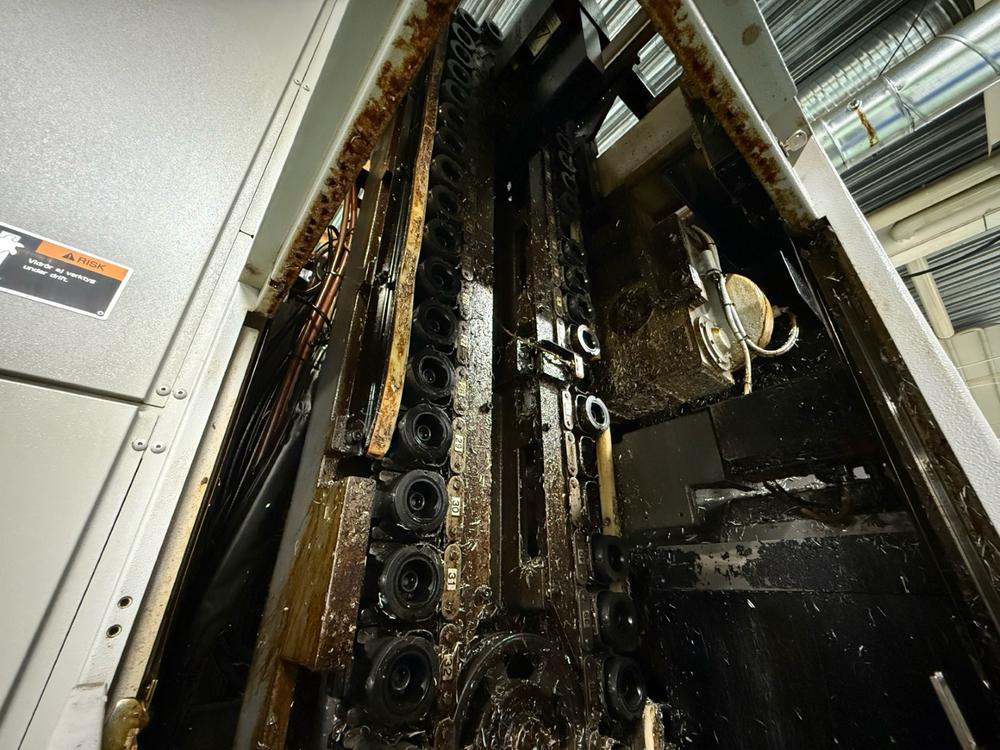

Number of tool spaces: 40

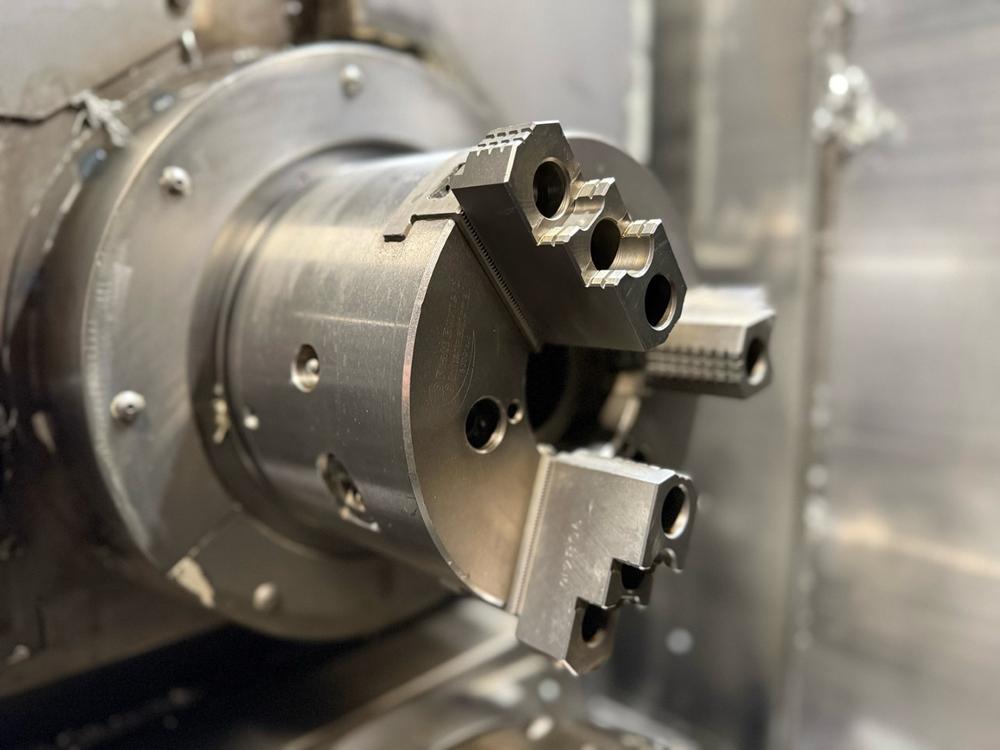

Spindel: Kitagawa SS1666
Spindel speed: 5000 RPM

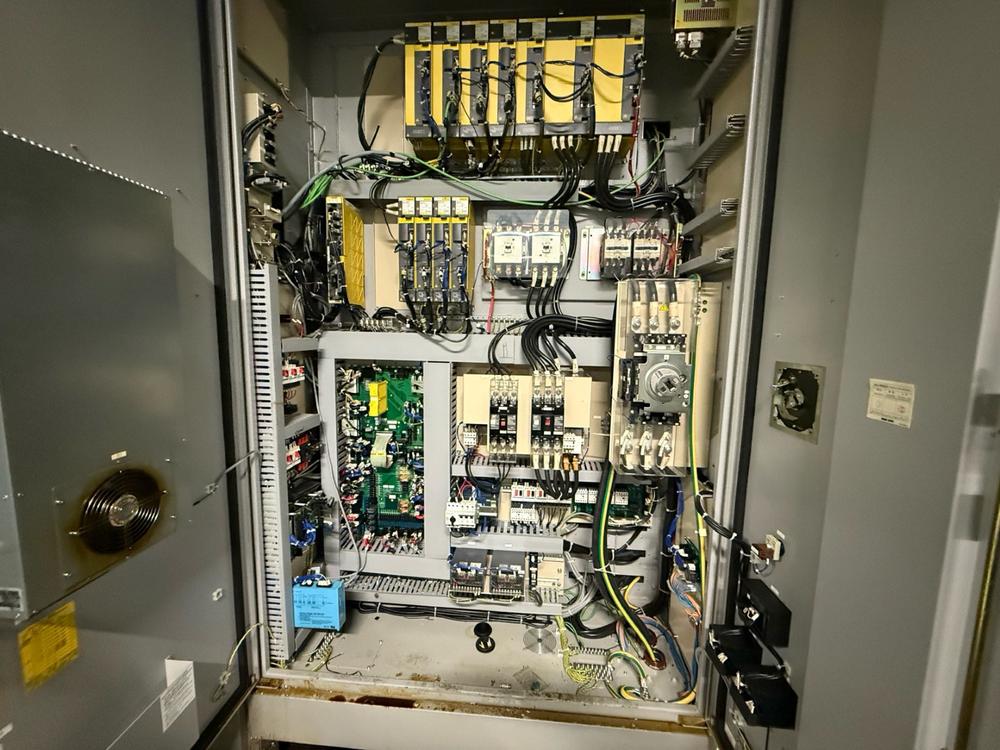

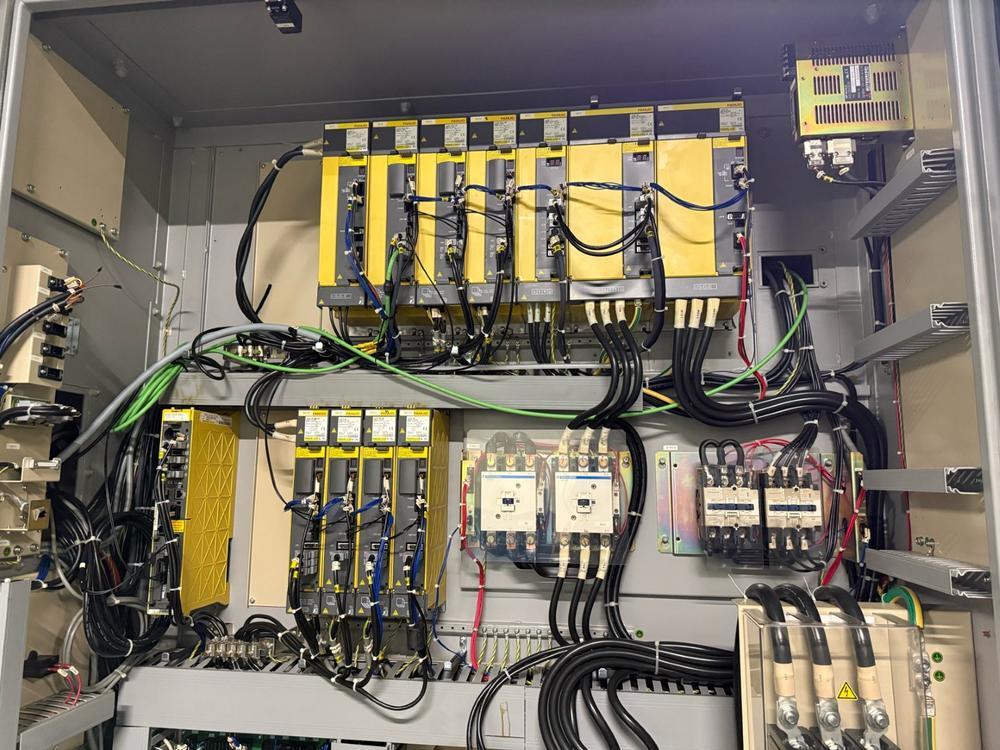

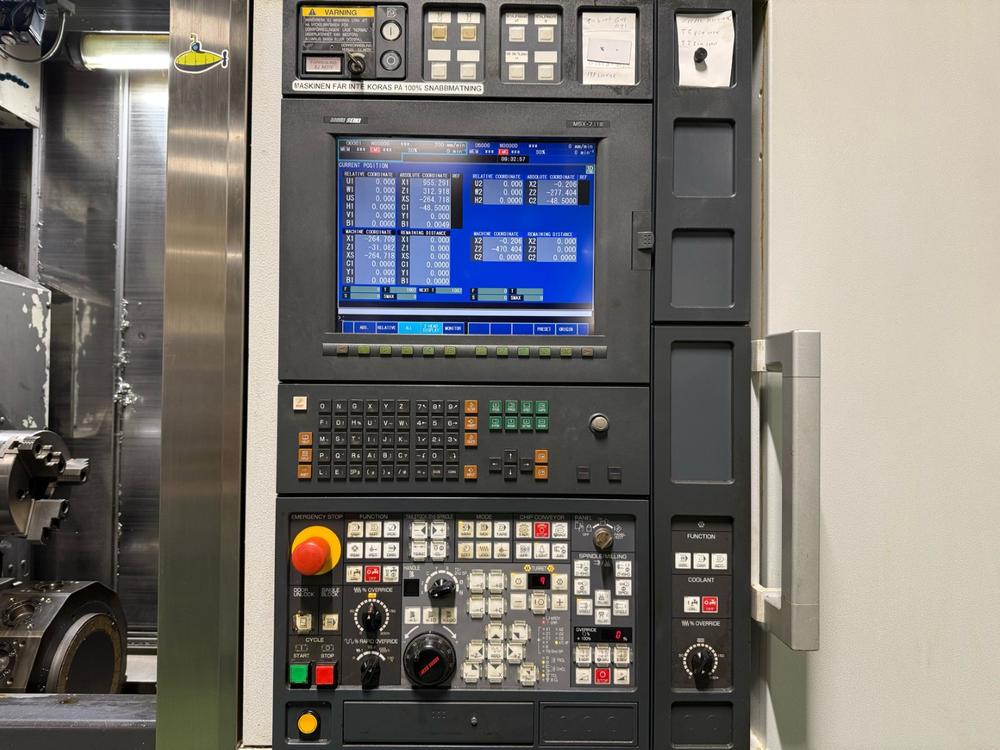

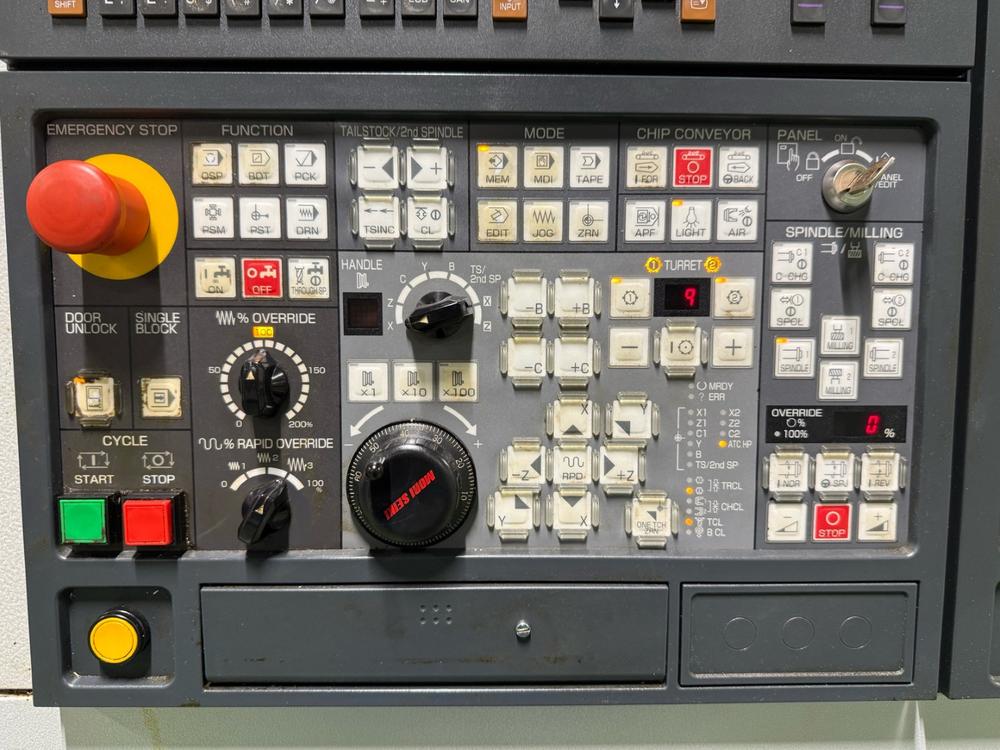

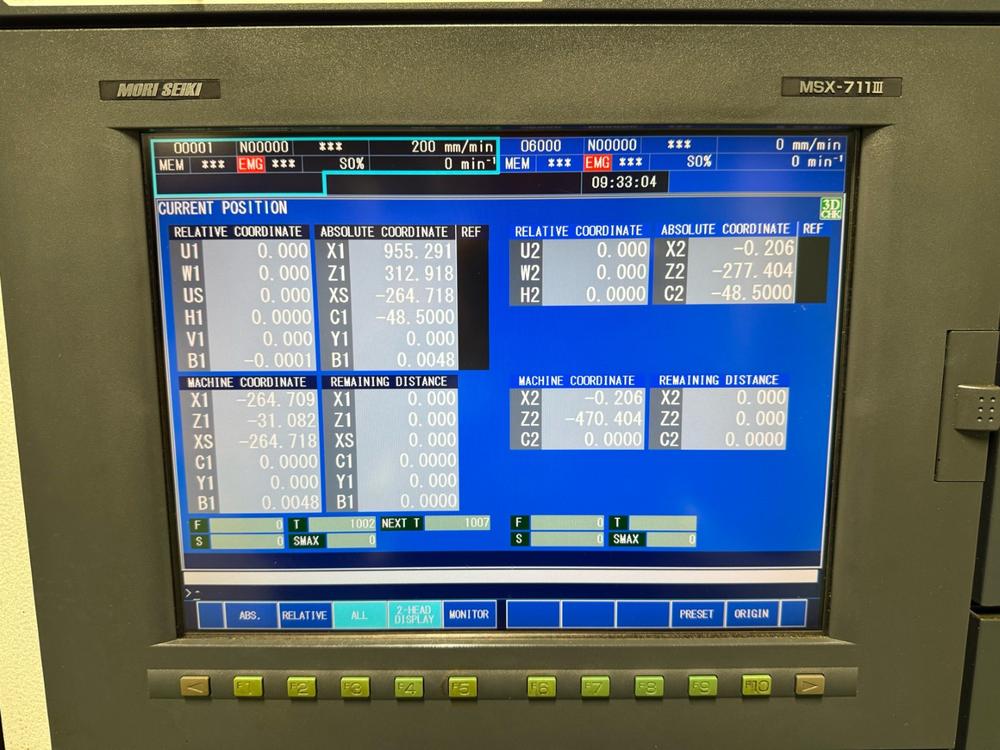

Control system: Fanuc Series 31i

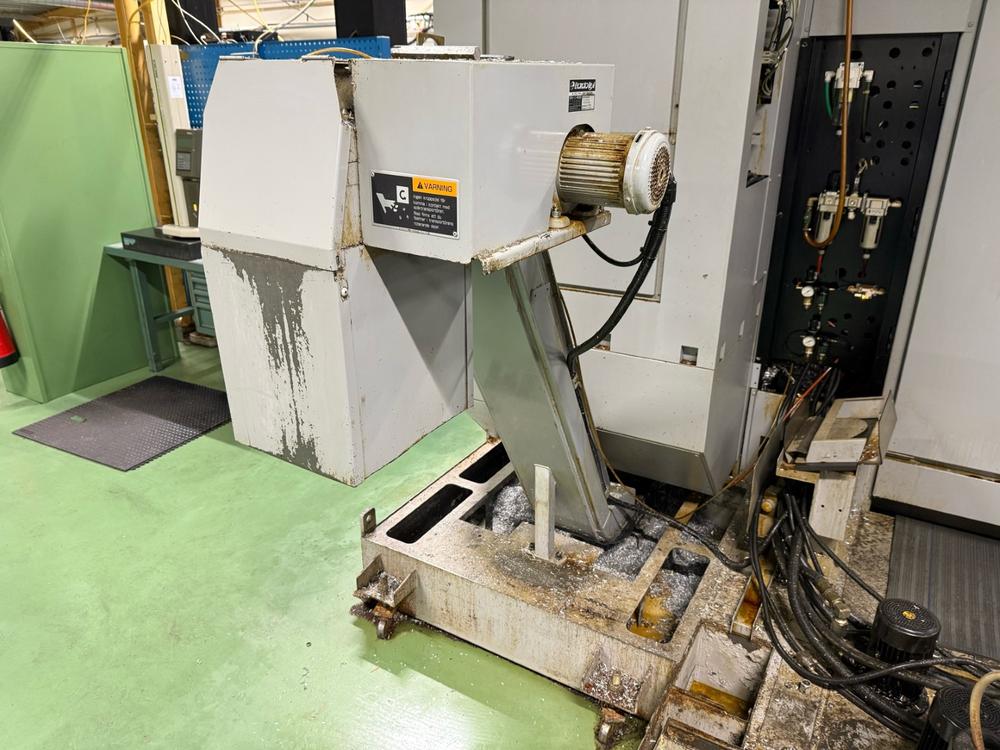

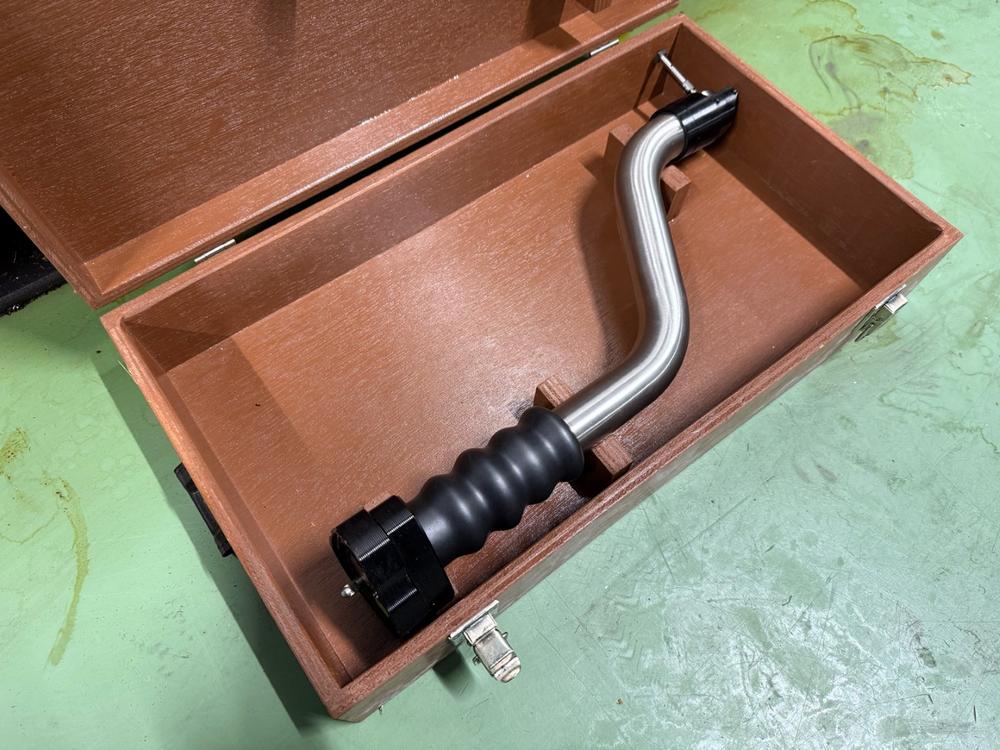

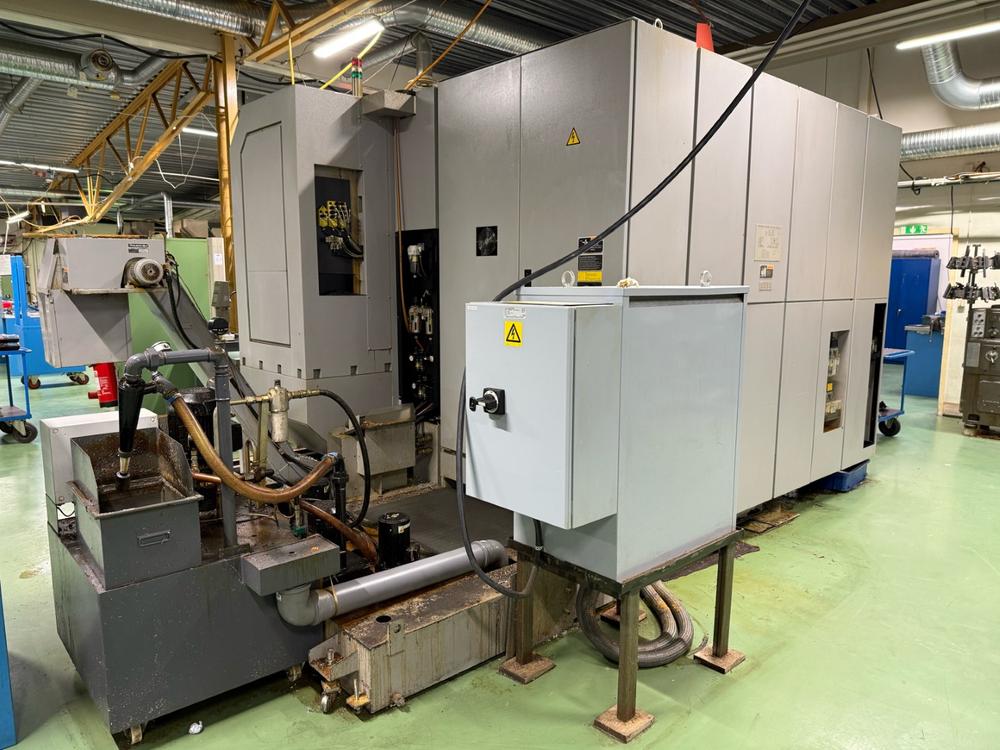

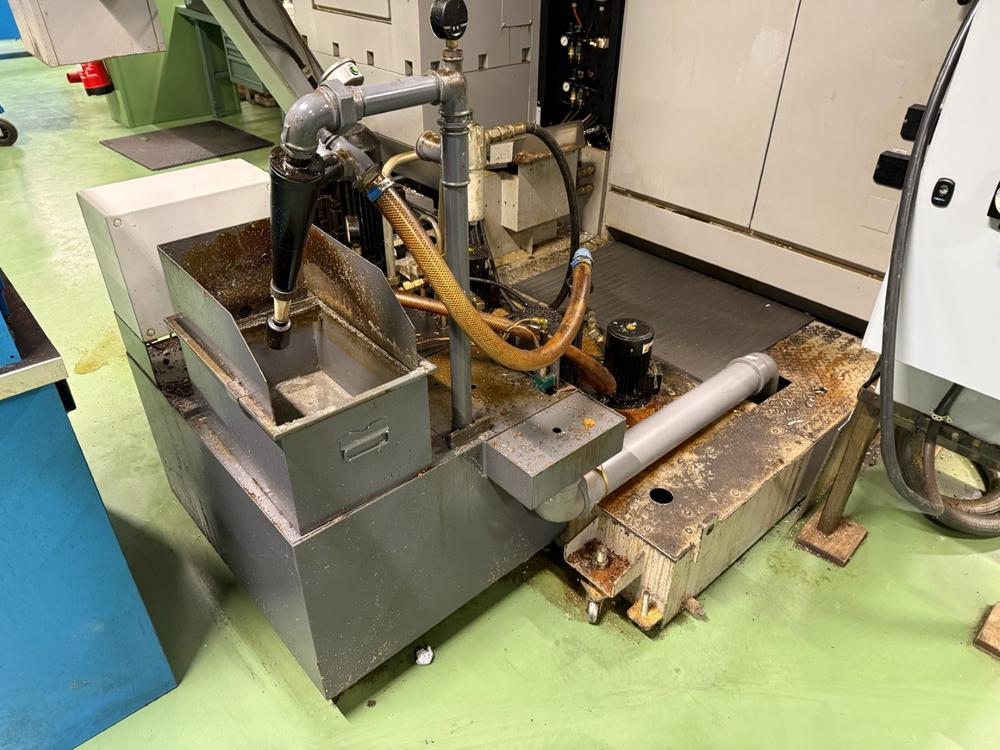

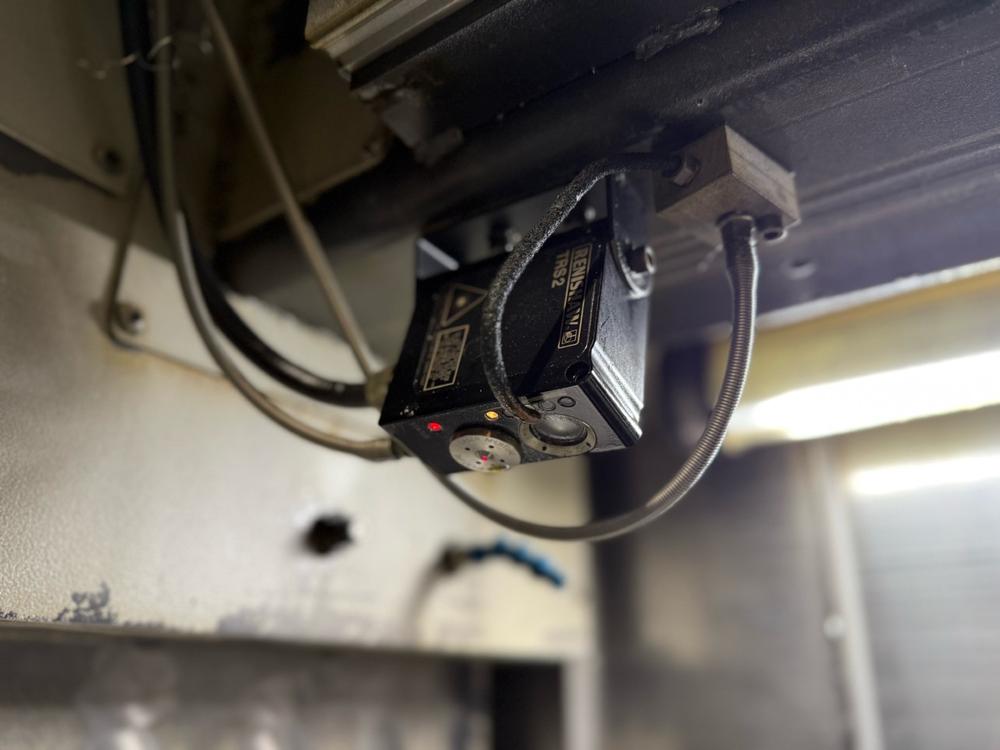

Equipped with: tool presetter,Absolent AB oil mist filter, Enomoto chip conveyor, Ercoatius coolant filter, documentation

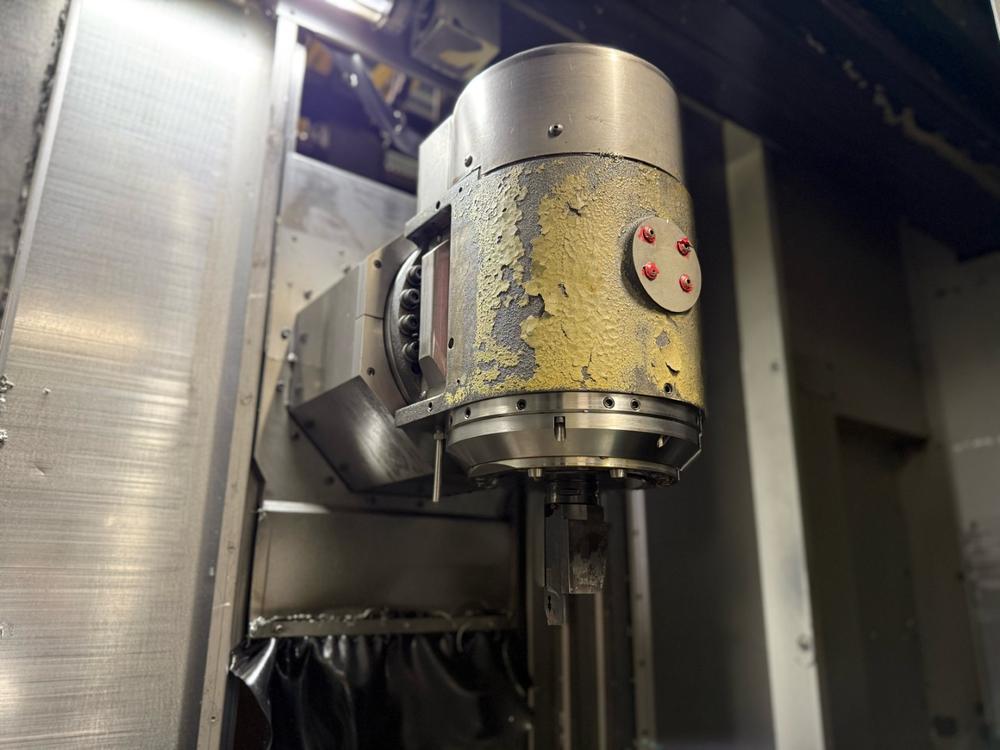

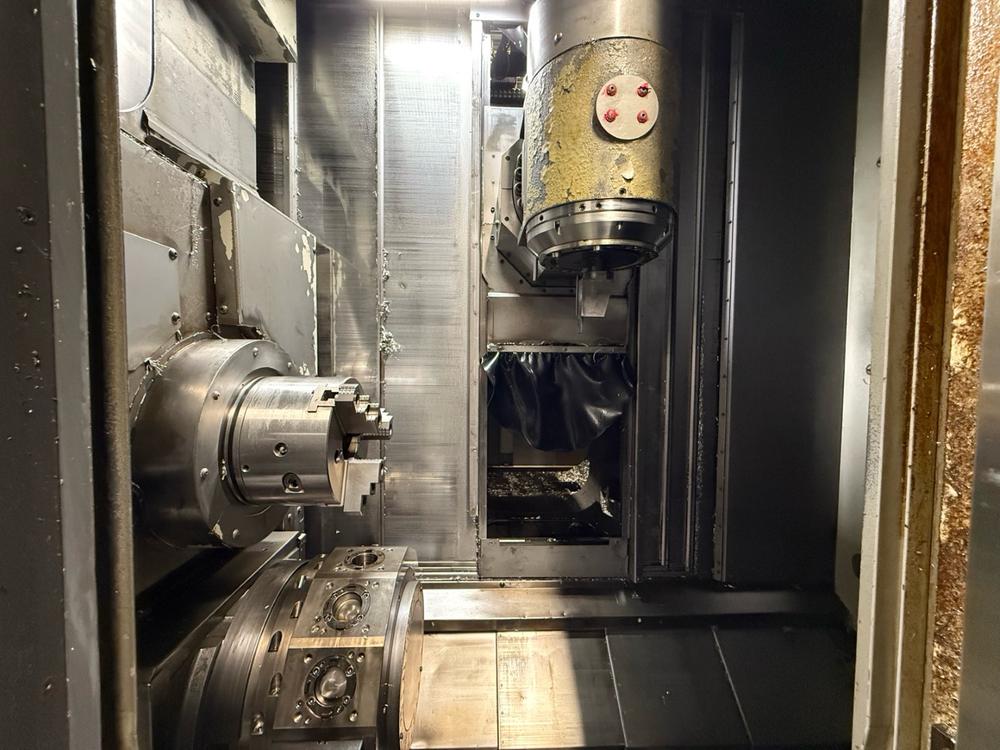

Milling head
Maximum speed: 12000 RPM
Tool shaft size: C5
X-axis travel: 685mm
Y-axis travel: ±125mm
Z-axis travel: 1075mm
B-axis travel: ±120°
X/Z-axis rapid traverse: 50 m/min
Y-axis rapid traverse: 30 m/min

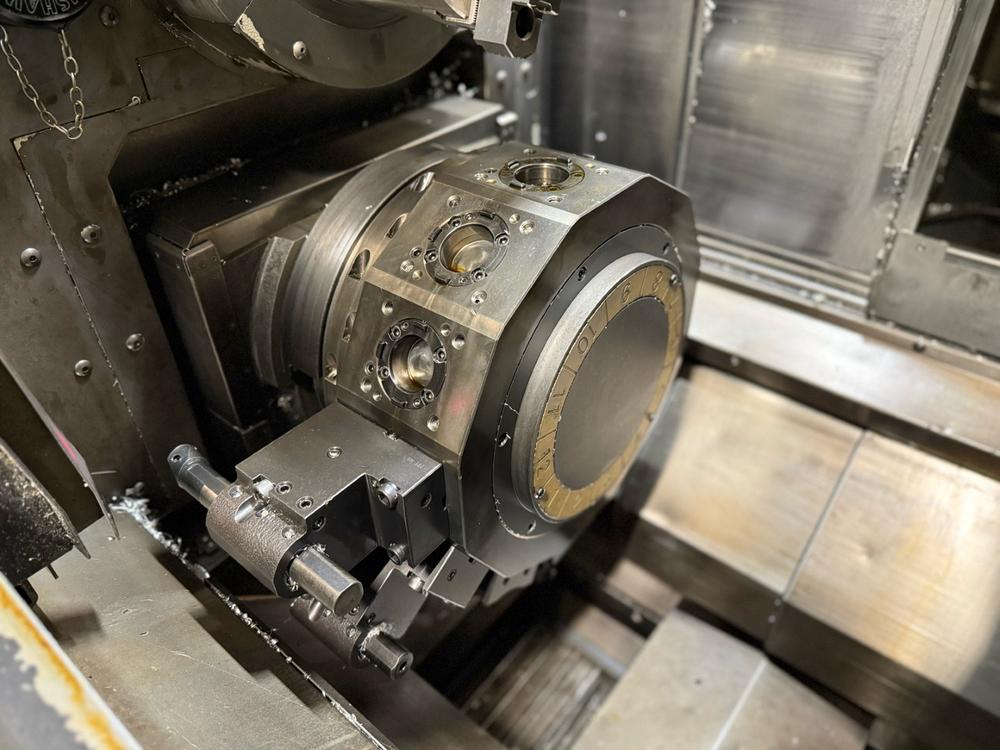

Turret
Number of tool places: 12
Driven tool speed: 6000 RPM
X-axis travel: 130mm
Z-axis travel: 970mm
X/Z-axis rapid traverse: 30 m/min

Machine dimensions LxWxH: 5200x3100x3000mm
Own weight: 14400 kg

Informazioni aggiuntive

Pickup days are scheduled for September 30 and October 1, 2 and 3 from 09:00 to 16:00. Buyers will be contacted within 48 hours after the sale closure and will be appointed to 1 of these days (buyers will be spread over 4 days via a schedule for safety on site and crowd control). Contact details of a preferred and professional international service partner (for pickup assistance, dismantling and/or fully serviced lot transportation) will be shared with all buyers immediately after the sale.
