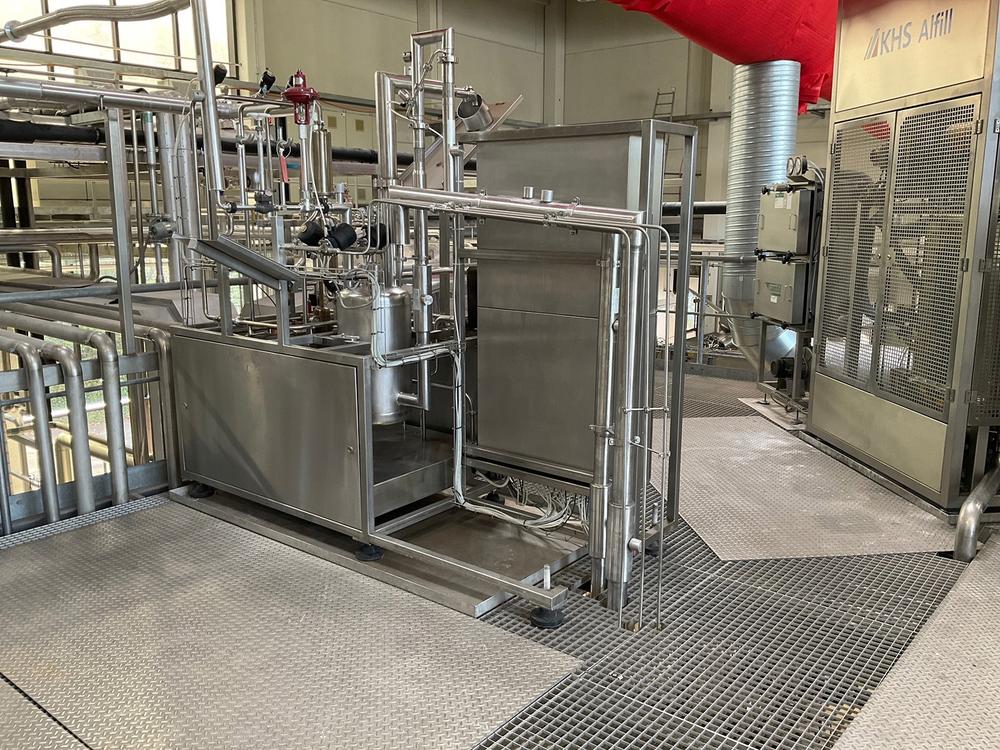

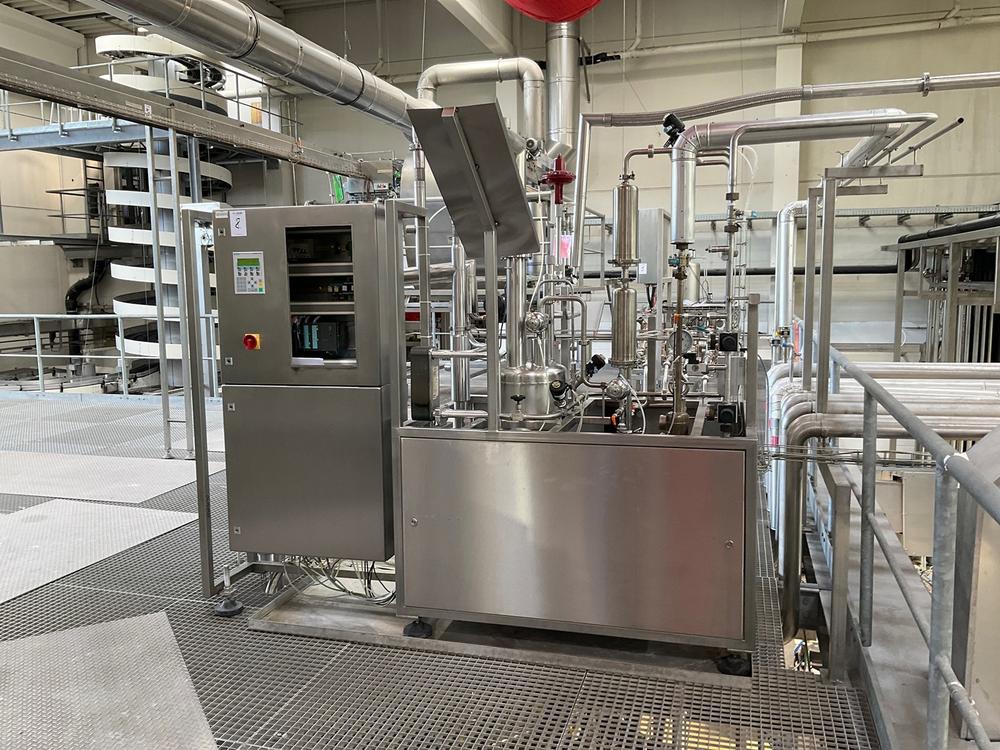

8 - 2006 Terboven Aseptik 2 Aseptic Liquid Nitrogen Dosing Unit ISTE-ASEPTIK
Bad Zurzach | CH
12
Offri
Offerte
Maggior offerente
Superato
La mia ultima offerta: 0,00 € (Offerta automatica)
Condividere
Informazioni sul prodotto

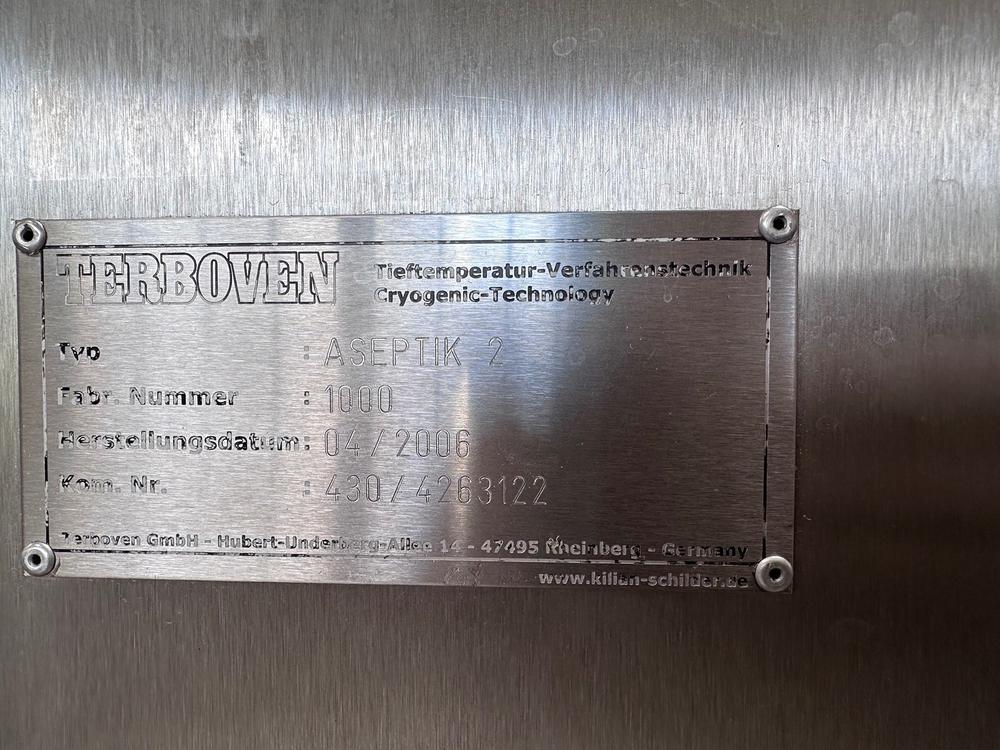

| Marchio | Terboven |
| Type | Aseptik 2 |
| Year | 2006 |
| Serial number | 1000 |
| Amount | 1 |

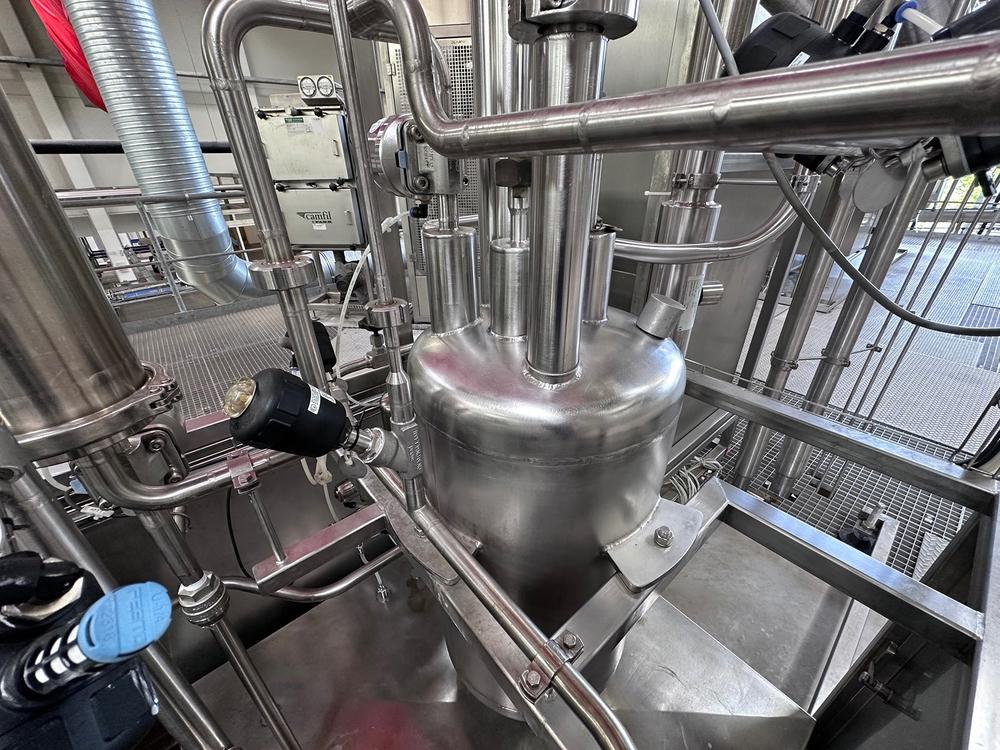

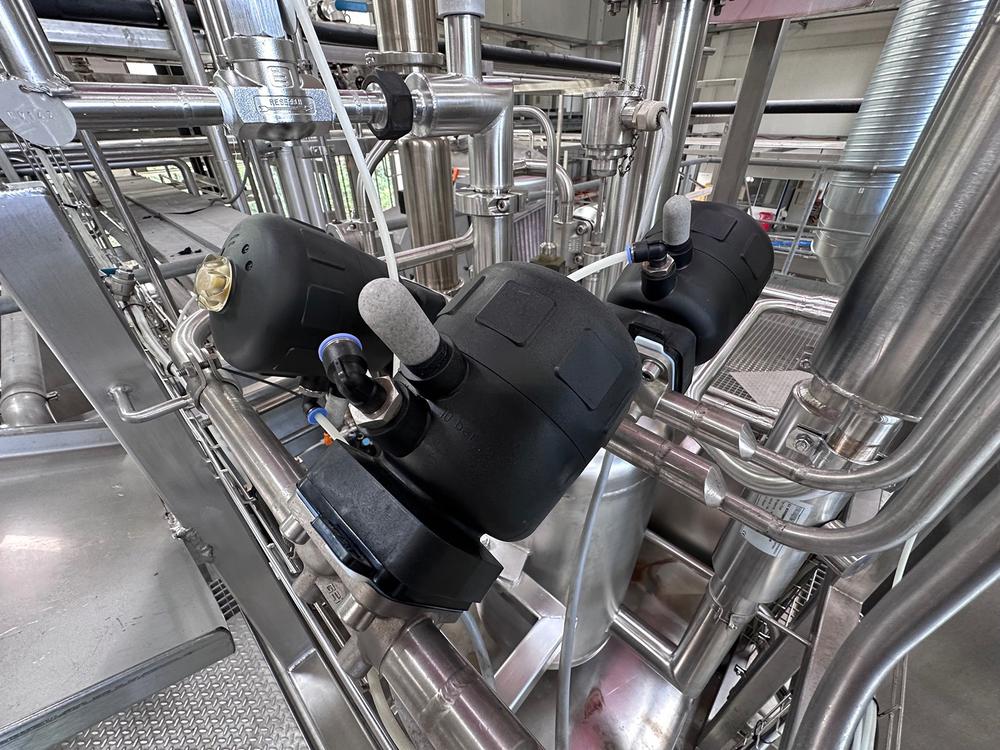

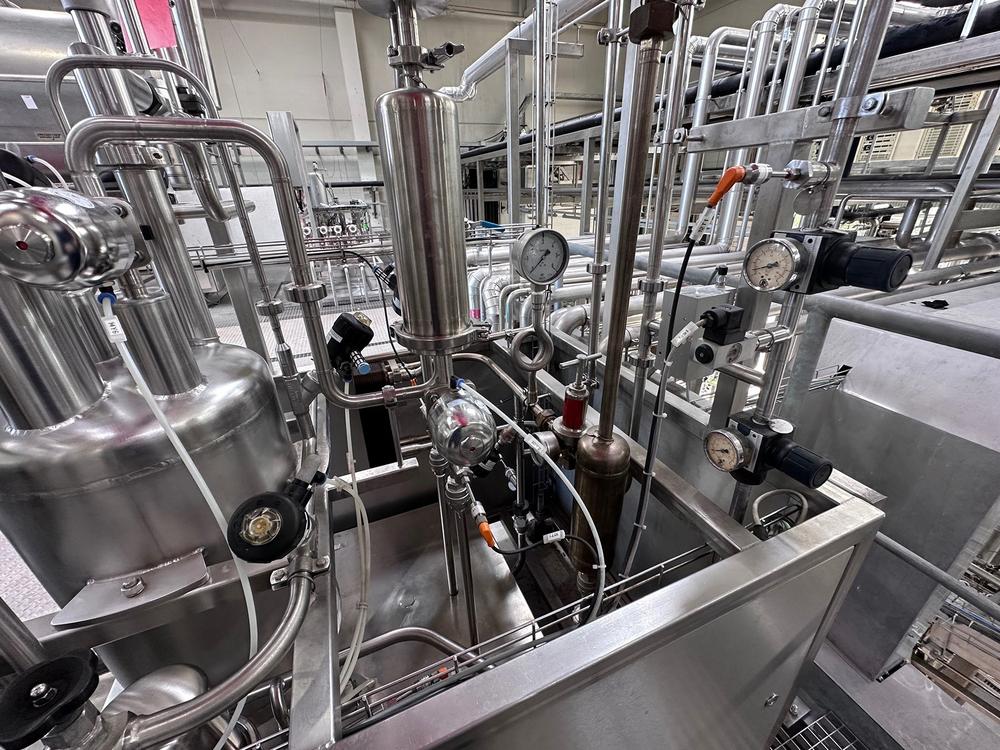

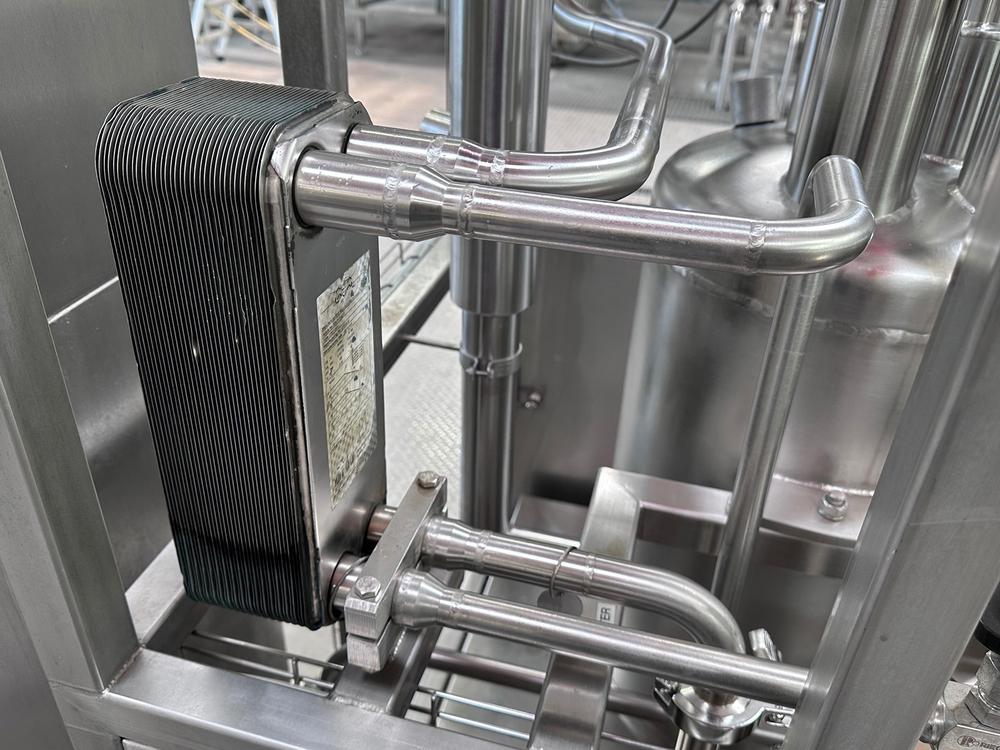

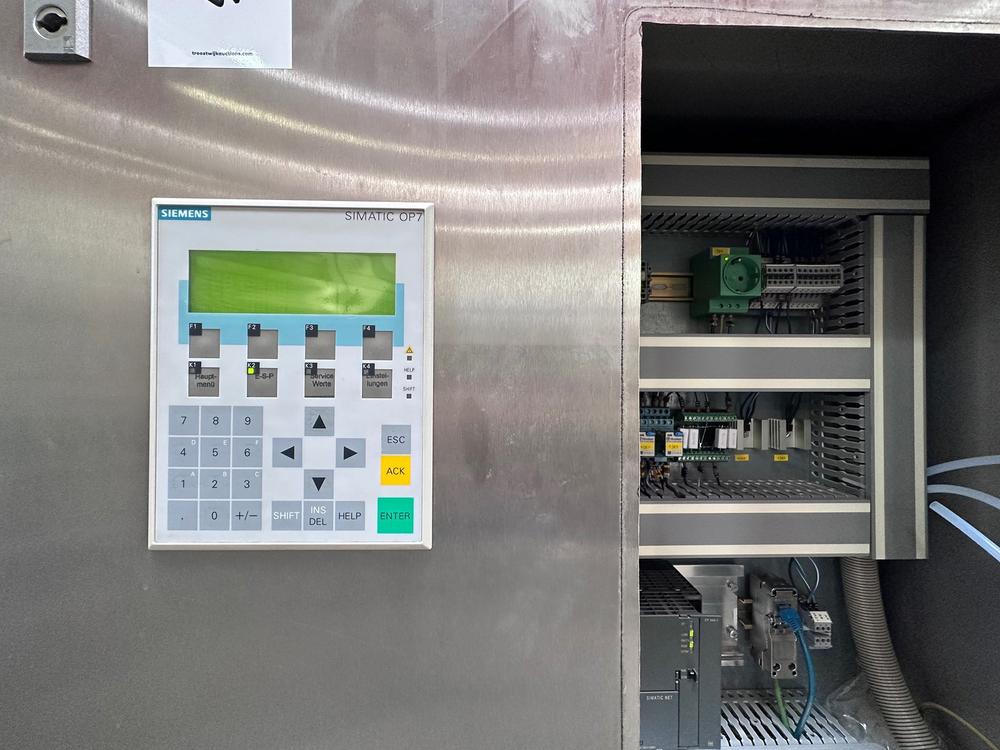

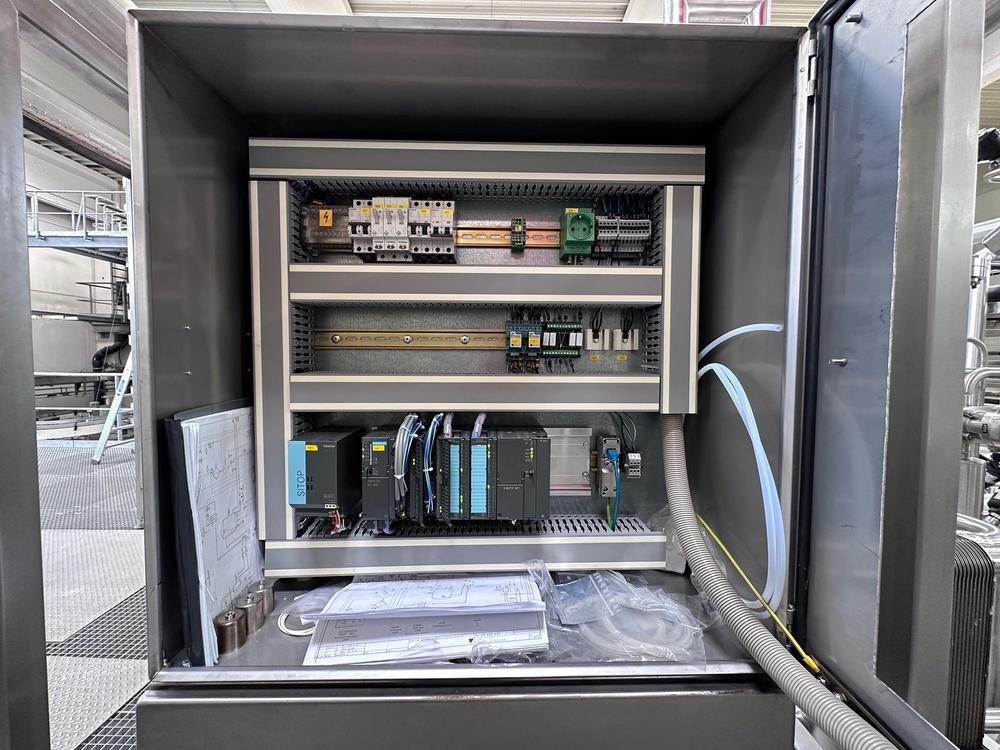

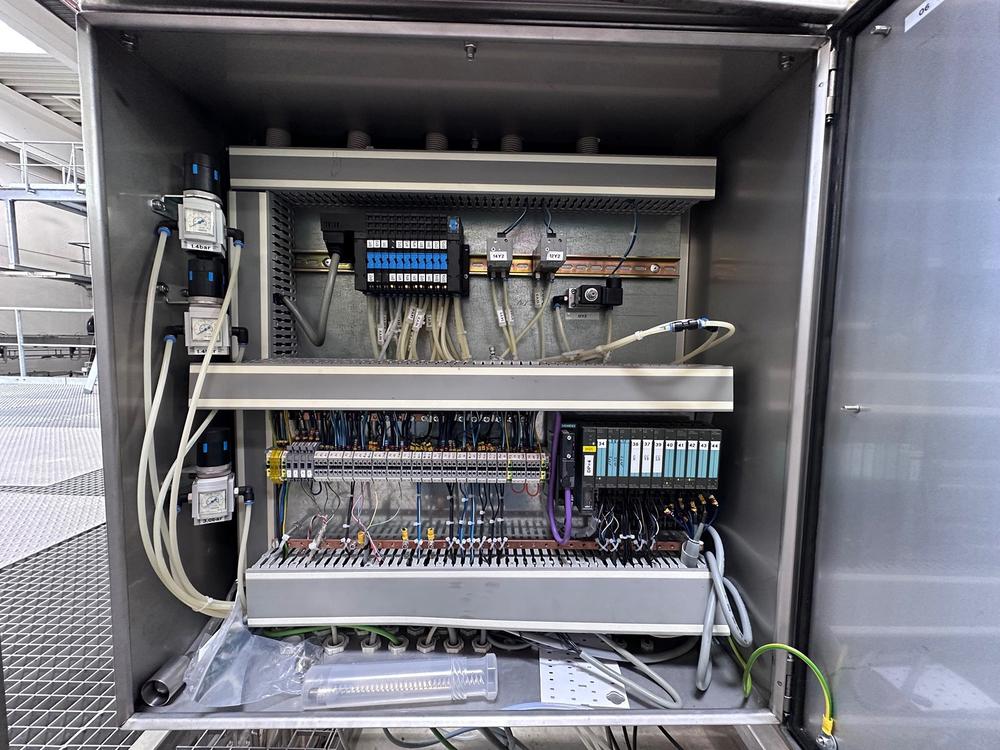

up to 7-8 units per second, a single pressurization of the bottle takes place; Material: Stainless steel, 1.4301/1.4541 (304/316); Liquid nitrogen (min. 2 bar, max. 6 bar); Connection via screw fitting DN 15/1/2" type TER-VE-155 (to be welded to LIN line); Gaseous nitrogen at the device (min. 6 bar, max. 8 bar); Supply for gas reliquefaction, control of valves; Food quality; Temperature at input ISTE-ASEPTIK 2 min. 15°C, max. 30°C; Dew point at input ISTE-ASEPTIK 2: min. -60°C (max. 10 vpm H20); Connection to ball valve V121; Electricity: 230V/50Hz for control cabinet; Installed power: 16 A, max. 2 KW; Clean (culinary) steam (132-138°C, 2.0-2.4 bar) -> shows no reaction with stainless steel; connection via ball valve V101; the lot must be disassembled; Demineralized water (T < 20°C, min 1 bar, max 5 bar; surface tension 70-72 dyne/cm); connection via ball valve ½"; Instruction manual is available;
Combinazione
Questo lotto fa parte di una combinazione: KHS aseptic filling line (end of 2021 overhauled)
Informazioni importanti
All lots on this sale are already dismantled and safely stored by a professional (at re-use level). Contact details of a preferred and professional international service partner (for pickup and loading assistance, fully serviced lot transportation and/or re-installation at destination) will be shared with all buyers immediately after the sale.
up to 7-8 units per second, a single pressurization of the bottle takes place; Material: Stainless steel, 1.4301/1.4541 (304/316); Liquid nitrogen (min. 2 bar, max. 6 bar); Connection via screw fitting DN 15/1/2" type TER-VE-155 (to be welded to LIN line); Gaseous nitrogen at the device (min. 6 bar, max. 8 bar); Supply for gas reliquefaction, control of valves; Food quality; Temperature at input ISTE-ASEPTIK 2 min. 15°C, max. 30°C; Dew point at input ISTE-ASEPTIK 2: min. -60°C (max. 10 vpm H20); Connection to ball valve V121; Electricity: 230V/50Hz for control cabinet; Installed power: 16 A, max. 2 KW; Clean (culinary) steam (132-138°C, 2.0-2.4 bar) -> shows no reaction with stainless steel; connection via ball valve V101; the lot must be disassembled; Demineralized water (T < 20°C, min 1 bar, max 5 bar; surface tension 70-72 dyne/cm); connection via ball valve ½"; Instruction manual is available;
Fissa un appuntamento - Contattaci all'indirizzo Dome Auctions <info@dome-auctions.com>.
Wasenstrasse 1
5330 Bad Zurzach (Svizzera)
