Productinformatie
| Merk | Graziano |
| Aantal | 1 |

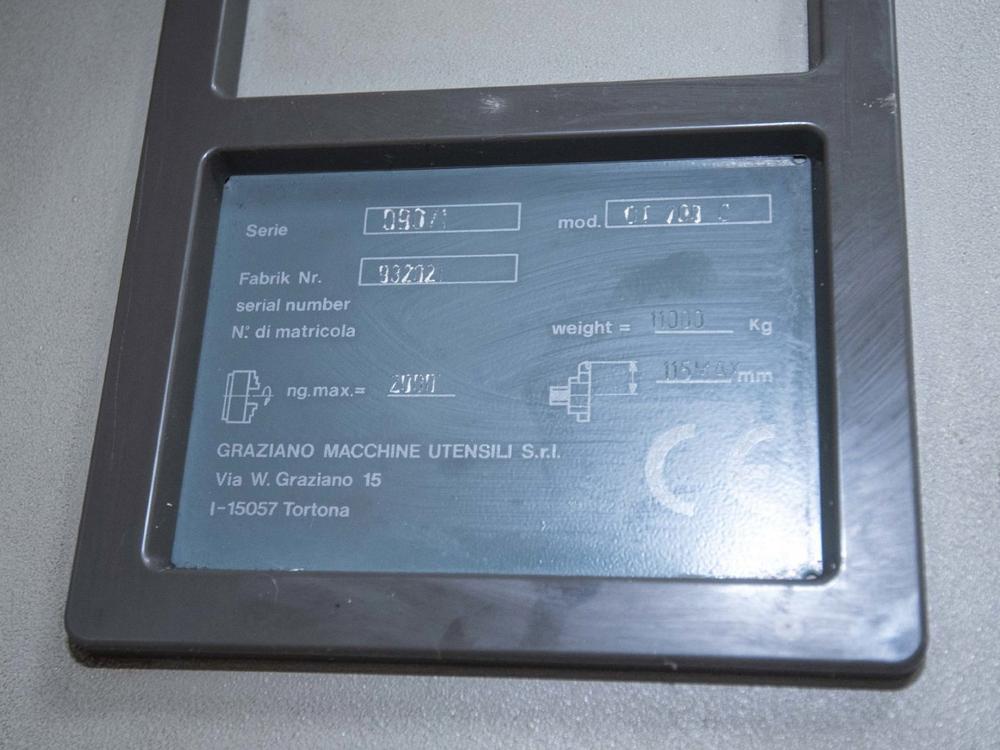

| Serienummer | 09071 |

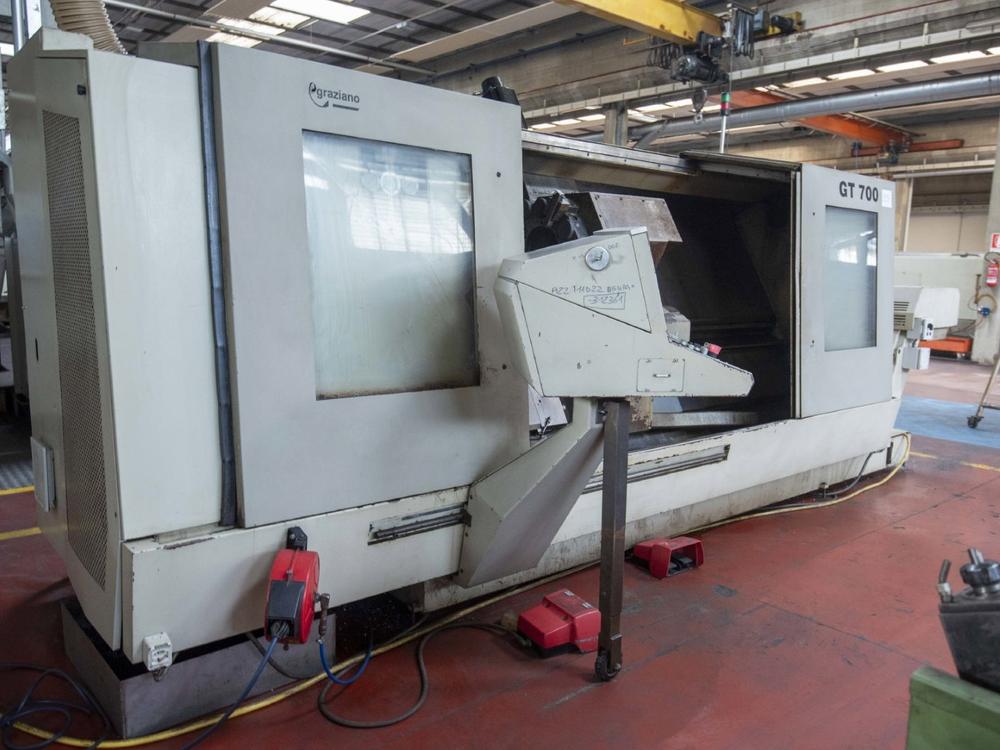

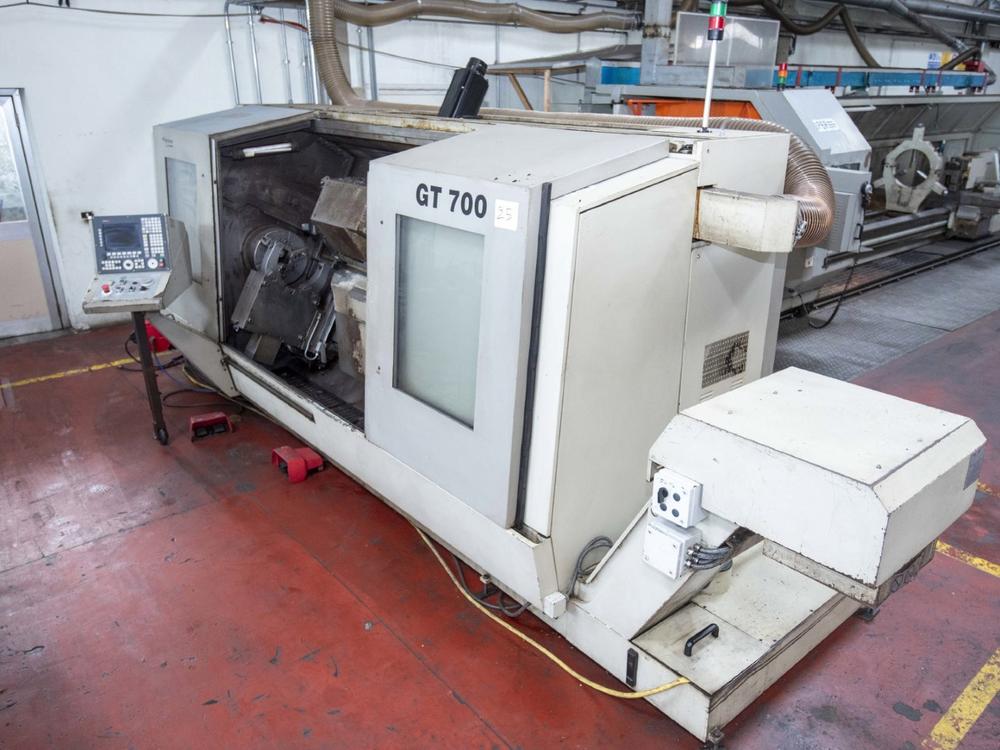

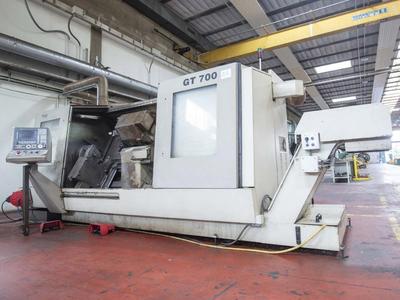

| Type | GT 700 |
NOT AVAILABLE - (BMU SALE ONGOING)
C-AXIS
DRIVED TOOLS

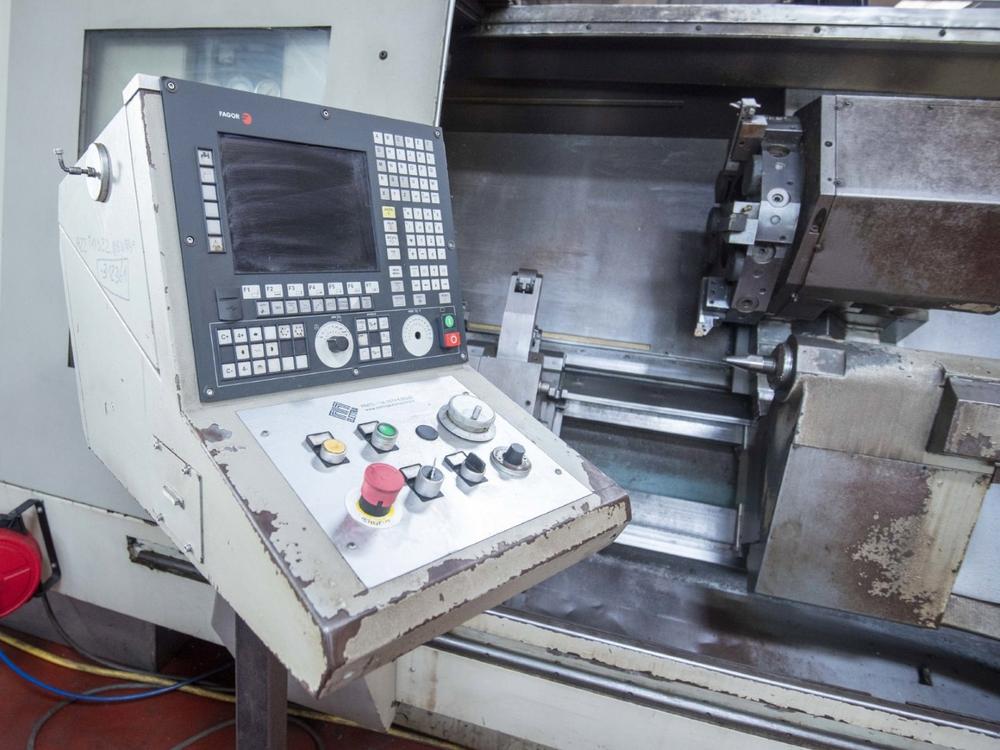

Fagor 8055 CNC
CAPACITY
Maximum rotating diameter over bed 720 mm
Maximum rotating diameter over slide 460 mm
Maximum turning diameter 590 mm
Distance between centers 2270 mm
Turning length 2000 mm
SPINDLE
ASA 11" shank
Bore diameter 137 mm
Spindle motor power 35/55 kW
Spindle speed 20-2000 rpm
TAILSTOCK
Quilt diameter 120 mm
Quilt travel 450 mm
Shaft CM5
TRAVELS
X-axis 360 mm
Z-axis 2150 mm
Rapid feed X, Z 20,000 mm/min

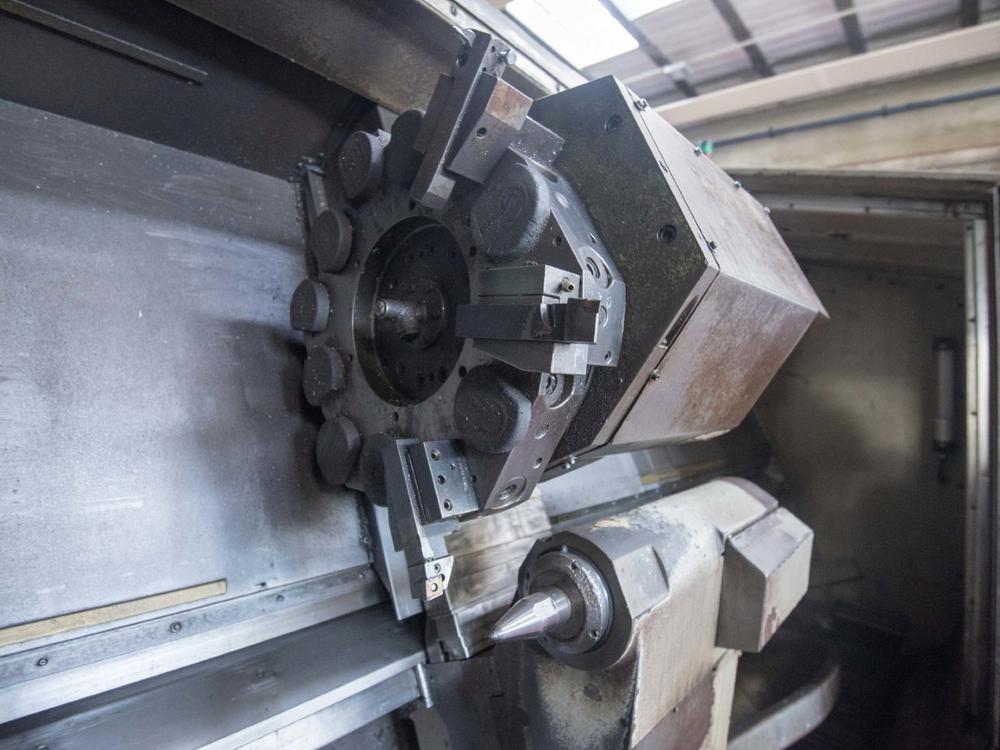

SAUTER turret
12 motorized positions
VDI tool holder 50
DIMENSIONS
LxWxH 5980x2600x2100
Weight 11,000 kg
COMPLETE WITH:

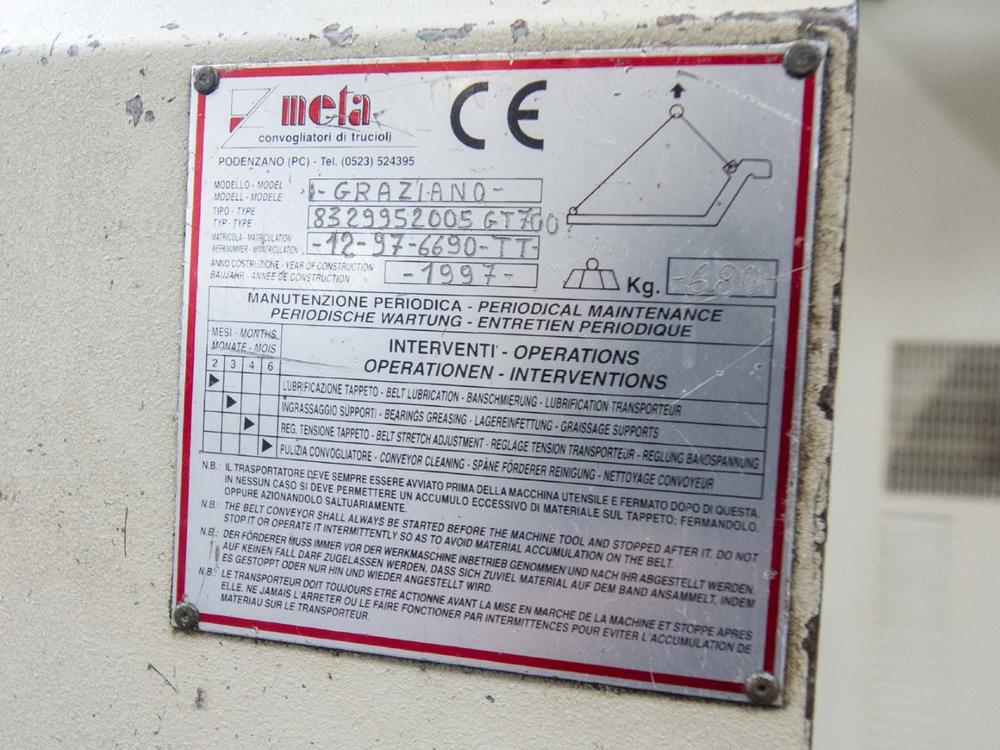

Chip conveyor

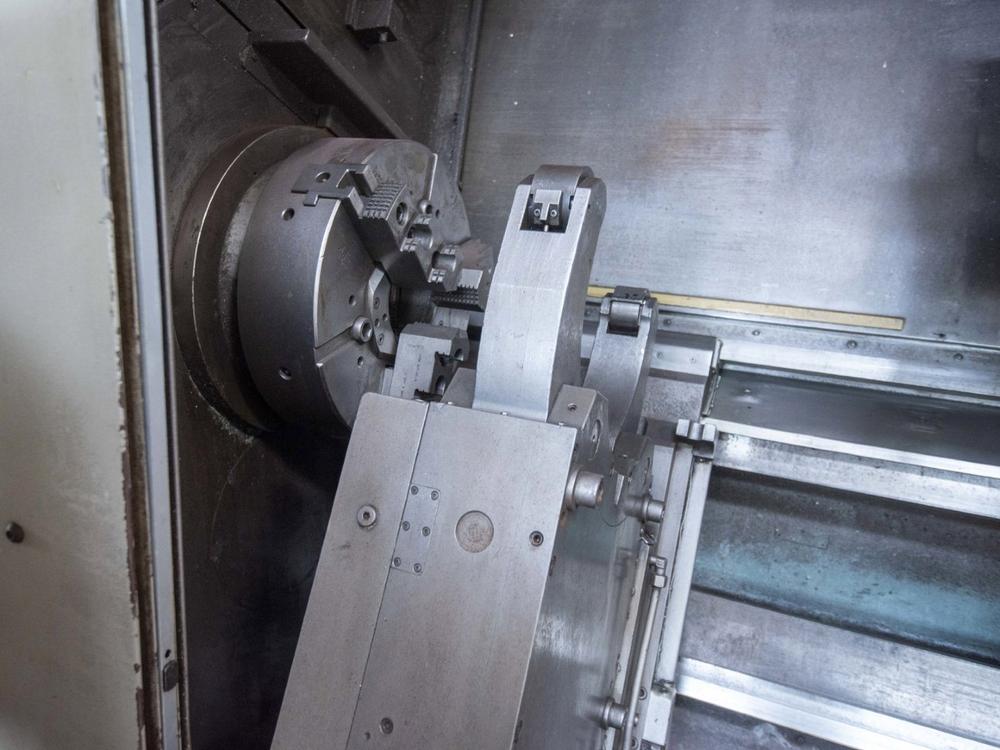

Automatic hydraulic steady rest, diameter 300 mm
Autoblock 3-jaw hydraulic chuck, diameter 400 mm
USB input
Belangrijke informatie
All buyers will be informed within 48 hours after the auction closure about their actual pick-up day being in week 18 &19.
