Produktinformation

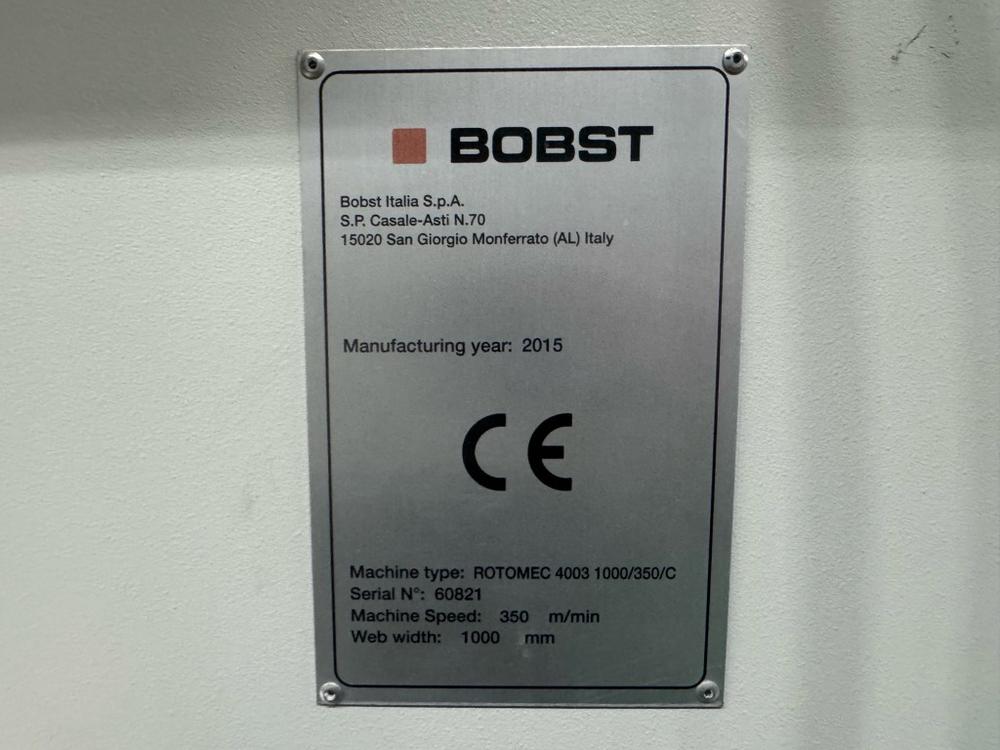

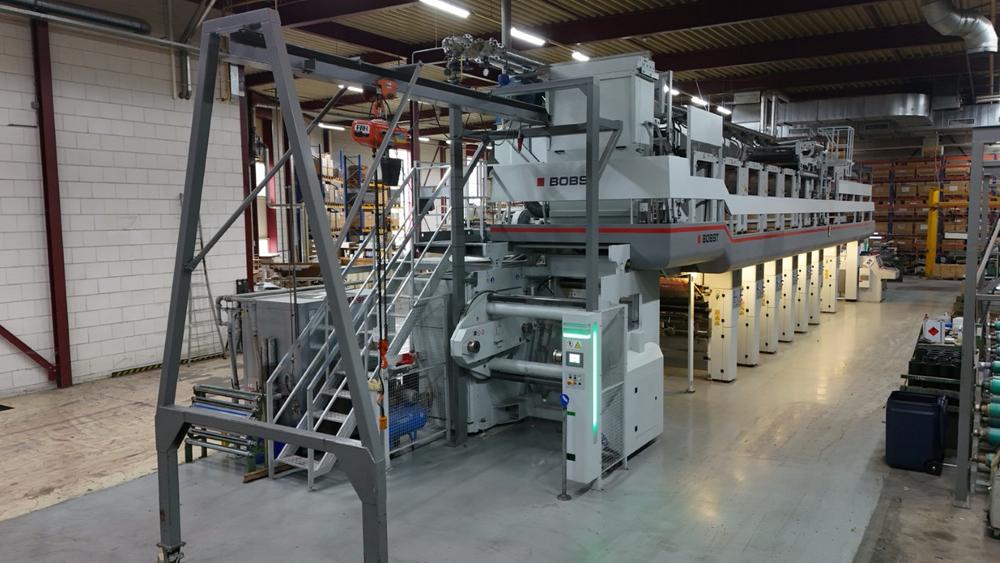

| Märke | Bobst |
| Type | Rotomec 4003 1000/350/C |
| Year | 2015 |
| Serial number | 60821 |
| Amount | 1 |

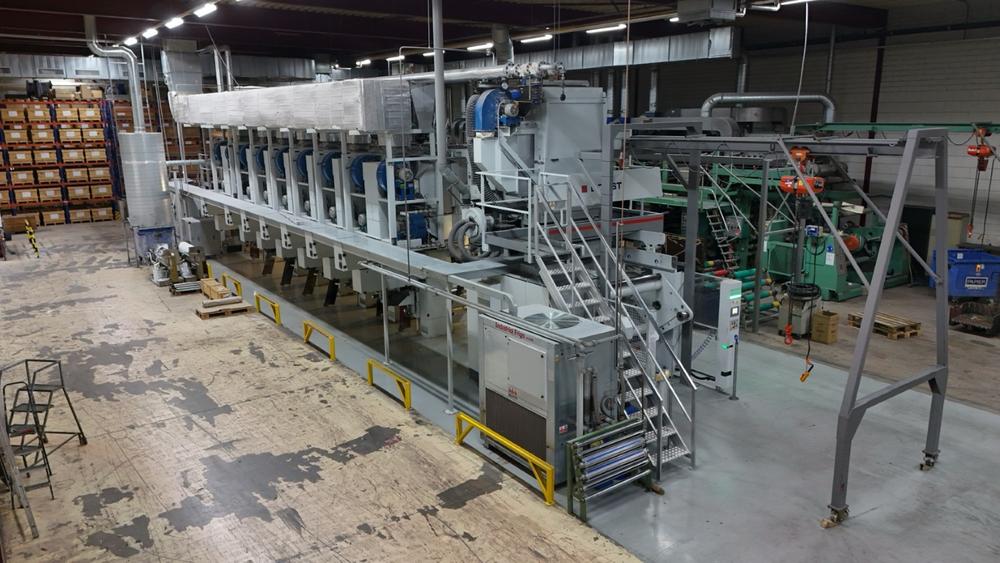

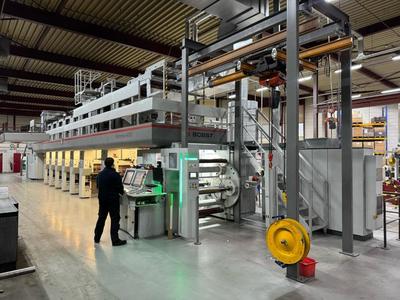

Main data:
Production speed: 350 m/min
Maximum printing width: 1025 mm
Maximum reel diameter: 1020 mm
Maximum reel weight: 2000 kg
Maximum core length: 1050 mm
Web width: 1000 mm
Web tension range:4-50 daN
I.C.D.:76 & 152 mm
Total surface space LxWxH: 25.540x5.398x5.261mm (with out thermal oil set-up)

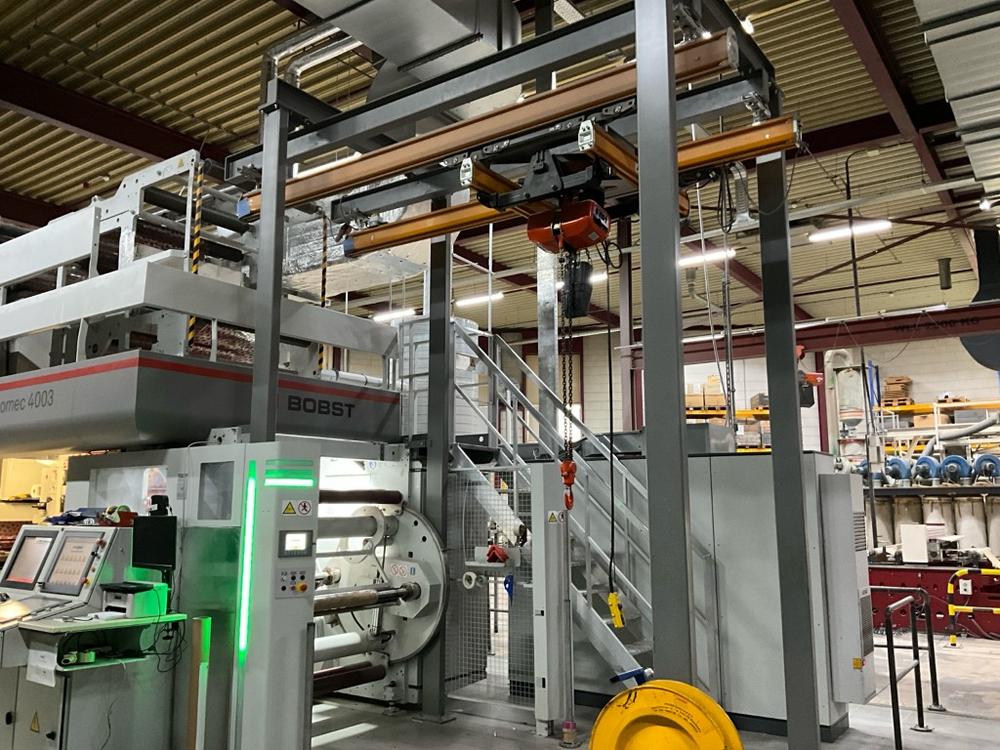

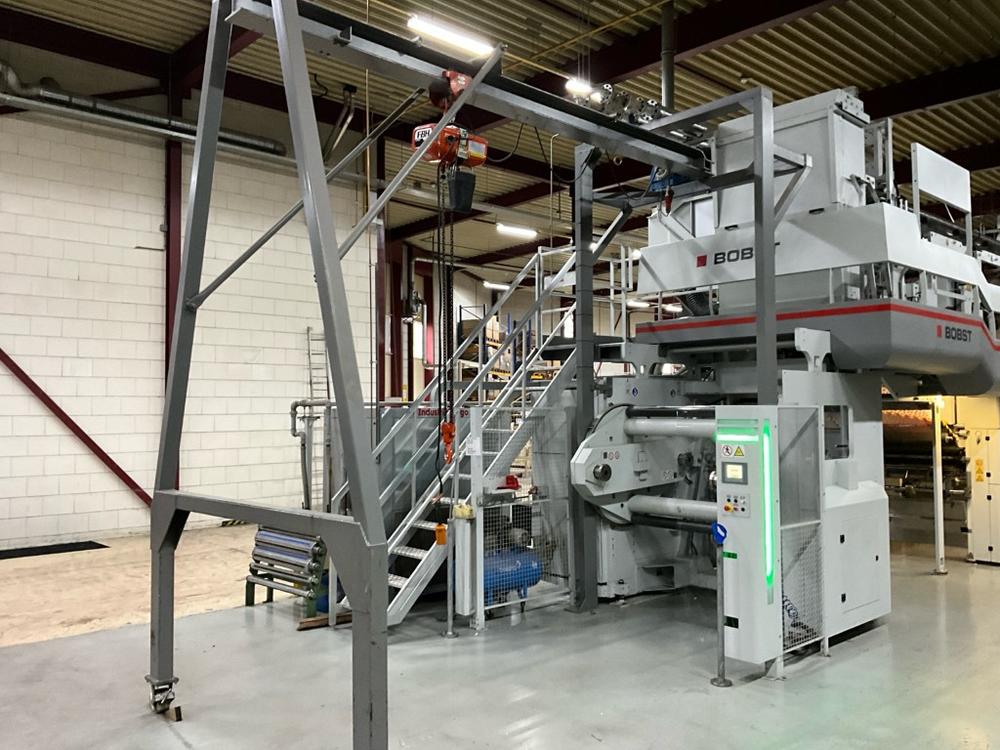

1. Automatic turret unwinder:
Type: SV320 HS
Max. reel diameter: 1300 mm
Max. Reel weight: 2000 kg
Max. Allowed reel off-round: +/- 5 mm
Max. Core length: 1050mm
Core material: cardboard
2. Pre-conditioning hood
3. In-feed tension nip
Driven roll diameter: 400 mm
Driven roll Material: chrome plated face
Covered nip diameter: 130 mm
Covered nip Material: rubber

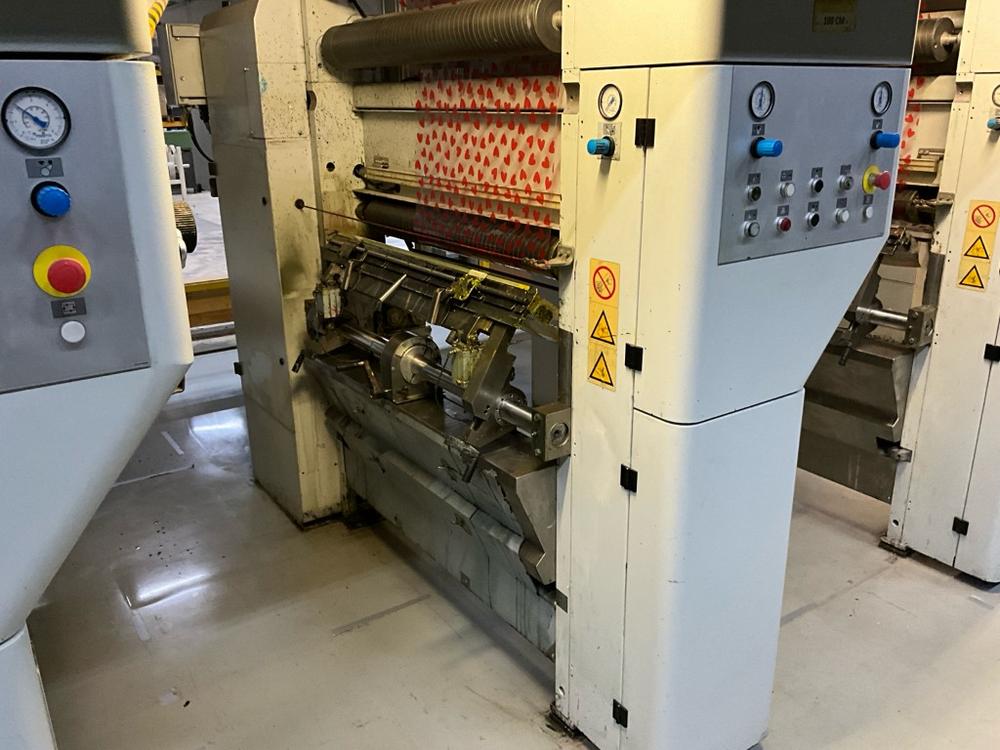

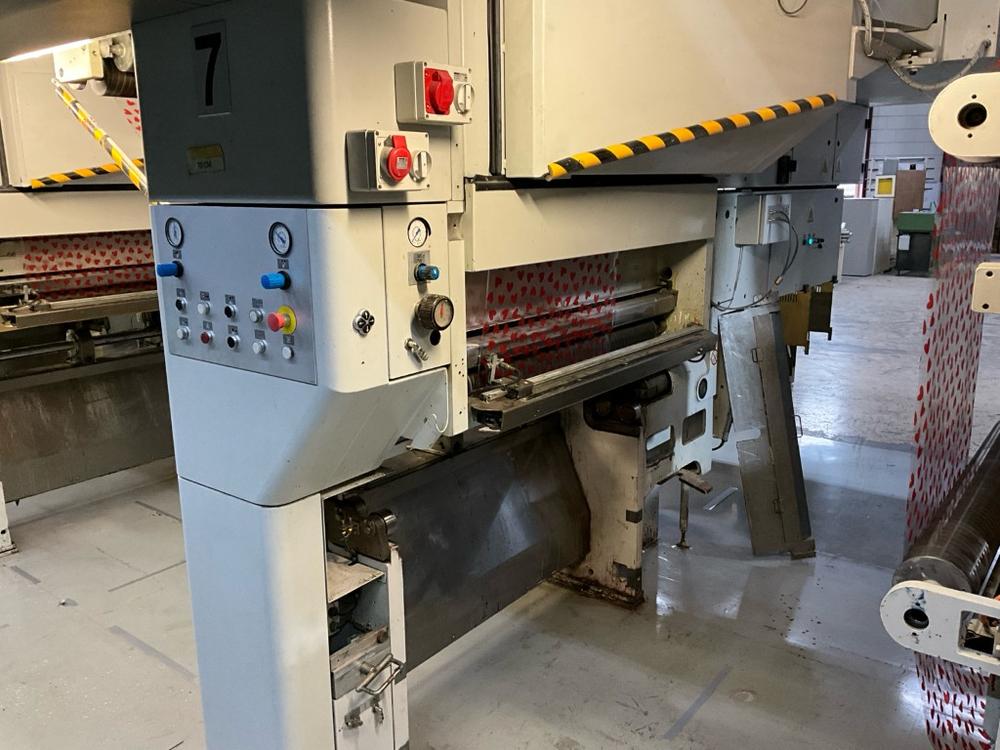

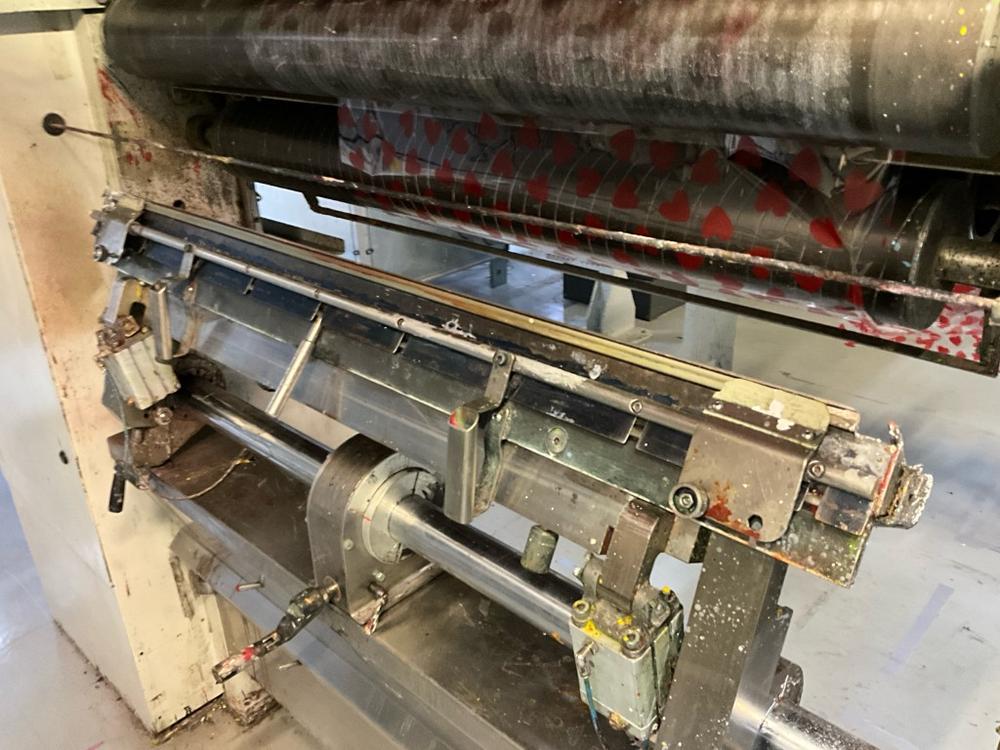

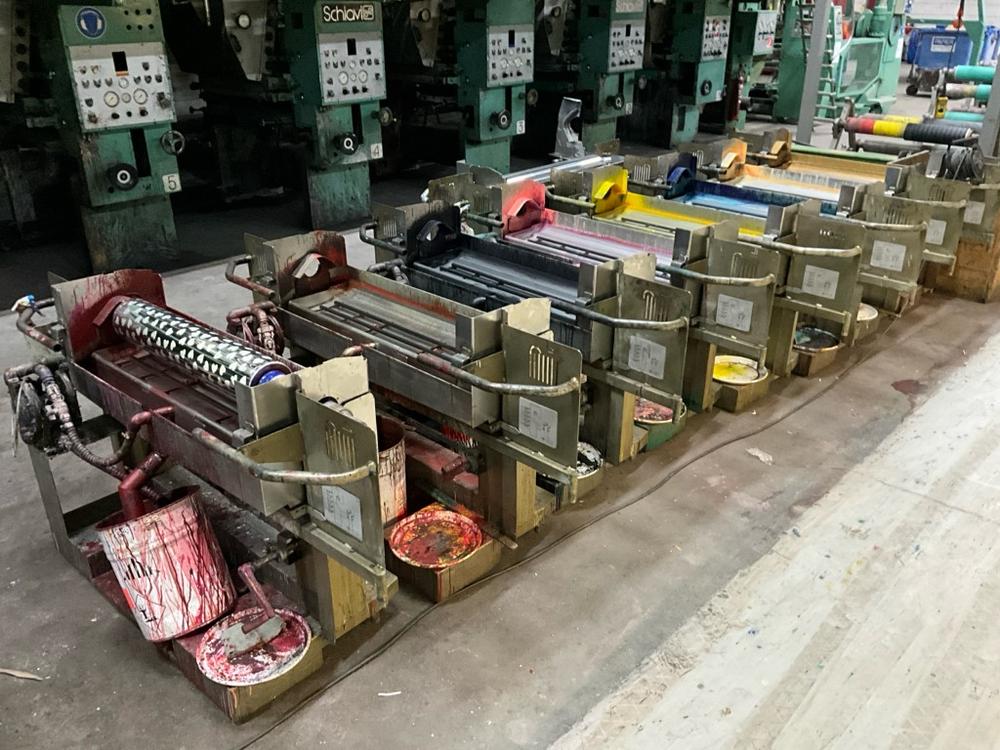

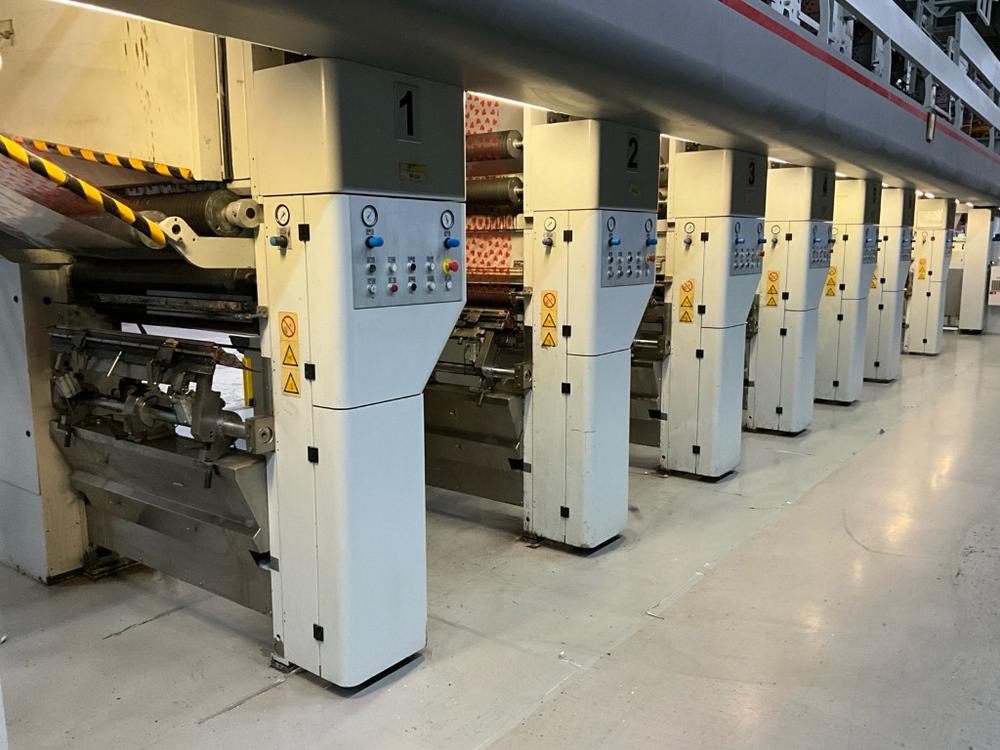

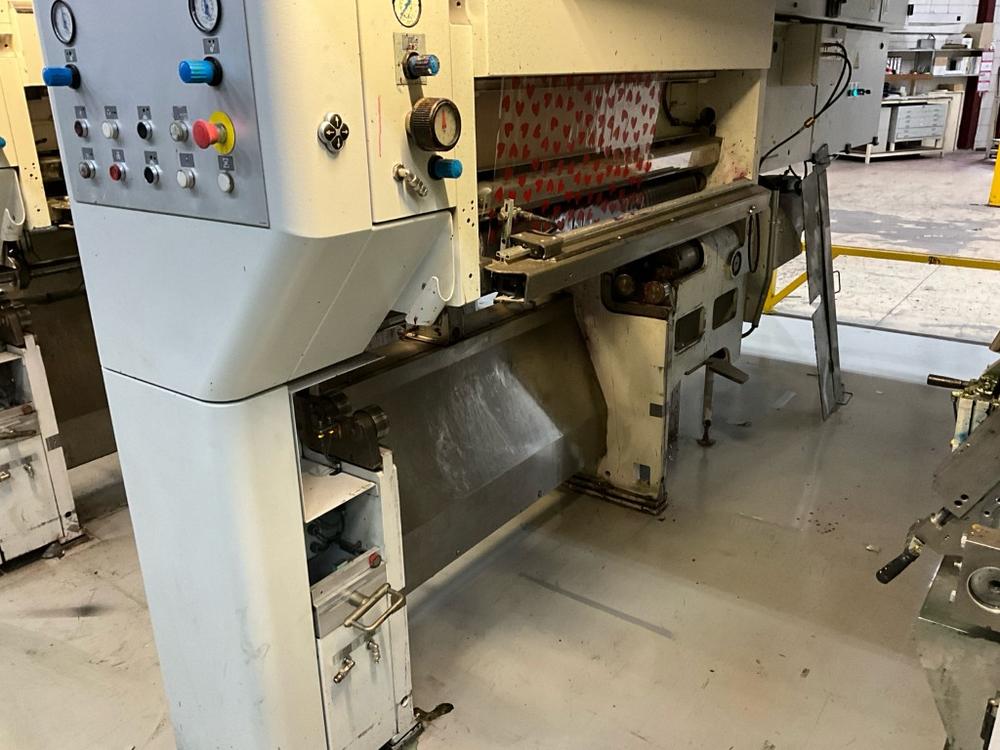

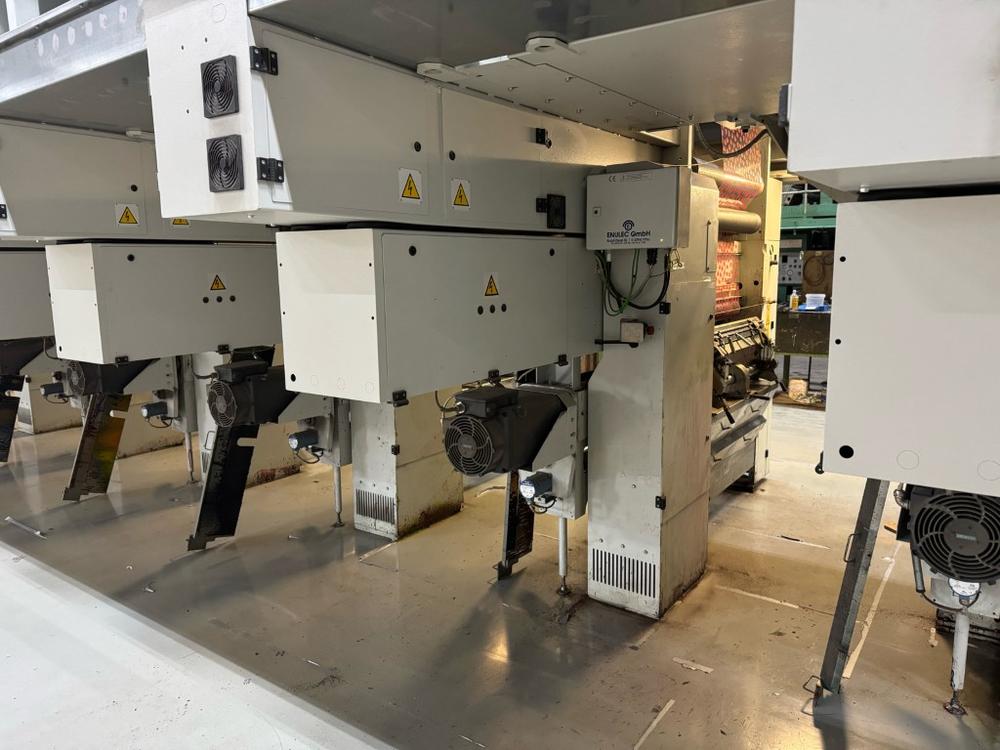

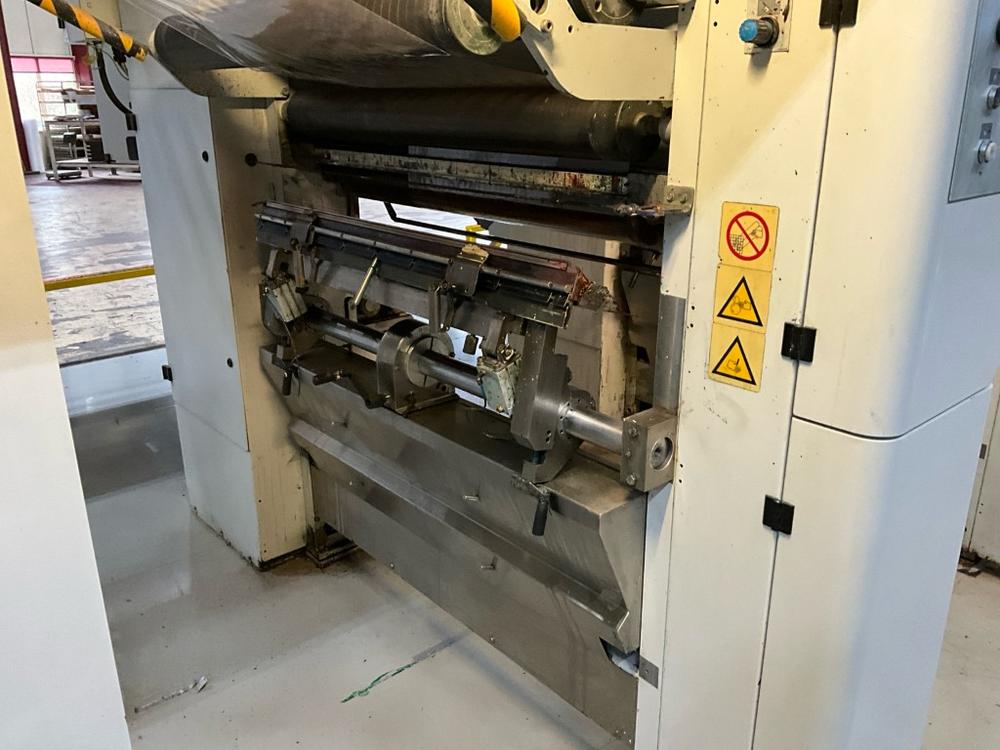

4. Gravure printing stations
Max. Printing face length: 1100mm
Impression roller diameter: 160 mm
Impression roller rubber hardness: 80 +/- 2,5 shore A
Impression roller print pressure: max. 15 kg/cm
Docter blade stroke: 0-5mm
Side register stroke: +/- 12.5 mm

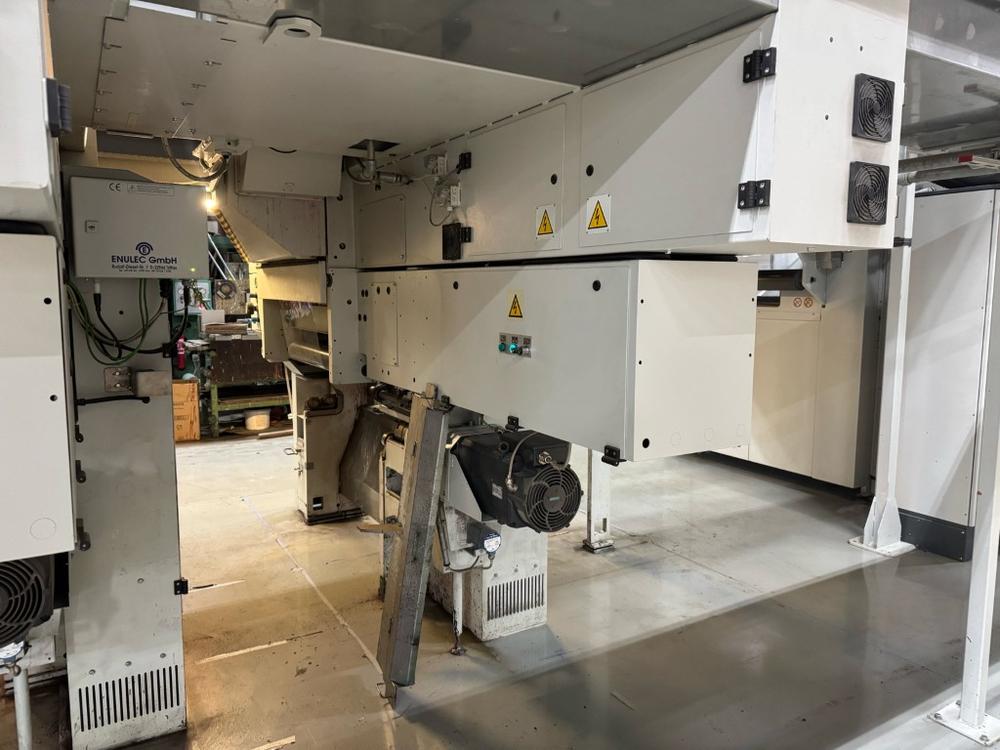

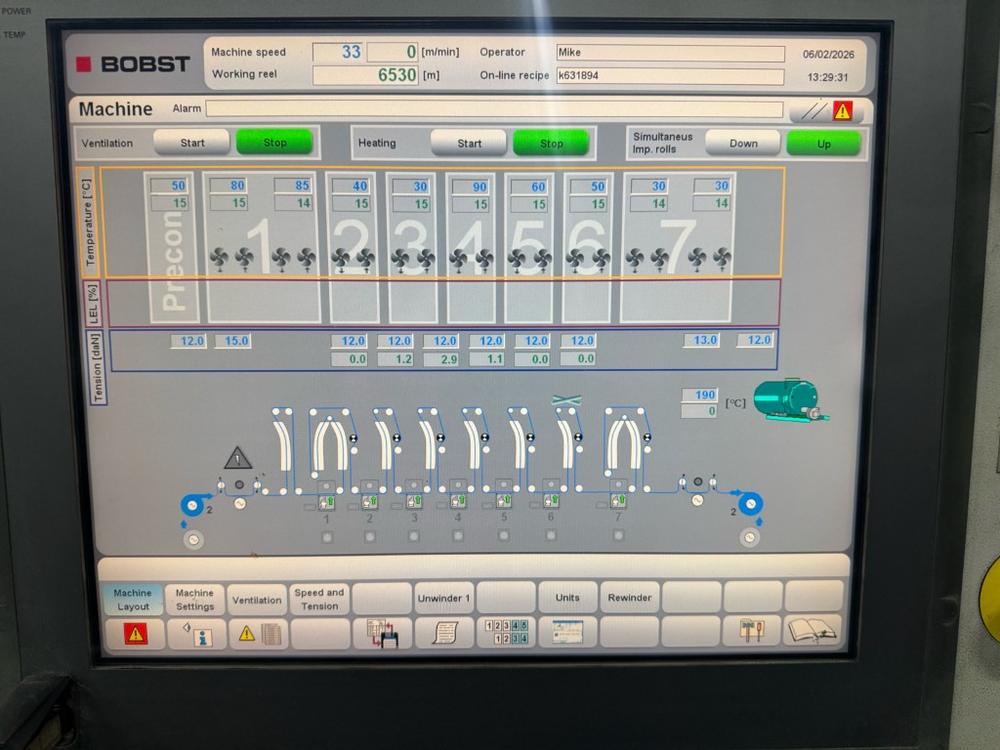

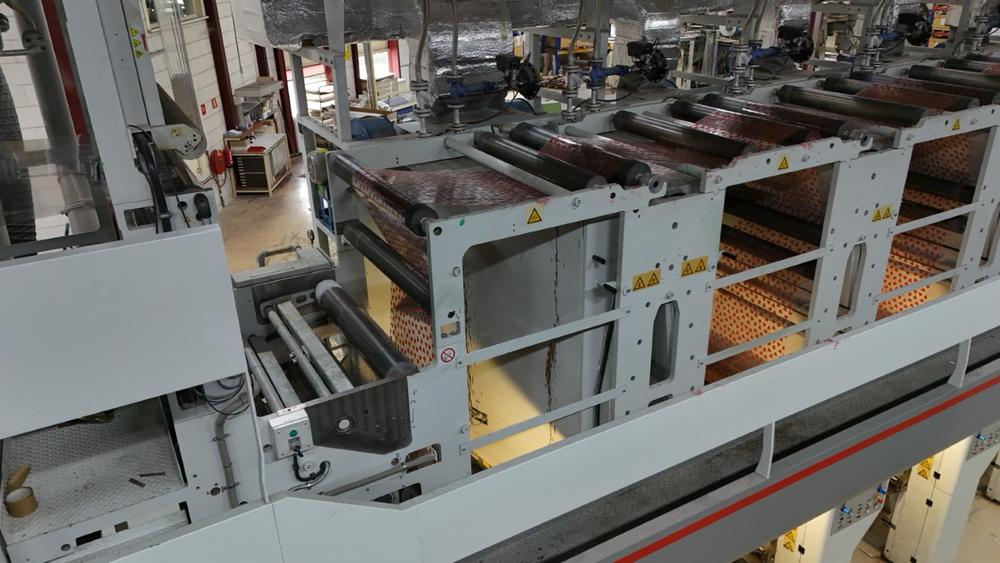

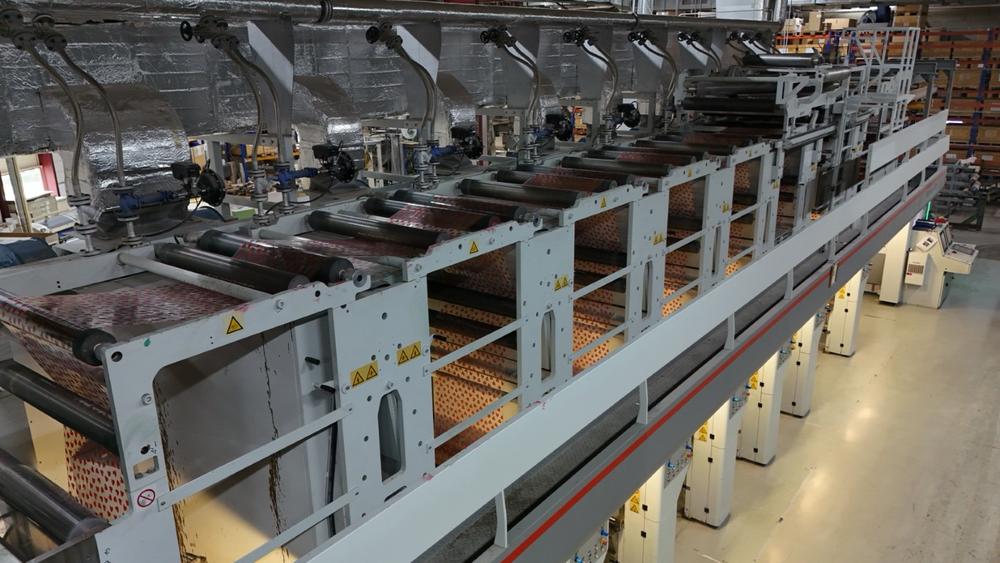

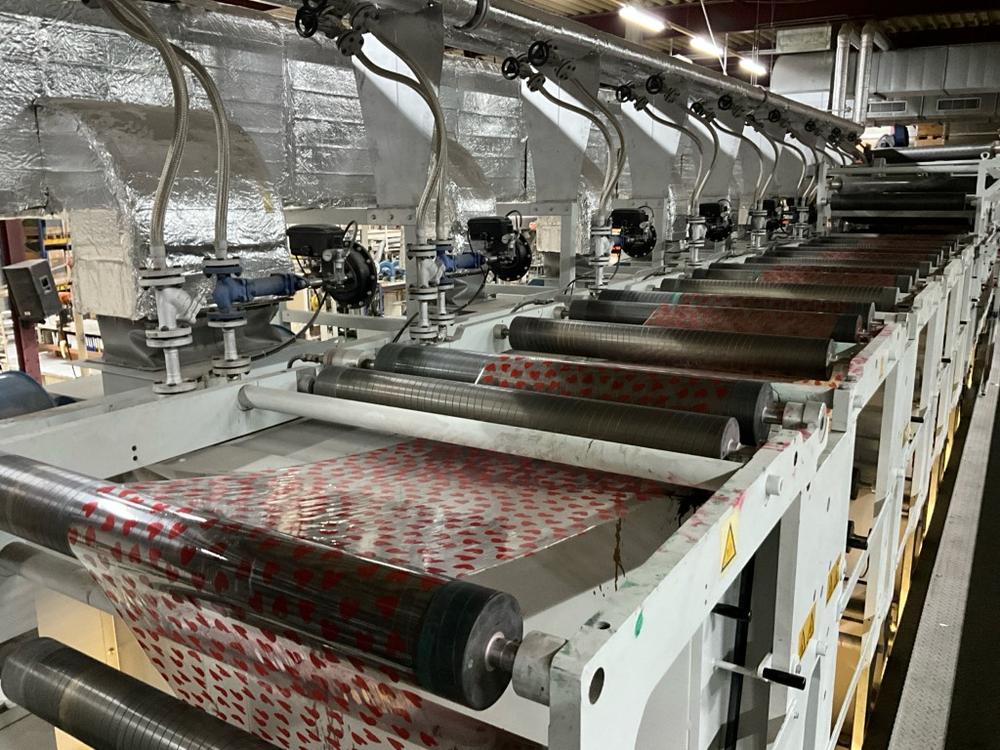

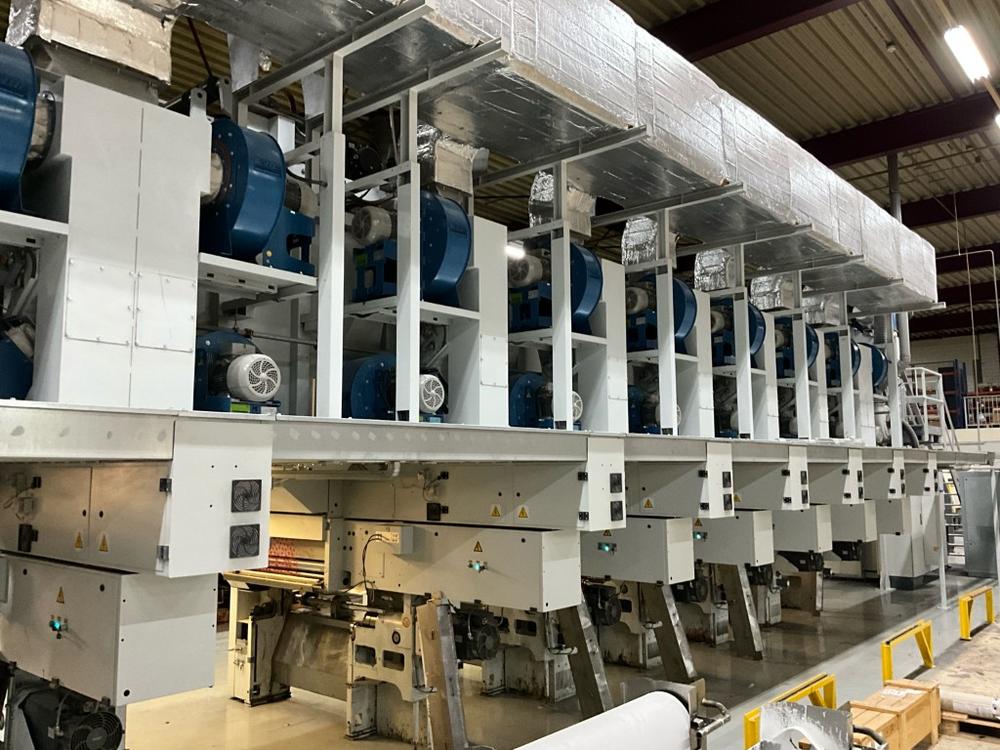

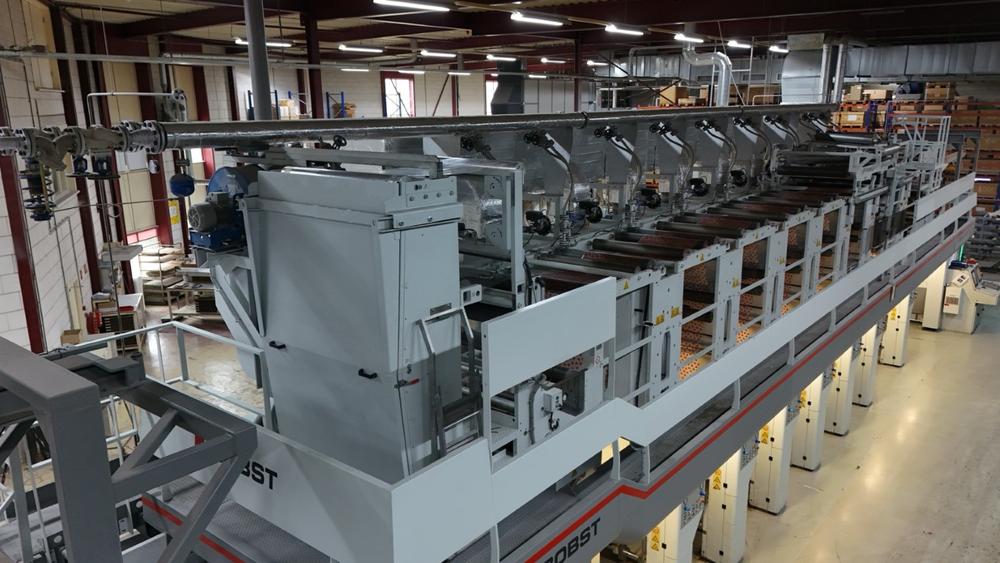

5. Drying units:
Amount: 7
Type: 2x 2v2200 (station 1 & 7), 5x v2200 (station 2-6)
Type 2v2200:
Number of zones: 2
Web path trough dryer: 4400 mm
Air flow rate: 134 nm3/min
Amount of slot nozzles: 20
Max. Air temperature: 140 °C
Air velocity: 35 m/s
Thermal power: 216.500 kCal/h
Type v2200:
Number of zones: 1
Web path trough dryer: 2200
Air flow rate: 67 Nm3/min
Amount of slot nozzles: 10
Max. Air temperature: 140 °C
Air velocity: 35 m/s
Thermal power: 108.200 kCal/h

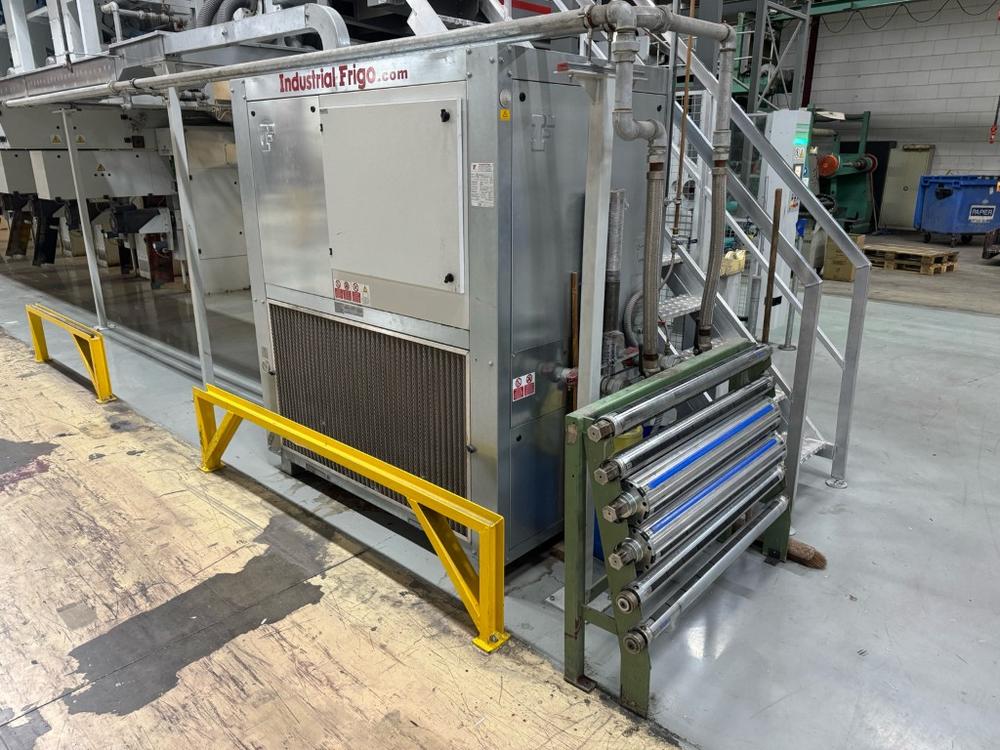

Chill rolls diameter: 163 mm
Chill rolls material: aluminium
Chill rolls water flow rate: 1000 l/h
8. Out-feed tension nip
Roll material: chrome plated
Controlled trough: dancer roller
9. Rewinder
Type: AV320 HS
Equipped with: cut-off raster knives
Maximum reel diameter: 1020 mm
Web tension range: 4-50 daN
Maximum reel weight: 2000 kg
i.C.D.: 76 & 152 mm
Maximum core length: 1050 mm
Core material: cardboard
10. Additional equipment

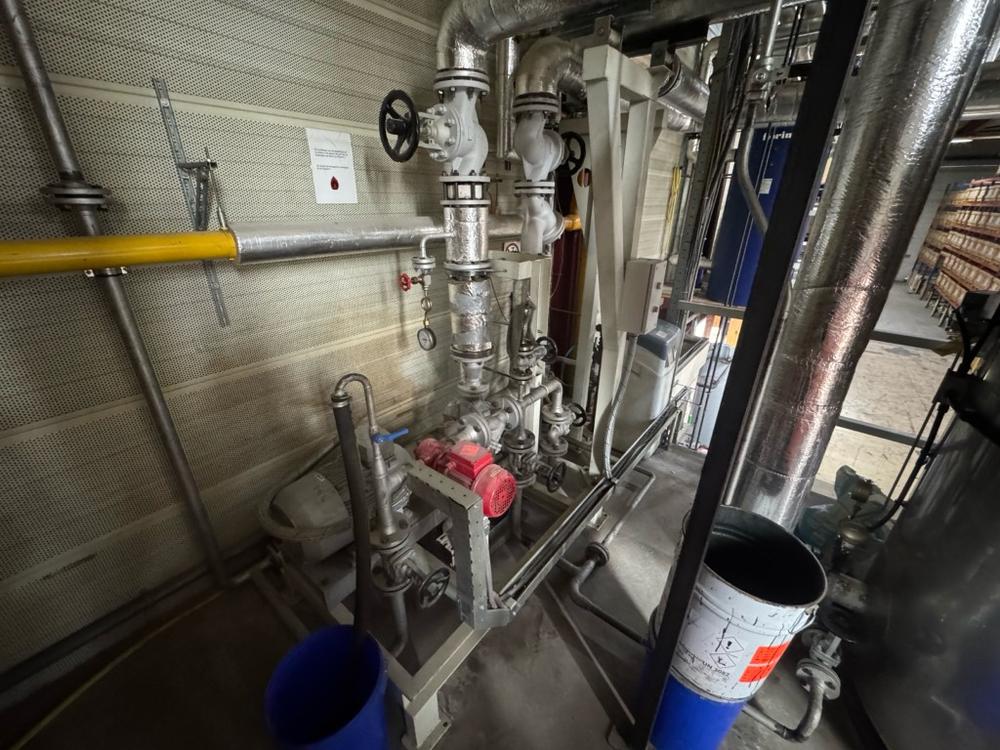

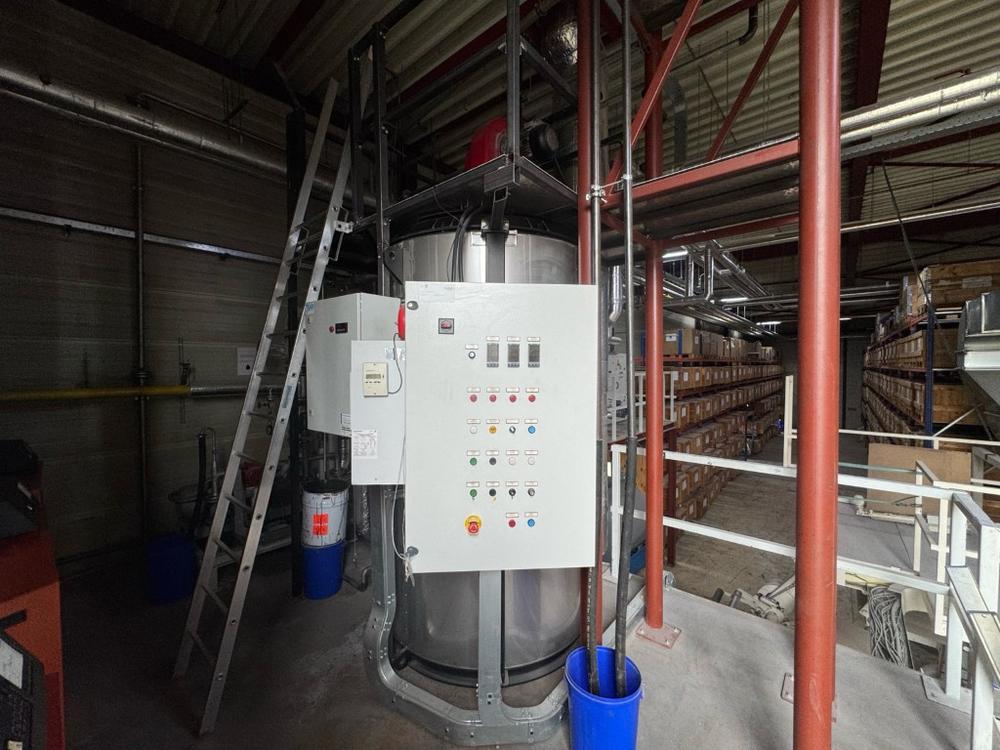

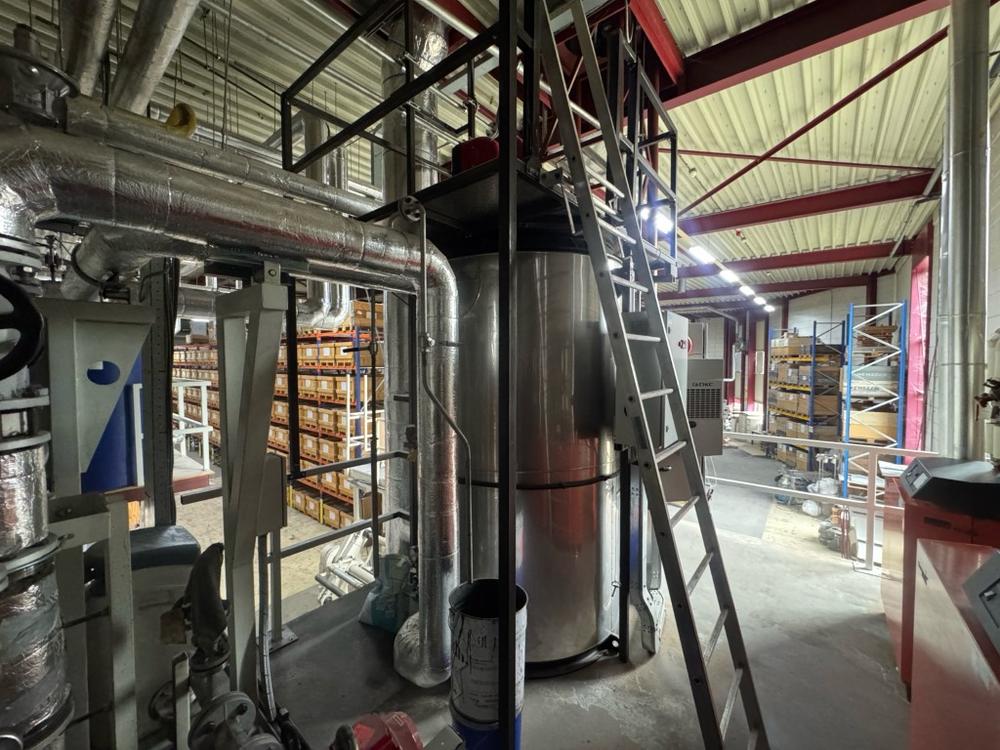

Heating:
Medium: thermal oil
Pressure: 3-3.5 bar
Min. Temperature: 230°C

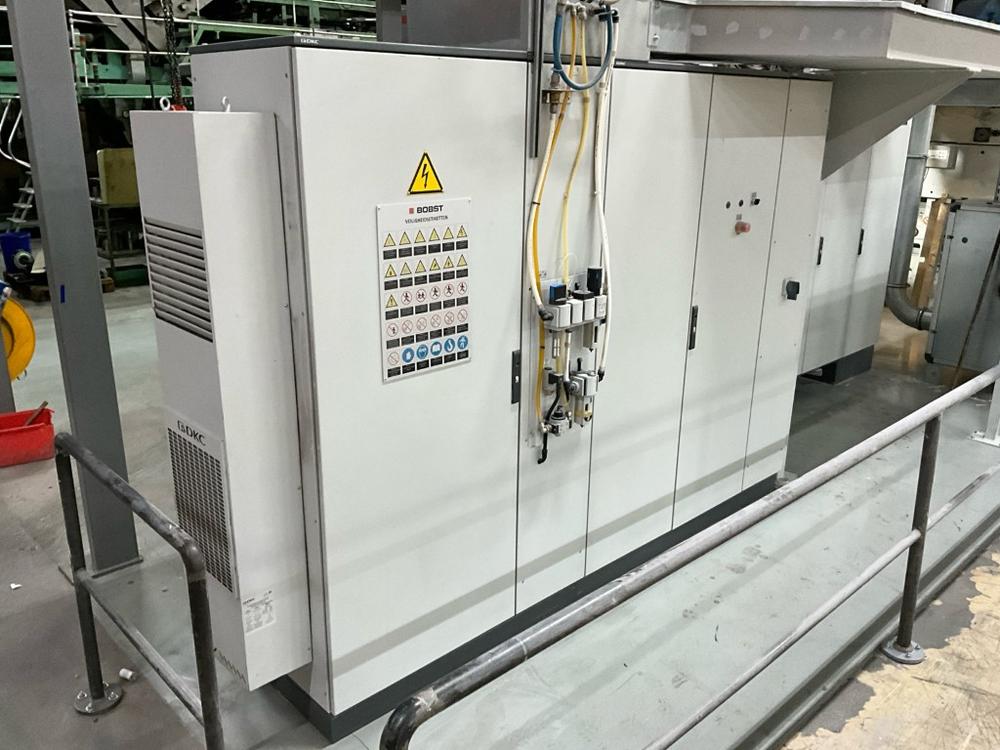

Power supply: 400V
Compressed air pressure: min. 6 bar (machine), min. 20 bar (rotosleeve line)
Kombination
Detta objekt är en del av en kombination: A | Combination 2015 Bobst Rotomec 4003 with spare parts (1, 125-138, 141, 142, 146, 147)
