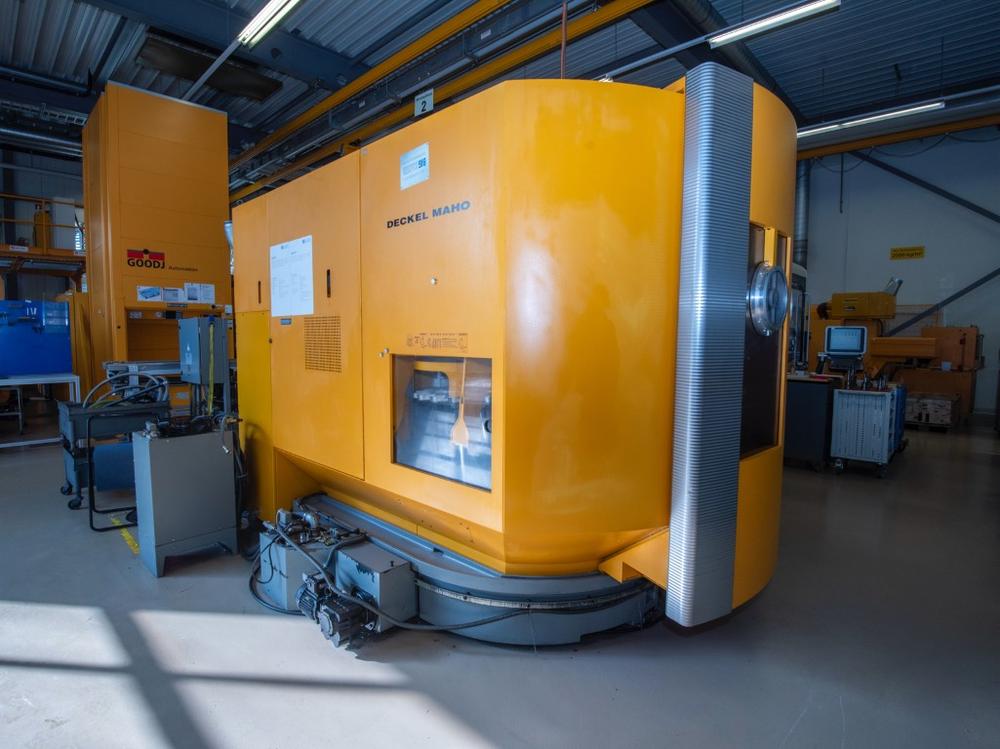

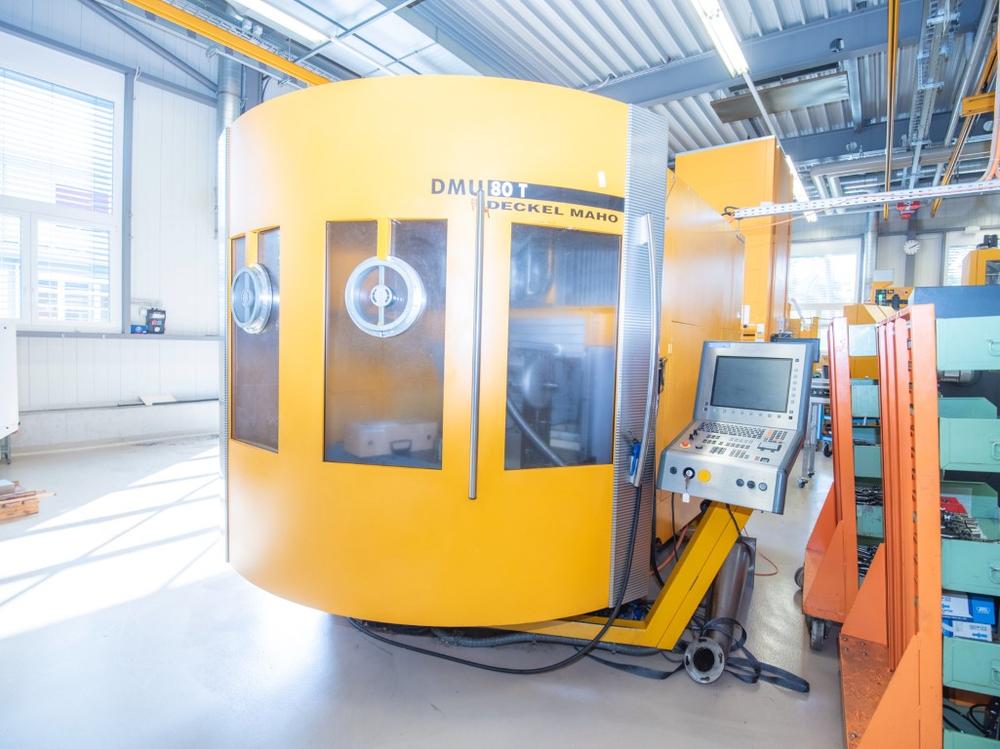

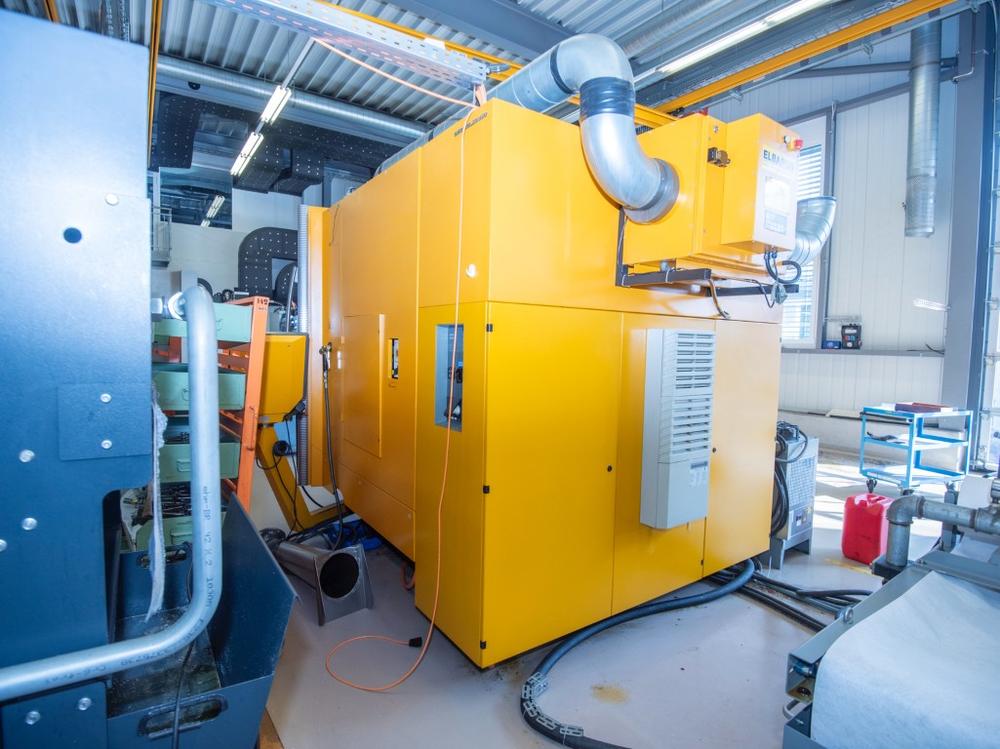

16 - 2003 Deckel Maho DMU 80T 2003 Deckel Maho DMU 80T CNC machining center
Rümlang | CH
Startbud
Nuvarande bud
Slutbud
22 500,00 €
0
Bud
Bud
Högsta budgivare
Överbjuden
Mitt senaste bud: 0,00 € (Autobud)
Dela:
Produktinformation
| Märke | Deckel Maho |
| Type | DMU 80T |
| Year | 2003 |

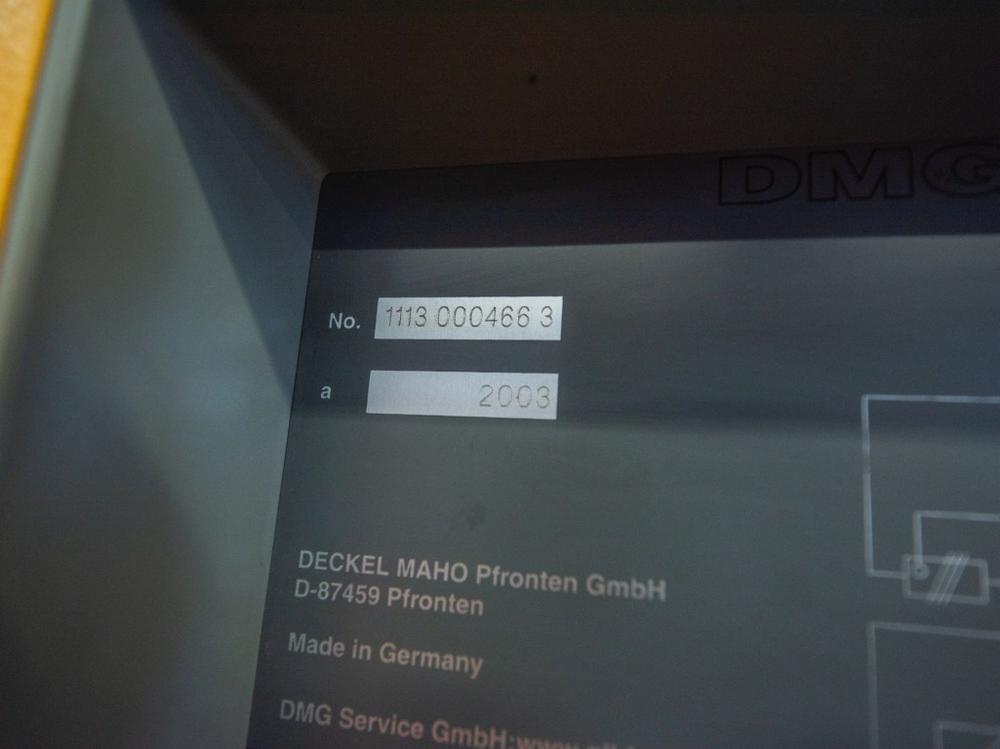

| Serial number | 11130004663 |
| Amount | 1 |
Power on hours: 5433
X-Axis Travel: 880 mm
Y-Axis Travel: 630 mm
Z-Axis Travel: 630 mm
Table Dimensions: 1250 mm x 700 mm

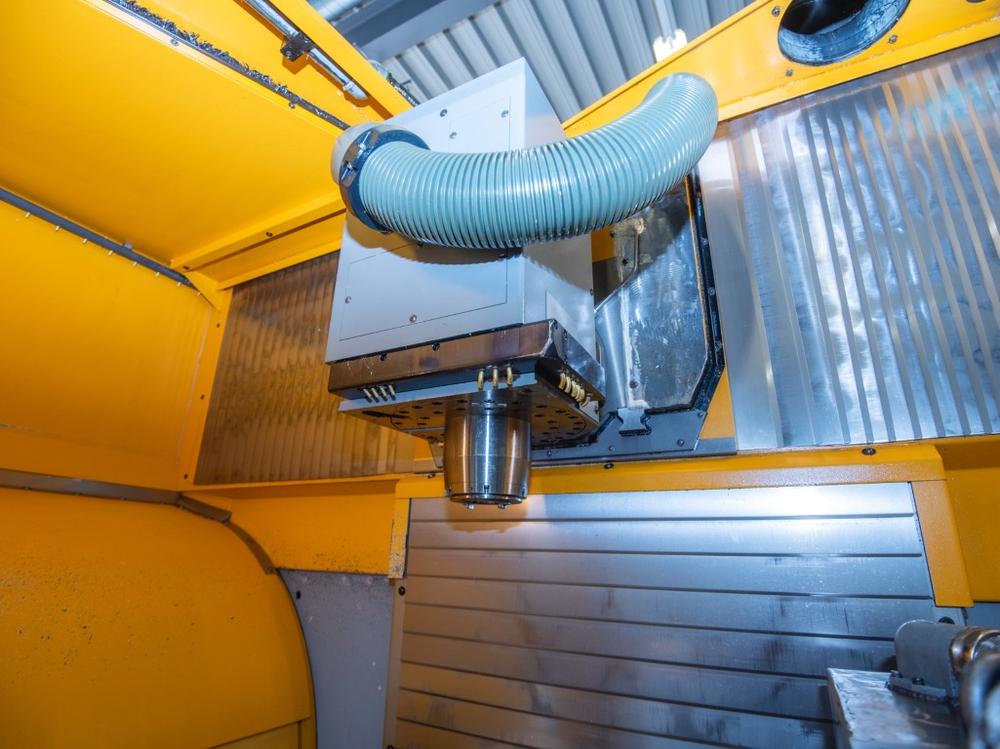

Spindle Speed Range: Up to 10,000 rpm
Spindle Motor Power: 25 kW

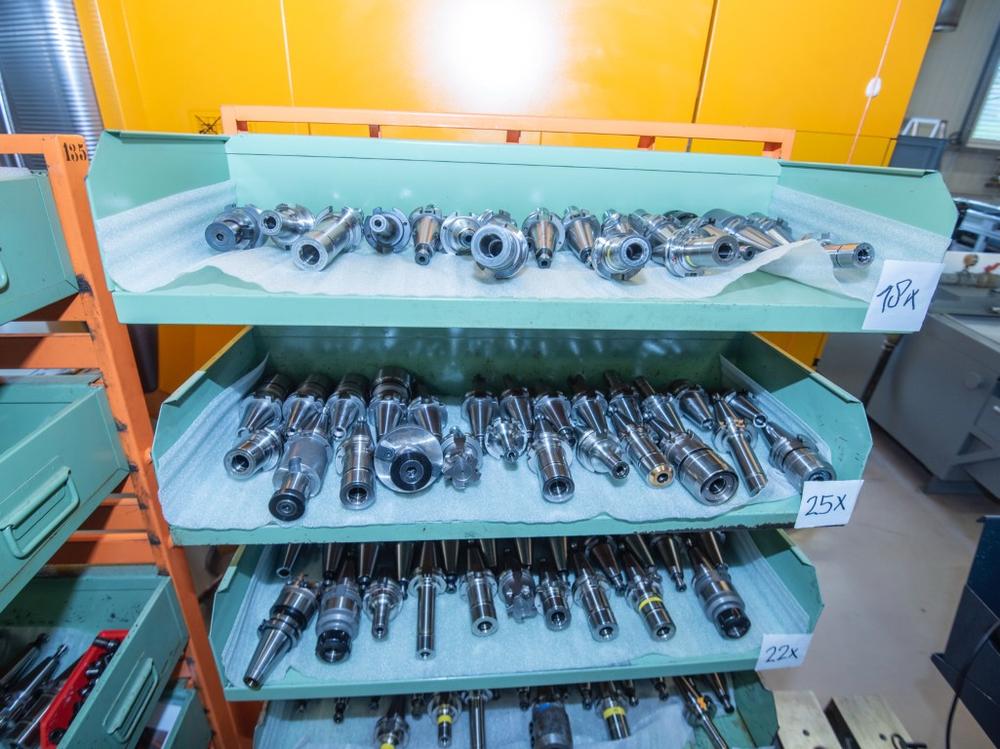

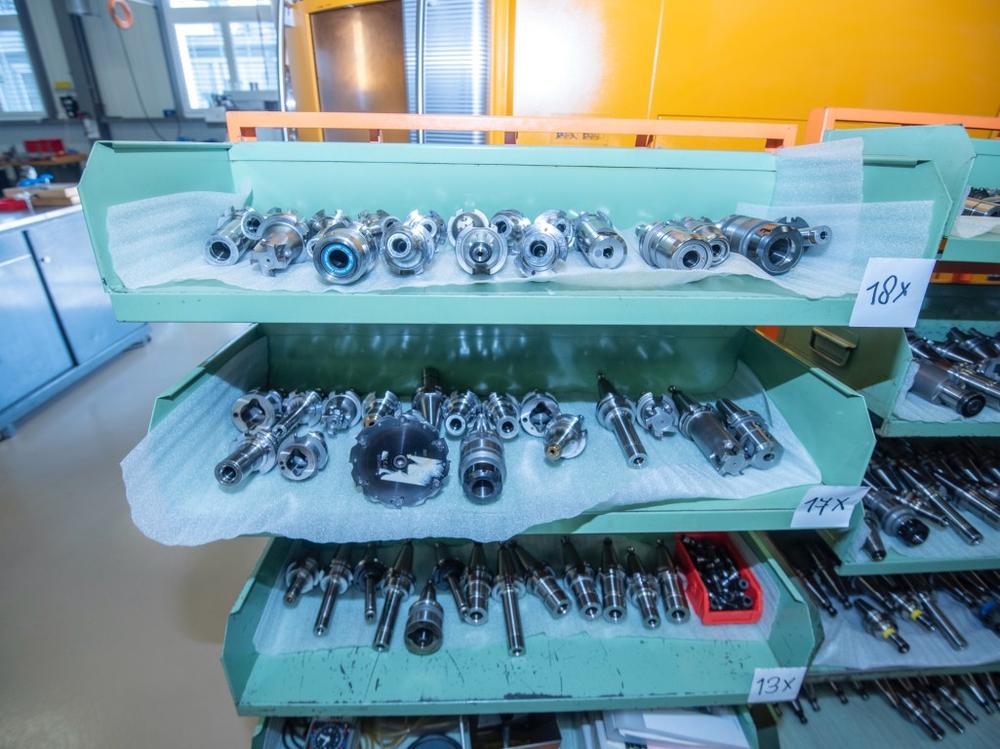

Tool Taper: SK40 Big plus
Tool Magazine: 1
Number of Tool Positions: 16
Maximum Tool Diameter: 130mm
Maximum Tool Length: 315 mm
Maximum Tool Weight: 8 kg
Tool Magazine: 2
Number of tool positions: 16
Maximum tool diameter: 80mm
Maximum tool length: 315 mm
Maximum tool weight: 8kg

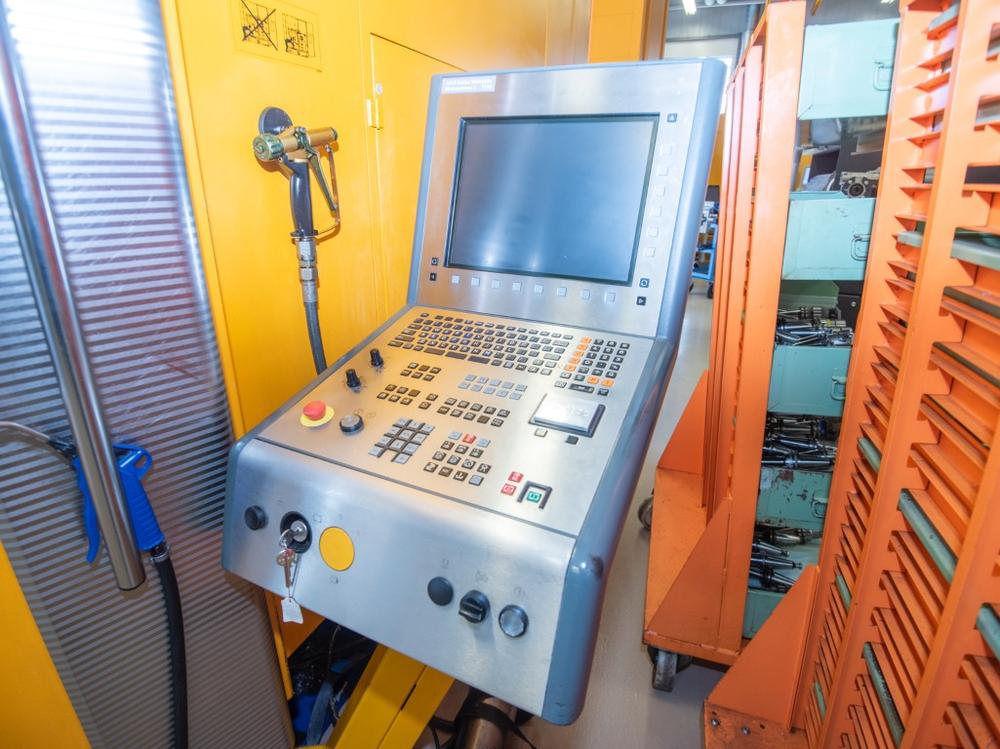

Control System: Heidenhain TNC 530i
Approximate Dimensions (L x W x H): 3950 mm x 2900 mm x 2500 mm
Weight: Approximately 8800 kg

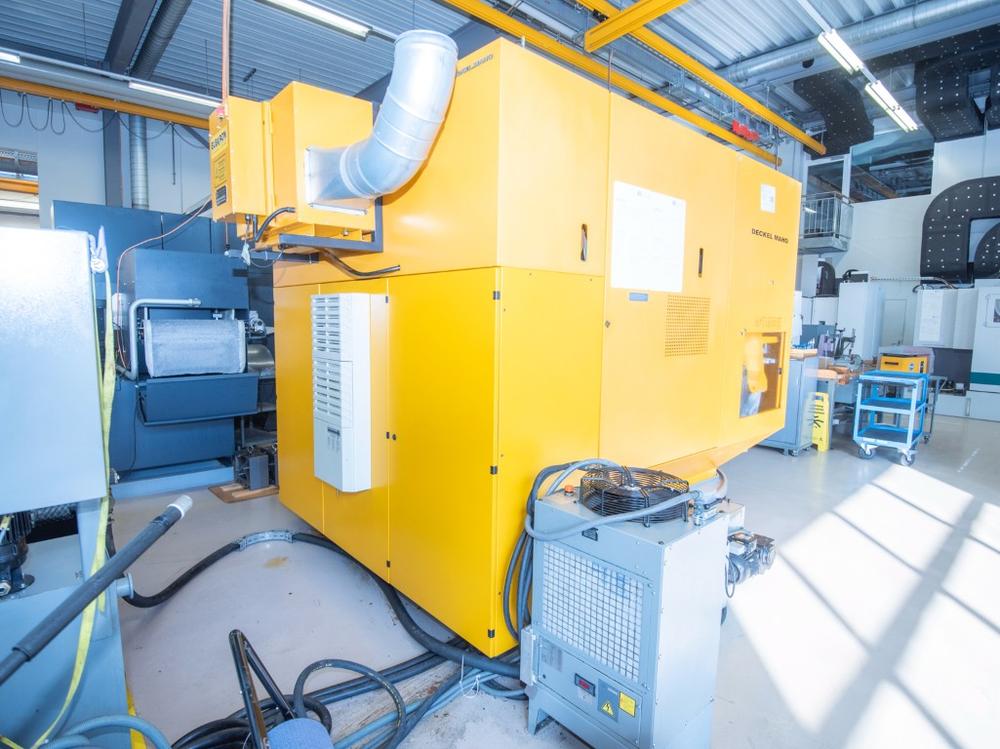

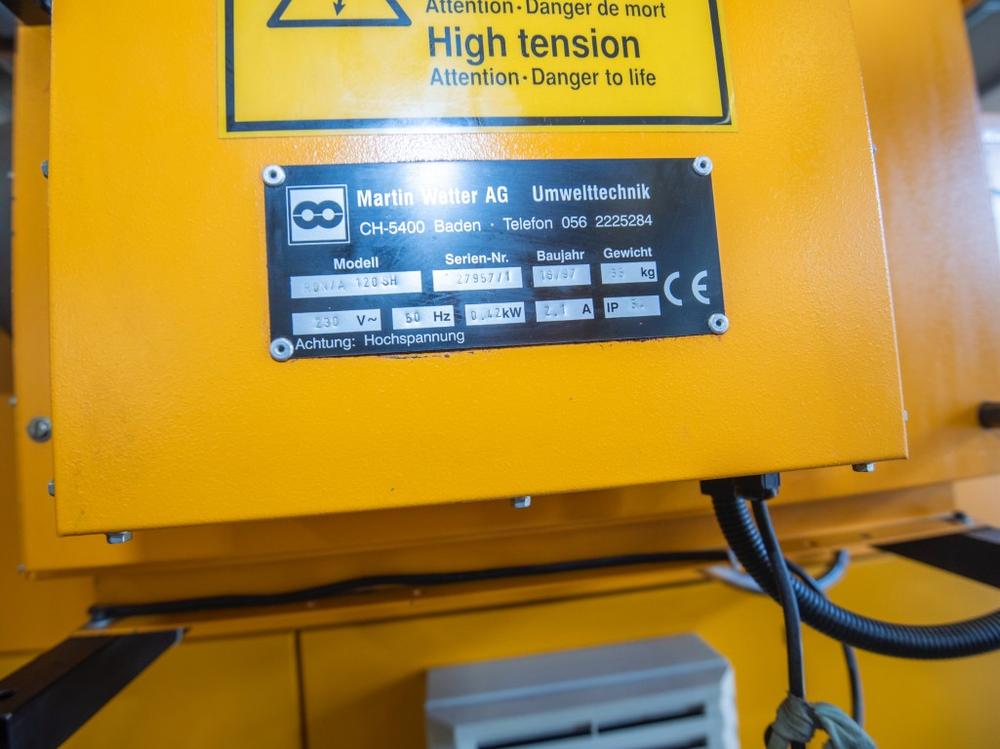

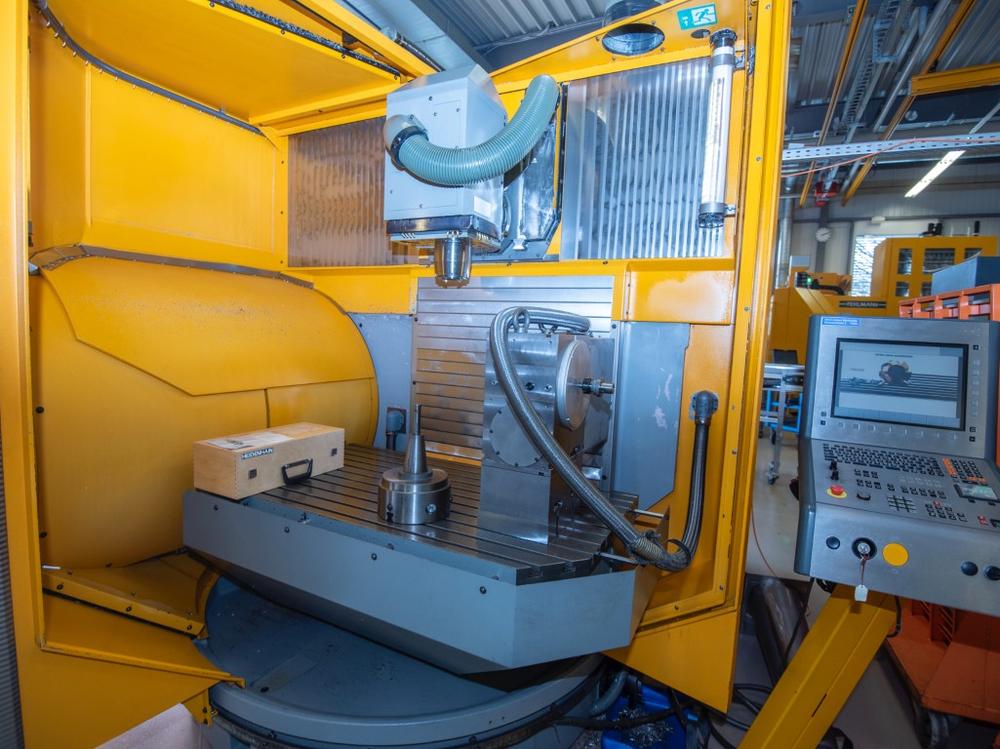

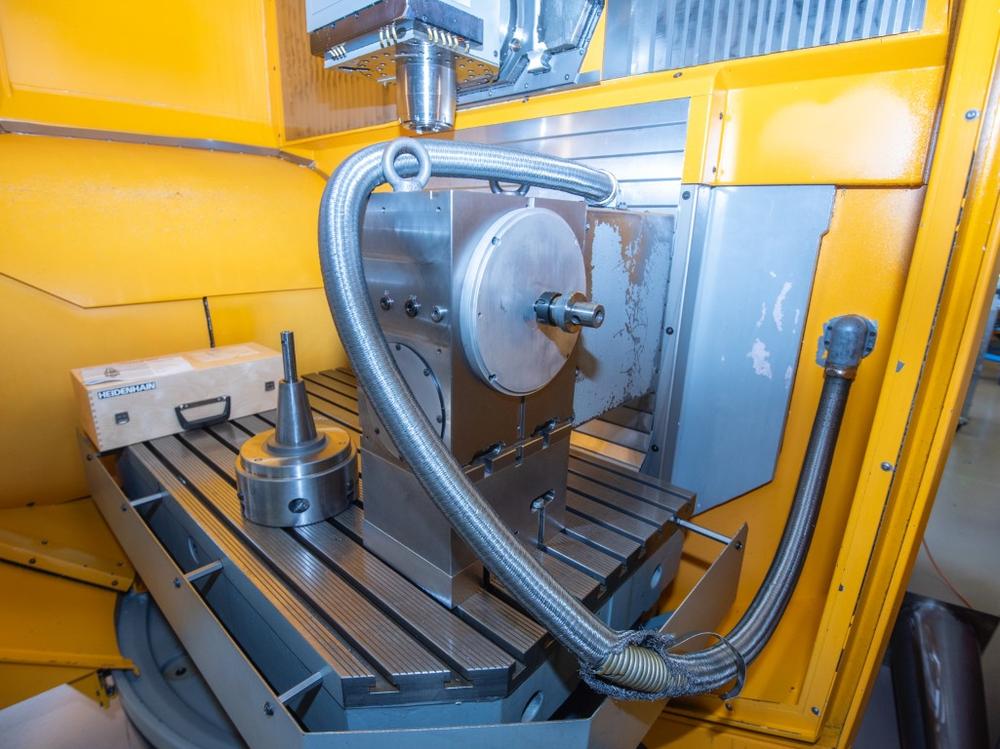

Equipped with: Hofmann RW/NC-220 SK50 4e axis, , Interlit paper filter, Elreha cooler, Martin Wetter oil mist separator, 2x Rotoclear clear glass, documentation
