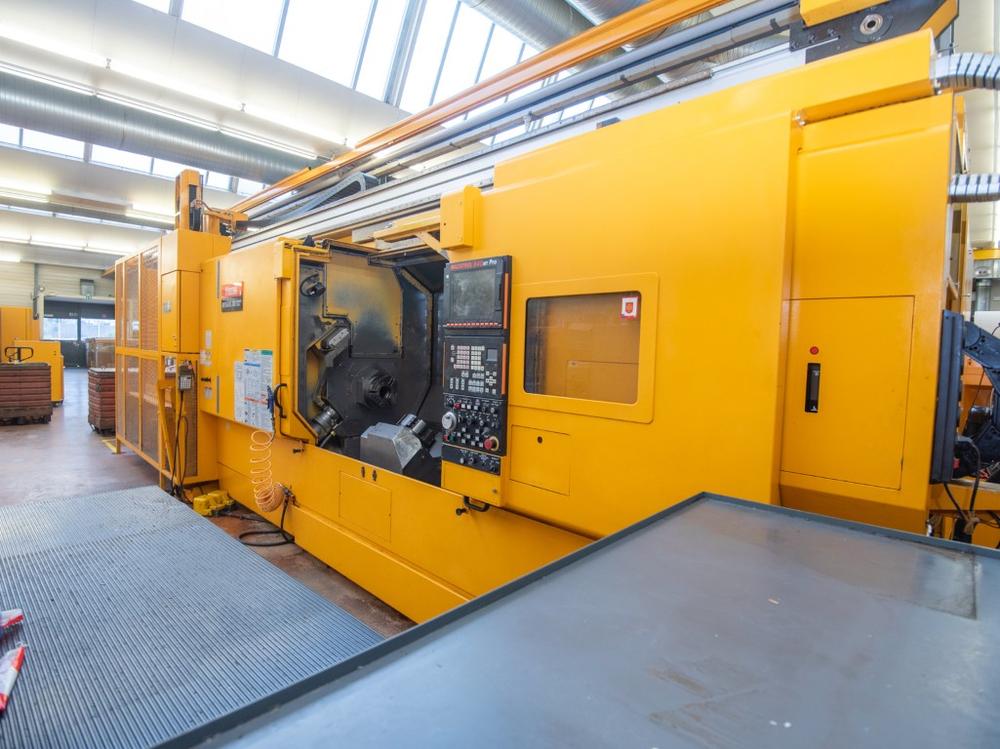

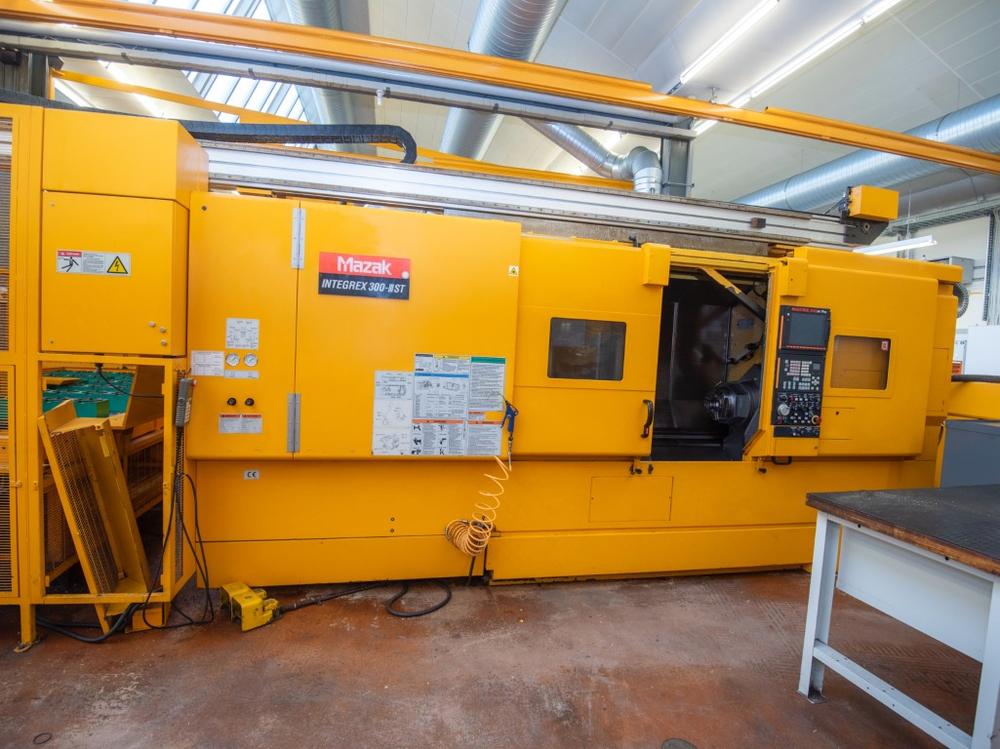

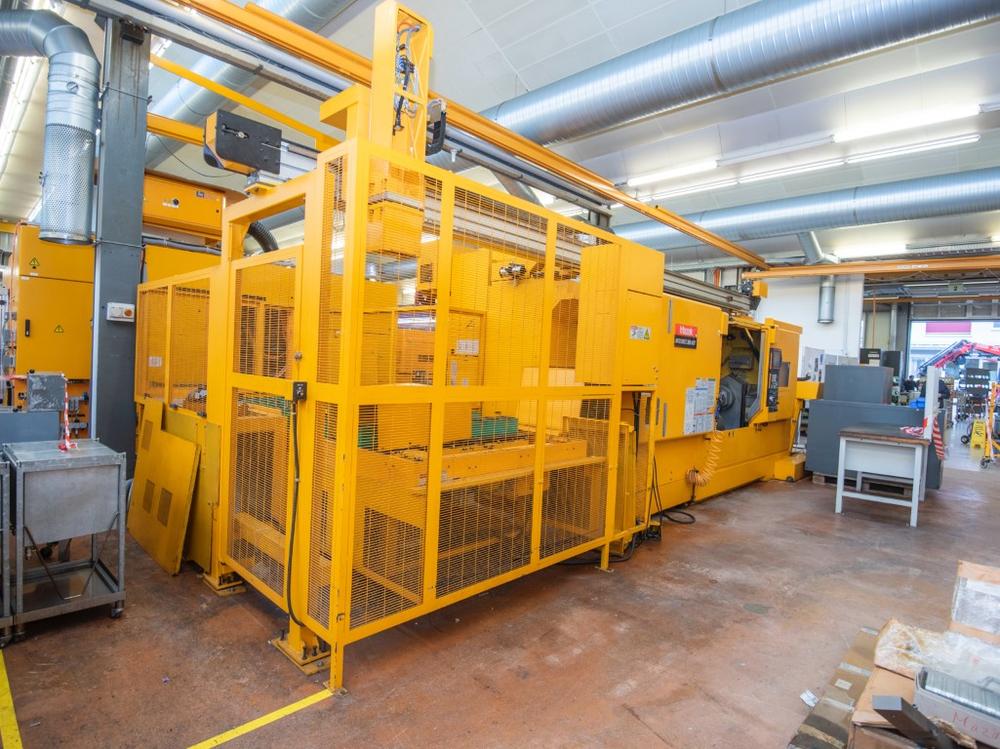

12 - 2005 Mazak Integrex 300-III 2005 Mazak Integrex 300-III ST CNC mill-turn center
Rümlang | CH
Startbud
Nuvarande bud
Slutbud
65 000,00 €
0
Bud
Bud
Högsta budgivare
Överbjuden
Mitt senaste bud: 0,00 € (Autobud)
Dela:
Produktinformation
| Märke | Mazak |
| Type | Integrex 300-III |
| Year | 2005 |
| Amount | 1 |
X1/X2-axis travel: 630/230mm
Y-axis travel: 230mm
Z1/Z2-axis travel: 1585/1530mm
W-axis travel: 1530mm
X1/X2/Y/Z1/Z2/W-axis rapid traverse: 38/38/26/38/38/30 m/min
Maximum working length: 1524mm
Maximum working diameter: 760mm
Main spindle speed: 35-4.000 rpm

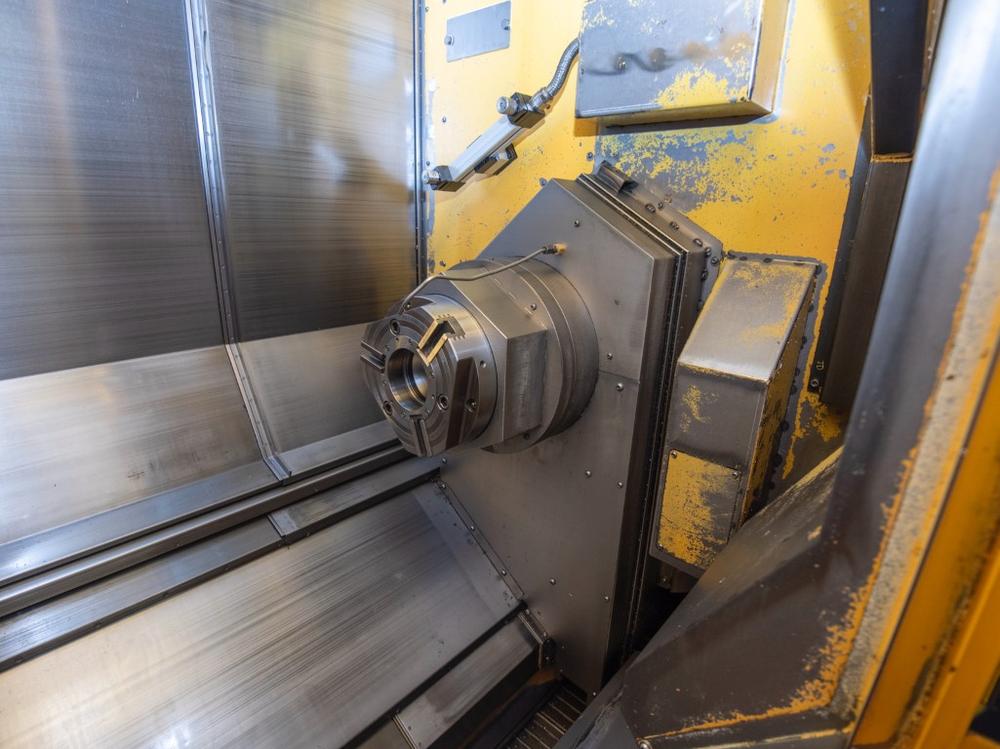

Sub spindle speed: 35-4.000 rpm
Main/sub spindle bore: 88mm
Main/sub spindle power: 26 kW
Milling spindle speed: 15-12.000 rpm
Milling spindle power: 18,5 kW
Toolholder type: C6
Positions in the toolmagazine: 80

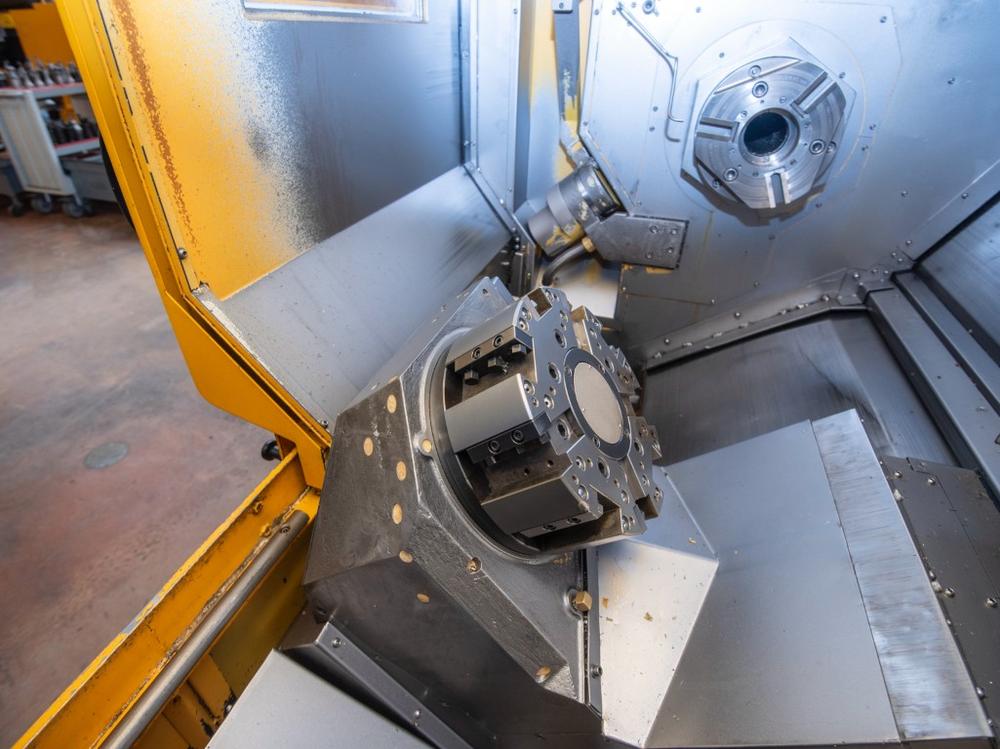

Positions on turret: 9

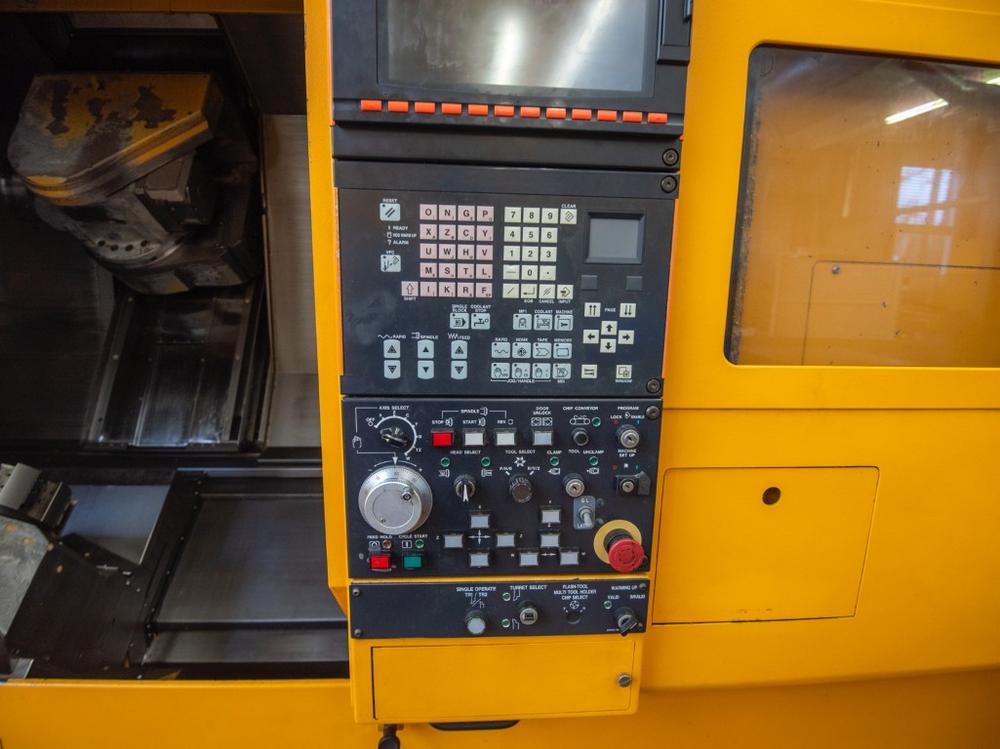

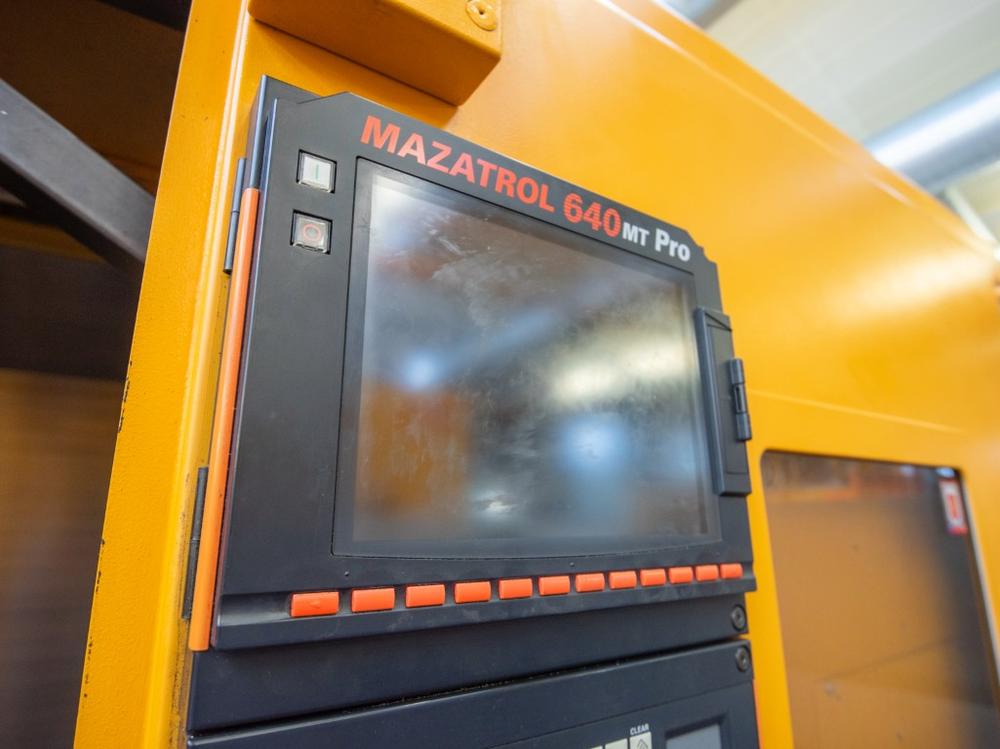

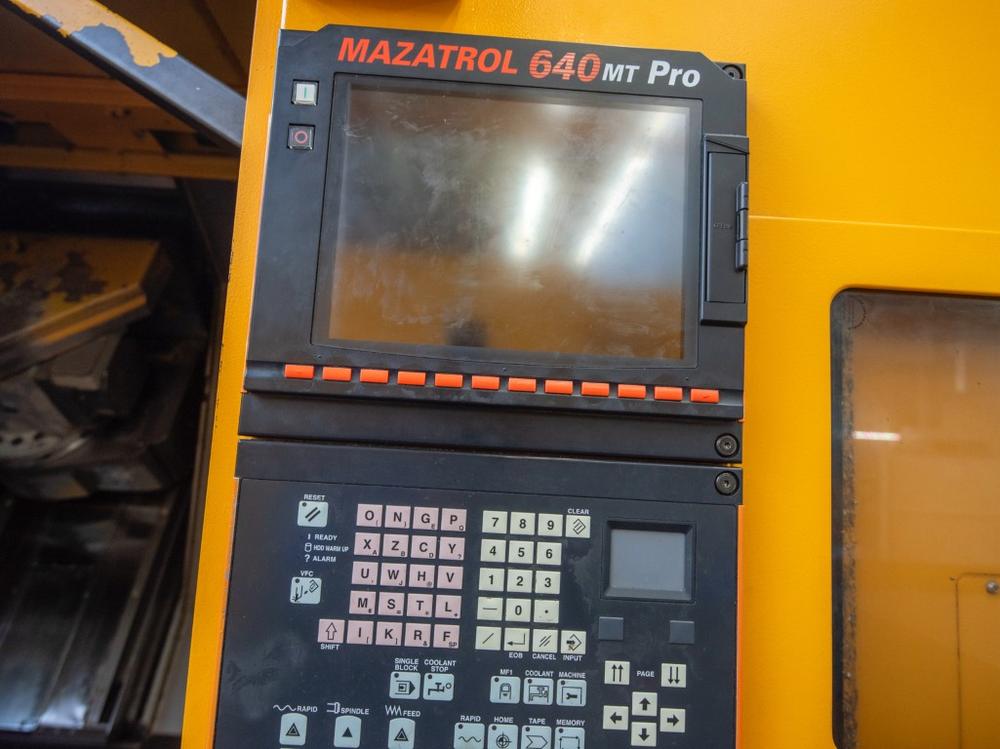

Control system: Mazatrol 640MT Pro

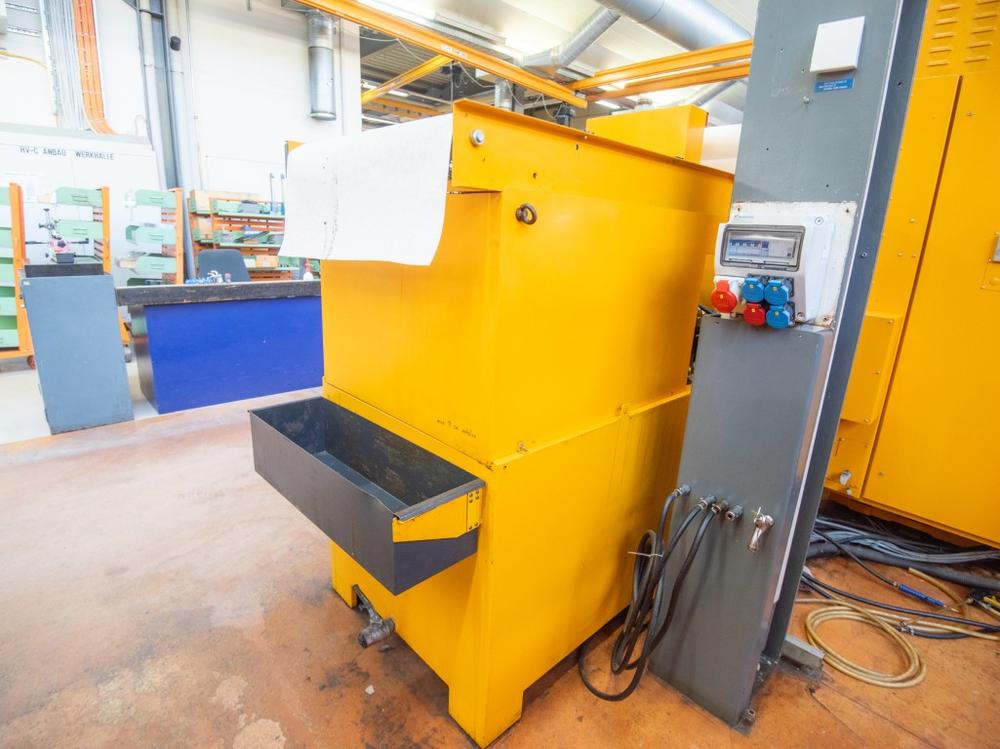

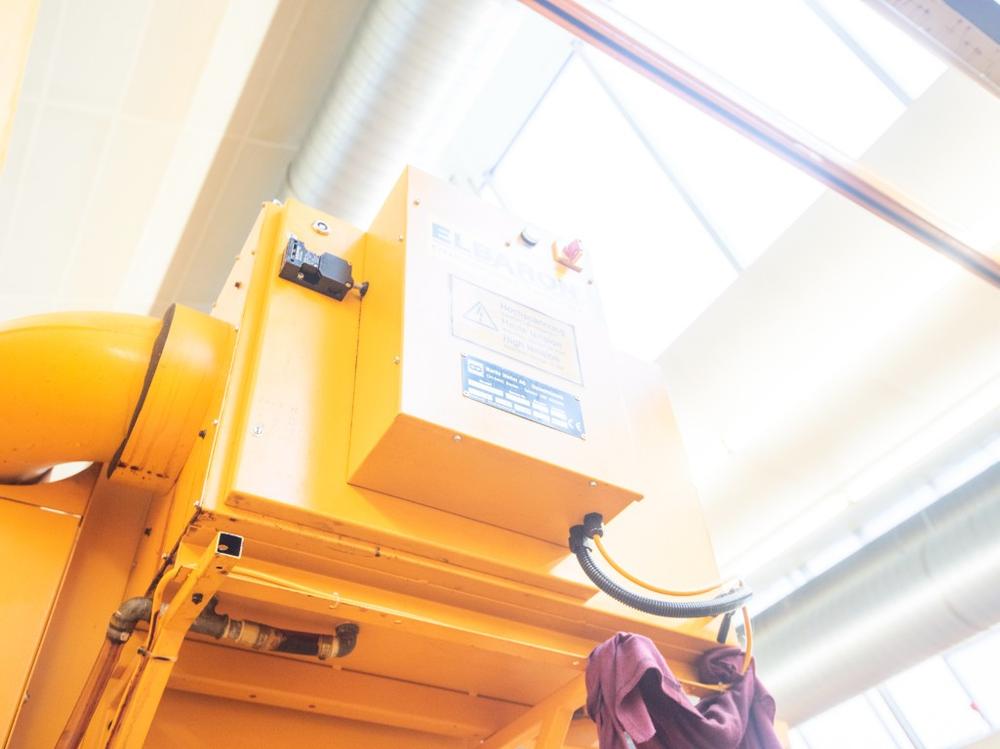

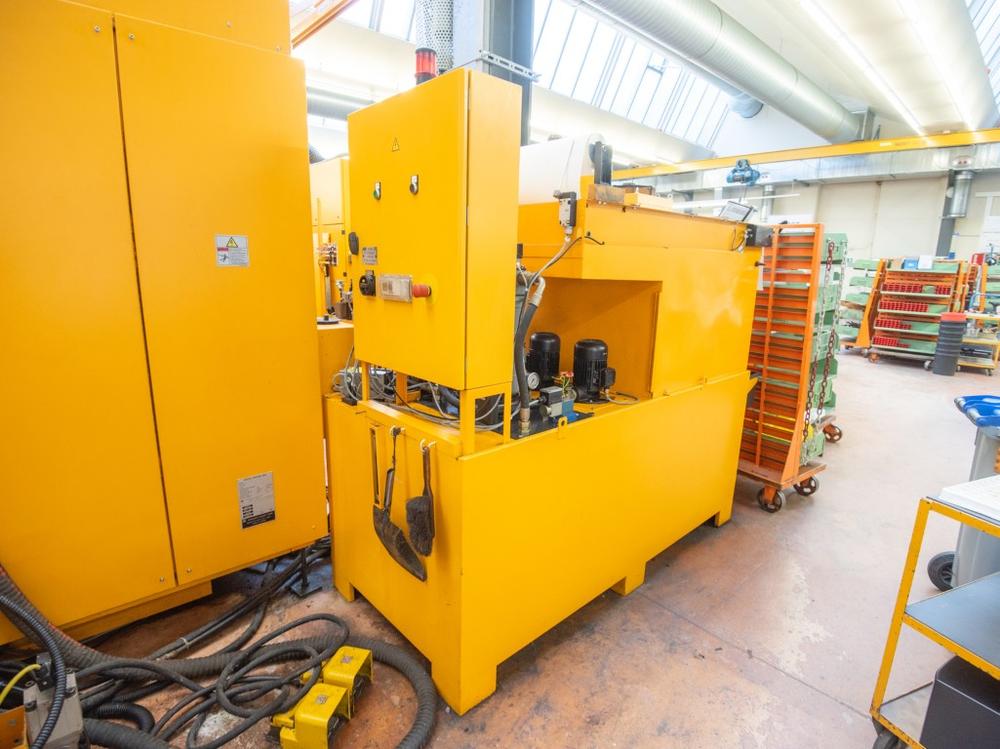

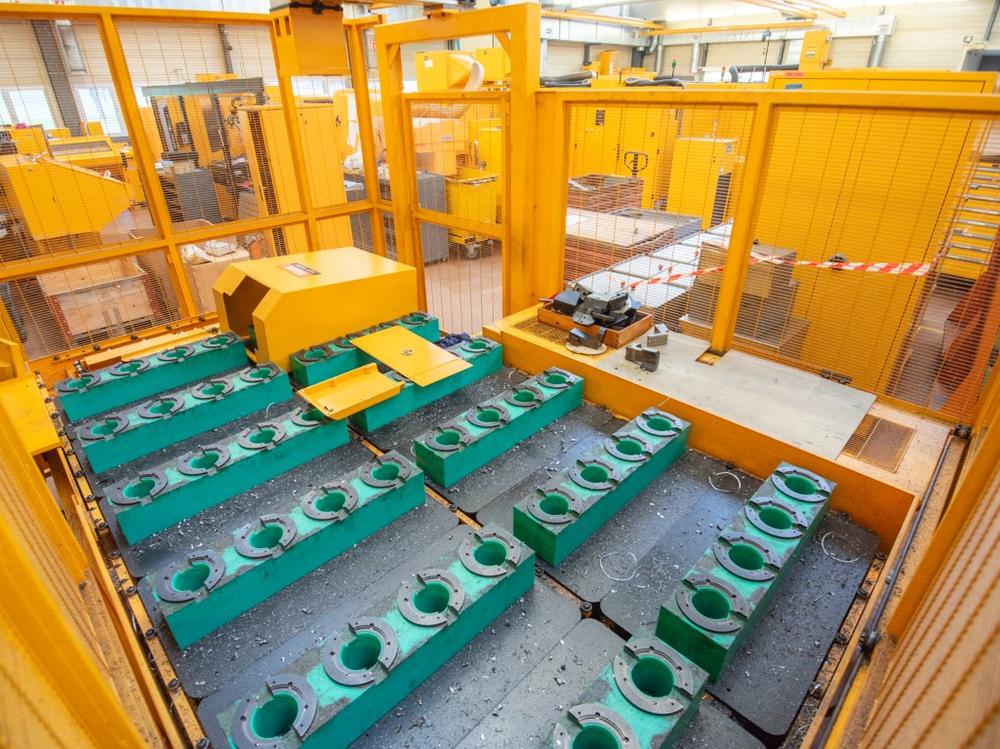

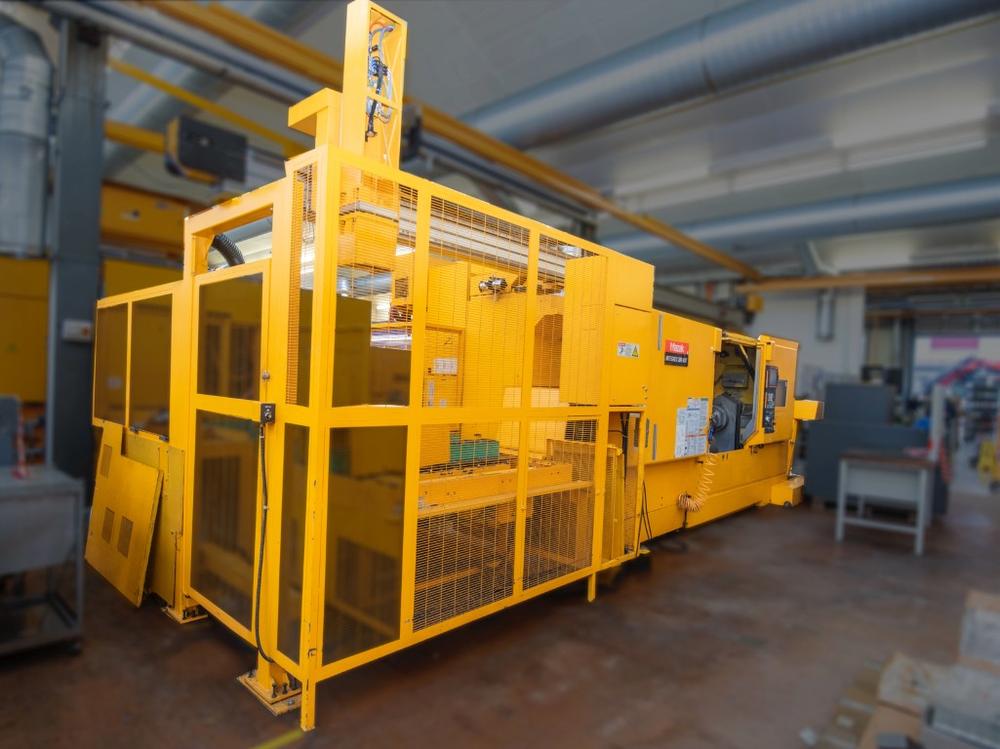

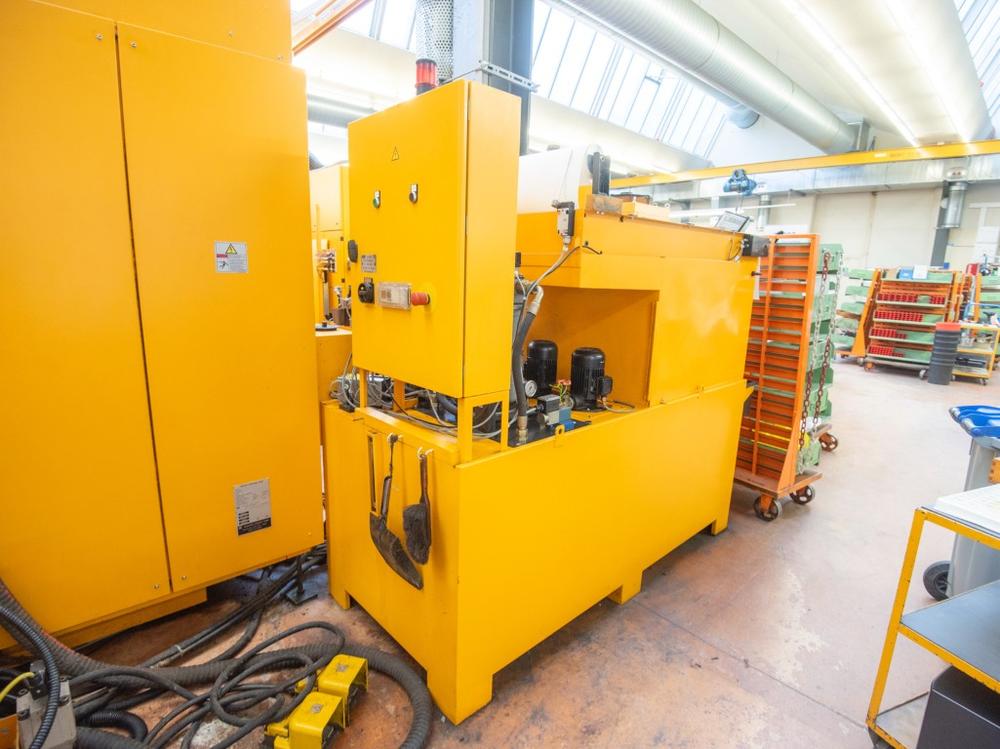

Equipped with: un-loading magazine, tool pre setter, Mayfran chip conveyor, paper filter, wetter oil mist separator, probe
