Informacje o produkcie
| Marka | NAKAMURA TOME |
| Ilość | 1 |
| Numer seryjny | 22220 V251403 |
| Rok | 2014 |
| Typ | Super NTMX |
5-axis machining center comprising:
- a NAKAMURA lathe, TYPE: NTMX, year: 2014, 5-axis dual-spindle + milling head.
- a SAMSYS+ bar feeder, Model: M3000, year: 2014
- an LNS YOSHIDA chip conveyor
Technical specifications:
- capacity: - max turning diameter: 200 mm
- Max turning length: 780 mm
- Distance between centers: max 980 mm / min 210 mm
- Bar capacity: 51 mm on both left and right
- Chuck size: 165 or 210 mm
- Axis travel:
- X1/X2 slide travel: 570 mm / 130.5 mm
- Z1/Z2/B2 slide travel: 1,297/658/770 mm
- Y-axis travel: ±100
- Left/right spindle:
- Speed: 5,000 rpm
- Tool spindle:
- Speed: 12,000 rpm
- Tool type: CAPTO C4
- Number of tools in magazine: 24
- Max. tool diameter: 60 mm
- Max. tool length: 180 mm
- Max. tool weight: 4 kg
- Indexing range: 190°

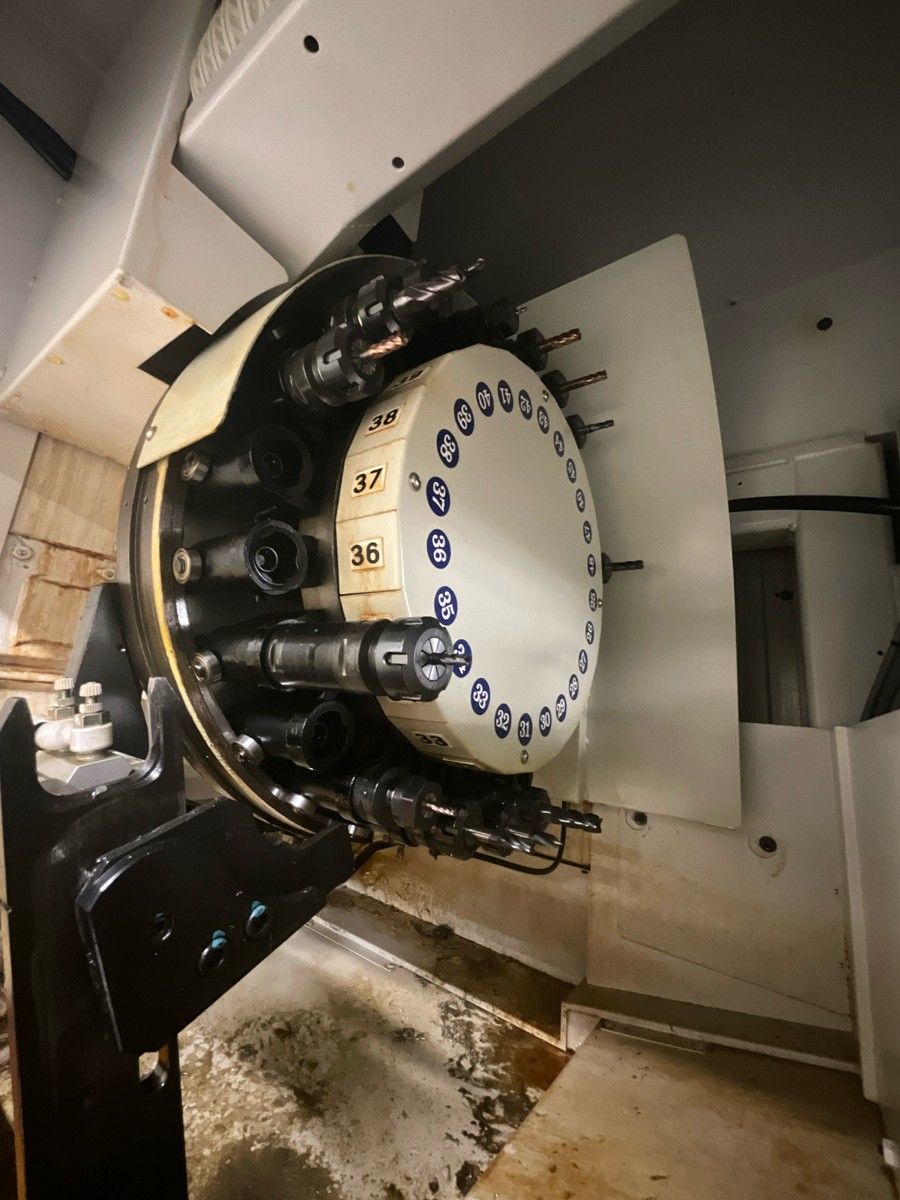

- Turret:
- Type: 12-sided drum turret
- Number of indexing positions: 24
- Square tool size: 20 mm
- Round tool size: 20 mm diameter
- Spindle speed: 6,000 min⁻¹
- Floor dimensions: L 4,225 mm x W 3,015 mm x H 2,650 mm
- Approximate machine weight: 14,500 kg
Hours on the counter: approximately 3,622 h
Sold with 1 cabinet and 2 workbenches, including contents
